1
3

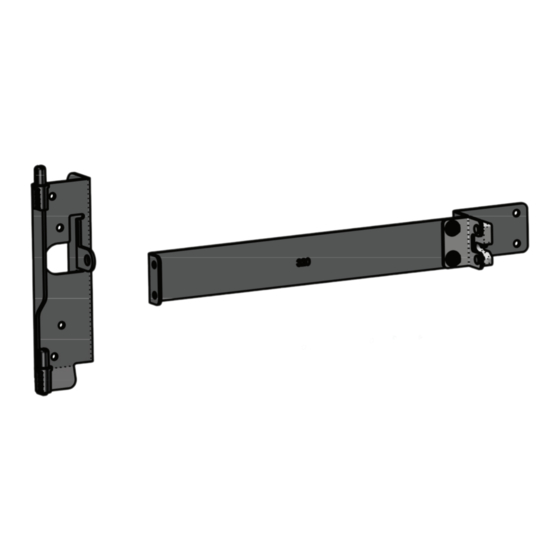

Hardware Included
1. Truck Bracket
2. Striker Bracket
3. Mounting Screws (qty 6)
4. Assembly Nuts (qty 2)
2

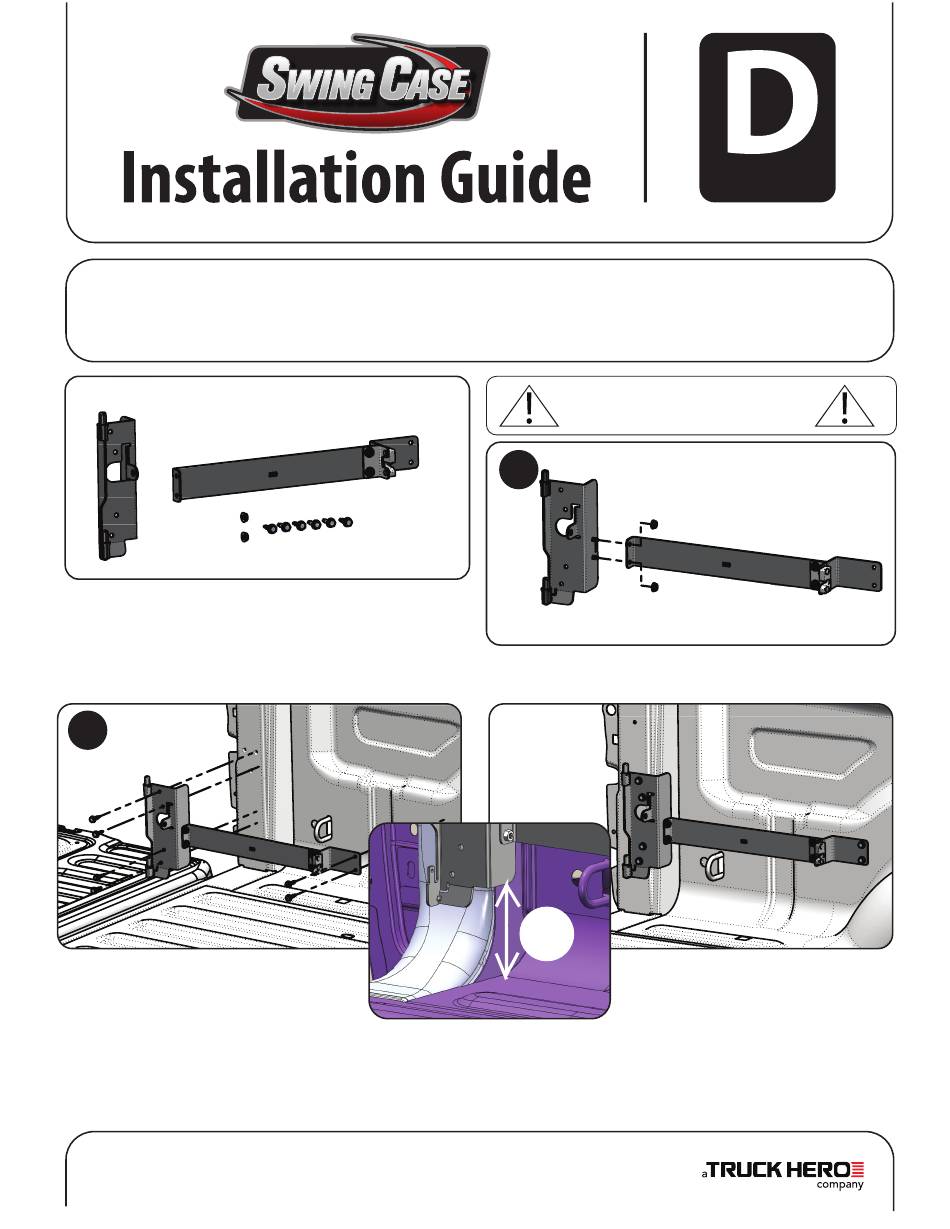

2. INSTALLING MOUNTING BRACKET ASSEMBLY - Position the bracket to the light well/wheel
well area. Position the bottom of the bracket 4" from the bed floor as shown in the inset photo.
Using the six (6) self drilling screws provided, attach the bracket to the truck . Be careful not to
overtighten and strip out the holes.
SC302D_Install
Modified July 2021
Part Number - SC302D
SC302D - Drivers Side
Ram 2019 - Current
2
4
1. BRACKET ASSEMBLY - Attach the striker bracket to
the truck bracket using the two (2) assembly nuts.
Will Not Fit Rambox &
3500 Models
1
4"
SC302D
Advertisement
Table of Contents
Related Manuals for Swing Case SC302D
Summary of Contents for Swing Case SC302D
- Page 1 SC302D SC302D - Drivers Side Ram 2019 - Current Will Not Fit Rambox & 3500 Models Hardware Included 1. Truck Bracket 2. Striker Bracket 1. BRACKET ASSEMBLY - Attach the striker bracket to 3. Mounting Screws (qty 6) the truck bracket using the two (2) assembly nuts.
- Page 2 3. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 4. OPERATION AND ADJUSTMENT Pull the latch rod and swing through the full motion making sure it operates freely and latches easily. Do not slam the box to stow it, if it will not latch easily it may be necessary to make some minor adjustments.
- Page 3 Pivot Lock Installation Insert the supplied pivot lock at an angle in between the lower tab and the top of the lower pivot bushing. While pushing upward on the pivot lock, rotate the pivot lock into position over the top over the lower pivot bushing.
- Page 4 • Read instructions completely before installing your Swing Case to your truck. • The Swing Case is designed for trucks that do not have a bedliner (spray in bedliners pose no problem). Trucks that do have plastic drop in bedliners or Bed Rugs will require some trimming of the liner to ensure proper t of the brackets.
- Page 5 ONLY USE CLEANERS, WAXES OR PRODUCTS THAT ARE LABELED “Safe for use on plastics. ” Do not let chemicals or substances come into contact with your Swing Case, unless labeled “safe for plastics. ” Avoid use of all abrasive type cleaners as they may dull the nish. Be sure that products such as OFF®...
