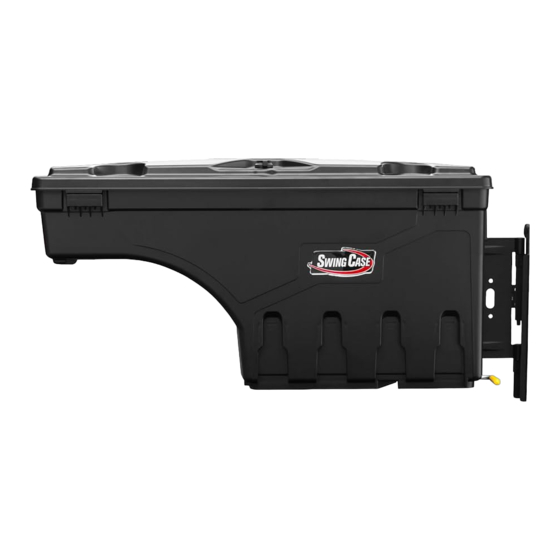

Swing Case SC304D Installation Manual

Drivers side 2020-c jeep gladiator jt

Table of Contents

Download this manual

2020-C Jeep Gladiator JT

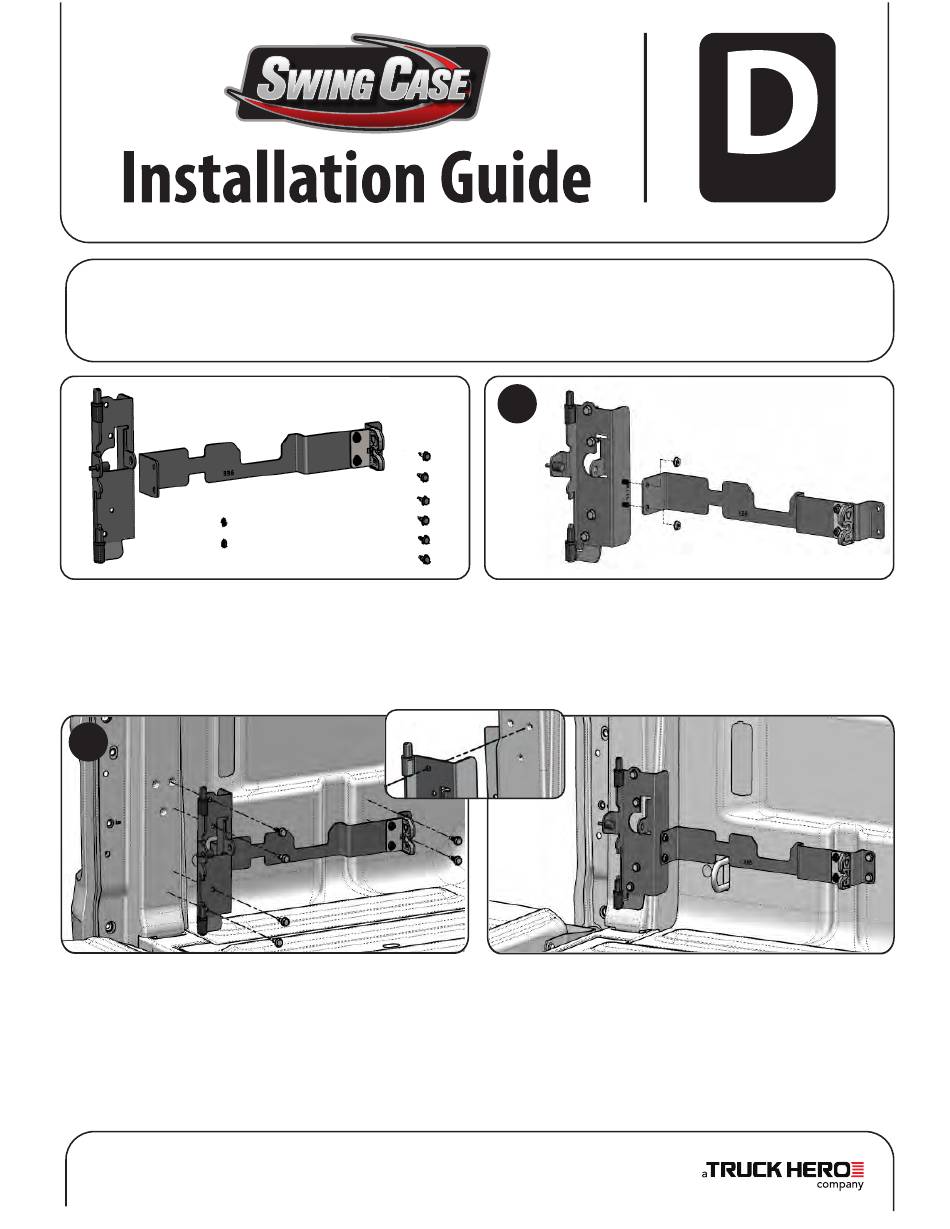

Hardware Included

1. Truck Bracket

2. Striker Bracket

3. Mounting Screws (qty 6)

4. Assembly Nuts (qty 2)

2. INSTALLING MOUNTING BRACKET ASSEMBLY - Position the bracket to the light well/wheel

well area. Position the top of the bracket as shown in the inset photo ( referencing the top hole

in the bracket and the top inset dimple on the light well ). Using the six (6) self drilling screws

provided, attach the bracket to the truck. Be careful not to overtighten and strip out the holes.

SC304D_Install

Created June 2019

Part Number - SC304D

SC304D - Drivers Side

1. BRACKET ASSEMBLY - Attach the striker

bracket to the truck bracket using the two (2)

assembly nuts.

SC304D

Table of Contents

Do you have a question about the SC304D and is the answer not in the manual?

Page 1 SC304D SC304D - Drivers Side 2020-C Jeep Gladiator JT Hardware Included 1. BRACKET ASSEMBLY - Attach the striker 1. Truck Bracket bracket to the truck bracket using the two (2) assembly nuts. 2. Striker Bracket 3. Mounting Screws (qty 6) 4.
Page 2 3. INSTALLING SWING CASE Lower the box onto the hinge pins and gently push the box to the stowed position. 4. OPERATION AND ADJUSTMENT Pull the latch rod and swing through the full motion making sure it operates freely and latches easily. Do not slam the box to stow it, if it will not latch easily it may be necessary to make some minor adjustments.
Page 3 • Read instructions completely before installing your Swing Case to your truck. • The Swing Case is designed for trucks that do not have a bedliner (spray in bedliners pose no problem). Trucks that do have plastic drop in bedliners or Bed Rugs will require some trimming of the liner to ensure proper t of the brackets.
Page 4 ONLY USE CLEANERS, WAXES OR PRODUCTS THAT ARE LABELED “Safe for use on plastics. ” Do not let chemicals or substances come into contact with your Swing Case, unless labeled “safe for plastics. ” Avoid use of all abrasive type cleaners as they may dull the nish. Be sure that products such as OFF®...
