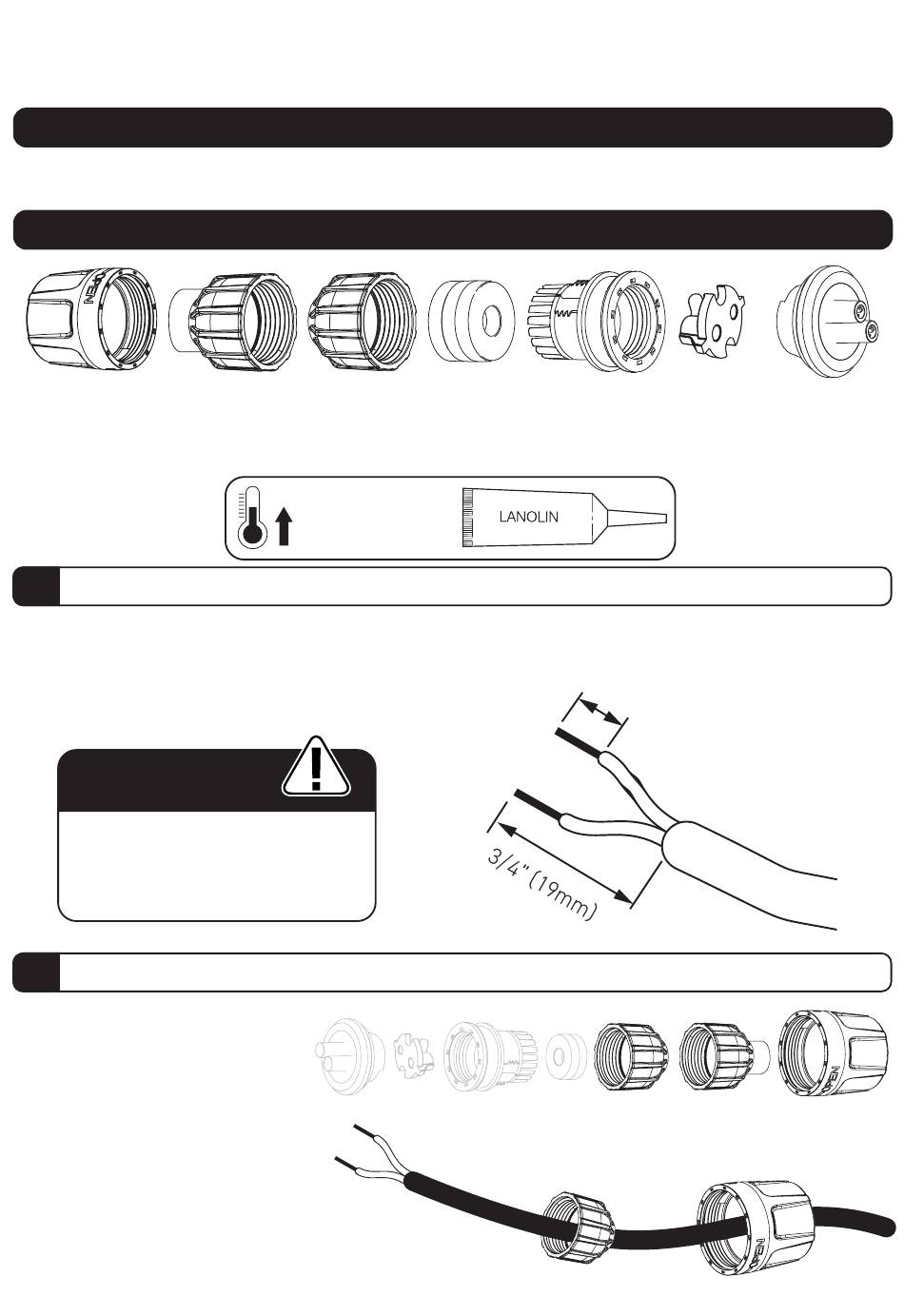

N1 N3 R6
BEFORE YOU START
ENSURE THAT ALL POWER TO EXISTING LIGHTS ARE SWITCHED OFF.
INCLUDED PARTS
Connector
Large Gland
Collar
(also supplied)
1
CABLE PREPARATION
ALL CABLE CONNECTIONS ARE TO BE DONE AT SURFACE LEVEL, AND OUT OF
WATER.
STRIP POWER CABLE TO
SPECIFIED LENGTH.
NOTE
IF CABLE LENGTH ALLOWS,
CUT CABLE BACK UNTIL
FRESH COPPER APPEARS.
2
START ASSEMBLY OF CONNECTOR PLUG
FEED THE PLUG COLLAR
ONTO THE CABLE, THEN
FEED THE APPROPRIATE
GLAND NUT ONTO THE
CABLE.
PLUG ASSEMBLY INSTALLATION GUIDE
Gland Nut
Nut
GENTLY WARM
LANOLIN
BEFORE USE
Glands
Connector
X 3 Sizes
Barrel
Provided
Strain
Screw Terminal
Relief Clip
(Optional)
STRIP WIRES
9/32" (7mm)
Gland
Large Gland
Nut
Nut
End
(screws
attached)
Plug Collar
Advertisement
Related Manuals for Spa Electrics N1
Summary of Contents for Spa Electrics N1
- Page 1 N1 N3 R6 PLUG ASSEMBLY INSTALLATION GUIDE BEFORE YOU START ENSURE THAT ALL POWER TO EXISTING LIGHTS ARE SWITCHED OFF. INCLUDED PARTS Connector Large Gland Gland Nut Glands Connector Strain Screw Terminal Collar X 3 Sizes Barrel Relief Clip (also supplied)
- Page 2 CHOOSE THE APPROPRIATE GLAND SELECT THE APPROPRIATE CABLE GLAND FROM THE THREE SUPPLIED THAT SNUGLY FITS THE EXISTING Glands X 3 Sizes Provided POWER CABLE WITHOUT BULGING. Small Medium Large Gland Gland Gland THE GLAND FITMENT SHOULD BE FIRM OVER THE CABLE WITHOUT BULGING OR DEFORMING THE GLAND.
- Page 3 CONNECT THE SCREW TERMINAL END 1: FEED THE TWO STRIPPED CABLE ENDS THROUGH THE TWO HOLES IN THE BACK OF THE SCREW Screw Terminal TERMINAL END. 2: USE A FLAT BLADE SCREWDRIVER TO TIGHTEN THE FASTENERS ON 3/4” (19mm) EITHER SIDE OF THE 9/32”...
- Page 4 START ASSEMBLY OF CONNECTOR PLUG CAREFULLY THREAD CONNECTOR BARREL ONTO SCREW TERMINAL AND TIGHTEN FIRMLY BY HAND. Connector LEAVE THESE PARTS Barrel DISASSEMBLED UNTIL AFTER ADDING LANOLIN. ADD LANOLIN FILL BACK OF CONNECTOR BARREL WITH LANOLIN UP TO THE INDICATED POINT. FILL TO HERE (ALLOWING ROOM FOR GLAND) CONTINUE ASSEMBLY OF CONNECTOR PLUG...
