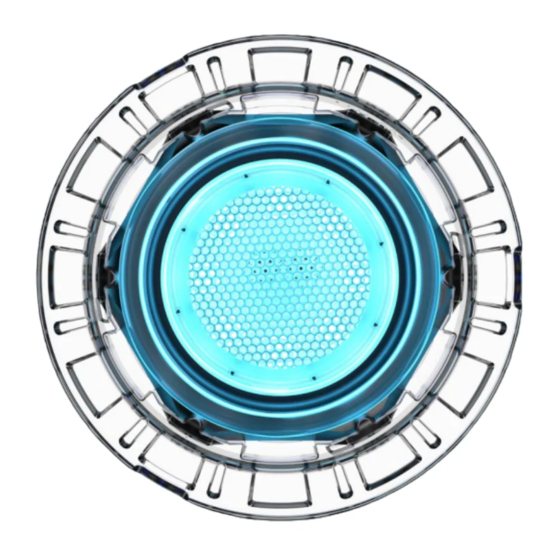

Spa Electrics TITAN T1 Series Installation & Owner's Manual

Light fiberglass/ vinyl
Hide thumbs Also See for TITAN T1 Series:

Advertisement

Quick Links

Download this manual
TITAN LIGHT
FIBERGLASS/ VINYL
INSTALL
T1
INSTALLATION & OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the TITAN T1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spa Electrics TITAN T1 Series

Summary of Contents for Spa Electrics TITAN T1 Series

  • Page 1 TITAN LIGHT FIBERGLASS/ VINYL INSTALL INSTALLATION & OWNER’S MANUAL...

  • Page 2: Table Of Contents

    CONTENTS READ THIS FIRST TOOLS REQUIRED INCLUDED PARTS FINISHED INSTALLATION INSTALLATION RIM & THREADED SLEEVE REMOVAL RIM & THREADED SLEEVE INSTALL WINTERIZATION KEY DIMENSIONS TROUBLESHOOTING ELECTRICAL GROUNDING FCC COMPLIANCE STATEMENT IMPORTANT A 12V AC TRANSFORMER MUST BE INSTALLED. DC POWER SUPPLIES ARE NOT COMPATIBLE. NOTE FRESH WATER USE ONLY NOT INTENDED FOR OPERATION OUT OF WATER...

  • Page 3: Read This First

    READ THIS FIRST Congratulations on your purchase of a Spa Electrics Titan T1 Series Pool Light. This light has been designed in conjunction with leading pool professionals across the USA and manufactured solely in Australia. For safe and proper installation, please read this manual in full before commencing installation and use only the parts (screws, plugs, sealant etc) as provided.

  • Page 4: Tools Required

    • The enclosed images are for illustrative purposes only. Appearances of parts and assemblies may vary from the enclosed illustrations • Please contact Spa Electrics or contact us below if you have any questions regarding the correct installation of this product.

  • Page 5: Included Parts

    UL LISTED ISOLATING LOW VOLTAGE POWER SUPPLY, EVALUATED FOR SWIMMING POOL USE. Installed as per current NEC wiring rules. 12~14v AC output. Minimum 8W per Retro Series Pool Light. Spa Electrics recommends “LVX” safety transformers for use with Retro Universal lights...

  • Page 6: Finished Installation

    FINISHED INSTALLATION - TYPE A Depending on your installation requirements, conduits may run to a common junction box or return directly to the power supply. In POWER SUPPLY either case, it is imperative that the conduit (TRANSFORMER) extends above the water level of the pool at some point in order to prevent siphoning.
  • Page 7 FINISHED INSTALLATION - TYPE B Depending on your installation requirements, conduits may run to a common junction box or return directly to the power supply. In POWER SUPPLY either case, it is imperative that the conduit (TRANSFORMER) extends above the water level of the pool at some point in order to prevent siphoning.

  • Page 8: Installation

    INSTALLATION THIS SPA ELECTRICS TITAN T1 LIGHT IS DESIGNED TO BE INSTALLED IN A 1 1/2” THREADED BULKHEAD FITTING IN EITHER A FIBERGLASS OR VINYL POOL. SEE THE FOLLOWING ILLUSTRATIONS OF EXAMPLES FOR REFERENCE ONLY. FIBERGLASS VINYL THE FOLLOWING INSTALLATION INSTRUCTIONS SHOW AN EXAMPLE OF A FIBERGLASS BULKHEAD.
  • Page 9 REMOVE PLUG COVER WHEN READY TO ATTACH THE LIGHT ASSEMBLY, REMOVE THE PLUG COVER BY TWISTING THE COLLAR ANTI-CLOCKWISE A FEW TIMES UNTIL IT IS FREE SPINNING. PLUG COVER PLUG COLLAR HOLD THE PLUG COVER STILL WHILE TWISTING THE PLUG COLLAR. REMOVE PLUG COVER DISCONNECT PLUG COVER FROM PLUG BY PULLING APART.
  • Page 10 CONNECT THE TERMINALS ALIGN THE TERMINAL PINS ON THE PLUG AND BACK OF THE LIGHT ASSEMBLY AND FIRMLY CONNECT TOGETHER. FASTEN PLUG TO LIGHT TO LOCK INTO PLACE: TWIST COLLAR CLOCKWISE A FEW TIMES UNTIL IT’S HAND TIGHT.
  • Page 11 ROTATE LIGHT CLOCKWISE JUST BEFORE INSERTING THE LIGHT INTO THE BULKHEAD, ROTATE THE LIGHT CLOCKWISE A COUPLE TURNS. INSERT LIGHT INTO BULKHEAD FITTING INSERT THE LIGHT ASSEMBLY INTO THE BULKHEAD FITTING.
  • Page 12 THREAD LIGHT INTO BULKHEAD FITTING 1. INSERT THE LIGHT INSTALLATION TOOL INTO THE FRONT OF THE LIGHT ASSEMBLY, ALIGNING THE TEETH ON THE TOOL WITH THE SLOTS ON THE RIM. 2. TWIST THE LIGHT ASSEMBLY WITH THE TOOL CLOCKWISE INTO THE BULKHEAD FITTING UNTIL FIRMLY HAND TIGHT.

  • Page 13: Rim & Threaded Sleeve Removal

    RIM & THREADED SLEEVE REMOVAL REMOVE THREADED SLEEVE 1. INSERT THE LIGHT INSTALLATION TOOL INTO THE FRONT OF THE LIGHT ASSEMBLY. ALIGNING THE TEETH ON THE TOOL WITH THE SLOTS ON THE RIM. 2. HOLD THE LOCKING TOOL SO THE LIGHT ASSEMBLY DOES NOT ROTATE WHEN REMOVING THE THREADED SLEEVE IN STEP 3 BELOW.

  • Page 14: Rim & Threaded Sleeve Install

    REMOVE RIM WITH THE SLEEVE REMOVED, THE RIM CAN BE CLIPPED OFF THE LIGHT ASSEMBLY. REMOVE THE RIM BY HAND ONLY. RIM & THREADED SLEEVE INSTALL ATTACH RIM ALIGN THE RIM AND SLIDE IT OVER THE LIGHT ASSEMBLY UNTIL IT SNAPS INTO PLACE AND IS FULLY SEATED AS INDICATED.
  • Page 15 ATTACH THREADED SLEEVE 1. INSERT THE LIGHT INSTALLATION TOOL INTO THE FRONT OF THE LIGHT ASSEMBLY. ALIGNING THE TEETH ON THE TOOL WITH THE SLOTS ON THE RIM. 2. HOLD THE LOCKING TOOL SO THE LIGHT ASSEMBLY DOES NOT ROTATE WHEN ATTACHING THE THREADED SLEEVE IN STEP 4 BELOW.

  • Page 16: Winterization

    WINTERIZATION UN-THREAD LIGHT FROM BULKHEAD 1. INSERT THE LIGHT INSTALLATION TOOL INTO THE FRONT OF THE LIGHT ASSEMBLY, ALIGNING THE TEETH ON THE TOOL WITH THE SLOTS ON THE RIM. 2. TWIST THE LIGHT ASSEMBLY WITH THE TOOL ANTI-CLOCKWISE TO UN-THREAD FROM THE BULKHEAD FITTING.
  • Page 17 REMOVE PLUG FROM LIGHT UNSCREW PLUG COLLAR ANTI- CLOCKWISE UNTIL IT IS FREE SPINNING. IMPORTANT NOTES CABLE SHOULD BE SECURED ABOVE WATER AND WEATHER PROTECTED WHILE LIGHT IS DETACHED. REMOVE PLUG FROM LIGHT DISCONNECT LIGHT ASSEMBLY FROM PLUG BY PULLING APART.
  • Page 18 ATTACH PLUG COVER TO PLUG ALIGN THE TERMINAL PINS ON THE PLUG WITH THE SLOT ON THE PLUG COVER AND CONNECT TOGETHER. FASTEN PLUG COVER TO LOCK INTO PLACE: TWIST THE PLUG COLLAR CLOCKWISE A FEW TIMES UNTIL IT’S HAND TIGHT. PLUG COVER HOLD THE PLUG COVER STILL WHILE TWISTING THE...
  • Page 19 REMOVE WATER FROM PIPE REMOVE THE REMAINING WATER FROM THE PIPING, THIS MAY INVOLVE BLOWING OUT WITH COMPRESSED AIR. STORE CABLE STORE CABLE BACK INTO THE PIPING. NOTE IF FITMENT INTO THE PIPE IS TIGHT, ROTATING THE COILED CABLE SECTION CLOCKWISE WILL HELP PROVIDE CLEARANCE TO THE PIPE.
  • Page 20 SEAL PIPE OPENING SELECT FROM COMMONLY AVAILABLE WINTERIZATION FITTINGS TO SEAL OFF THE BULKHEAD FITTING, IT IS IMPORTANT TO ENSURE THEY ARE APPROPRIATELY SELECTED AND INSTALLED TO ACHIEVE A WATER TIGHT SEAL. IMPORTANT NOTE IMAGE OF SEALED FITTING SHOWN FOR REFERENCE ONLY.

  • Page 21: Key Dimensions

    KEY DIMENSIONS 3.8” (96mm) 0.48” (12.3mm) 96mm (3.8”)

  • Page 22: Troubleshooting

    (ie.15W 12V) Light colors not Incorrect operating mode Refer to MULTI PLUS setup procedure synchronized selected. If these issues cannot be resolved with the above recommended actions, please contact your local Spa Electrics reseller or Spa Electrics directly. www.spaelectrics.com...

  • Page 23: Electrical Grounding

    Spa Electrics Retro Universal luminaires with their plastic housing designs do not require grounding / bonding. Spa Electrics Retro Universal lights have also been determined to comply with the applicable requirements for wet-niche, LED type Swimming Pool and Spa Luminaires.
  • Page 24 IMPORTANT NOTE PLEASE STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE The underwater ghting specia sts © COPYRIGHT 2025 SPA ELECTRICS INC. ALL RIGHTS RESERVED US 2025 01 30...
