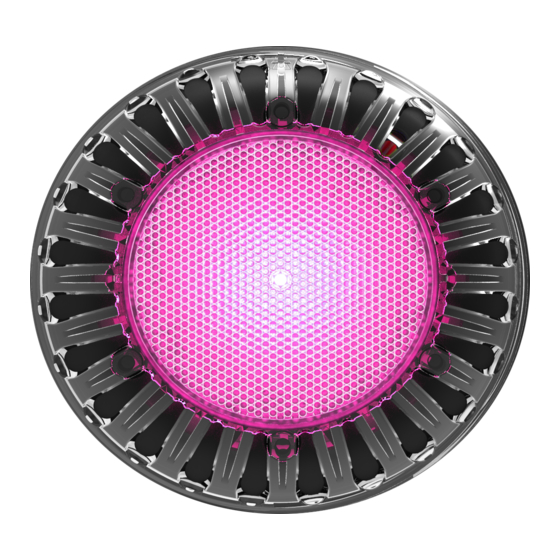

- Page 1 UNIVERSAL MINI NICHE RETRO FIT MANUAL AGRX R2 INSTALLATION & OWNER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS QUICK REFERENCE TABLE READ THIS FIRST TOOLS REQUIRED INCLUDED PARTS TRANSFORMER VERIFICATION LIGHT REMOVAL CABLE PREPARATION ADAPTOR PLATE INSTALLATION ADAPTOR INSTALL - TYPE A ADAPTOR INSTALL - TYPE B AGRX 002 PLATE ASSEMBLY POST INSTALLATION CHECK PRODUCT SUPPORT AND INFORMATION Telephone: 03 9793 2299 (Business hours 8:30 –... -
Page 3: Quick Reference Table
If possible, trim back until fresh end of cable is available. • Confirm existing transformer is a iron core type, 12V AC ONLY and in good working order (If in doubt contact Spa Electrics). -
Page 4: Tools Required
• Pool chemicals & pH levels: Due to the corrosive nature of unbalanced pool chemicals, Spa Electrics strongly recommends that your pool water is balanced prior to installing your pool lights or any plastic or stainless-steel components and tested weekly to maintain these levels. -
Page 5: Included Parts
INCLUDED PARTS MODEL: AGRX R2 R2 ADAPTOR PLATE AGRX LIGHT R2 RIM (P/N: SAMB 003) (P/N: AGRX 008R2) EM ADAPTOR PAL ADAPTOR ADAPTOR TOOL ADAPTOR THREAD (P/N: SAMB 004) (P/N: SAMB 009) (P/N: VIVO 045 ) (P/N: VIVO 041) LANOLIN 1 X WARRANTY 2 X LUMASCAPE CARD... -
Page 6: Transformer Verification
TRANSFORMER VERIFICATION TURN POWER OFF TURN POWER TO EXISTING 12V TRANSFORMER CHECK TRANSFORMER EXISTING TRANSFORMER MUST BE: • 12V AC ONLY • MIN 15 WATT (PER LIGHT) • IN GOOD WORKING ORDER EXISTING TRANSFORMER MUST NOT BE: • DC OR LED DRIVER •... -
Page 7: Light Removal
LIGHT REMOVAL REMOVE EXISTING LIGHT REMOVE EXISING LIGHT FROM NICHE IMPORTANT RETAIN EXISTING MOUNTING SCREWS. SEE PAGE 12 DISCONNECT EXISTING LIGHT DISCARD OLD LIGHT HOUSING... -
Page 8: Cable Preparation
CABLE PREPARATION CABLE PREPARATION STRIP POWER CABLE STRIP WIRES TO SPECIFIED LENGTH 7mm (9/32”) NOTE IF CABLE LENGTH ALLOWS, CUT CABLE BACK UNTIL FRESH COPPER APPEARS START ASSEMBLY OF CONNECTOR PLUG GLAND NUT CONNECTOR COLLAR FEED THE CONNECTOR COLLAR AND GLAND NUT ONTO THE CABLE, AS SHOWN... - Page 9 CHOOSE THE APPROPRIATE GLAND SELECT A CABLE GLAND FROM THE THREE SUPPLIED GLANDS THAT SNUGLY X 3 SIZES PROVIDED FITS THE EXISTING POWER CABLE SMALL GLAND MEDIUM GLAND LARGE GLAND YELLOW BLUE IMPORTANT IF GLAND IS EXCESSIVELY TIGHT OR BULDGING WHEN FITTED, REPLACE WITH LARGER GLAND SIZE CONTINUE ASSEMBLY OF CONNECTOR PLUG FEED THE...
- Page 10 CONNECT THE SCREW TERMINAL END SCREW TERMINAL END 1: FEED THE TWO STRIPPED CABLE ENDS THROUGH THE TWO HOLES IN THE BACK OF THE SCREW TERMINAL END 19mm 2: USE A FLAT BLADE SCREWDRIVER TO TIGHTEN THE FASTENERS ON EITHER SIDE OF THE SCREW TERMINAL CONTINUE ASSEMBLY OF CONNECTOR PLUG 1: CAREFULLY THREAD CONNECTOR...
- Page 11 CONTINUE ASSEMBLY OF CONNECTOR PLUG 1. SLIDE CONNECTOR COLLAR OVER PLUG ASSEMBLY AS SHOWN ADD LANOLIN LANOLIN USE GENTLY WARM LANOLIN BEFORE USE 1. REMOVE 2 X 2. SQUEEZE LANOLIN FILLER SCREWS INTO LEFT FILLER HOLE AND O’RING SEALS UNTIL VISIBLE IN RIGHT FROM SCREW FILLER HOLE TERMINAL PLUG...
-
Page 12: Adaptor Plate Installation
CONCRETE/FIBREGLASS *AGRX 002 LUMASCAPE CONCRETE/FIBREGLASS PAL EVENGLOW CONCRETE FIBREGLASS PAL ADAPTOR PAL 2000 CONCRETE/FIBREGLASS PAL ADAPTOR SPA ELECTRICS EMF/EMC CONCRETE/FIBREGLASS EM ADAPTOR SPA ELECTRICS EMV VINYL *AGRX 002 WATERCO SLIM 90 FIBREGLASS PAL ADAPTOR R2 ADAPTOR PLATE (P/N: SAMB 003) AGRX 002 –... -
Page 13: Adaptor Install - Type A
ADAPTOR INSTALL - TYPE (A) IDENTIFY SCREW POSITIONS Aquaquip EVO FG Slot locations SCREW LOCATION C SCREW LOCATION B SCREW LOCATION B SCREW LOCATION A SCREW LOCATION A SCREW LOCATION C SCREW LOCATION C SLOTS AQUAQUIP EVO FG ATTACH ADAPTOR PLATE PLACE THE ADAPTOR PLATE OVER THE NICHE AND FASTEN USING... -
Page 14: Adaptor Install - Type B
ADAPTOR INSTALL - TYPE (B) ATTACH NICHE ADAPTOR ATTACH THE REQUIRED ADAPTOR (SEE TABLE ON PG 12) TO THE EXISTING NICHE EM ADAPTOR CLIP THE EM ADAPTOR ONTO THE EXISTING EM BAYONET PAL ADAPTOR THREAD THE PAL ADAPTOR INTO THE EXISTING NICHE ADAPTOR TOOL USE TOOL TO... - Page 15 CONNECT THE TERMINALS ALIGN THE TERMINAL PINS ON PLUG AND BACK OF LIGHT ASSEMBLY AND FIRMLY CONNECT TOGETHER IMPORTANT NOTES • DO NOT ADD SEALANTS, GREASES OR ADHESIVES • ENSURE ALL SURFACES ARE CLEAN AND DRY • DO NOT ASSEMBLE UNDERWATER FASTEN PLUG TO LIGHT THREAD PLUG COLLAR ONTO AGRX LIGHT AND TIGHTEN...
- Page 16 STEP 5 CONTINUED... TWIST LIGHT CLOCKWISE UNTIL TOP ARROWS ALIGN Locked Position CLIP ON RIM ALIGN THE ARROW ON THE RIM WITH THE TOP ARROW (12 O’CLOCK POSITION) ON THE ADAPTOR PLATE PRESS THE RIM ONTO THE LIGHT BY HAND Align Arrows CONTINUE TO PAGE 19...
-
Page 17: Agrx 002 Plate Assembly
AGRX 002 PLATE ASSEMBLY R2 ADAPTOR PLATE AGRX 002 ADAPTOR TOOL AGRX LIGHT R2 RIM (P/N: SAMB 003) Kit Includes (P/N: VIVO 045) (P/N: AGRX 008R2) 2x Set of O’Rings. (2x3mm & 2x1mm) STEP 1 PLACE THE SMALL O’RINGS OVER THE AGRX 002 FRICTION FIT ADAPTOR STEP 2... - Page 18 STEP 3 USING THE ADAPTOR TOOL PUSH THE AGRX 002 ADAPTOR INTO THE EXISTING NICHE PIPE CONTINUE TO INSTALLATION PROCESS FROM PAGE 14...
-
Page 19: Post Installation Check
POST INSTALLATION CHECK TEST SYSTEM TURN POWER TO POOL LIGHT... - Page 20 NOTE PLEASE STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE © COPYRIGHT 2022 SPA ELECTRICS PTY. LTD. ALL RIGHT RESERVED 2022 11 11...
