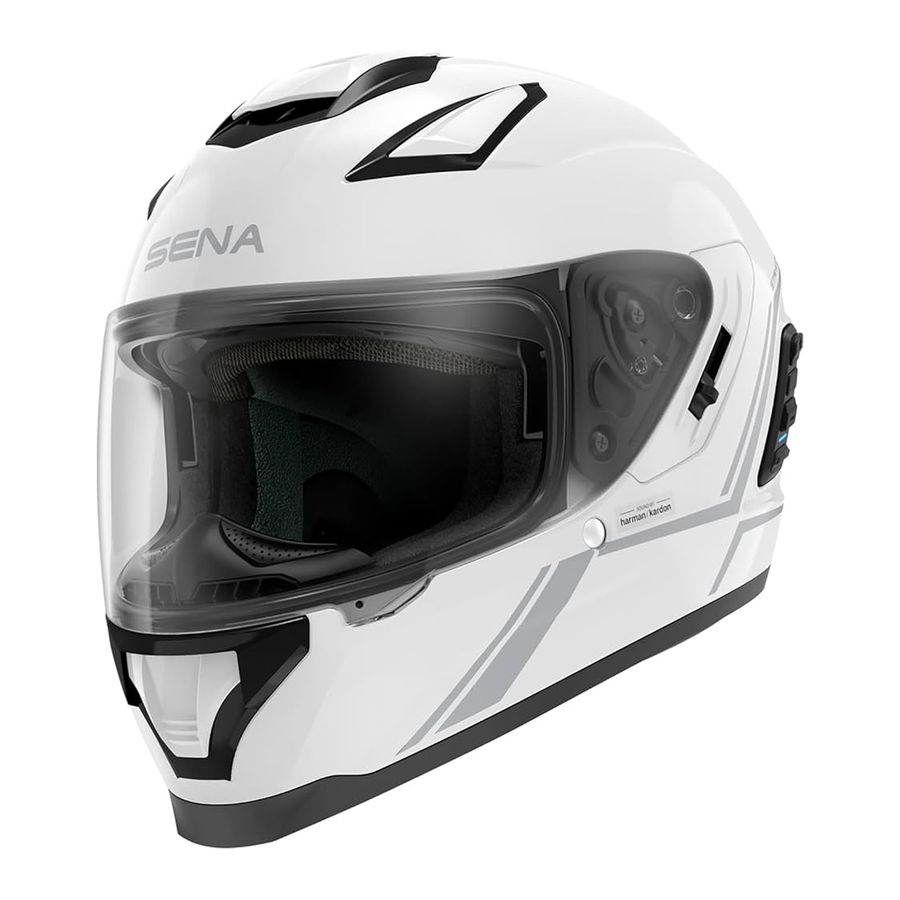

SENA STRYKER Manual

Overview

Status LED

WiFi Status	Charging	Fully Charged
Not connected to WiFi network
Searching for WiFi network	FAST BLINKING	FAST BLINKING
Connected to WiFi network	SLOW BLINKING	SLOW BLINKING

Note:

• Fast blinking: 0.5 seconds interval
• Slow blinking: 2 seconds interval

Configure the Built-in WiFi

1. Connect the STRYKER with your smartphone and open the Sena Motorcycles app.
   • Continue to Setting on the top right corner of the screen, then Firmware Update.

2. Connect the STRYKER to a wall charger or power source using the provided magnetic cable.

3. Check the Status LED.
   1. Solid Red or Blue:
      A Solid red LED or blue LED indicates that the built-in WiFi must be configured before proceeding with the update. Continue to step 4 to configure the built-in WiFi.

   2. Slow Blinking Red or Blue:
      If the Status LED blinks slowly in red or blue, the built-in WiFi is already configured and ready to update firmware automatically. You can now complete the configuration and update the device. Continue to "Firmware Update via WiFi" section below.

   3. Fast Blinking Red or Blue:
      If the Status LED blinks rapidly in red or blue for more than 10 seconds, reset the built-in WiFi. Press the Mesh Intercom button for 2 seconds until the Status LED turns solid purple. If the reset is successful, the Status LED will turn solid red or blue. Continue to step 4.

4. Open the WiFi settings on your smartphone, find the built-in WiFi (identified as SENA Stryker-xxxxxx), and select it.

5. Open the Sena Motorcycles app.
6. Select WiFi network and enter the password.
   Note: Only 2.4 GHz network is supported.

7. Check the Status LED for slow blinking red or blue.
   1. If the Status LED blinks slowly in red or blue, the built-in WiFi is successfully configured and ready to update firmware automatically while charging the device.
   2. If the Status LED blinks rapidly in red or blue, wait for a couple of minutes until it turns solid red or blue, then return to step 4.


Note: If you change the WiFi network by replacing the router, you will have to reset and reconfigure the built-in WiFi. Follow the instruction in step 3.c above.

Firmware Update via WiFi

1. Connect the STRYKER to a wall charger or power source using the provided magnetic cable.

2. Check the Status LED for slow blinking red or blue.

3. The update will start automatically, and the taillight will move repeatedly from left to right during the update.

4. If the built-in WiFi is successfully updated, the taillight will blink red. It takes approximately 10 minutes for the update.
