- Page 1 SENA SMART SNOW HELMET QUICK START GUIDE ENGLISH 1.0.0...
-
Page 2: Product Features

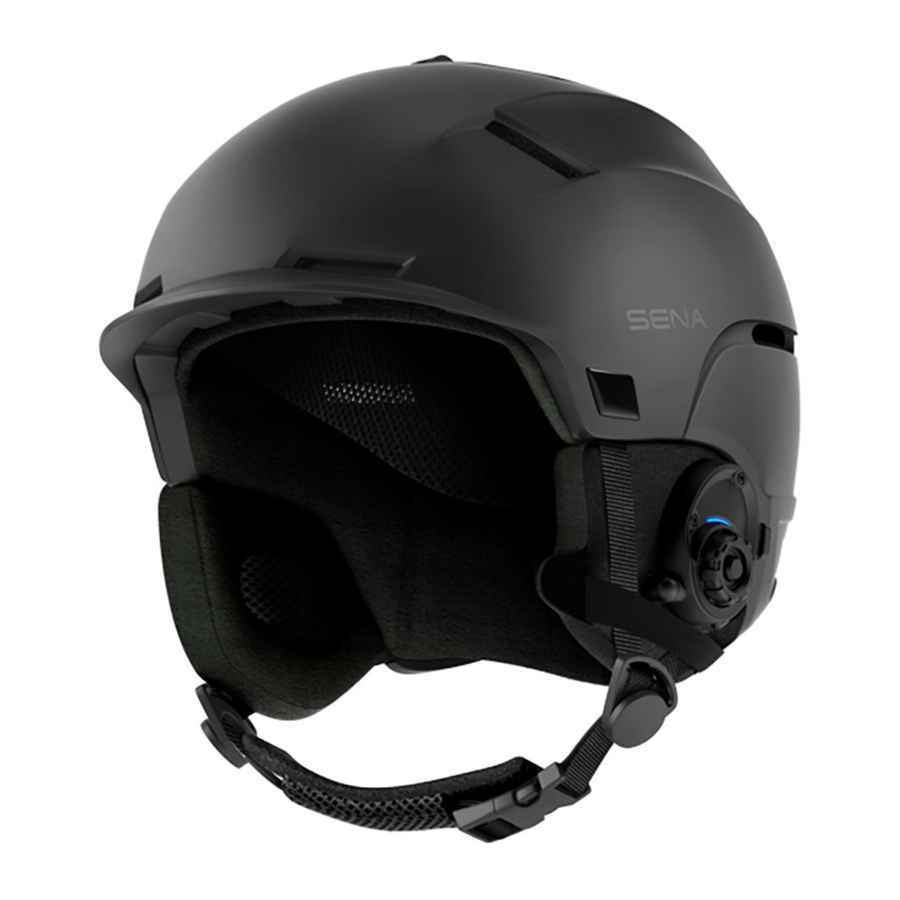

PRODUCT FEATURES The Latitude S1 combines the safety of a snow helmet with Sena’s superior headset technology. The helmet has a built-in communication system with an integrated microphone and speakers placed in the ear pads. You can enjoy music, talk over the intercom with your buddies, all through your helmet. -
Page 3: Getting Started
Visit to see how to update your product. 3. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products. -
Page 4: How To Use This Guide
GETTING STARTED How to Use This Guide The legend and callouts are here to help you read the illustrations. New technology can be confusing, but we have created a simple way to perform actions using illustrations. HOLD Function Button(s) to Tap or Hold Buttons Jog Dial... -
Page 5: Icon Legend
GETTING STARTED Icon Legend Press and Hold button/Jog button/Jog Dial the HOLD Dial for the specified amount specified number of times of time Rotate Jog Dial clockwise (right) or ROTATE ROTATE ROTATE counterclockwise (left). Rotate while Pressing Jog Dial clockwise (right) or ROTATE ROTATE ROTATE... -
Page 6: Product Details
QUICK START GUIDE Product Details Ventilation Lever Ventilations Speaker Status LED Microphone Jog Dial Phone Button Bluetooth System Button Ventilations Speaker DC Power Charging & Firmware Upgrade Port MP3 Port QUICK START GUIDE Latitude S 1... - Page 7 QUICK START GUIDE How To Fit the Helmet For proper use, the helmet must sit level on the head and low on the forehead. The helmet uses a simple, quick-release buckle system that, once adjusted, can be buckled and unbuckled without changing the tightness.
- Page 8 QUICK START GUIDE WARNING: Always wear the helmet in the proper position on your head with the front of the helmet covering your forehead for maximum protection. Never wear the helmet tipped back as the helmet will be in the improper position causing your forehead to be exposed.
- Page 9 QUICK START GUIDE 4. After pushing the “Chinstrap Pad” back, adjust the chinstrap tension at the buckle with the strap adjuster in the proper position. Adjust the tension so the chinstrap is tight yet comfortable by pulling the chinstrap end through the buckle to either tighten or loosen the strap as needed.
- Page 10 QUICK START GUIDE 6. Always wear the helmet with the chinstrap buckle fastened and with the chinstrap pulled tight and positioned against the throat. With the strap buckled and the helmet properly positioned, you should feel the chinstrap pull firmly against your chin when you open your mouth.
- Page 11 WARNING: For maximum protection, this helmet must be fitted and attached properly to the wearer’s head in accordance with the following instructions. If after adjustment the helmet does not fit properly, do not use the helmet. Return it to the retailer or Sena.
-
Page 12: Sena Device Manager
QUICK START GUIDE Sena Outdoor App By simply pairing your phone with your Bluetooth system, you can use the Sena Outdoor App for quicker, easier setup and management. • App Features - Music, Device settings, Quick Start Guide, and User’s Guide •... -
Page 13: Basic Operations
QUICK START GUIDE Basic Operations Power On Power Off HOLD Volume Up Volume Down ROTATE ROTATE Checking the Battery Level Visual Method Audible Method Visual method is for when powering the Bluetooth system “Battery level is HOLD high/medium/low”... -
Page 14: Phone Pairing
• Rebooting after executing Factory Reset HOLD Alternating blue and red flashing lights indicate the device is now discoverable. With your mobile phone in Bluetooth-pairing mode, select Latitude S1 in the list of devices detected. STATUS NUMBER Note: • The phone pairing mode lasts for 3 minutes. - Page 15 QUICK START GUIDE Pairing When the Latitude S1 Is Turned Off While the Latitude S1 is off, press and hold the Phone Button and Jog Dial for 5 seconds. HOLD Alternating blue and red flashing lights indicate the device is now discoverable.
- Page 16 QUICK START GUIDE Pairing When the Latitude S1 Is Turned On While the Latitude S1 is on, press and hold the Phone Button for 5 seconds. HOLD Alternating blue and red flashing lights indicate the device is now discoverable. With your mobile phone in Bluetooth-pairing mode, select Latitude S1 in the list of devices detected.
-
Page 17: Mobile Phone
QUICK START GUIDE Mobile Phone Answer a Call Make a Call with the Voice Dialer End a Call Reject a Call HOLD HOLD Music Controls Play/Pause HOLD Previous Track Next Track ROTATE ROTATE... -
Page 18: Bluetooth Intercom
QUICK START GUIDE Bluetooth Intercom Up to three other people can be paired with the Bluetooth system for Bluetooth intercom conversations. Intercom Pairing Pairing with Intercom B HOLD “Intercom Pairing” Flashing blue LED confirms intercoms are paired. LED STATUS Note: Repeat the step above to pair with Intercom Friends C & D. -
Page 19: Two-Way Intercom
QUICK START GUIDE Two-Way Intercom Last-Come, First-Served Start/End Conversation with Intercom Friend 1 Intercom Friend 1 Start/End Conversation with Intercom Friend 2 Intercom Intercom Friend 1 Friend 2 Intercom Intercom Intercom Friend 1 Friend 2 Friend 3 Start/End Conversation with Intercom Friend 3... -
Page 20: Troubleshooting
QUICK START GUIDE Troubleshooting Factory Reset Fault Reset HOLD When the USB charging & data cable connects a power supply to the system, the Bluetooth system will automatically be turned off and a fault reset will occur. Note: Fault Reset will not restore the Bluetooth system to the factory default settings. -
Page 21: Quick Reference
QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS HOLD Power on Power off Basic Operations ROTATE ROTATE Volume up/down Answer a call End a call Mobile Phone HOLD Reject a call HOLD Play/Pause music ROTATE Next track Music ROTATE Previous track QUICK REFERENCE Latitude S 1... - Page 22 QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS HOLD Intercom pairing Intercom Start/end intercom 1.0.0_EN_July2020...
