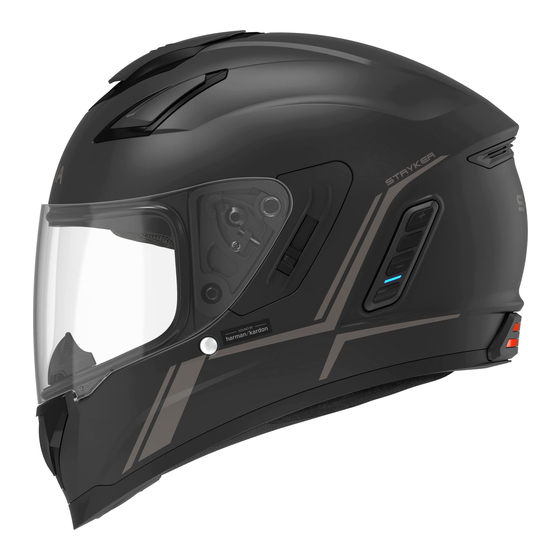

- Page 1 MOTORCYCLE BLUETOOTH HELMET ® WITH MESH INTERCOM™ QUICK START GUIDE ENGLISH / 1.2.0...
-
Page 2: Downloadable Sena Software
Downloadable Sena Software Download the Sena Motorcycles App on Google Play Store Store. Sena Motorcycles • Wi-Fi-Enabled for Automatic Firmware Update • Device Configuration Setting Download the following items at sena.com or on the Sena Motorcycles App. Quick Start Guide, User’s Guide... -
Page 3: Product Details
Product Details Top Vent Shield Visor Side Vent Shell Inner Sun Visor Shield Ratchet Speaker Inner Sun Visor Breath Guard Lever Chin Vent Microphone Speaker (+) Button Center Button (-) Button Charging & Mesh Intercom Button Wi-Fi Status LED Bluetooth System’s Buttons Strap Adjuster Chinstrap One-touch Buckle... - Page 4 Rear Vents LED Taillight Magnetic DC Power Charging Port Pinhole Fault Reset Button...
-
Page 5: Putting On The Helmet
Putting on the Helmet ① Unfasten the chinstrap by using the retention system. ② Expand the helmet opening with your hand, and slide your head into the helmet. ③ Fasten the chinstrap as tight as possible without causing you pain. Icon Legend Tap button the specified Press and Hold button for the... -
Page 6: Checking The Battery Level
Checking the Battery Level Powering On Phone Pairing ① HOLD “Configuration menu” Blinking ② “ Phone pairing” ③ Select STRYKER in the list of Bluetooth devices detected. Bluetooth STRYKER Device B • For more information on phone pairing, refer to the User’s Guide. -
Page 7: Using The Phone
Using the Phone Answer a Call End a Call HOLD Reject a Call HOLD Siri and Google Assistant Activate the Siri or Google Assistant Installed on Your Phone “ Hey Google” HOLD or “Hey Siri”... -
Page 8: Music Control
Music Control Play/Pause HOLD Track Backward Track Forward HOLD HOLD... -
Page 9: Mesh Intercom
“ Mesh intercom on, Open Mesh, channel 1” Mesh Intercom Off “ Mesh intercom off” Note: When Mesh Intercom is on, the STRYKER will automatically connect to nearby STRYKER users and the Bluetooth system will be in Open Mesh (default: channel 1) initially. - Page 10 ① Enter into the Channel Setting. “ Channel setting, 1” ② Navigate between channels. ••• Exit •••) “ #” ③ Save the channel. “ Channel is set, channel #” Note: You can use the Sena Motorcycles App to change the channel.
- Page 11 Group Mesh Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each Bluetooth system. 1) Creating a Group Mesh Creating a Group Mesh requires two or more Open Mesh users.
- Page 12 2) Joining an Existing Group Mesh One of the current users in an Existing Group Mesh can allow users (one or more) in Open Mesh to join the Existing Group Mesh. Existing Group Mesh Open Mesh Existing Group Mesh One (You) of the current users in the Existing Group Mesh and ①...
- Page 13 Button or the Sena Motorcycles App. [Caller] [Caller] “Mesh reach-out request” [Nearby Friends] “ Mesh intercom requested” ③ Friends who receive the request message need to manually turn on their Mesh Intercom using the headset’s Button or the Sena Motorcycles App.
-
Page 14: Bluetooth Intercom
Reset Mesh If a Bluetooth system in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1). HOLD “ Reset Mesh” Bluetooth Intercom Up to three other people can be paired with the Bluetooth system for Bluetooth intercom conversations. - Page 15 Using the Smart Intercom Pairing (SIP) SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the Sena Motorcycles App without remembering the button operation. ① Pair the mobile phone with the Bluetooth system.
- Page 16 Using the Button Users (You, B) enter into Intercom Pairing. ① Blinking HOLD “ Intercom pairing” Turns blue ② The two Bluetooth systems (A and B) will be automatically paired. ③ Repeat the steps above to pair with other Bluetooth systems (C and D).
-
Page 17: Two-Way Intercom
Two-way Intercom Start/End Conversation with the First Intercom Friend D Start/End Conversation with the Second Intercom Friend C Start/End Conversation with the Third Intercom Friend B... - Page 18 FM Radio FM Radio On/Off Start/Stop Scanning HOLD HOLD Seek Forward Seek Backward Navigating Preset Stations HOLD Note: You can also save the current station from the Sena Motorcycles App.
-
Page 19: Configuration Menu
LED Taillight You can control the LED taillight through the Sena Motorcycles App. • Mode : Solid / Night Flash / Day Flash / Off LED TAILLIGHT Configuration Menu Accessing the Configuration Menu HOLD “ Configuration menu” Navigating Between Menu Options... -
Page 20: Troubleshooting
Troubleshooting Factory Reset ① HOLD “ Configuration menu” ② “ Factory reset” “ Headset reset, ③ good-bye” Fault Reset Note: Fault Reset will not restore the Bluetooth system to the factory default settings. -
Page 21: Quick Reference
Quick Reference TYPE OPERATION BUTTON COMMANDS HOLD Power on/ Power off Basic Operations Volume up/Volume down Answer phone call HOLD End phone call Mobile Phone HOLD Reject phone call Activate the Siri or HOLD Google Assistant Siri and Google Assistant... - Page 22 TYPE OPERATION BUTTON COMMANDS Mesh Intercom on/off Channel setting HOLD Mesh Grouping Mesh HOLD Enable/Disable Mic Intercom™ Mesh Reach-Out Request HOLD Reset Mesh HOLD Intercom pairing Intercom Start/End intercom...
- Page 23 TYPE OPERATION BUTTON COMMANDS HOLD Play/Pause music HOLD Track forward Music HOLD Track backward HOLD FM radio on/off HOLD Select preset FM Radio Seek forward/backward Scan up FM band/ HOLD stop scanning 1.2.0_EN_April2023...
