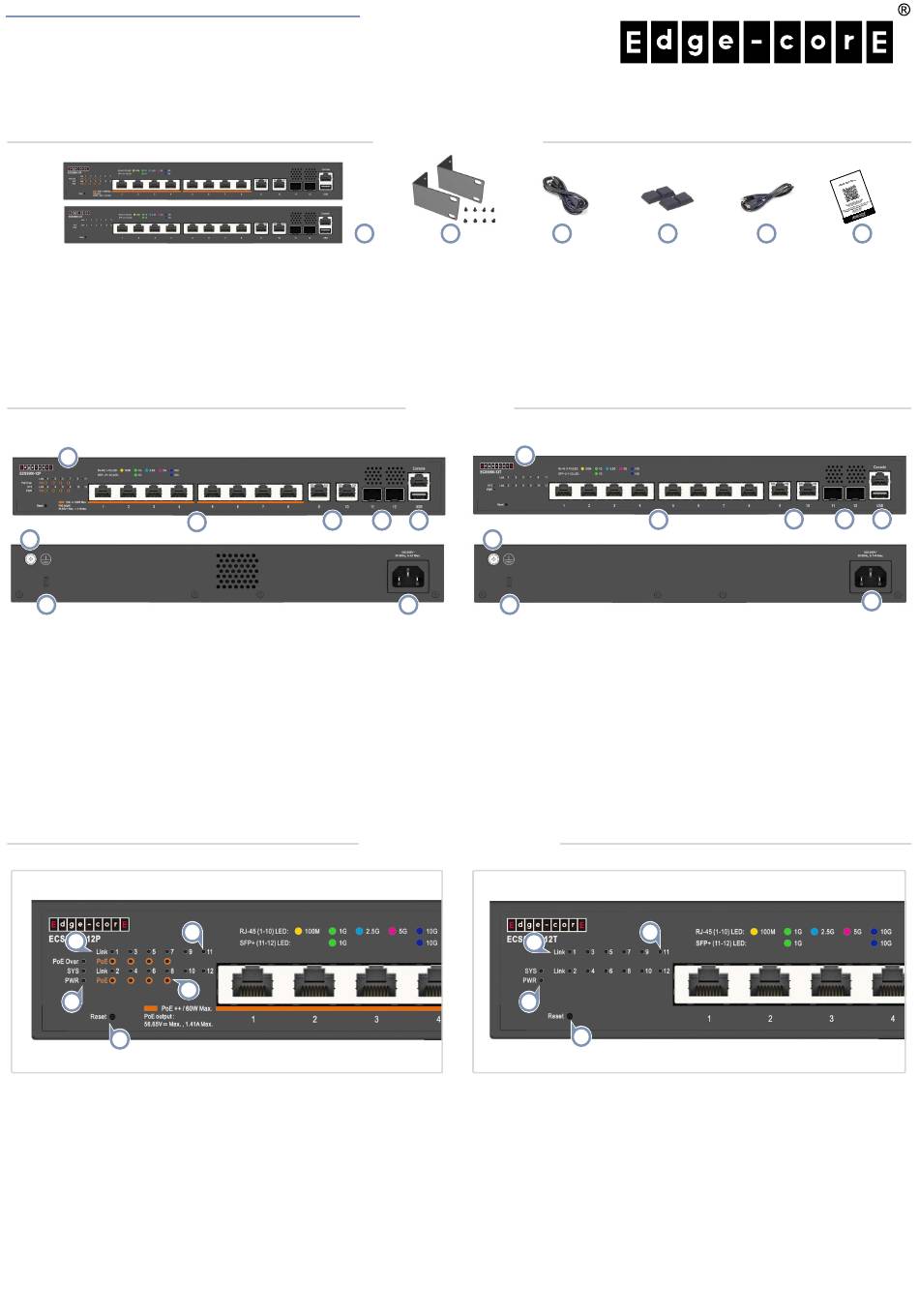

Quick Start Guide
L2+/Lite L3 10G Ethernet Switch
ECS5500-12P (T) | ECS5500-12T (T)
1.
ECS5500-12P (T) or ECS5500-12T (T) Switch
2.
Rack mounting kit—2 brackets and 8 screws
3.
Power cord
4.
Four adhesive rubber feet
1
6
7
1.
System LEDs
2.
8 x 100M/1G/2.5G/5G/10G RJ-45 PoE (IEEE 802.3bt) ports
3.
2 x 100M/1G/2.5G/5G/10G RJ-45 ports
4.
2 x 1/10G SFP+ ports
5.
Console port and USB
6.
Ground screw
7.
Kensington Lock slot
8.
AC power socket
ECS5500-12P (T)
1
4
5
1.
RJ-45 Ports: Yellow (100M), Green (1G), Cyan (2.5G), Magenta
(5G), Blue (10G)
2.
SFP+ Ports: Green (1G), Blue (10G)
3.
PoE: Amber (PoE activated)
4.
PoE Over: Red (PoE budget exceeded)
SYS: Green (OK), Blinking Green (booting/faulf)
PWR: Green (OK)
5.
Reset Button: <1s press - restart, >10s press - factory defaults
ECS5500-12P (T)
3
2
2
3
Package Contents
1
2
5.
Console cable—RJ-45 to DE-9
6.
QR code label (affixed to the top of the switch)
Overview
1
4
5
6
8
7
1.
System LEDs
2.
8 x 100M/1G/2.5G/5G/10G RJ-45 ports
3.
2 x 100M/1G/2.5G/5G/10G RJ-45 ports
4.
2 x 1/10G SFP+ ports
5.
Console port and USB
6.
Ground screw
7.
Kensington Lock slot
8.
AC power socket
System/Port LEDs
1
3
1.
RJ-45 Ports: Yellow (100M), Green (1G), Cyan (2.5G), Magenta
(5G), Blue (10G)
2.
SFP+ Ports: Green (1G), Blue (10G)
3.
SYS: Green (OK), Blinking Green (booting/faulf)
PWR: Green (OK)
4.
Reset Button: <1s press - restart, >10s press - factory defaults
– 1 –
www.edge-core.com
3
4
ECS5500-12T (T)
2
ECS5500-12T (T)
2
4
5
6
3
4
5
8
E042025-CS-R01
