- Page 1 All manuals and user guides at all-guides.com USER AND INSTALLATION MANUAL ENGLISH SUPERBLASTER & SUPERBLASTER XL. CONFETTI FX PART00512 rev 01-00...
- Page 2 Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 3 Noise level Safety symbols 2.7 Precautions for operation Let’s blast! Install the machine Fill with confetti and blast Replace a CO cylinder Clean up Troubleshooting Maintenance Correct disposal EC Declaration of Conformity 7.1 SUPERBLASTER 7.2 SUPERBLASTER XL MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 4 This document contains the original instructions in English. In case you require other languages please contact MAGIC FX. REVISION TABLE Document nr Revision Date Description Authored by Checked by PART00512 01-00 26-3-2019 Initial release MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...

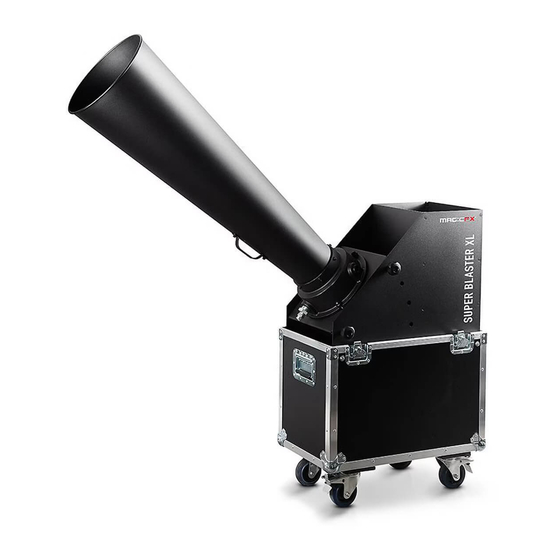

- Page 5 CO valve. To keep the effect going the operator must continuously fill the hopper with confetti. MAIN PARTS WOOFER HOPPER INPUT VALVE FLIGHTCASE Main parts MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 6 CO₂ High Pressure Hose 3/8 Male - Female, 15M MFX1110 CO₂ 90 Degrees Connector 3/8 MFX1103 CO₂ Bottle to Hose Connector MFX1115 CO₂ Bottle to Hose Connector 90 Degrees Accessories Please contact MAGIC FX for additional possibilities. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 7 Type plate CONFETTI The MAGICFX® SUPERBLASTER (XL) can be set in 4 different angles between 42° and 90°. The output height and output distance depend on the type of confetti and the set angle. The maximum load per blast also depends on the type of confetti. Check the following table.
- Page 8 All manuals and user guides at all-guides.com BLAST SAFELY! The MAGICFX SUPERBLASTER (XL) has been designed and constructed in such a ® manner that it can be used safely. This applies to the use, the circumstances and the regulations as described in this documentation. Reading this documentation and...
- Page 9 All manuals and user guides at all-guides.com INDOOR USE The MAGICFX SUPERBLASTER (XL) is designed for outdoor use and use in well- ® ventilated indoor spaces. When used indoors, make sure you take the necessary preparations. These preparations could include, but are not limited to: •...
- Page 10 Make sure there are no objects near the output that can be WARNING damaged or overthrown by the MAGICFX SUPERBLASTER (XL). ® Always create a safety zone with a distance of 3 m around the WARNING MAGICFX SUPERBLASTER (XL). ® top view 10 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 11 All manuals and user guides at all-guides.com LET’S BLAST! INSTALL THE MACHINE Bring the cased MAGICFX SUPERBLASTER (XL) to the desired location. ® Unlock and remove the top cover. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 12 Place and hold the woofer in the case and insert a pin through the front pinholes. Make sure that the CO input of the woofer is positioned at the front. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 13 Secure the pin with a clip. Set the angle of the woofer by aligning the back pinhole with one of the four predefined holes in the case. 48º 32º 16º 0º MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 14 All manuals and user guides at all-guides.com Insert the second pin through the back pinholes to secure the position of the woofer. Secure the pin with a clip. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 15 Position the machine and set the brakes. Take the necessary safety precautions, see Section 2.7. Connect the CO valve to the CO input of the woofer and tighten the nut with the adjustable wrench. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 16 All manuals and user guides at all-guides.com Connect the CO hose to the CO valve. Make sure that the CO valve is in CLOSED position. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 17 Connect the CO₂ Bottle to Hose Connector to a CO cylinder. Connect the CO hose to the CO₂ Bottle to Hose Connector on the CO cylinder. Open the CO cylinder. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 17...
- Page 18 Make sure that the prescribed safety zone is free from persons and objects. When it’s time to blast, move the manual CO valve in OPEN position. Keep filling the hopper with confetti by hand. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 19 All manuals and user guides at all-guides.com Enjoy the view! When you are finished with blasting confetti, move the manual CO valve back in CLOSED position. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 20 REPLACE A CO CYLINDER Make sure that the CO valve is in CLOSED position. Close the connected CO cylinder. Move the manual CO valve in OPEN position to release the pressure from the system. 20 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 21 Bottle to Hose Connector on the CO cylinder. Remove the CO Bottle to Hose Connector from the cylinder. Connect a CO Bottle to Hose Connector to a new CO cylinder. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 22 Connect the CO hose to the CO Bottle to Hose Connector on the new CO cylinder. Move the manual CO valve back in the CLOSED position. Open the CO cylinder. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 23 All manuals and user guides at all-guides.com CLEAN UP Close the connected CO cylinder. Move the manual CO valve in OPEN position to release the pressure from the system. Remove the CO hose. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 24 Fasteners in the vicinity of the output pipe can become frozen NOTICE due to the use of CO . If necessary, wait until these fasteners are defrosted before you try to release them. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 25 All manuals and user guides at all-guides.com Unscrew the nut and remove the valve. Unlock and remove the pins while holding the woofer and remove the woofer. Remove remaining confetti from the hopper. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 26 All manuals and user guides at all-guides.com Store all parts in the case. Place and lock the top cover. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 27 Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual 27...
- Page 28 Translation of the original declaration of conformity Name manufacturer : MAGIC FX BV Address : Schouwrooij 27, 5281 RE BOXTEL Country : The Netherlands : B. Veroude Date : 19-3-2019 Signature MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 29 Translation of the original declaration of conformity Name manufacturer : MAGIC FX BV Address : Schouwrooij 27, 5281 RE BOXTEL Country : The Netherlands : B. Veroude Date : 19-3-2019 Signature MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 30 All manuals and user guides at all-guides.com 30 MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 31 All manuals and user guides at all-guides.com MAGICFX® SUPERBLASTER & SUPERBLASTER XL — User and Installation Manual...
- Page 32 All manuals and user guides at all-guides.com WWW.MAGICFX.EU...
