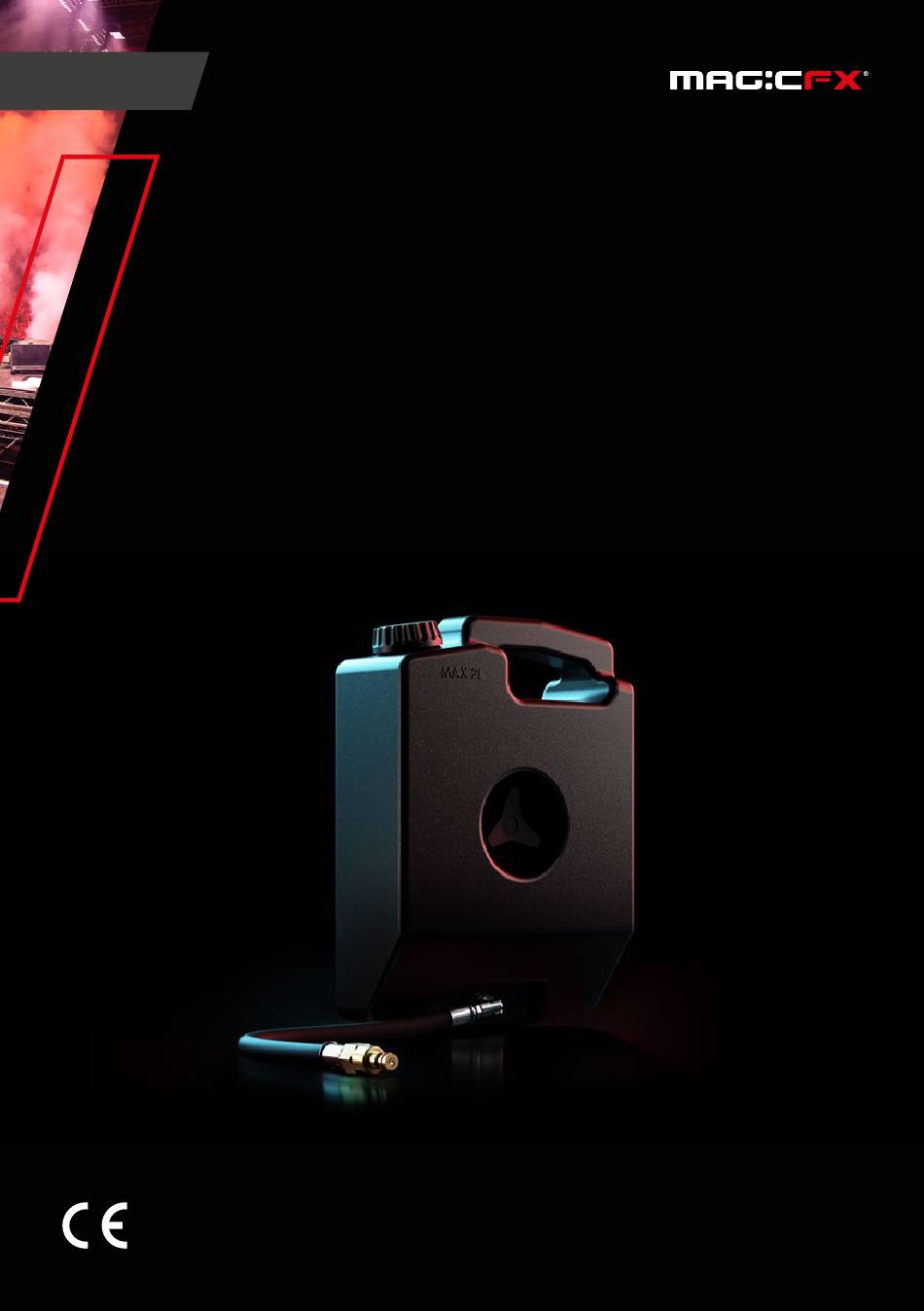

- Page 1 ENGLISH USER AND INSTALLATION MANUAL ECO2JET 2L ATTACHABLE FLUID CAN CO2JET Attachable Fluid ACCESSORIES PART02518 rev 01-01...
- Page 2 Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®...
-
Page 3: Table Of Contents
3.3. Mounting at an angle 3.4. Connecting to the PUMP STATION 3.5. Fire with DMX 3.6. Use the emergency stop Troubleshooting Maintenance Correct disposal EC Declaration of Conformity MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®... -
Page 4: Introduction
Are familiar with and abide by the applicable local, national and international laws and regulations. LANGUAGE This document contains the original instructions in English. In case you require other languages please contact MAGIC FX. MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®... -
Page 5: Abbreviations
2L Attachable Fluid Can ® ® FLUID CAN Abbreviations REVISION TABLE Doc nr Revision Date Description Author Approved PART02518 01-00 11-04-2024 Initial release RH, MBO PART02518 01-01 25-10-2024 Updated front page MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®... -
Page 6: Description
DESCRIPTION The ECO2JET 2L ATTACHABLE FLUID CAN is an additional module for the ECO2JET. The fluid can has the capacity to store 2 liters of smoke fluid directly onto the machine. This gives significantly more freedom when using the ECO2JET compared to using a seperate fluid can. -
Page 7: Technical Data
The ECO2JET uses dedicated fluids from MAGIC FX to create plumes of white smoke. The fluids are available in 5L fluid cans. The ECO2JET 2L ATTACHABLE FLUID CAN can be fitted with the supplied filler nozzle to fill the can with fluid. -
Page 8: Accessories
Please contact MAGIC FX for additional possibilities. SAFETY The ECO2JET 2L ATTACHABLE FLUID CAN has been designed and constructed in such a manner that it can be used safely. This applies to the use, the circumstances and the regulations as described in this documentation. Reading this documentation and following the instructions are therefore necessary for everyone who is authorised to work with the ECO2JET 2L ATTACHABLE FLUID CAN. -
Page 9: Rigging
ATTACHABLE FLUID CAN can lead to death, serious injury or property damage. Always inspect the ECO2JET 2L ATTACHABLE FLUID CAN thoroughly before operation. Do not use the ECO2JET 2L ATTACHABLE FLUID CAN if WARNING alterations have been made other than by or on behalf of MAGIC FX. -
Page 10: Installation And Use
INSTALLATION AND USE The ECO2JET 2L ATTACHABLE FLUID CAN has a storage capacity of 2 liters which can generate approximately 5 minutes of smoke effect. The fluid can mounts onto the ECO2JET with magnets and a central mounting screw. A hose with quick connector gets the smoke fluid to the machine. - Page 11 Pivot the can into position. Tighten the central mounting screw to secure the Attachable Fluid Can to the ECO2JET. Do not overtighten. MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®...
- Page 12 Connect a safety steel around the handle of the fluid can. Make sure the safety steel is as short as possible. If needed, wind the steel around the truss to pull it tight. Connect the quick connector hose to the ECO2JET. MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®...
- Page 13 FILL THE ECO2JET 2L ATTACHABLE FLUID CAN Screw the filler nozzle to the 5L fluid can. Remove the filler cap from the ECO2JET 2L ATTACHABLE FLUID CAN. Let the filler cap hang by the retaining wire, this prevents losing the cap.
-
Page 14: Troubleshooting
MAINTENANCE To achieve the maximum service life of the ECO2JET 2L ATTACHABLE FLUID CAN you must regularly clean the ECO2JET 2L ATTACHABLE FLUID CAN and test if it is functioning correctly. Inspect the inside of the ECO2JET 2L ATTACHABLE FLUID CAN for contamination or blockage of the fluid hose. -
Page 15: Ec Declaration Of Conformity
: The Netherlands : B. Veroude : B. Veroude Date : 17-05-2024 : B. Veroude Date : 6-2-2020 Date : 6-2-2020 Date : 6-2-2020 Signature Signature Signature Signature MAGICFX ECO2JET 2L ATTACHABLE FLUID CAN - User and Installation Manual ®... - Page 16 WWW.MAGICFX.EU...
