- Page 1 USER AND INSTALLATION MANUAL ENGLISH STAGE, STADIUM & X-TREME SHOT. PART01339 CONFETTI & STREAMER FX rev 01-02...
-
Page 2: Disclaimer
Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... -
Page 3: Table Of Contents
Run a test Fill with confetti and/or streamers Fill with pressurized air Let’s shoot! Clean up Maintenance Troubleshooting Correct disposal EC Declaration of Conformity MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... -
Page 4: Foreword
Doc nr Revision Date Description Author Approved PART01339 01-00 29-08-2017 Initial release PART01339 01-01 01-08-2019 A4 to A5 format PART01339 01-02 03-12-2019 Safety zone update MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... -
Page 5: Stage Shot Ii, Stadium Shot Ii & X-Treme Shot

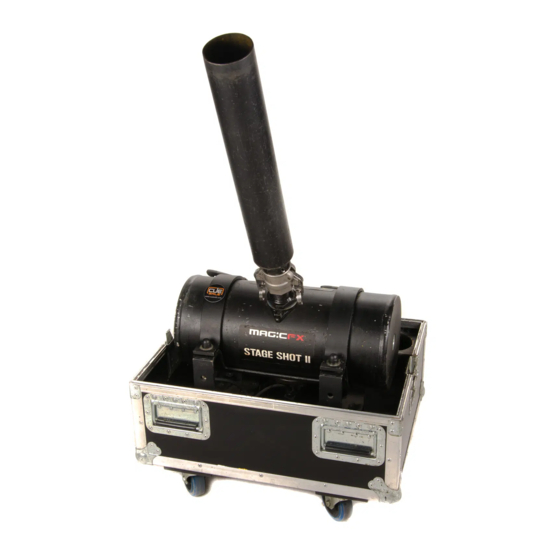

® to 1 kg 10 metres far* and 12 polybags of streamers 20 metres far*. The MAGICFX ® STAGE SHOT II is equipped with a 17.7 litre air pressure tank and is intended for outdoor use. The MAGICFX STADIUM SHOT II is a special effects machine that shoots confetti loads ®... -
Page 6: Magicfx ® Stage Shot
Consumable(s) Confetti & Streamers Technical data of the MAGICFX STAGE SHOT II ® PRODUCT IDENTIFICATION Type plate of the MAGICFX STAGE SHOT II ® MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 7 The output has a maximum distance of 25 m. Wind and other weather circumstances will influence the output NOTICE distance. The given values are estimated values. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 8: Magicfx ® Stadium Shot
Consumable(s) Confetti & Streamers Technical data of the MAGICFX STADIUM SHOT II ® PRODUCT IDENTIFICATION Type plate of the MAGICFX STADIUM SHOT II ® MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 9 Input types and related loads and output distance of the MAGICFX STADIUM SHOT II ® Wind and other weather circumstances will influence the output NOTICE distance. The given values are estimated values. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 10: Magicfx ® X-Treme Shot
68 L Usage Consumable(s) Confetti & Streamers Technical data of the MAGICFX X-TREME SHOT ® PRODUCT IDENTIFICATION Type plate of the MAGICFX X-TREME SHOT ® MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 11 Input types and related loads and output distance of the MAGICFX X-TREME SHOT ® Wind and other weather circumstances will influence the output NOTICE distance. The given values are estimated values. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 12: Shoot Safely
8 bar to fill the tank. Carefully read the manual of the compressor before use. • Never leave the tank pressurized for more than 15 minutes. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... -
Page 13: Rigging
Unauthorized operation of the machine can lead to death, WARNING serious injury or property damage. Never leave the machine and the power switch unattended when the machine is ready for use. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 14 5 meters / 16.5 feet. Make sure unauthorized personnel, animals and objects are clear of this area. Not doing so can result in death or serious injury. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
- Page 15 Make sure there are no objects near the output that can be WARNING damaged or overthrown by the MAGICFX STAGE SHOT II, ® STADIUM SHOT II & X-TREME SHOT. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 16: Let's Shoot
LET’S SHOOT! INSTALL THE MACHINE Bring the cased machine to the desired location. Unlock and remove the top cover. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 17 Remove the output pipe. Pull the locking clamps downwards to unlock and rotate them upwards. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
- Page 18 Place the output pipe in the coupling while holding the locking clamps upwards. Lock the output pipe in place with the locking clamps. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
- Page 19 If not: remove the output pipe and repeat step 5 and 6. Never use the machine when the clamps are not working properly. Turn the tank clamps counterclockwise. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
- Page 20 Set the tank with attached output pipe in an angle between 0 and 90 degrees. Turn the tank clamps clockwise to firmly secure the tank in position. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 21: Connect Power
Connect power cable(s) to the 12 – 24 Vdc input or the 100 – 250 Vac input. 12 – 24 Vdc 24 Vdc 24 Vdc MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 22 Do not connect more units to a single electrical circuit than the CAUTION installed fuse is able to handle. (Calculate the summed load with the electrical data from Chapter 1) MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 23: Run A Test
Place a lifting core in the bottom of the output pipe. Make sure the lifting core lies flat and closes off the hole in the output pipe! MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 24 Check Chapter 1 for the maximum amount per approved type of input. Place a pressure cap on top of the output pipe. Secure the pressure cap to the output pipe with special pressure cap tape. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 25: Fill With Pressurized Air
Switch on the air compressor and fill the tank to a maximum pressure of 8 bar. In case you do not want the compressor to refill the tank after the shot: Switch off the compressor and disconnect the hose. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... -
Page 26: Let's Shoot
3. Enjoy the view! 4. Switch the power off. CLEAN UP Disconnect the power cable(s). Disconnect the compressor hose from the air coupling (if not done already). MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... - Page 27 Open the ventilation valve to remove any remaining air from the tank. TANK PRESSURE Pull the locking clamps downwards to unlock and rotate them upwards. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
- Page 28 Remove the output pipe from the coupling. Store the output pipe in the flight case MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
- Page 29 Place and lock the top cover. Release the brakes. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®...
-
Page 30: Maintenance
Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. MAGICFX STAGE SHOT II, STADIUM SHOT II & X-TREME SHOT — User and Installation Manual ®... -
Page 31: Ec Declaration Of Conformity
MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that the product with the following specifications: Name machine : STAGE SHOT II / STADIUM SHOT II / X-TREME SHOT Type : MFX0410II / MFX0401II / MFX0414... - Page 32 WWW.MAGICFX.EU...
