- Page 1 AXE 50.0-60.0H-1HT-S1 Quick Guide Shenzhen Growatt New Energy Co., Ltd...

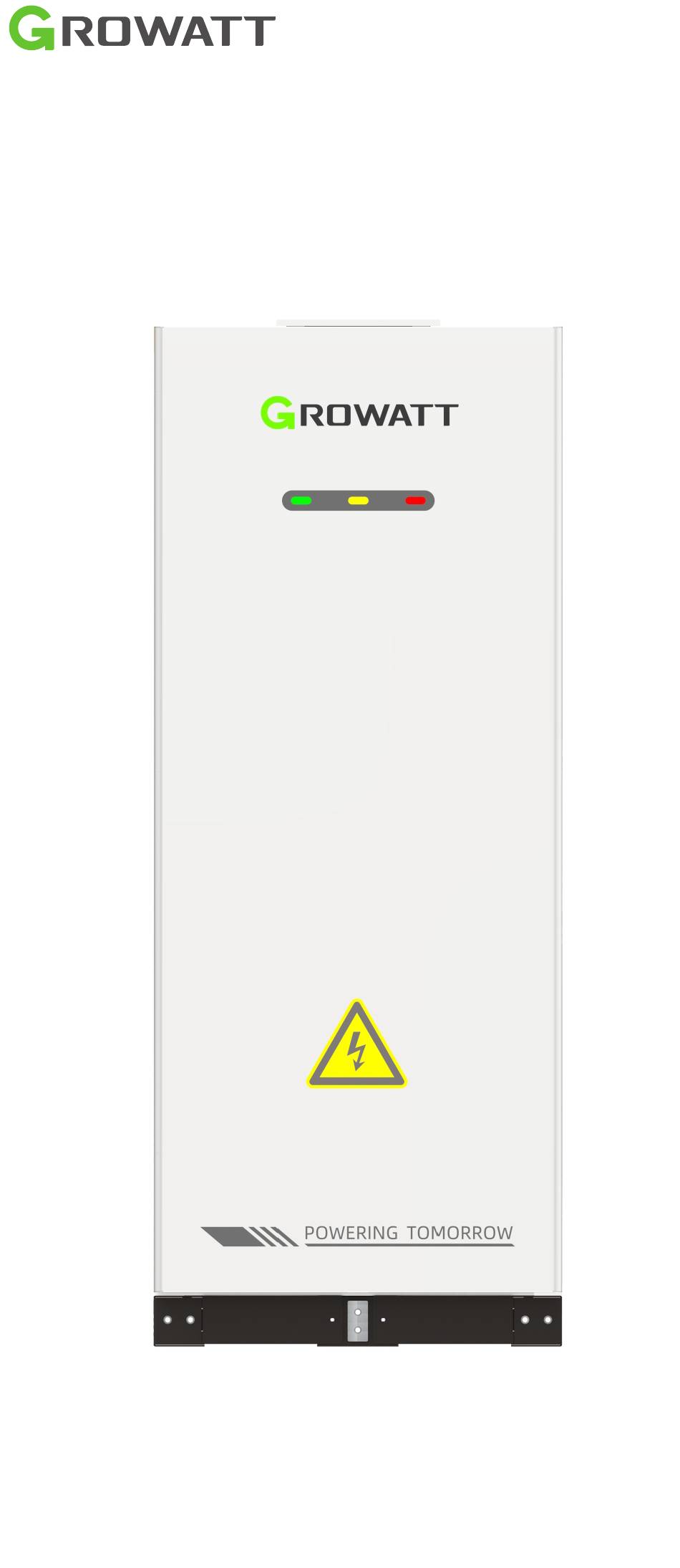

- Page 2 Installation environment Max.+55℃ RH+5%~+95% Min.-25℃ Installation tools working with M6/M8 bit holders & P2 Phillips bit Forklift Lifting trolley Electric screwdriver working with 16 mm drill bit Marker Impact drill Hammer Measuring tape Wrench Knife Appearance & dimensions This battery cabinet comes in two versions: for the standard version, up to 12 battery modules can be installed;...
-
Page 3: Inspection Upon Delivery
Inspection upon delivery 1- 1 Check the accessories Battery cabinet Anchor bracket Cable set Sealing clay Desiccant Expansion bolt M12*60 screw M10*30 screw M6*16 screw Quick installation guide Introduction to the battery cabinet Introduction to the panels of the battery cabinet Front view Rear view Component... - Page 4 Introduction to intra-cabinet components Configurations of installation modules Position Module Description Temperature sensor Temperature detection Battery pack Energy storage device High voltage box Battery charge/discharge control device Water leak sensor Water leak detection Smoke sensor Smoke detection Hydrogen Exhaust Exhaust of combustible System gases from the cabinet Aerosol...
- Page 5 Introduction to the panel of the high voltage box Position Item Description Connected to the negative power terminal of BAT- power terminal the battery cluster Connected to the positive power terminal of BAT+ power terminal the battery cluster Circuit breaker To control the battery output Start button To power on the energy storage system...
- Page 6 Basic installation requirements Safety clearance requirements Unit: mm Energy Storage System Installation Environmental Requirement: The ESS may corrode if installed in areas with salt damage or pollution. The ESS is suitable for the following or better environments 1. Outdoor environments more than 2000 meters away from the coast . Installation within 2000 meters of the coast is not recommended.
-
Page 7: Transportation And Installation
Transportation and installation Level the fundation Paint yellow and black crosswalk around the exposed foundation on the ground. Φ200mm PVC pipe catch basins using Φ100mm PE pipe to rainwater wells Cement mortar on the inner wall of cable trench C35 Concrete foundation Pre-embedded 40X4 Ground Ground... - Page 8 Transport battery cabinet On-site transportation of cabinets can be used lifting or forklift according to the actual situation. 1. Adopt lifting to transport the cabinet: Pass the lifting rope through the 4 rings on the top of the cabinet, use the lifting equipment to lift the cabinet by the lifting rope and move it to the designated position.
- Page 9 Install the battery cabinet Preparation before installing cabinets Remove the front and rear covers of the base Remove the pallet Check the appearance of the cabinet for good condition. Loosen the screws. Remove the front and rear covers of the base. Remove the pallet after the cabinet has been lifted.
- Page 10 5. Assembling PCS This cabinet is compatible with various PCS. Take connecting to the WIT30-55K as an example. Assemble the PCS bracket Use the tool to lift the PCS and hang it on the bracket. Tighten the screws The single cabinet side mount PCS is as follows, connecting the cables. Rear view Side view Ground...
-
Page 11: Check Before Power-On
Check before power-on Routine check Checking item Acceptance criteria Ÿ The equipment is intact, free from damage, rust or paint loss. If the paint flakes off, please re-paint the spotted Equipment area. appearance Ÿ Equipment labels are clear and damaged labels should be replaced in time. -
Page 12: Electrical Schematic
Primary schematic diagram of the energy storage system 9. Service and contact Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China service@growatt.com en.growatt.com For local customer support, please visit https://en.growatt.com/support/contact Download Manual GR-UM-489-A-00 (PN: 044.0137400)
