Zone mixer and paging system

Advertisement

Quick Links

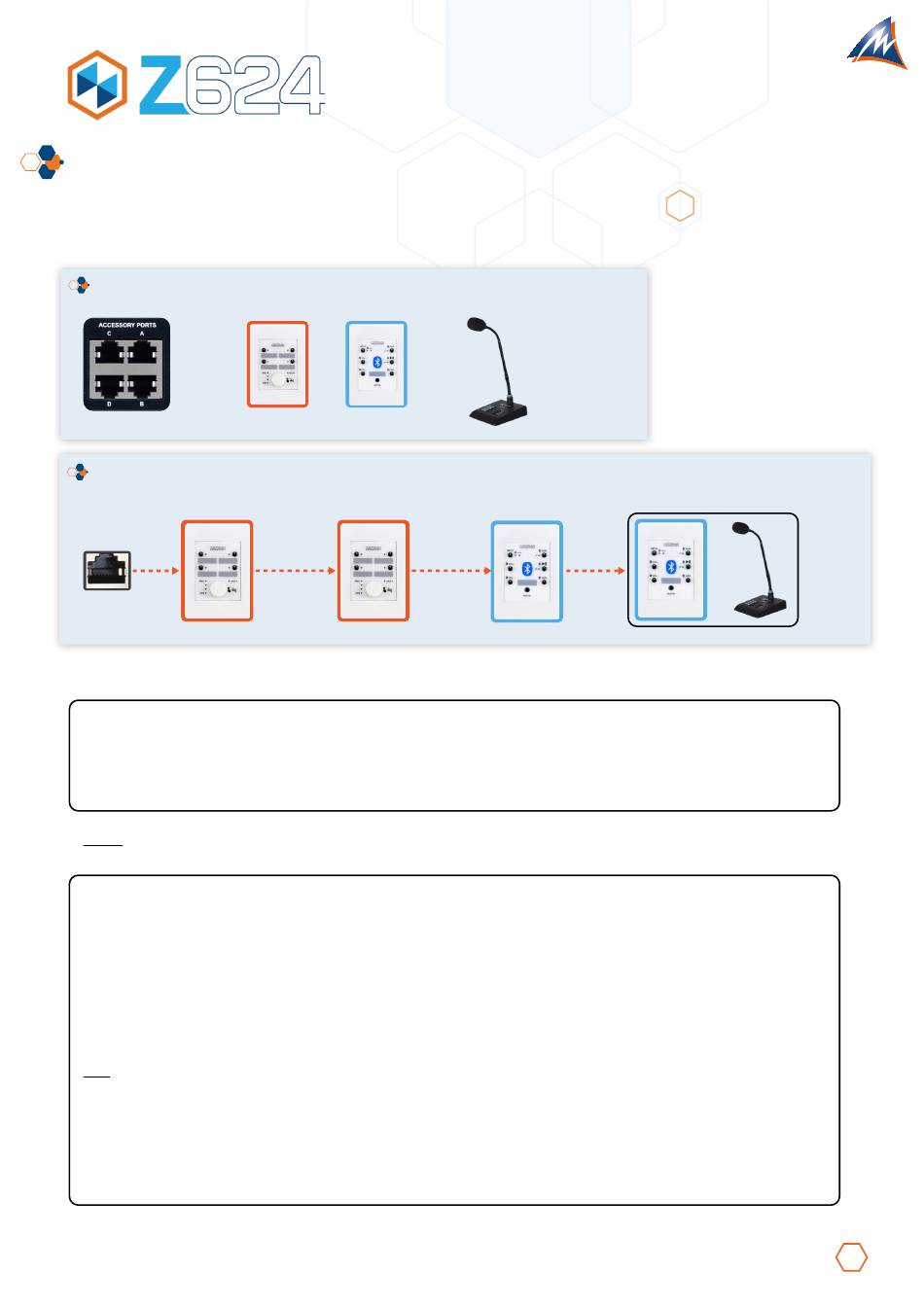

INTRODUCTION
The Z624 accessory ports allow for the connection of wall panels, a paging
station and audio input sources. Please follow the guide below to set up
your system.
Key:
Z624
Each port supports 2 wall controllers and 2 audio sources, or 1 audio source and a paging station
Each accessory port supports:
TWO WALL CONTROLLERS
In default mode, the wall controllers will only control the sources and levels for the corresponding
zone. e.g. Accessory Port A controls ZONE A, Accessory Port D controls ZONE D
Advanced Mode: Use the configuration software to customise the wall panel functions.
AND
TWO AUDIO SOURCES
The two audio sources SUM together in the Z624 and replace INPUT 6 for that zone. (Local input
DIP switch setting must be ON)
Note: The audio sources are locked to the zone.
If the audio source is required in other zones, the audio source should be
connected to one of the shared inputs 1-5 instead of using the accessory port
audio input.
OR
ONE Z624PS PAGING STATION AND ONE AUDIO SOURCE
Only one paging station is supported in the system and can be connected to any accessory
port. When a paging station is used the remaining local audio input is used for the audio input
source.
australianmonitor.com.au
WIRING GUIDE
Wall Controllers
Audio Sources
Paging Station
OR
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z624 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUSTRALIAN MONITOR Z624

  • Page 1 Advanced Mode: Use the configuration software to customise the wall panel functions. TWO AUDIO SOURCES The two audio sources SUM together in the Z624 and replace INPUT 6 for that zone. (Local input DIP switch setting must be ON) Note: The audio sources are locked to the zone.
  • Page 2 STEP 1: CONFIRM YOU DO NOT EXCEED THE FOLLOWING LIMITS Maximum cable length per port Accessories per port Maximum Accessories in system 250m 350m 500m The maximum distances quoted in the table above are due to DC current limitations. The paging station and wall panels can be locally powered to increase the cable length to a maximum of 500m.
  • Page 3 T-568A (orange pair are on pins 3+6, green pair are on pins 1+2) • We recommend using T-568B but either standard is supported. • Pick one standard only and use it for all connections. Z624 AND Z624PS WIRING STANDARDS T-568B STANDARD (RECOMMENDED) Colour Signal...
  • Page 4 T-568B wiring STEP 2: ACCESSORY PORT WIRING Paging Audio +/ Remote Input 2+ (CONT.) Paging Audio -/ Remote Input 2- RS485 B Wire the wall panels as per the images below. +24V DC • Category 5, 5e and 6 cabling supported. RS485 A •...
  • Page 5 Wire the Z624PS as per the image below. • Category 5, 5e and 6 cabling supported. • T-568B wiring recommended. However, T-568A also supported. Z624PS WIRING Z624 The Z624PS can be attached to any ONE of the accessory ports australianmonitor.com.au...
  • Page 6 STEP 3: PORT TERMINATION – DO NOT SKIP THIS STEP DO NOT SKIP THIS STEP The Z624 uses the RS485 standard to communicate to wall panels and paging stations. RS485 requires that the end of the cable run is terminated to prevent signal corruption due to signal reflections in the cable.
