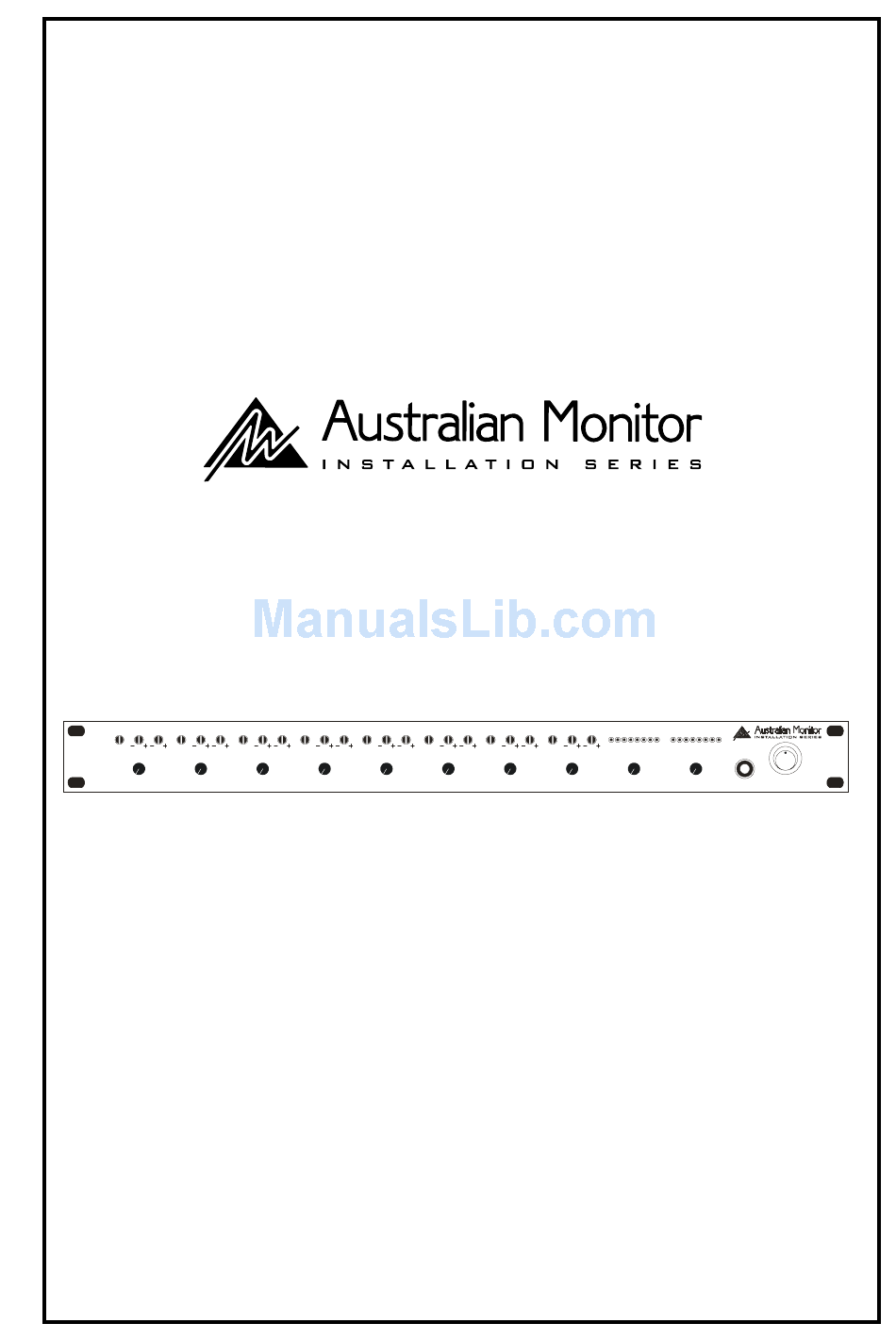

  • Page 1 TX8201 8 Channel Stereo Mixer with Direct Outputs BA SS T R EB LE BA SS T R EB LE BA SS T R EB LE BA SS T R EB LE BA SS T R EB LE BA SS T R EB LE BA SS T R EB LE...

  • Page 2: Product Description

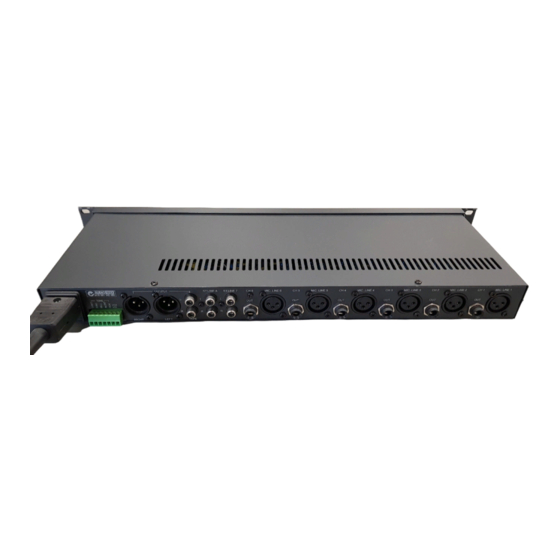

    TX8201, 8 Channel Stereo Mixer Product Description The TX8201 is a single rack height, 8 channel stereo mixer with direct outputs suitable for desk or 19” rack mounting. The TX8201 has 6 balanced mic or line inputs and 2 stereo auxiliary inputs. Each input channel has individual bass, treble and pan controls.

  • Page 3: Rear Panel Features

    LED Display VU Meter An 8 segment LED VU meter is provided for each of the master Left and Right outputs. The VU meters indicate output signal level from -21 to +3 dB. For normal operation the LED’s should rarely oscillate in the red zone. If the LED’s in the red zone are lit continually, then the output level controls should be turned counter-clockwise to reduce the output level.

  • Page 4: Direct Outputs

    XLR Microphone/Line Inputs Each XLR input is switchable to be either balanced mic or line (via an internal dip switch, the location and setting of which is explained in the ‘Internal Adjustments’ section of this manual). When set to mic level, the mic input sensitivity is 1mV ( for a 1 Volt output).

  • Page 5: Important Safety Information

    Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing.
  • Page 6 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
