TX8202
8 Channel Stereo Mixer
with Direct Outputs
Operating Manual

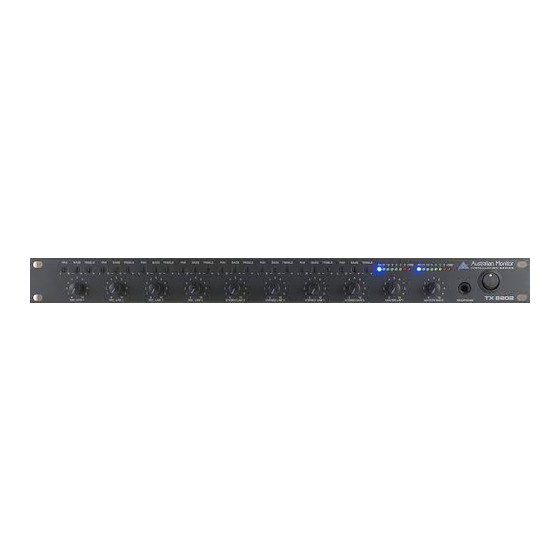

TX8202, 8 Channel Stereo Mixer

Product Description

The TX8202 is a single rack height, 8 channel stereo mixer with direct outputs suitable for desk or 19" rack
mounting. The TX8202 has 4 balanced mic or line inputs and 4 stereo auxiliary inputs. Each input channel
has individual bass, treble and pan controls. The first 4 channels also feature a line level direct output which
can be used to feed additional amplifiers, mixers or recording devices. An internal dip switch allows the
first 4 inputs to be routed to either the direct output, the master outputs or both. The TX8202 also features
in-built VOX muting and an optional 4 tone generator with Alert, Evacuate, Pre-Announce, Bell tones and
optional remote VCA for the Master Volume.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX8202 and is the answer not in the manual?

Questions and answers

Related Manuals for AUSTRALIAN MONITOR TX8202

Summary of Contents for AUSTRALIAN MONITOR TX8202

  • Page 1: Product Description

    Product Description The TX8202 is a single rack height, 8 channel stereo mixer with direct outputs suitable for desk or 19” rack mounting. The TX8202 has 4 balanced mic or line inputs and 4 stereo auxiliary inputs. Each input channel has individual bass, treble and pan controls.

  • Page 2: Front Panel Features

    Left output channel. Turning the pan control in a counter-clockwise direction will send progressively more signal to the Left output channel and less to the Right output channel. The pan control also allows the TX8202 to be used in dual zone applications.

  • Page 3: Bass Control

    Bass Control Each input channel has a recessed (screwdriver adjustable) bass tonal adjustment control labeled “Bass”. Setting this control in the centre position will give a flat bass response. Adjusting the bass control in a clockwise direction will provide up to 12 dB of bass boost @ 100 Hz. Adjusting the bass control in a counter-clockwise direction will provide up to 12 dB of bass cut @ 100 Hz.

  • Page 4: Rear Panel Features

    Left Channel and Right Output Connectors The rear panel of the TX8202 includes two male XLR output connectors. The output is an active balanced isolated output for connection to a power amplifier. The maximum output is 1.5V RMS. Pin connections are Pin 1 = Earth.

  • Page 5: Direct Outputs

    Adjustments’ section of this manual for more details). Direct Outputs A unique feature of the TX8202 is the individual direct output available for each of the first 4 channels. The direct outputs are accessed via balanced TRS 1/4” sockets for each channel. The level of each output is 1 Volt (nominal).

  • Page 6: Internal Adjustments

    Internal Adjustments Note: The following adjustments involve access to the inside of the TX8202 and should only be attempted by a qualified technician. Always turn off the AC power and remove the AC power cord before accessing the inside of the TX8202.
  • Page 7 Issue Release Date: 11 January 2007 Correction/Change: Vox muting enable/disable header location. This addendum to the TX8202 manual corrects the text discussing the Priority mute function. The following text has changed on page 5 Features and Page 6 Internal Adjustments Vox Muting Priority muting is provided for channels 1 and 2.
  • Page 8 Addendum to TX8202 Manual Issue Release Date: Correction/Change: Vox muting enable/disable header location. This addendum to the TX8202 manual corrects the text discussing the Priority mute function. The following text has changed on page 5 Features and Page 6 Internal Adjustments.

  • Page 9: Important Safety Information

    Australian Monitor Inc is not responsible for damage to loudspeakers for any reason. 18. Do not ground any red (“hot”) terminal. Never connect a “hot” (red) output to ground or to another “hot” (red) output! 19.
  • Page 10 Engineered in Sydney, Australia AUSTRALIA AND NEW ZEALAND EUROPE / ASIA / MIDDLE EAST www.australianmonitor.com.au www.australianmonitor.com.au SYDNEY (NSW & ACT SALES) INTERNATIONAL SALES 149 Beaconsfi eld Street Silverwater NSW 2128 Private Bag 149, Silverwater NSW 1811 Private Bag 149 Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Phone: (02) 9647 1411 Australia...
