Summary of Contents for AUSTRALIAN MONITOR SM12

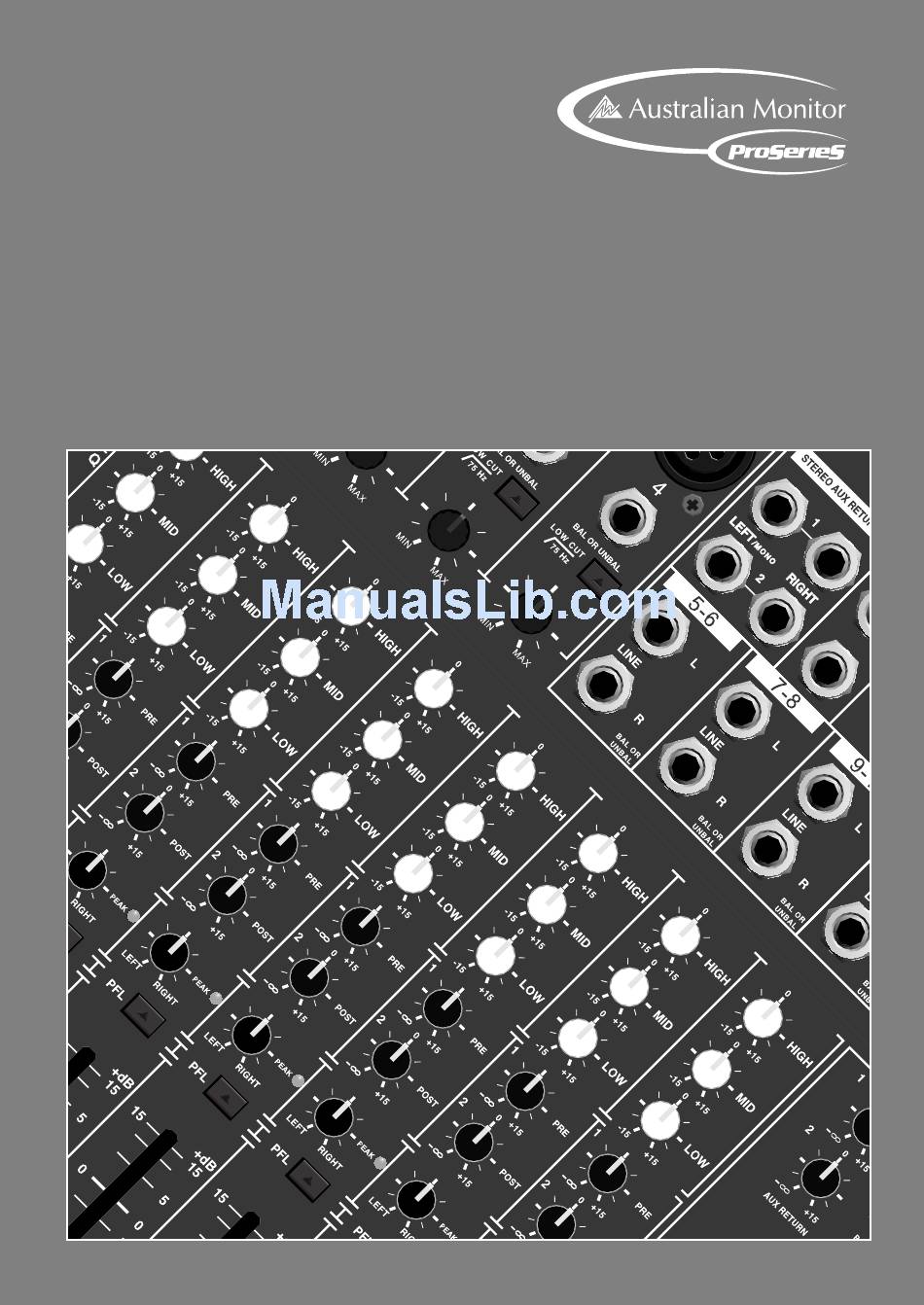

- Page 1 SM12 & SM16 STEREO MIC/LINE MIXING CONSOLES OPERATION MANUAL...
-
Page 3: Table Of Contents
19 inch rack mount kit and accurate 10 segment bar graph meters for the stereo output buss. BLOCK DIAGRAM The Australian Monitor Pro Series SM12 and SM16 give the audio SPECIFICATIONS professional a sonically superior mixing console offering a feature set and versatility usually found in mixing consoles many times their price. -
Page 4: Mono Channels
15dB level of the channels signal before it of boost or cut at 12kHz. The centre is sent to the master output buss. position will give a flat response. PAGE 4 SM12 & SM16 OPERATION MANUAL... -
Page 5: Stereo Channels
15dB of boost or cut at 80Hz. This Channel output fader adjusts the The centre position will give a flat level of the channels signal before it response. is sent to the Master output buss. PAGE 5 SM12 & SM16 OPERATION MANUAL... -
Page 6: Master Section
Master Mix. PAGE 6 SM12 & SM16 OPERATION MANUAL... -
Page 7: Rear Panel
REAR PANEL INSERTS 1-4 (1-8 ON THE SM16) An insert point is provided for each Mono Channel on the SM12 and SM16 mixing consoles. These insert points are a split of the channels input signal which is post input gain and Low cut filter with the return path pre EQ. -
Page 8: Operation
OPERATION Before connecting any input sources to your SM12 or SM16 stereo Set the Master Output to unity gain (set to "0") console mixer, please make sure the following initial settings are correct. Turn up the input gain for your selected channel to 12 O’clock •... -
Page 9: Block Diagram
BLOCK DIAGRAM PAGE 9 SM12 & SM16 OPERATION MANUAL... -
Page 10: Specifications
70mm x 293mm x 344mm Net Weight 3.6kg (PSU not included) Gross Weight 5.8kg SM16 Dimensions (H x W x D) 70mm x 399mm x 344mm Net Weight 5kg (PSU not included) Gross Weight 8.0kg PAGE 10 SM12 & SM16 OPERATION MANUAL... - Page 12 AUSTRALIA AND NEW ZEALAND www.australianmonitor.com.au SYDNEY MELBOURNE BRISBANE ADELAIDE PERTH AUCKLAND (NSW & ACT SALES) (VIC & TAS SALES) (QLD SALES) (SA & NT SALES) (WA SALES) (NZ SALES) 149 Beaconsfield 122/277 42 Commercial Road 31 Walsh Street 299 Fitzgerald Street Unit B, 11 Piermark Street Silverwater Middleborough Road...
