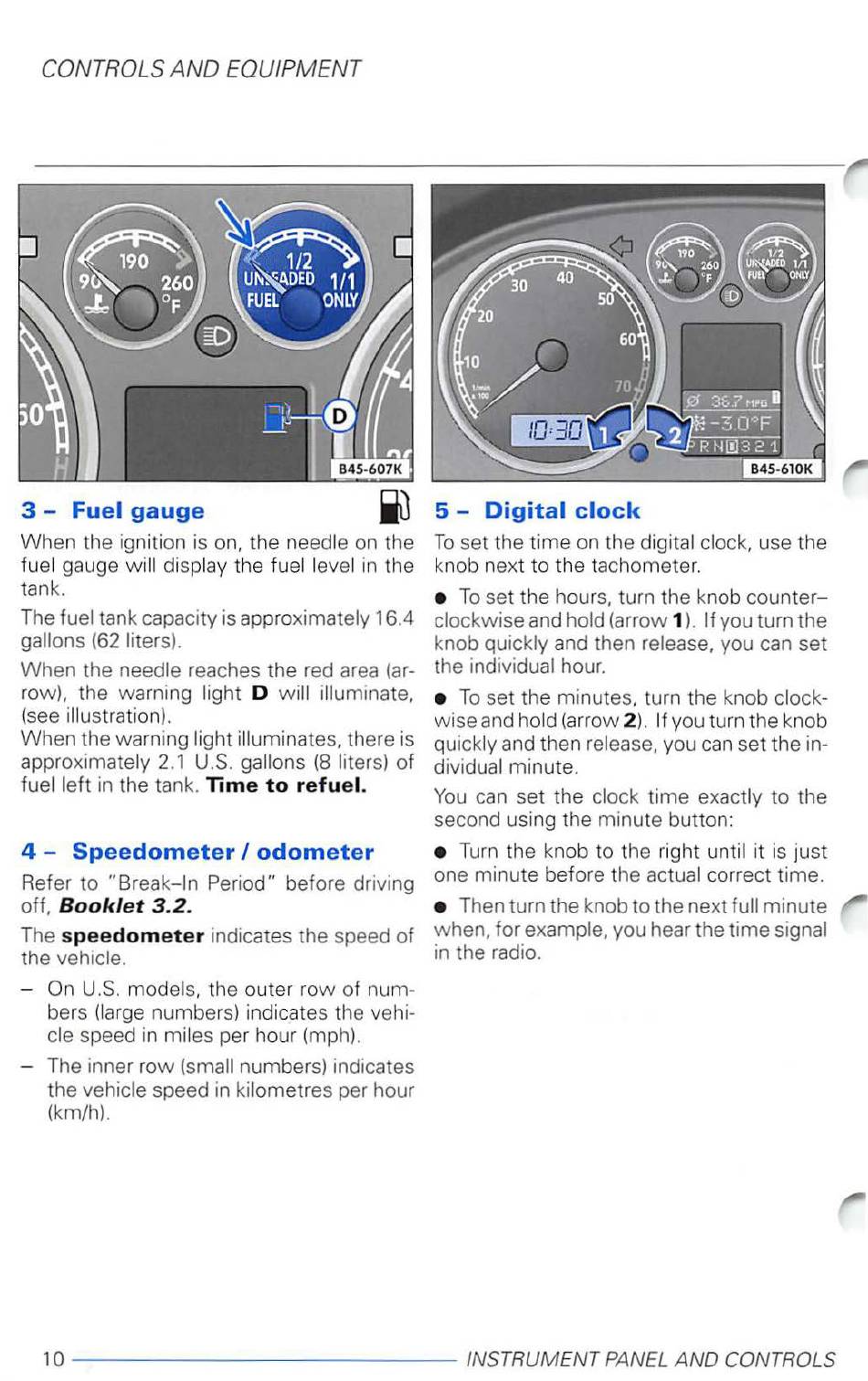

CONTROLS AND EQUIPMENT
3
-
Fuel gauge
i)
5
-
Digital clock
When the ignition
is
on, the needle
on the To set the
time on the digital clock, use
t
he
fuel gauge will display
the fu el level
in the
knob
next to the
tachometer.
tank.
The
fuel tank capacity is
approximately
16.4
gallons (62
liters).
When the
needle reaches the
red area
(ar-
row). the
warning light
D
will
illuminate.
(see illustration).
When the warning light illuminates.
there
is
approximately 2.
1
U.S. gallons (8 liters)
of
fuel
left in
the tank.
Time to refuel.
4 - Speedometer
I
odometer
Refer
to "Break-In
Period"
before
driving
off,
Booklet
3.2.
The
speedometer
indicates the
speed of
the
vehicle.
-
On U.S.
models.
the
outer
row
of num-
bers (large numbers) indicates the vehi-
cle speed in
miles per hour
(mph).
-
The inner
row
(small
numbers)
indicates
the
vehicle speed
in
kilometres per hour
(km/h).
•
To
set
the hours.
turn
the
knob
counter-
clockwise
and
hold (arrow
1
). If
you turn
the
knob
quickly and
then release. you can set
the
individual
hour.
•
To
set
the minutes. turn the knob
clock-
wise
and
hold (arrow
2
).
If you turn the knob
quickly and then
release.
you can set the in-
dividual minute.
You
can
set the
clock
time exactly to the
second
using the
minute
button:
•
Turn the knob to the right
until it
is just
one minute
before the
actual correct
time.
•
Then turn
the
knob
to
the
next full
minute
when.
for
example,
you hear
the
time
signal
in
the
radio.
10
-
--
-
-
--
--
- -
--
INSTRUMENT
PANEL
AND
CONTROLS
