Step 2 - Wiring Connections - Loads over 16 amps

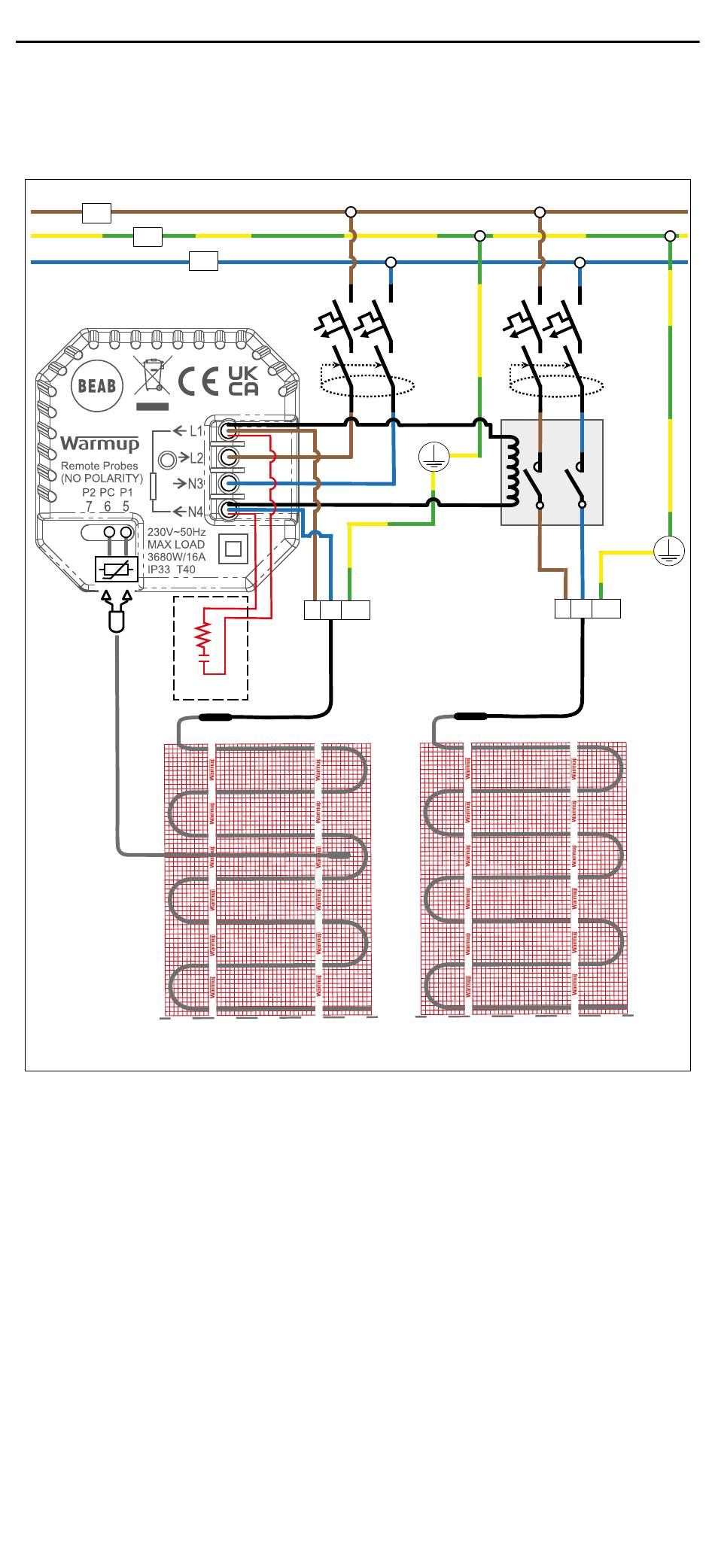

Warmup thermostats are rated for a maximum of 16 amps (3680 W). A
contactor must be used to switch loads exceeding 16 amps. Please see wiring
diagram below.
L
PE
N
L N PE
R
C
Snubber
≤16A
30 mA
5
≤16A
30 mA
L N PE
