Summary of Contents for Warmup W3115
- Page 1 TH115 Controller W3115 AF...
- Page 2 Model W3115 - A closer look Comfort Economy Program Vacation your settings Adjust the temperature Switch between Manual, Automatic and Vacation settings Page 1...
- Page 3 Pre-programmed schedule The thermostat comes with pre-programmed schedule for easy and economic heating control of most homes. Below are the factory settings or the preset schedule. Wake Up Leave Home Come Home Go to Sleep 5:30 8:00 18:00 21:30 24°C 16°C 24°C 16°C...
- Page 4 Personalise your settings Open the doors on either side of the LCD display in order to access the controls. Set the ON/OFF switch to ON. If power has been applied for the first time: • Set the current time by using the hour and minute buttons •...
- Page 5 2 settings a day ( Heating will be set to come ‘ON’ at 7am and ‘OFF’ at 10pm) Setting the Comfort temperature Setting the Economy temperature 7:00 22:00 1. Press the ‘sun’ button 1. Press the ‘moon’ button 2. Set the temperature at 24°C 2.
- Page 6 Set your preferred heating times - P2. The little house is on 2 – this is the P2 setting Press the Day button and select the day to be programmed – Hold the day 22:00 button for 3 secs if you want the same setting for all days of the week MO TU WE TH FR SA SU Set the time to 10pm using the Hour...
- Page 7 4 settings a day ( eg 7am – 10am (morning) and 6pm – 9pm (evening/night) Setting the Comfort temperature Setting the Economy temperature 7:00 10:00 1. Press the ‘sun’ button 1. Press the ‘moon’ button 2. Set the temperature to 24°C 2.
- Page 8 4 settings a day (cntd) Set your preferred heating times - P2 The little house is on 2 – this is the P2 setting 10:00 Press the Day button and select the day to be programmed – Hold the day MO TU WE TH FR SA SU button for 3 secs if you want the same setting for all days of the week...
- Page 9 If your settings for Saturday and Sunday are different from the rest of the week follow the steps below . It is faster to program the same schedule for the entire week and then modify the exception days eg weekends – Saturday and Sunday.
-
Page 10: Manual Setting
Manual setting Press ‘Mode/Ret’ to display the manual icon Press the arrow keys for the required temperature a at n setting Page 9... - Page 11 Erase your program Press ‘Pgm’ and go to the program to be erased (P1, P2, P3 or P4) Press the ‘day’ button and select the Press ‘Clear’ Reset the TH115 Press and hold the arrow key ▲ Position the switch from 'ON' to 'OFF' and back to 'ON'.
-
Page 12: Troubleshooting
The measured temperature is above the thermostat's display range. Heating is deactivated. Verify the thermostat and sensor connections For more information please refer to the Warmup website :http://www.warmup.co.nz/thermostats. Warmup New Zealand Ltd T 0800 927 687 E info@warmup.co.nz W www.warmup.co.nz...
Need help?
Do you have a question about the W3115 and is the answer not in the manual?
Questions and answers

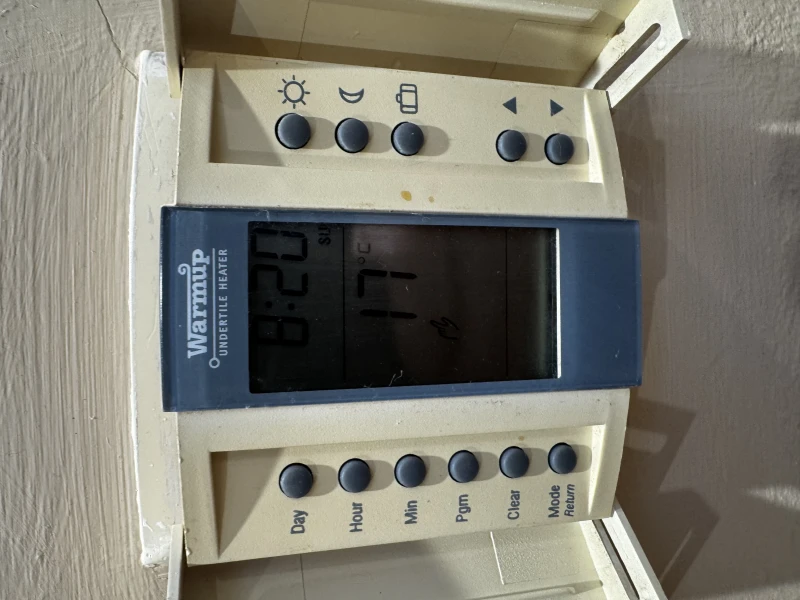

Raising the underfloor heating to a constant 26
To set the Warmup W3115 underfloor heating to a constant temperature of 26°C, follow these steps:
1. Press the ‘sun’ button.
2. Use the arrow keys to set the temperature to 26°C.
3. Press and hold the ‘sun’ button for 3 seconds until the ‘sun’ icon appears on the screen.
This will set the heating to maintain a constant temperature of 26°C.
