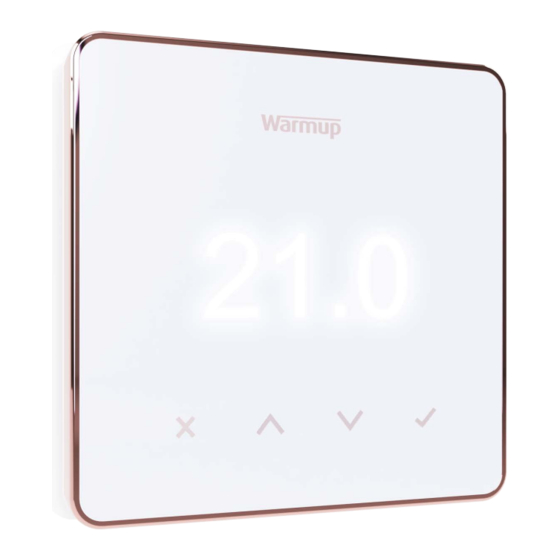

- Page 1 Element WiFi Thermostat Smart Heating. Simplified. User Guide...
-
Page 2: Table Of Contents
Table 1.0 Thermostat Application ..............6 Step 3 - Thermostat Mounting ................ 7 Step 4 - Initial Setup ..................8 Welcome to the Element thermostat ............. 9 How to quickly change the temperature ..............9 How to quickly change mode ................... 9 Heating ...................... -
Page 3: Safety Information
Safety Information The thermostat must be installed by a qualified electrician. It requires a permanent 230 V AC supply from a 30mA RCD or RCBO protected circuit in accordance with the current edition of the BS7671 Wiring Regulations. Isolate the thermostat from the mains supply throughout the installation process. -
Page 4: Step 2 - Wiring Connections
Step 2 - Wiring Connections WARNING! The thermostat must be installed by a qualified electrician in accordance with the current edition of the BS7671 Wiring Regulations. NOTE: For loads above 10 A, the conductor wire gauge should be at least 2.5mm²... -
Page 5: Wiring Connections - Loads Over 16 Amps
Step 2 - Wiring Connections - Loads over 16 amps Warmup thermostats are rated for a maximum of 16 amps (3680 W). A contactor must be used to switch loads exceeding 16 amps. Please see wiring diagram below. ≤16A ≤16A... - Page 6 Table 1.0 Thermostat Use Cases Use Case System Type Control Limit Sensor Thermostat IN room Internal Air temperature schedule None Air Sensor No floor limit Thermostat IN/OUT of room Probe 1 (5 & 6) Floor temperature schedule None Floor limit Floor Sensor Thermostat IN room Probe 1...
-
Page 7: Step 3 - Thermostat Mounting
Wattage** Efficiency Application Download MyHeating 1,500W 1,500W app. Scan Electric floor See floor QR Code heating heating manual on Element (1-12). Screen See table 1.0 Protector 2,000W 2,000W Hydronic See floor See your heat floor heating heating manual source manual... - Page 8 Follow the instructions This will be the heating zone it controls. in the App to complete setup. Select the Element with QR code as Note: Before scanning the QR code, shown. ensure your device is connected to a 2.4GHz WiFi network, as the thermostat...
-
Page 9: Welcome To The Element Thermostat
Welcome to the Element thermostat Next/Accept Back/Cancel Up/Down Change value/setting How to quickly change the temperature Element Press to change your Temperature target temperature. Override If in program mode this will set 21.0 a temporary override until your next heating period. See “How to set a temporary override”. -
Page 10: Heating
Setting a program allows you to set comfort temperatures at set times throughout the day. Days can programmed individually, all days the same or weekdays as a block and weekends as a block, the choice is yours. Element How to set 21.0... -
Page 11: How To Set Into Manual Mode
21.0 23.0 ° Sets the target temperature indefinitely. Set the duration of the manual mode. Element How to set a Temporary Override Temperature Override Setting a temporary override allows you to set a target temperature which will override your current heating program until your next heating period or for a set duration. -
Page 12: Energy Monitor
SmartGeo How SmartGeo works SmartGeo is a unique technology developed by Warmup and built into the MyHeating App that uses an advanced algorithm to understand the most efficient heat settings for your home. Working automatically; it learns your routines and... -
Page 13: Settings
Settings 21.0 Date and time Set the current date and time. 6-5-2021 Press to begin, press to change date/time. 13:00 Press to confirm. Thermostat application Swaps probe usage, 1 being the Control Sensor Probe and 2 being the Limit Sensor Probe. Press to swap probe usage. - Page 14 Settings cont’d Change homescreen override colour Select the override colour. Open window function The windows open detection feature is designed to switch off heating to save energy when the thermostat detects that a window or door has been opened. Display lock Switch display lock on.
-
Page 15: Notifications & Error Codes
Notifications & Error codes Date and time needs to Heating switched OFF be set. Open window function Display locked triggered. Temporary override Sensor P2 (6 & 7) error enabled Sensor P1 (5 & 6) not Holiday mode enabled. - - - connected / damaged or (Configured in MyHeating App) -
Page 16: Wifi Troubleshooting
10-15 seconds now work as reattach. Does the thermostat normal connect to your WiFi Network? Contact Warmup If the thermostat connected Set up a mobile hotspot using with your router to a mobile hotspot a smartphone. On a separate make &... -
Page 17: Technical Specifications
230V AC input) Er-P Class Warranty 12 Years Approvals BEAB NOTE: Hereby, Warmup plc, declares that the radio equipment type RSW- 01-XX-YY is in compliance with the RED Directive 2014/53/EU and Radio Equipment Regulations 2017. The declarations of conformity may be consulted by pressing the CE or UKCA icon. -
Page 18: Uk Psti Statement Of Compliance
UK PSTI Statement of Compliance We, Warmup plc, as manufacturer, hereby declare in our opinion, that the below product(s) covered in this document have complied the deemed compliance conditions in Schedule 2 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 (“Security... -
Page 19: Ecodesign Compliance Information Card
This control has the following control functions and exceeds the EcoDesign requirements for electric underfloor local space heaters and towel rails as set out in Commission Regulation (EU) 2024/1103: TW (f2/f3/f4/f8) The Element includes these control function codes and power consumptions: Thermostat model RSW (7iE-01) -
Page 20: Warranty
Warmup heater. If at any time during the warranty period the product is determined to be defective, Warmup shall repair or replace it, at Warmup’s option. If the product is defective, please either; Return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it, or Contact Warmup. - Page 21 Warmup plc www.warmup.co.uk uk@warmup.com T: 0345 345 2288 F: 0345 345 2299 Warmup plc 704 Tudor Estate Abbey Road London NW10 7UW Warmup GmbH Ottostraße 3 27793 Wildeshausen Warmup - UG - Element - V1.6 2025-03-14_EN...
