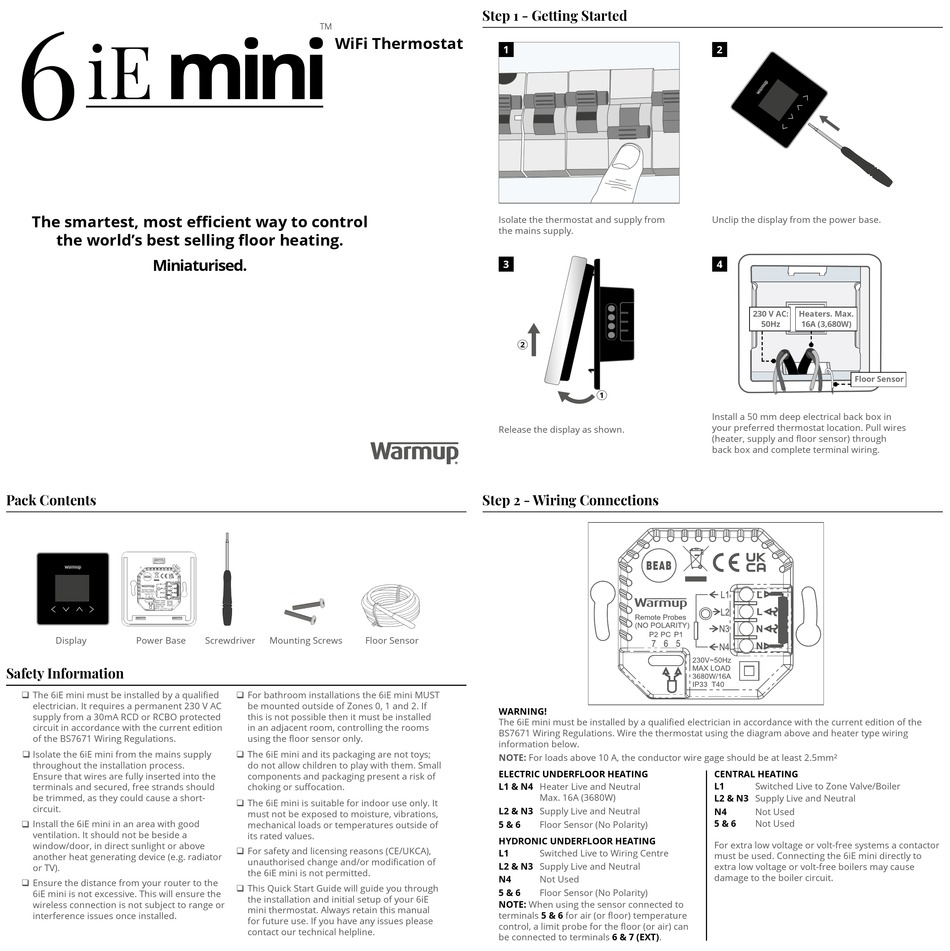

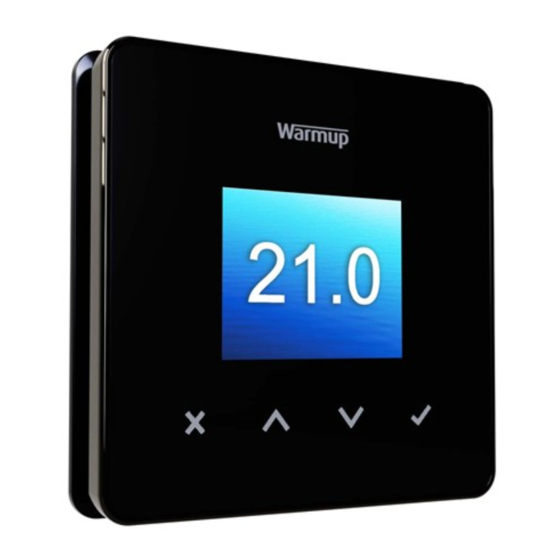

Warmup 6iE mini Quick Start Manual

6
mini
iE
The smartest, most efficient way to control
the world's best selling floor heating.
Miniaturised.
Pack Contents
Display Power Base
Safety Information
The 6iE mini must be installed by a qualified
q
electrician. It requires a permanent 230 V AC
supply from a 30mA RCD or RCBO protected
circuit in accordance with the current edition
of the BS7671 Wiring Regulations.
Isolate the 6iE mini from the mains supply
q
throughout the installation process.
Ensure that wires are fully inserted into the
terminals and secured, free strands should
be trimmed, as they could cause a short-
circuit.
Install the 6iE mini in an area with good
q
ventilation. It should not be beside a
window/door, in direct sunlight or above
another heat generating device (e.g. radiator
or TV).
Ensure the distance from your router to the
q
6iE mini is not excessive. This will ensure the
wireless connection is not subject to range or
interference issues once installed.
TM
WiFi Thermostat
Screwdriver Mounting Screws Floor Sensor
For bathroom installations the 6iE mini MUST
q
be mounted outside of Zones 0, 1 and 2. If
this is not possible then it must be installed
in an adjacent room, controlling the rooms
using the floor sensor only.
The 6iE mini and its packaging are not toys;
q
do not allow children to play with them. Small
components and packaging present a risk of
choking or suffocation.
The 6iE mini is suitable for indoor use only. It
q
must not be exposed to moisture, vibrations,
mechanical loads or temperatures outside of
its rated values.
For safety and licensing reasons (CE/UKCA),
q
unauthorised change and/or modification of
the 6iE mini is not permitted.
This Quick Start Guide will guide you through
q
the installation and initial setup of your 6iE
mini thermostat. Always retain this manual
for future use. If you have any issues please
contact our technical helpline.
Step 1 - Getting Started
1
Isolate the thermostat and supply from
the mains supply.
3
2
1
Release the display as shown.
Step 2 - Wiring Connections
WARNING!
The 6iE mini must be installed by a qualified electrician in accordance with the current edition of the
BS7671 Wiring Regulations. Wire the thermostat using the diagram above and heater type wiring
information below.
NOTE: For loads above 10 A, the conductor wire gage should be at least 2.5mm²
ELECTRIC UNDERFLOOR HEATING
L1 & N4 Heater Live and Neutral
Max. 16A (3680W)
L2 & N3 Supply Live and Neutral
5 & 6
Floor Sensor (No Polarity)
HYDRONIC UNDERFLOOR HEATING
L1 Switched Live to Wiring Centre
L2 & N3 Supply Live and Neutral
N4 Not Used
5 & 6 Floor Sensor (No Polarity)
NOTE: When using the sensor connected to
terminals 5 & 6 for air (or floor) temperature
control, a limit probe for the floor (or air) can
be connected to terminals 6 & 7 (EXT).
2
Unclip the display from the power base.
4
230 V AC: Heaters. Max.
50Hz 16A (3,680W)
Floor Sensor
Install a 50 mm deep electrical back box in
your preferred thermostat location. Pull wires
(heater, supply and floor sensor) through
back box and complete terminal wiring.
CENTRAL HEATING
L1 Switched Live to Zone Valve/Boiler
L2 & N3 Supply Live and Neutral
N4
Not Used
5 & 6 Not Used
For extra low voltage or volt-free systems a contactor
must be used. Connecting the 6iE mini directly to
extra low voltage or volt-free boilers may cause
damage to the boiler circuit.
