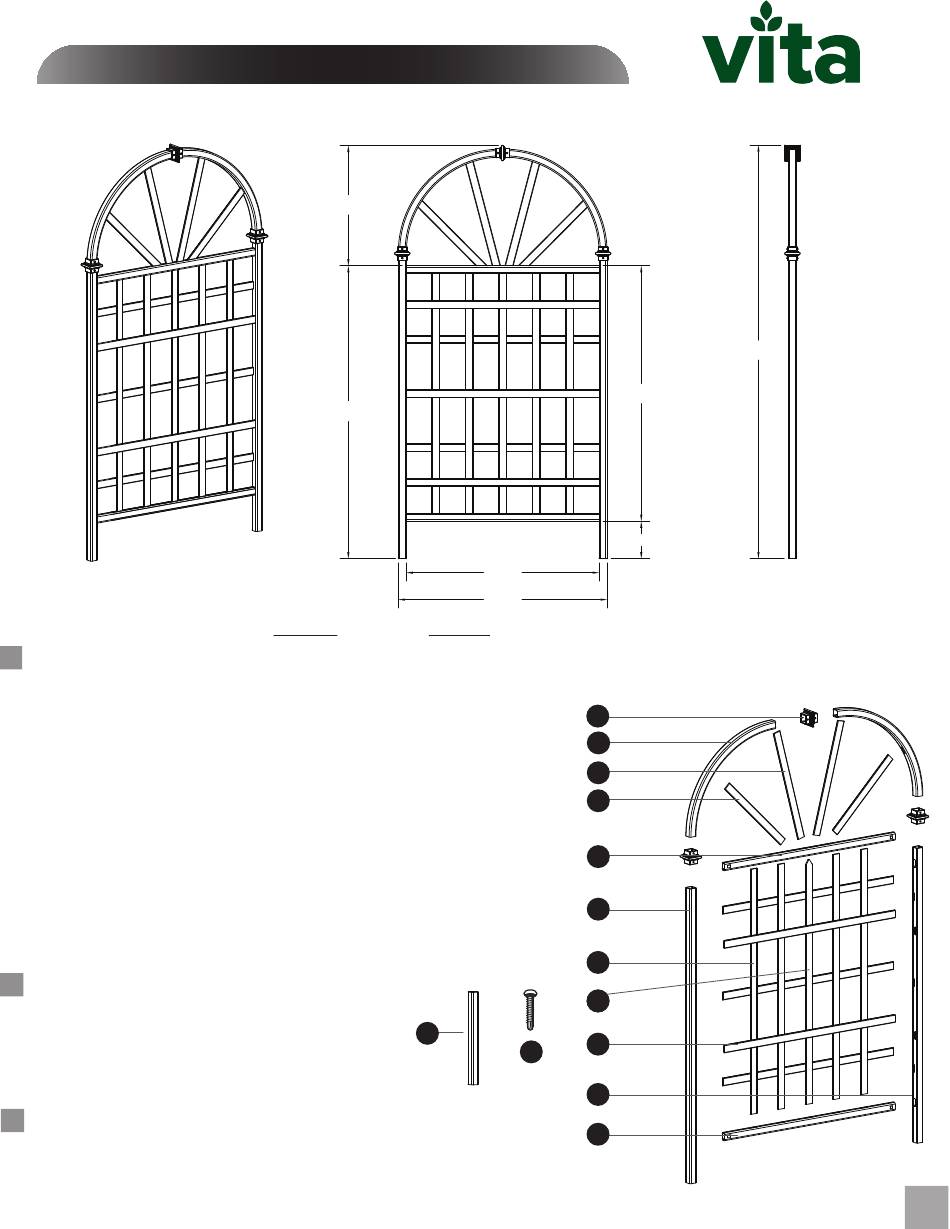

A S S E M B LY I N S T R U C T I O N S
The Athens / Savannah Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST).
1.Post Caps (3)
1.5" (4 cm) Square - 10600 White / 14066 Composite
2.Arches (2)
1.5" (4 cm) Square - 10847 White / 14074 Composite
3.Top Long Spindles (2)
Length 21.89" (55.6 cm) - 10848 White / 14075 Composite
4.Top Short Spindles (2)
Length 19.1" (48.5 cm) - 10849 White / 14076 Composite
5.Top Rail (1)
Length - 38.73" (98 cm)- 10850 White / 14077 Composite
6.Left Post (1)
Length 57" (145 cm) - 10851 White / 14078 Composite
7.Right Post (1)
Length 57" (145 cm) - 10852 White / 14091 Composite
8.Vertical Spindles (4)
Length 47.36" (120 cm) - 10853 White / 14079 Composite
9.
Center Vertical Spindle (1) Length 47.36" (120 cm) - 11199 White / 14110 Composite
10.Horizontal Spindles (5)
Length 38.73" (98 cm) - 10854 White / 14080 Composite
11.Bottom Rail (1)
Length 38.73" (98 cm) - 10850 White / 14081 Composite
12.Ground Mounting Extensions (2)
13.5/8" (16 mm) Self-Auguring Stainless Steel Screw (24) -
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' (1.5 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling component.
22.5 in (57 cm)
54.7 in (139 cm)
Length 18" (45.7 cm) - 10856 White / 14073 Composite
20016 White / 20030 Composite
12
47.7 in (121 cm)
7 in (18 cm)
36 in
(91 cm)
39 in
(99 cm)
1
2
3
4
5
6
8
8 9
10
13
Not to Scale
7
11
www.wearevita.com
77.2 in (196 cm)
V3.4/051321
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for vita Athens Trellis
Summary of Contents for vita Athens Trellis
- Page 1 A S S E M B LY I N S T R U C T I O N S www.wearevita.com The Athens / Savannah Trellis 22.5 in (57 cm) 77.2 in (196 cm) 47.7 in (121 cm) 54.7 in (139 cm) 7 in (18 cm) 36 in (91 cm)
- Page 2 2.25 in (6 cm) S T E P O N E NOTE: There are locking tabs located at the ends of the horizontal rails. Once inserted and pushed into the routed holes, they will lock into place. 7 in (18 cm) Lay one of the posts on the ground and insert the bottom rail and the five horizontal spindles as shown aside.
- Page 3 S T E P T W O Install the Top Arch Short Spindle Insert the arch spindles to the openings on the top rail. Note that there are two different sizes of spindles and should be inserted as shown aside. Long Spindle Align the four spindles into the bottom of the arch while simultaneously inserting the arch assembly to the posts.
- Page 4 Mounting Into the Ground Trellises must be well secured in the event of high winds, etc. We have provided two ground mounting extensions for securing the trellis either into the ground or into a concrete footing. If you are installing your trellis directly to the wall of your home, or on a wood deck or concrete surface, please see your hardware store for the appropriate galvanized bracket hardware.
