MX532, MX632, XM3350 MFPs

Service Manual

January 2024

www.lexmark.com

Table of Contents

Advertisement

Troubleshooting

Need help?

Need help?

Do you have a question about the MX532 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexmark MX532

Page 1 MX532, MX632, XM3350 MFPs Service Manual www.lexmark.com January 2024 ...
Page 2 ........................22 ........................23 ........................24 ........................25 TrademarksLexmark and the Lexmark logo are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer commands (language) and functions included in its printer products.
Page 3 Surge Protector that is properly connected between the printer and the power cord provided with the printer may be used with this product. The use of non-Lexmark surge protection devices may result in a risk of fire, property damage, or poor printer performance.Other: Do not use this product with an inline surge protector.
Page 4 à l'imprimante et au câble d'alimentation fourni avec la machine. L'utilisation de parasurtenseurs non fabriqués par Lexmark comporte un risque d'incendie et de dégâts matériels, et peut amoindrir les performances de l'imprimante.Autre : N'utilisez pas ce produit avec un ...
Page 5 Service Manual...
Page 6 überschritten werden, was zu Brandgefahr, Beschädigung von Eigentum oder einer eingeschränkten Druckerleistung führen kann.Andere: Mit diesem Produkt darf nur ein Lexmark Inline Surge Protector verwendet werden, der vorschriftsgemäß zwischen dem Drucker und dem mitgelieferten Netzkabel angeschlossen ist. Die Verwendung von nicht von Lexmark stammenden Überspannungsschutzgeräten kann zu Brandgefahr, Beschädigung von Eigentum oder einer eingeschränkten...
Page 7 Power‑on Reset (POR) sequence................62 Using Safe Mode....................... 63 Safe Mode print behavior ....................63 Replace cartridge, printer region mismatch .............. 65 Non‑Lexmark supply ....................66 Securing the printer..................... 67 Resetting the printer without admin credentials ............67 Using the security reset jumper................. 68 Data security notice....................70 Identifying printer memory ....................70...
Page 8 Service Manual Vertical dark bands....................94 Vertical dark streaks with print missing ..............96 White streaks and voided areas ................98 Fine lines such as Chinese characters are not printed correctly......100 Text or images cut off ....................101 Compressed images appear on prints ..............102 Incorrect margins on prints..................
Page 9 MICR supplies service check ..................196 Toner cartridge (K) error service check ................197 Imaging unit (K) error service check................198 Insufficient memory service check...................199 Non‑Lexmark supply......................66 Using genuine Lexmark parts and supplies..............201 4y user attendance errors ..................202 41‑42 user attendance messages ...................202 43‑44 user attendance error messages................208 Mismatched supplies service check ................209 Toner meter card error service check ................210...
Page 10 Service Manual 84 user attendance error messages................218 86 user attendance error messages................220 88 user attendance error messages................221 Maintenance kit service check..................223 Printer hardware errors ..................224 111 errors......................... 224 111 error messages ......................224 Printhead error service check..................226 121 errors ........................ 227 121 error messages......................227 Fuser temperature error service check................229 126 errors ........................
Page 11 Service Manual ADF/Scanner hardware errors ................270 8yy errors ........................ 270 800‑845 error messages ....................270 Scanner communication error service check..............272 Other symptoms ....................273 Base printer symptoms.................... 273 Dead optional tray service check ................274 Service menus Understanding the printer control panel ............275 Using the control panel....................
Page 12 Service Manual Entering Configuration Menu ................311 Configuration Menu................... 312 Entering Invalid engine mode................319 Entering Recovery mode................... 320 For LED display....................... 320 For 2‑line display ..................... 320 For 2.4-, 4.3-, 7-, and 10-inch displays with number pads ........320 For 2.8‑, 4.3‑, 7‑, and 10‑inch displays without number pads ......... 321 Service Engineer menu..................
Page 13 Service Manual précaution au niveau des zones signalées par cette étiquette. Les blessures par pincement peuvent se produire autour des pièces mobiles telles que les engrenages, portes, tiroirs et capots.Precauciones durante la extracciónOther: La fuente de alimentación de bajo voltaje (LVPS) y la fuente de alimentación de alto voltaje (HVPS) pueden presentar voltaje residual.
Page 14 Service Manual Zero Insertion Force (ZIF) connectors................347 Horizontal top contact connector ..................348 ............................348 Horizontal bottom contact connector ................352 ............................353 Vertical mount contact connector ..................356 ............................356 Horizontal sliding contact connector................360 ............................361 Low Insertion Force (LIF) connector................364 Printhead adjustment ....................366 Removal procedures ..................369 Left side removals .....................
Page 15 Service Manual Duplex removal ....................... 453 Sensors (duplex and input) removal................ 457 Sensor (index) removal ................... 459 Pick roller removal....................460 Pick tire removal...................... 463 Motor (pick) removal....................465 Sensor (paper present) removal................467 Sensor (trailing edge) removal ................469 Pick/lift motor gearbox removal ................
Page 16 Service Manual Printer roller locations ..................561 Printer sensor locations..................563 Maintenance Inspection guide ....................564 Scheduled maintenance..................565 Maintenance kits ..................... 565 Resetting the maintenance counter................. 567 Cleaning printer parts..................568 Cleaning the printer ....................568 Cleaning the touch screen..................570 Cleaning the scanner ....................
Page 17 Instantaneous power draws may be substantially higher than the average.Values are subject to change. See www.lexmark.com for current values. Sleep ModeThis product is designed with an energy-saving mode called Sleep Mode.
Page 18: Table Of Contents
Service Manual Options and features Available internal options .................. 631 Contacting your dealer ..................632 Contacting customer support ................633 Installing optional trays..................634 Adding available options in the print driver ............637 For Windows users....................637 For Macintosh users....................637 Theory of operation POR sequence ....................

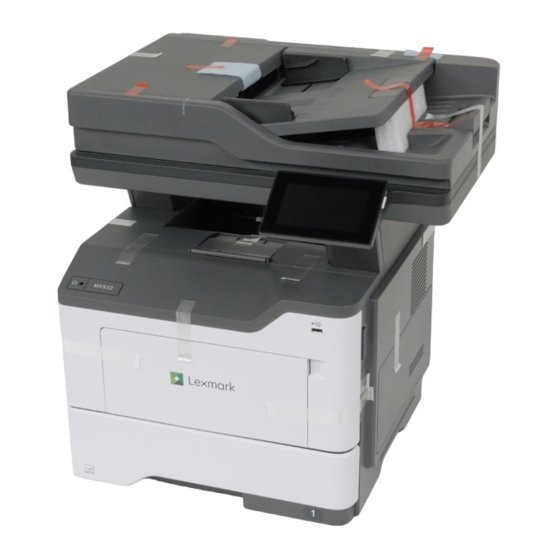

Page 19 Product information Product name: Lexmark MX532adwe, Lexmark MX632adwe, Lexmark XM3350 MFPs...
Page 20 Product information Machine type: 7020...
Page 21 Product information Model(s): 476, 486, 676, 686, 689...
Page 22 Edition notice April 2023...
Page 23 Edition notice The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions;...
Page 24 Edition notice This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.
Page 25 Edition notice References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service may be used.
Page 26 Edition notice Trademarks Lexmark and the Lexmark logo are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer commands (language) and functions included in its printer products. This printer is intended to be compatible with the PCL language. This means the printer recognizes PCL commands used in various application programs, and that the printer emulates the functions corresponding to the commands. PostScript is a registered trademark of Adobe Systems Incorporated in the United States and/or other countries.
Page 27 Edition notice © 2023 Lexmark International, Inc. All rights reserved.
Page 28: Notices, Conventions, And Safety Information
Notices, conventions, and safety information Notices, conventions, and safety information Laser notice The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, Chapter I, Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class 1 consumer laser product conforming to the requirements of IEC 60825-1:2014, EN 60825-1:2014+A11:2021, and EN 50689:2021.
Page 29 Notices, conventions, and safety information Conventions Note: A note identifies information that could help you. Warning: A warning identifies something that could damage the product hardware or software. CAUTION: A caution indicates a potentially hazardous situation that could injure you. Different types of caution statements include: CAUTION—POTENTIAL INJURY Indicates a risk of injury.
Page 30: Safety Information
Notices, conventions, and safety information Safety information • The safety of this product is based on testing and approvals of the original design and specific components. The manufacturer is not responsible for safety in the event of use of unauthorized replacement parts. •...
Page 31: Consignes De Sécurité
Notices, conventions, and safety information Only a Lexmark Inline Surge Protector that is properly connected between the printer and the power cord provided with the printer may be used with this product. The use of non-Lexmark surge protection devices may result in a risk of fire, property damage, or poor printer performance.
Page 32: Información De Seguridad
CAUTION—POTENTIAL INJURY Utilisez uniquement un parasurtenseur correctement raccordé à l'imprimante et au câble d'alimentation fourni avec la machine. L'utilisation de parasurtenseurs non fabriqués par Lexmark comporte un risque d'incendie et de dégâts matériels, et peut amoindrir les performances de l'imprimante. CAUTION—POTENTIAL INJURY N'utilisez pas ce produit avec un parasurtenseur en ligne.
Page 33 Lexmark debidamente conectado entre la impresora y el cable de alimentación que con ella se suministra. El uso de protectores de sobretensión de marcas distintas a Lexmark puede dar lugar a que el rendimiento de la impresora sea bajo, a daños materiales o a posibles...
Page 34 Notices, conventions, and safety information CAUTION—POTENTIAL INJURY No utilice este producto con un protector de sobretensión. El uso de un dispositivo de protección contra sobretensión puede dar lugar a que el rendimiento de la impresora sea bajo, a daños materiales o a posibles incendios.
Page 35 Brandgefahr, Beschädigung von Eigentum oder einer eingeschränkten Druckerleistung führen kann. CAUTION—POTENTIAL INJURY Mit diesem Produkt darf nur ein Lexmark Inline Surge Protector verwendet werden, der vorschriftsgemäß zwischen dem Drucker und dem mitgelieferten Netzkabel angeschlossen ist. Die Verwendung von nicht von Lexmark stammenden Überspannungsschutzgeräten kann zu Brandgefahr,...
Page 36: Change History
Change history Change history Change history January 10, 2024 • Added a note in step 3 of the ADF removal in the Parts removal chapter. See See "ADF removal" on page 503. • Added a note in the 32.40D and 32.60D error codes in the 32 user attendance error messages topic of the Diagnostics and troubleshooting chapter.
Page 37 Change history • Updated the Sensor (redrive): Paper (duplex job) failed to arrive jam service check in the Diagnostics and troubleshooting chapter. See See "Sensor (redrive): Paper (duplex job) failed to arrive jam service check" on page 150. June 5, 2023 •...
Page 38 Change history • Updated the interconnect cable removal topic in the Parts removal chapter. See "Interconnect cable removal" on page 397. • Updated the Toner cartridge smart chip contact removal topic in the Parts removal chapter. See "Toner cartridge smart chip contact removal" on page 411.
Page 39: General Information
General information General information Printer model configurations The Lexmark™ MX532adwe, MX632adwe, and XM3350 printers are network‑capable, multifunction laser printers. The printers support monochrome printing and are embedded with home screen solutions and applications. All information in this service manual pertains to all models unless explicitly noted.
Page 40 General information Continued from page 39 Model Configurations Machine type/model number XM3350 Monochrome with 7-inch 7020-689 touch-screen display, duplex print, duplex scan, networking, intelligent storage drive (ISD) and hard disk support, optional tray support, wireless module support...
Page 41 General information Finding the printer serial number Follow these steps to find the serial number of the printer. Open door A. Locate the serial number.
Page 42 General information...
Page 43: Selecting Paper
General information Selecting paper Paper guidelines Use the appropriate paper to prevent jams and help ensure trouble‑free printing. • Always use new, undamaged paper. • Before loading paper, know the recommended printable side of the paper. This information is usually indicated on the paper package. • Do not use paper that has been cut or trimmed by hand. •...
Page 44: Paper Characteristics
General information Paper characteristics The following paper characteristics affect print quality and reliability. Consider these factors before printing on them. Weight Trays can feed paper of varying weights. Paper lighter than 60 g/m (16 lb) may not be stiff enough to feed properly, and may cause jams. For more information, see the “Supported paper weights” topic. Curl Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems.
Page 45 General information Fiber content Most high‑quality xerographic paper is made from 100 percent chemically treated pulped wood. This content provides the paper with a high degree of stability, resulting in fewer paper feeding problems and better print quality. Paper containing fibers such as cotton can negatively affect paper handling.
Page 46: Unacceptable Paper
General information Unacceptable paper The following paper types are not recommended for use with the printer: • Chemically treated papers that are used to make copies without carbon paper. They are also known as carbonless papers, carbonless copy paper (CCP), or no carbon required (NCR) paper.
Page 47: Storing Paper
General information Storing paper Use these paper storage guidelines to help avoid jams and uneven print quality: • Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. • Extend the time several days if the storage or transportation environment is very different from the printer environment.
Page 48: Selecting Preprinted Forms And Letterhead
General information Selecting preprinted forms and letterhead • Use grain long paper. • Use only forms and letterhead printed using an offset lithographic or engraved printing process. • Avoid paper with rough or heavily textured surfaces. • Use inks that are not affected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not. •...
Page 49: Supported Paper Sizes
General information Supported paper sizes Supported paper sizes Paper Standard Optional Multipurpose Two‑sided Scanner Automatic size 550‑sheet 250‑ or feeder printing glass document tray 550‑sheet feeder tray ✓ ✓ ✓ ✓ ✓ ✓ 210 x 297 mm (8.27 x 11.7 in.) ✓ ✓ ✓...
Page 50 General information Continued from page 49 Paper Standard Optional Multipurpose Two‑sided Scanner Automatic size 550‑sheet 250‑ or feeder printing glass document tray 550‑sheet feeder tray ✓ ✓ ✓ ✓ ✓ ✓ Oficio (Mexico) 216 x 340 mm (8.5 x 13.4 in.) ✓ ✓ Hagaki 100 x 148 mm...
Page 51 General information Continued from page 50 Paper Standard Optional Multipurpose Two‑sided Scanner Automatic size 550‑sheet 250‑ or feeder printing glass document tray 550‑sheet feeder tray 215.9 x 330.2 mm (8.5 x 13 in.) ✓ ✓ ✓ Universal 105 x 148 mm to 215.9 359.92 mm (4.13 x 5.83 in. ...
Page 52 General information Continued from page 51 Paper Standard Optional Multipurpose Two‑sided Scanner Automatic size 550‑sheet 250‑ or feeder printing glass document tray 550‑sheet feeder tray 98.4 x 190.5 mm (3.875 x 7.5 in.) ✓ ✓ Envelope 98.4 x 225.4 mm (3.875 x 8.9 in.) ✓ ✓...
Page 53 General information Continued from page 52 Paper Standard Optional Multipurpose Two‑sided Scanner Automatic size 550‑sheet 250‑ or feeder printing glass document tray 550‑sheet feeder tray ✓ ✓ Other Envelope 76.2 x 127 mm to 215.9 359.92 mm (3 x 5 in. to 8.5 x 14.17 in.) The default support is short‑edge feed. When Universal is selected, the page is formatted for 215.90 x 355.60 mm (8.5 x 14 in.) ...
Page 54: Supported Paper Types
General information Supported paper types Supported paper types Paper type Standard Optional Multipurpose Two‑sided Automatic 550‑sheet 250‑ or feeder printing document tray 550‑sheet feeder tray ✓ ✓ ✓ ✓ ✓ Plain paper ✓ Card stock ✓ ✓ ✓ ✓ ✓ Recycled ✓...
Page 55: Supported Paper Weights
General information Supported paper weights Supported paper weights Standard Optional 250‑ Multipurpose Two‑sided Automatic 550‑sheet or 550‑sheet feeder printing* document tray tray feeder 60–120 g/m 60–120 g/m 60–216 g/m 60–90 g/m 52–120 g/m (16–32 lb (16–32 lb (16–58 lb (16–24 lb (14–32 lb bond) bond) bond) bond) bond) * Does not support card stock, labels, or envelopes.
Page 56: Tools Required For Service
General information Tools required for service • Flat-blade screwdrivers, magnetic, various sizes • #1 Phillips screwdriver, magnetic • #2 Phillips screwdriver, magnetic • #2 Phillips screwdriver, magnetic short-blade • 7/32‑inch ( 5.5 mm) nut driver • Needle‑nose pliers • Diagonal side cutters • Spring hook • Analog or digital multimeter •...
Page 57: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Diagnostics and troubleshooting Troubleshooting precautions CAUTION—SHOCK HAZARD When you see this symbol on the product, there is a danger from hazardous voltage in the area of the product where you are working. Unplug the product before you begin, or use caution if the product must receive power in order to perform the task.
Page 58 Diagnostics and troubleshooting Précautions de dépannage CAUTION—SHOCK HAZARD Ce symbole indique un danger lié à des niveaux de tension dangereux dans la zone du produit à manipuler. Débranchez le produit avant de commencer, ou agissez avec prudence si le produit doit être alimenté pour effectuer l'opération.
Page 59 Diagnostics and troubleshooting Precauciones durante la solución de problemas CAUTION—SHOCK HAZARD Cuando vea este símbolo en el producto, existe peligro de tensiones peligrosas en el área del producto en la que está trabajando. Desconecte el producto antes de empezar o tenga cuidado si el producto debe recibir alimentación a fin de realizar la tarea.
Page 60 Diagnostics and troubleshooting Vorsichtsmaßnahmen bei der Fehlerbehebung CAUTION—SHOCK HAZARD Wenn Sie dieses Symbol sehen, besteht eine Gefahr durch gefährliche Spannungen in dem Produktbereich, in dem Sie arbeiten. Trennen Sie das Produkt von seiner Stromverbindung, bevor Sie beginnen, oder gehen Sie vorsichtig vor, wenn das Produkt für die Durchführung der Aufgabe mit Strom versorgt werden muss.
Page 61: Troubleshooting Overview
Before you start the troubleshooting procedures, perform the following checks: • Use genuine Lexmark supplies and parts for the best results. Third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components. •...
Page 62: Power-On Reset (Por) Sequence
Diagnostics and troubleshooting Power‑on Reset (POR) sequence When you turn on the printer, it performs a POR sequence. Check for correct POR functioning of the base printer by observing the following: The control panel indicator light turns on. The control panel display turns on. A splash screen appears on the display.
Page 63: Using Safe Mode
Diagnostics and troubleshooting Using Safe Mode Safe Mode lets the printer continue to operate in a special limited mode in which it attempts to continue offering as much functionality as possible despite known issues. WARNING—POTENTIAL DAMAGE Safe Mode is intended as a short‑term workaround and should be used only in the case of a non‑critical error when a print job must be completed before service can be arranged to repair the printer. The printer must be returned to standard operating mode before diagnostics can be run or full‑function printing can continue.
Page 64 Diagnostics and troubleshooting Continued from page 63 Safe Mode engine Engine behavior Control panel behavior features Use large interpage gaps Pages will have large interpage gaps.
Page 65: Replace Cartridge, Printer Region Mismatch
Diagnostics and troubleshooting Replace cartridge, printer region mismatch Installing a cartridge with the correct region can resolve the 42 error message that appears on your printer display. To correct this problem, purchase a cartridge with the correct region that matches the printer region, or purchase a worldwide cartridge.
Page 66: Non-Lexmark Supply
Use of third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components. All life indicators are designed to function with Lexmark supplies and parts and may deliver unpredictable results if third-party supplies or parts are used. Imaging component usage beyond the intended life may damage the Lexmark printer or associated components.
Page 67: Securing The Printer
Diagnostics and troubleshooting Securing the printer Resetting the printer without admin credentials • Resetting the printer or replacing the controller board deletes all security settings. • Before changing the security settings, ask permission from your administrator. Perform an Out of Service Erase to reset the printer to factory defaults without using admin credentials.
Page 68 Diagnostics and troubleshooting Using the security reset jumper The security reset jumper is on the controller board. It can be used if the admin password is lost or forgotten, and Out of Service Erase is not available. • To enable the effect of the security reset jumper, from the home screen navigate to: Security >...
Page 69 Diagnostics and troubleshooting • The security framework remains in place after the reset. Public permissions are reset to default and now include Out of Service Erase as an option. • If LDAP is used to authenticate the copy function in MFPs, then the LDAP configuration and copy function are no longer protected.
Page 70: Data Security Notice
Diagnostics and troubleshooting Data security notice Identifying printer memory • Volatile memory—The printer uses standard random access memory (RAM) to buffer user data temporarily during simple print and copy jobs. • Nonvolatile memory—The printer may use two forms of nonvolatile memory: EEPROM and NAND (flash memory). Both types are used to store the operating system, printer settings, network information, scanner and bookmark settings, and embedded solutions. •...
Page 71 Request the customer to sign the Customer Retention form. NOTES You can get printed copies of the form from your Lexmark partner manager. Take a photo of the signed form, and then upload it to the Service Request debrief tool.
Page 72: Fixing Print Quality Issues
Diagnostics and troubleshooting Fixing print quality issues Initial print quality check Before troubleshooting print problems, do the following: • Make sure that the printer is in an area that follows the recommended operating environment and power requirement specifications. • Check the status of the supplies. Replace supplies that are low or empty. •...
Page 73 8 is the factory default setting. ◦ Set the paper type, texture, and weight in the Paper menu to match the paper loaded. Touch Settings > Paper. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier.
Page 74 Diagnostics and troubleshooting NOTES You may need a pair of pliers to remove a piece of broken plastic inside the imaging unit. Check the charge roller contact (B) on the right side of the imaging unit for damage and contamination. Make sure that the connections between the controller board and the power supply are properly connected.
Page 75 Diagnostics and troubleshooting NOTES Poor electrical contact to the photoconductor is the most likely source of a full‑page background defect. Check if the photoconductor charge contact is bent, damaged, or not in proper contact with the imaging unit.
Page 76: Blank Pages
Blank pages Stop blank or white pages from appearing on your prints by checking for packing material in the imaging unit and redistributing the toner. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their ...
Page 77 Diagnostics and troubleshooting If the couple is stuck, then reach inside the printer and manually reposition the coupler as shown. Check if the imaging unit contact (A) is bent, damaged, or not in proper contact with the imaging unit.
Page 78 Diagnostics and troubleshooting Make sure that the connections between the controller board and power supply are properly connected. Check the transfer roller for the following: Improper installation Contamination and damage Damage on the transfer roller left contact spring in the transfer roller left arm For more information, see See "Transfer roller removal"...
Page 79 Diagnostics and troubleshooting For more information, see See "Main drive gearbox removal" on page 372. Make sure that the connections on the controller board and printhead are properly connected. Check the printhead for damage and improper installation. For more information, see .See "Printhead removal"...
Page 80: Print Is Too Dark
Are your prints too dark? Try adjusting toner darkness or loading paper from a fresh package. NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Restart the printer.
Page 81 Diagnostics and troubleshooting Make sure that the connections between the controller board and the power supply are properly connected. Check the power supply for damage and improper installation. For more information, .See "Power supply removal" on page 450...
Page 82: Print Is Too Light
NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Restart the printer.
Page 83 Diagnostics and troubleshooting Damage to the shutter NOTES The shutter opens to receive toner from the toner cartridge. Status of the imaging unit From the home screen, touch Status/supplies. Touch View Supplies. Damage, contamination, and improper installation Firmly shake the imaging unit to redistribute the toner, and then reinstall it. Clean the printhead lens.
Page 84: Paper Curl
Use paper from a fresh package to prevent curling after it is printed on. NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier.
Page 85: Folded Or Wrinkled Paper
NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Check if the toner cartridge is compatible with the imaging unit.
Page 86: Solid Black Pages
NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Check for any packing material left on the imaging unit, including the red plastic separator (A).
Page 87 Diagnostics and troubleshooting You may need a pair of pliers to remove a piece of broken plastic inside the imaging unit. Check the charge roller contact (B) on the right side of the imaging unit for damage and contamination. Check if the imaging unit contact (C) is contaminated, broken, or bent out of proper position. Check the high voltage metal contacts on the imaging unit for damage.
Page 88: Repeating Defects
Diagnostics and troubleshooting Repeating defects Identify which part or supply needs replacement by measuring the distance between repeating defects that appear on the page. Using the Print Quality Test Pages, check if the distance between the repeating defects is equal to any of the following: ◦...
Page 89: Skewed Print
Diagnostics and troubleshooting Skewed print Stop seeing crooked or skewed images on your prints. Fix the problem with these easy steps. NOTES Before doing this print quality check, see See "Initial print quality check" on page Make sure that the guides in the tray are in the correct position for the paper loaded. Check the tray pick roller or MPF pick roller for wear, damage, and contamination.
Page 90: Streaked Vertical Lines Appear On Prints
Streaked vertical lines appear on prints Checking the toner and the imaging unit may help solve the issue of seeing vertical dark lines or streaks on your prints. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their ...
Page 91: Horizontal Light Bands
Prevent horizontal lines from appearing across your prints by checking the toner cartridge or the imaging unit. NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Restart the printer.
Page 92 Diagnostics and troubleshooting 4. Check the power supply for damage, contamination, and improper installation. For more information, see .See "Power supply removal" on page 450...
Page 93: Vertical Light Bands
Vertical light bands Check the toner cartridge if you see white bands or blank areas running across the page in vertical direction. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, refer the users to their supplier. Check the printhead for the following: Clean the printhead lens.
Page 94: Vertical Dark Bands
NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Check the imaging unit for damage, contamination, and improper installation.
Page 95 Diagnostics and troubleshooting You may need a pair of pliers to remove a piece of broken plastic inside the imaging unit. Make sure to block the bright light from entering the right side of the printer. NOTES In cases where the printer cannot be moved or relocated, add a cover to the fan inlet vent to block the light from entering the printer, or contact the next level of support.
Page 96: Vertical Dark Streaks With Print Missing
NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. Check for any packing material left on the imaging unit, including the red plastic separator (A).
Page 97 Diagnostics and troubleshooting You may need a pair of pliers to remove a piece of broken plastic inside the imaging unit. Check the charge roller contact (B) on the right side of the imaging unit for damage and contamination. Check if the imaging unit contacts (C) are contaminated or bent out of proper position. Check the imaging unit for damage, contamination, and improper installation.
Page 98 NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, do not replace the imaging unit. Refer the users to their supplier.
Page 99 Diagnostics and troubleshooting Check if the imaging unit contacts (B) are contaminated or bent out of proper position. Check the toner cartridge and imaging unit for damage, contamination, and improper installation. Make sure that the connections between the controller board and the power supply are properly connected.
Page 100 NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier.
Page 101: Text Or Images Cut Off
Diagnostics and troubleshooting Text or images cut off Stop seeing clipped pages or cut off images on your prints. Follow these steps to solve the issue.
Page 102: Compressed Images Appear On Prints
Diagnostics and troubleshooting Compressed images appear on prints Stop seeing shrunk or squeezed images on your prints. Follow these steps to solve the issue. NOTES Before doing this print quality check, see See "Initial print quality check" on page Make sure that the white photoconductor coupler (A) is firmly connected to the imaging unit and does not freely rotate.
Page 103: Incorrect Margins On Prints
Diagnostics and troubleshooting Incorrect margins on prints Are the margins wrong on your printed page? Check the positions of the paper guides in the tray and specify the correct paper size in the computer or the printer. NOTES Before doing this print quality check, see See "Initial print quality check"...
Page 104: Toner Rubs Off
Diagnostics and troubleshooting Toner rubs off Prevent the toner from rubbing off easily from your prints by following these steps. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier. From the home screen, set the paper type, texture, and weight in the Paper menu to match the paper loaded.
Page 105 Find out how you can prevent this printing issue from happening again. NOTES Before doing this print quality check, see See "Initial print quality check" on page Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to their supplier.
Page 106 Diagnostics and troubleshooting Fixing scan quality issues Dark image quality using the ADF or scanner Are your scan copies too dark? Try performing a color adjust. Check if the scan defect is visible on the print quality samples. Enter the Diagnostics menu, and then touch Advanced Print Quality Samples >...
Page 107: Vertical Lines (Process Direction Using The Adf)
Diagnostics and troubleshooting Vertical lines (process direction using the ADF) Check the ADF or the flatbed scanner if you see lines running across the scan copy in vertical direction. Check if the scan defect is visible on the print quality samples. Enter the Diagnostics menu, and then touch Advanced Print Quality Samples >...
Page 108 Diagnostics and troubleshooting Spots using the flatbed scanner A damaged scanner glass may be causing the spots or blotches that you see on your scan copies. Find out how you can prevent this printing issue from happening again. Check if the scan defect is visible on the print quality samples. Enter the Diagnostics menu, and then touch Advanced Print Quality Samples >...
Page 109 Diagnostics and troubleshooting ADF skew Stop seeing crooked or skewed images on your scan copies. Fix the problem with these easy steps. Check if the scan defect is visible on the print quality samples. Enter the Diagnostics menu, and then touch Advanced Print Quality Samples > Advanced Print Quality Test Pages. If the scan defect is visible, identify, and then resolve the print quality defect.
Page 110 Diagnostics and troubleshooting Paper damage using the ADF Prevent paper damage while using the ADF with these easy steps. Make sure that the document is properly loaded in the ADF tray. NOTES The guides in the ADF tray should match the width of the document. Make sure that the ADF paper path is free of debris and obstruction.
Page 111 Diagnostics and troubleshooting Blank page copy Stop blank or white pages from appearing on your scan copies by checking the orientation of your document. Check if the issue is a blank page print quality issue. Enter the Diagnostics menu, and then touch Advanced Print Quality Samples >...
Page 112 Diagnostics and troubleshooting Solid black page copy Are you seeing completely black scan copies? Check if the ADF glass or scanner glass or needs to be cleaned. Check if the issue is a solid black page print quality issue. Enter the Diagnostics menu, and then touch Advanced Print Quality Samples >...
Page 113: Paper Jams
Diagnostics and troubleshooting Paper jams Avoiding jams Find out how to prevent paper from getting stuck in the printer. Load paper properly • Make sure that the paper lies flat in the tray. Correct and incorrect loading of paper Correct loading of paper Incorrect loading of paper •...
Page 114 Diagnostics and troubleshooting • Make sure that the paper guides are positioned correctly and are not pressing tightly against the paper or envelopes. • Push the tray firmly into the printer after loading paper. Use recommended paper • Use only recommended paper or specialty media. •...
Page 115: Identifying Jam Locations
Diagnostics and troubleshooting Identifying jam locations Locate each paper jam correctly for easier tracking and clearing of jams. • When Jam Assist is set to On, the printer flushes blank pages or pages with partial prints after a jammed page has been cleared. Check your printed output for blank pages.
Page 116 Diagnostics and troubleshooting...
Page 117: Jam Locations
Diagnostics and troubleshooting Jam locations Jam locations Automatic document feeder Multipurpose feeder Trays Door A Duplex unit Door B...
Page 118: Paper Jam Messages
Diagnostics and troubleshooting 200 paper jams 200 paper jam messages 200 paper jam messages Error code Description Action 200.03 Paper fed from the MPF See "Sensor (input): was detected later than Paper failed to arrive from expected or was never the MPF jam service check"...
Page 119 Diagnostics and troubleshooting Continued from page 118 Error code Description Action 200.16 Paper fed from tray 1 was See "Tray 1 pick error picked but it never reached service check" on page the sensor (input). 121. 200.22 Paper fed from tray 2 was See "Sensor (input): detected earlier than Paper arrived too early from...
Page 120 Diagnostics and troubleshooting Continued from page 119 Error code Description Action 200.43 Paper fed from tray 4 was See "Sensor (input): never detected at the Paper failed to arrive from sensor (input). optional tray jam service check" on page 136. 200.44 Paper fed from tray 4 See "Sensor (input):...
Page 121 Diagnostics and troubleshooting Tray 1 pick error service check Check the tray insert and its parts for damage and improper operation. Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 122: Field Replaceable Unit
Diagnostics and troubleshooting Field replaceable unit • Pick roller assembly ◦ For the part number, go to See "Rollers" on page 603. For the part number, go to See "" on page 0 See "" on page ◦ For the removal procedure, go to See "Pick roller removal"...
Page 123 Diagnostics and troubleshooting Sensor (input): Paper failed to arrive from the MPF jam service check Resolve a paper jam caused by paper, coming from the MPF, failing to arrive at the sensor (input). Make sure that paper is supported and loaded properly. See See "Avoiding jams"...
Page 124 Diagnostics and troubleshooting ◦ For the part number, go to See "Rollers" on page 603. For the part number, go to See "" on page ◦ For the removal procedure, go to See "Transfer roller removal" on page 435. • Fuser ◦...
Page 125 Diagnostics and troubleshooting Sensor (input): Paper cleared too early from the MPF jam service check Resolve a paper jam caused by paper, coming from the MPF, clearing too early at the sensor (input). Set the paper size in the Paper menu to match the paper loaded. From the home screen, touch Settings >...
Page 126 Diagnostics and troubleshooting Sensor (input): Paper failed to clear from the MPF jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 127 Diagnostics and troubleshooting • Fuser ◦ For the part number, go to See "Electronics" on page 593. For the part number, go to See "" on page ◦ For the removal procedure, go to See "Fuser removal" on page 487. For the removal procedure, go to See ""...
Page 128 Diagnostics and troubleshooting Sensor (input): Paper arrived too early or failed to arrive jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 129 Diagnostics and troubleshooting Field replaceable unit • Pick/lift motor gearbox ◦ For the part number, go to See "Motors" on page 595. ◦ For the removal procedure, go to See "Pick/lift motor gearbox removal" on page 471.
Page 130 Diagnostics and troubleshooting Sensor (input): Paper cleared too early jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 131 Diagnostics and troubleshooting For the part number, go to See "" on page ◦ For the removal procedure, go to See "Redrive removal" on page 486. For the removal procedure, go to See "" on page...
Page 132 Diagnostics and troubleshooting Sensor (input): Paper failed to clear jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 133 Diagnostics and troubleshooting Field replaceable unit • Sensor (duplex and input) ◦ For the part number, go to See "Sensors 2" on page 599. For the part number, go to See "" on page ◦ For the removal procedure, go to See "Sensors (duplex and input) removal"...
Page 134 Diagnostics and troubleshooting Sensor (input): Paper arrived too early from optional tray jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 135 Diagnostics and troubleshooting Most likely parts to replace Field replaceable unit • Sensor (duplex and input) ◦ For the part number, go to See "Sensors 2" on page 599. For the part number, go to See "" on page ◦ For the removal procedure, go to See "Sensors (duplex and input) removal"...
Page 136 Diagnostics and troubleshooting Sensor (input): Paper failed to arrive from optional tray jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 137 Diagnostics and troubleshooting Sensor (input): Paper cleared too early from optional tray jam service check Set the paper size in the Paper menu to match the paper loaded. From the home screen, touch Settings > Paper > Tray Configuration. Adjust the paper guides in the tray to correct position for the paper loaded. Make sure that the guides fit snugly against the paper.
Page 138 Diagnostics and troubleshooting Sensor (input): Paper failed to clear from optional tray jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 139: Sensor (Input): Static Jam Service Check
Diagnostics and troubleshooting Sensor (input): Static jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR. Check if the paper jam error occurs when using other trays.
Page 140: Paper Jam Messages
Diagnostics and troubleshooting 202 paper jams 202 paper jam messages 202 paper jam messages Error code Description Action 202.03 Paper fed from the MPF See "Sensor (fuser never reached the sensor exit): Paper failed to arrive (fuser exit). from MPF jam service check"...
Page 141 Diagnostics and troubleshooting Continued from page 140 Error code Description Action 202.43 Paper fed from tray 4 never See "Sensor (fuser reached the sensor (fuser exit): Paper failed to arrive exit). from optional tray jam service check" on page 145. 202.45 Paper fed from tray 4 never See "Sensor (fuser...
Page 142 Diagnostics and troubleshooting Sensor (fuser exit): Paper failed to arrive from MPF jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 143 Diagnostics and troubleshooting Sensor (fuser exit): Paper failed to arrive jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 144 Diagnostics and troubleshooting Sensor (fuser exit): Paper failed to clear jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 145 Diagnostics and troubleshooting Sensor (fuser exit): Paper failed to arrive from optional tray jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper is free of debris and obstructions. Perform a POR.
Page 146 Diagnostics and troubleshooting Sensor (fuser exit): Paper failed to clear from optional tray jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 147: Sensor (Fuser Exit): Static Jam Service Check
Diagnostics and troubleshooting Sensor (fuser exit): Static jam service check Turn off the printer. Check the optional tray for improper installation. Remove the optional tray, and then check the connectors on the printer and optional tray for damage and improper connection. Reinstall the optional tray, and then turn on the printer.
Page 148 Diagnostics and troubleshooting 230 paper jams 230 paper jam messages 230 paper jam messages Error code Description Action 230.03 Paper fed from the MPF See "Sensor (redrive): never reached the sensor Paper (duplex job) failed to (duplex). arrive jam service check" on page 150.
Page 149 Diagnostics and troubleshooting Continued from page 148 Error code Description Action 230.45 Paper fed from tray 4 never See "Sensor (redrive): cleared the sensor (duplex). Paper (duplex job) failed to clear jam service check" on page 151. 230.52 Paper fed from tray 5 reached sensor (duplex) earlier than expected.
Page 150 Diagnostics and troubleshooting Sensor (redrive): Paper (duplex job) failed to arrive jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper is free of debris and obstructions. Perform a POR.
Page 151 Diagnostics and troubleshooting Sensor (redrive): Paper (duplex job) failed to clear jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 152 Diagnostics and troubleshooting 232 paper jams 232 paper jam messages 232 paper jam messages Error code Description Action 232.03 Paper fed from the MPF See "Sensor (input): was detected later than Paper (duplex job) failed to expected or was never arrive jam service check"...
Page 153 Diagnostics and troubleshooting Continued from page 152 Error code Description Action 232.43 Paper fed from tray 4 never See "Sensor (input): reached the sensor Paper (duplex job) failed to (pass‑through) during a arrive jam service check" on duplex print job. page 154. 232.45 Paper fed from tray 4 never See "Sensor (input):...
Page 154 Diagnostics and troubleshooting Sensor (input): Paper (duplex job) failed to arrive jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 155 Diagnostics and troubleshooting Sensor (input): Paper (duplex job) failed to clear jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR.
Page 156 Diagnostics and troubleshooting 241 paper jams 241 paper jam messages 241 paper jam messages Error code Description Action 241.82 The motor (tray 1 pick) has See "Motor (tray 1 stalled or did not reach the pick) jam service check" on expected speed.
Page 157 Diagnostics and troubleshooting Motor (tray 1 pick) jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the paper path is free of debris and obstructions. Perform a POR. Check if the paper jam error occurs when using other trays.
Page 158 Diagnostics and troubleshooting 242–244 paper jams 242 paper jam messages 242 paper jam messages Error code Description Action 242.21 Paper fed from tray 2 See "Optional tray remains detected at the sensors jam service check" sensor (tray 2 on page 166. pass‑through) or at the sensor (tray 2 trailing edge) after the printer is turned 242.26...
Page 159 Diagnostics and troubleshooting Continued from page 158 Error code Description Action 242.45 Paper fed from tray 4 See "Optional tray cleared the sensor (tray 2 sensors jam service check" pass-through) or sensor on page 166. (tray 2 trailing edge) later than expected.
Page 160 Diagnostics and troubleshooting Continued from page 159 Error code Description Action 242.84 Motor (tray 2) ran too slow. See "Optional tray motors jam service check" on page 167. 242.85 Motor (tray 2) ran too fast. See "Optional tray motors jam service check" on page 167.
Page 161 Diagnostics and troubleshooting 243 paper jam messages 243 paper jam messages Error code Description Action 243.36 Paper fed from tray 3 was See "Optional tray picked but it never arrived sensors jam service check" at the sensor (tray 2 on page 166.
Page 162 Diagnostics and troubleshooting Continued from page 161 Error code Description Action 243.75 Motor (tray 3 transport) ran See "Optional tray too fast. motors jam service check" on page 167. 243.76 Motor (550‑sheet tray 3 See "Optional tray transport) ran too long. motors jam service check" on page 167.
Page 163 Diagnostics and troubleshooting Continued from page 162 Error code Description Action 243.95 Paper fed from an unknown See "Optional tray tray cleared the sensor (tray sensors jam service check" 3 pass-through) or sensor on page 166. (tray 3 trailing edge) later than expected.
Page 164 Diagnostics and troubleshooting 244 paper jam messages 244 paper jam messages Error code Description Action 244.46 Paper fed from tray 4 was See "Optional tray picked but it never reached sensors jam service check" the sensor (tray 4 trailing on page 166.
Page 165 Diagnostics and troubleshooting Continued from page 164 Error code Description Action 244.83 Motor (550‑sheet tray 4 See "Optional tray pick/lift) has stalled. motors jam service check" on page 167. 244.84 Motor (550‑sheet tray 4 See "Optional tray pick/lift) ran too slow. motors jam service check" on page 167.
Page 166 Diagnostics and troubleshooting Optional tray sensors jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Perform a POR. Identify the tray that causes the paper jam error. Place the affected tray insert at the bottom. For example, If tray 2 is causing the paper jam error in a 4‑tray configuration, then swap tray ...
Page 167 Diagnostics and troubleshooting Optional tray motors jam service check Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Perform a POR. Identify the tray that causes the paper jam error. Place the affected tray insert at the bottom. For example, If tray 2 is causing the paper jam error in a 4‑tray configuration, then swap tray ...
Page 168: 28Y Paper Jams
Diagnostics and troubleshooting 280 paper jams 280 paper jam messages 28y paper jams Error code Description Action 280.06 Paper was not detected in See "ADF paper the ADF tray during an ADF undetected service check" scan job. on page 169. 280.11 Paper remains detected at See "Sensor (ADF...
Page 169 Diagnostics and troubleshooting ADF paper undetected service check Resolve an ADF paper undetected error by checking the sensor (ADF media present) and its actuator for damage and improper installation. Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113.
Page 170 Diagnostics and troubleshooting Sensor (ADF scan 1) jam service check Resolve a sensor (ADF scan 1) error by checking the sensor (ADF scan 1) and its actuator for damage and improper installation. Make sure that paper is supported and loaded properly. See See "Avoiding jams"...
Page 171 Diagnostics and troubleshooting 284 paper jams 284 paper jam messages 28y paper jams Error code Description Action 284.11 Paper remains detected at See "Sensor (ADF the sensor (ADF scan 2) scan 2) jam service check" during a duplex scan job. on page 172.
Page 172 Diagnostics and troubleshooting Sensor (ADF scan 2) jam service check Resolve a sensor (ADF scan 2) error by making sure that the connections between the sensor (ADF scan 2) and the controller board are properly connected. Make sure that paper is supported and loaded properly. See See "Avoiding jams"...
Page 173: 29Y Paper Jams
Diagnostics and troubleshooting 29y paper jams 291‑295 paper jam messages 291‑295 paper jams Error code Description Action 291.06 The scanner cover was See "Sensor (ADF open before an ADF job. cover) service check" on page 174. 295.01 An imagepipe error See "ADF imagepipe occurred. Gap between jam service check"...
Page 174 Diagnostics and troubleshooting Sensor (ADF cover) service check Resolve a sensor (ADF cover) error by checking the ADF top cover for foreign objects. Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Make sure that the sensor (ADF cover) is functional. Do the following: Enter the Diagnostics menu, and then touch Scanner diagnostics >...
Page 175 Diagnostics and troubleshooting ADF imagepipe jam service check Resolve an ADF imagepipe error by removing the jammed paper in the ADF. Make sure that paper is supported and loaded properly. See See "Avoiding jams" on page 113. Remove the jammed paper in the ADF. Perform a POR.
Page 176: User Attendance Messages
Diagnostics and troubleshooting User attendance messages 0y user attendance errors 2‑9 user attendance messages 2–9 user attendance messages Error code Description Action 2.01 A supply is needed for a job. 8.00 A door was detected as See "Undetected door open. service check" on page 177. 8.01 Door A was detected as See "Undetected door open.
Page 177 Diagnostics and troubleshooting Undetected door service check Resolve an undetected door error by making sure that the door links and hinges are properly interlocked and the sensor actuator is not damaged. Check the doors for the following: ◦ Obstructions ◦ Damage ◦...
Page 178 Diagnostics and troubleshooting ADF top cover open service check Resolve an ADF top cover open error by checking the sensor (ADF top door interlock) actuator for damage and improper installation. Check the ADF doors for the following: ◦ Obstructions ◦ Damage ◦...
Page 179 Diagnostics and troubleshooting Auto reboot error service check Resolve an auto reboot error by clearing the intervention message, and then sending the print job again. Clear the intervention message, and then send the print job again. Press the power button to turn off the printer, and then disconnect the power cord from the electrical outlet.
Page 180 Diagnostics and troubleshooting 1y user attendance errors 11–12 user attendance messages 11–12 user attendance messages Error code Description Action 11.11 A wrong paper type or size See "Mismatched was detected on tray 1. paper size and paper printer setting error service check" on page 183. 11.12 A wrong paper type, size, or See "Mismatched orientation was detected on...
Page 181 Diagnostics and troubleshooting Continued from page 180 Error code Description Action 11.81 A wrong paper type or size See "Mismatched was detected on the MPF. paper size and paper printer setting error service check" on page 183. 11.82 A wrong paper type, size, or See "Mismatched orientation was detected on paper size and paper printer...
Page 182 Diagnostics and troubleshooting Continued from page 181 Error code Description Action setting error service check" on page 183. 12.42 A wrong setting for paper See "Mismatched type, size, or orientation paper size and paper printer was detected on tray 4. setting error service check"...
Page 183 Diagnostics and troubleshooting Mismatched paper size and paper printer setting error service check Resolve a mismatched paper size and paper printer setting error by replacing with the correct paper type or size. Set the paper size in the Paper menu to match the paper loaded. From the home screen, touch Settings >...
Page 184 Diagnostics and troubleshooting 2y user attendance errors 2‑9 user attendance messages 2–9 user attendance messages Error code Description Action 2.01 A supply is needed for a job. 8.00 A door was detected as See "Undetected door open. service check" on page 177. 8.01 Door A was detected as See "Undetected door open.
Page 185 Diagnostics and troubleshooting Removing the packing material from the supplies Make sure to remove the packing material from the supplies. Make sure to remove all packing materials such as tape, foam, or plastic. Check all areas of the printer for packing materials. Remove all supplies, and then check for any packing material left.
Page 186 Diagnostics and troubleshooting 3y user attendance errors 31 user attendance error messages 31 user attendance error messages Error code Description Action 31.00 An MICR print cartridge is See "MICR supplies required. service check" on page 196. 31.40 The toner cartridge is See "Toner cartridge missing or unresponsive.
Page 187 Diagnostics and troubleshooting Continued from page 186 Error code Description Action 31.40F A black toner cartridge See "Toner cartridge smart chip or sensor (K) error service check" on communication error was page 197. detected. 31.40FN A black toner cartridge See "Toner cartridge smart chip or sensor (K) error service check"...
Page 188 Diagnostics and troubleshooting Continued from page 187 Error code Description Action 31.60B A black imaging unit smart See "Imaging unit (K) chip or sensor error service check" on communication error was page 198. detected. 31.60C A black imaging unit smart See "Imaging unit (K) chip or sensor error service check"...
Page 189 Diagnostics and troubleshooting Continued from page 188 Error code Description Action communication error was detected. 31.60U A black imaging unit smart See "Imaging unit (K) chip or sensor error service check" on communication error was page 198. detected. 31.60V A black imaging unit smart See "Imaging unit (K) chip or sensor error service check"...
Page 190 Diagnostics and troubleshooting 32 user attendance error messages 32 user attendance error messages Error code Description Action 32.40 The toner cartridge is See "Toner cartridge unsupported. (K) error service check" on page 197. 32.40A The black toner cartridge is See "Toner cartridge unsupported—Unsupported ...
Page 191 Diagnostics and troubleshooting Continued from page 190 Error code Description Action cartridge only with a newly ordered aftermarket toner cartridge compatible with the printer. 32.40E The black toner cartridge is See "Toner cartridge unsupported—The supply is (K) error service check" on on the revoked list. page 197.
Page 192 Diagnostics and troubleshooting Continued from page 191 Error code Description Action 32.60 The imaging unit is See "Imaging unit (K) unsupported. error service check" on page 198. 32.60A The black imaging unit is See "Imaging unit (K) unsupported. error service check" on page 198.
Page 193 Diagnostics and troubleshooting Continued from page 192 Error code Description Action with the printer. 32.60E The black imaging unit is See "Imaging unit (K) unsupported. error service check" on page 198. 32.60F The black imaging unit is See "Imaging unit (K) unsupported.
Page 194 Diagnostics and troubleshooting 33 user attendance error messages NOTES For more information, see See "" on page 33 user attendance error messages Error code Description Action 33.40 An inauthentic black toner See "Toner cartridge cartridge was detected. (K) error service check" on page 197.
Page 195 Diagnostics and troubleshooting 37–39 user attendance messages 37–39 user attendance messages Error code Description Action 37.01 The memory is insufficient See "Insufficient to collate the job. memory service check" on page 199. 37.03 The memory is insufficient See "Insufficient to collate the job. memory service check" on page 199.
Page 196 Diagnostics and troubleshooting MICR supplies service check Resolve a MICR supplies error by making sure that the toner cartridge and imaging unit are not damaged, not leaking, genuine, and support MICR supplies. Make sure that the toner cartridge and imaging unit are not damaged, not leaking, genuine, and support MICR supplies.
Page 197 Toner cartridge (K) error service check Resolve a toner cartridge (K) error by cleaning the toner cartridge contacts for any toner contamination. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to the supplier. Make sure that the cartridge region matches the printer region.
Page 198 Resolve an imaging unit (K) error by making sure that the connections between the controller board and the toner cartridge are properly connected. Check if the printer is using a genuine and supported Lexmark imaging unit or imaging kit. NOTES If the printer is using a third‑party imaging unit or imaging kit, then refer the users to ...
Page 199: Insufficient Memory Service Check
Diagnostics and troubleshooting Insufficient memory service check Resolve an insufficient memory error by upgrading the printer memory through adding additional RAM or installing an ISD. Erase the printer memory. Do the following: Turn off the printer, and then disconnect the power cord from the electrical outlet. Wait for a few minutes, connect the power cord to the electrical outlet, and then turn on the printer.
Page 200 Use of third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components. All life indicators are designed to function with Lexmark supplies and parts and may deliver unpredictable results if third-party supplies or parts are used. Imaging component usage beyond the intended life may damage the Lexmark printer or associated components.
Page 201: Using Genuine Lexmark Parts And Supplies
Diagnostics and troubleshooting Using genuine Lexmark parts and supplies Keep your printer performance at top level. Use only Lexmark branded parts and supplies. Your Lexmark printer is designed to function best with genuine Lexmark parts and supplies. Use of third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components.
Page 202 Diagnostics and troubleshooting 4y user attendance errors 41‑42 user attendance messages 41‑42 user attendance messages Error code Description Action 41.60 The imaging unit and toner cartridge are mismatched or incompatible. 41.60A The imaging unit and toner cartridge are mismatched or incompatible—Toner type mismatch. 41.60AN The imaging unit and toner cartridge are mismatched or incompatible—Toner type ...
Page 203 Diagnostics and troubleshooting Continued from page 202 Error code Description Action 42.10K The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched. page 209. 42.12 The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched.
Page 204 Diagnostics and troubleshooting Continued from page 203 Error code Description Action 42.23K The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched. page 209. 42.24 The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched.
Page 205 Diagnostics and troubleshooting Continued from page 204 Error code Description Action 42.40 The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched. page 209. 42.40K The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched.
Page 206 Diagnostics and troubleshooting Continued from page 205 Error code Description Action 42.52 The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched. page 209. 42.52K The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched.
Page 207 Diagnostics and troubleshooting Continued from page 206 Error code Description Action 42.64 The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched. page 209. 42.64K The toner cartridge and See "Mismatched printer regions are supplies service check" on mismatched.
Page 208 Diagnostics and troubleshooting 43‑44 user attendance error messages 43‑44 user attendance error messages Error code Description Action 43.40 A toner cartridge sensor See "Toner meter card error was detected. error service check" on page 210. 43.40Z A black TMC error was See "Toner meter card detected. error service check" on page 210.
Page 209 Mismatched supplies service check Resolve a mismatched supplies error by making sure that the toner cartridge is free of toner buildup. Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the users to the supplier. Make sure that the cartridge region matches the printer region.
Page 210 Diagnostics and troubleshooting Toner meter card error service check Resolve a toner meter card error by making sure that the toner meter card is properly installed. Make sure that the toner meter card is properly installed. Check the sensor (toner meter) for contamination. Make sure that the printer is free of toner buildup.
Page 211 Diagnostics and troubleshooting 5y user attendance errors 55–59 user attendance error messages 55–59 user attendance error messages Error code Description Action 55.1 An unsupported USB Remove the flash drive to device was detected. continue. 55.2 An unsupported USB hub Remove the USB hub to was detected. continue. 58.00 Too many optional trays and Turn off the printer, finishers were detected.
Page 212 Diagnostics and troubleshooting Continued from page 211 Error code Description Action 58.00C Too many optional trays Turn off the printer, were detected. and then unplug the power cord from the electrical outlet. Remove one or more trays. Connect the power cord to the electrical outlet, and then turn on the printer.
Page 213 Diagnostics and troubleshooting Continued from page 212 Error code Description Action 59.00D An unsupported option was Turn off the printer, detected. and then unplug the power cord from the electrical outlet. Remove the indicated tray. Connect the power cord to the electrical outlet, and then turn on the printer.
Page 214 Diagnostics and troubleshooting 6y user attendance errors 61–66 user attendance error messages 61–66 user attendance error messages Error code Description Action 61.00 The hard disk is defective. Replace the defective storage drive. 62.00 The hard disk is full. Try one or more of the following: • Touch Continue to clear the message.
Page 215 Diagnostics and troubleshooting 7y user attendance errors 71–72 user attendance error messages 71–72 user attendance error messages Error code Description Action 71.01 The fax station name is not set up. 71.02 The fax station number is not set up. 71.03 The analog phone line is not found. 71.04 The analog phone line is incorrectly connected.
Page 216 Diagnostics and troubleshooting 8y user attendance errors 80 user attendance error messages 80 user attendance error messages Error code Description Action 80.00 The maintenance kit is Touch Continue to clear the nearly low. message or see "Maintenance kit service check" on page 223.
Page 217 Diagnostics and troubleshooting Continued from page 216 Error code Description Action Maintenance kit service check" on page 223. 80.29 The maintenance kit is very Touch Continue to clear the low. The user‑selected message or see EWS set point has been "Maintenance kit service reached.
Page 218 Diagnostics and troubleshooting 84 user attendance error messages 84 user attendance error messages Error code Description Action 84.00 The black imaging unit is Touch Continue to clear the nearly low. message. 84.01 The black imaging unit is Touch Continue to clear the nearly low.
Page 219 Diagnostics and troubleshooting Continued from page 218 Error code Description Action 84.29 The black imaging unit or Touch Continue to clear the CMY imaging kit is very low. message. The user-selected EWS set point has been reached. 84.30 The black imaging unit has See "Replacing the reached end‑of‑life.
Page 220 Diagnostics and troubleshooting 86 user attendance error messages 86 user attendance error messages Error code Description Action 86.23 The ADF maintenance kit is Replace the ADF near end‑of‑life. maintenance kit or see "Maintenance kit service check" on page 223. 86.33 The ADF maintenance kit is Replace the ADF at end‑of‑life maintenance kit or see...
Page 221 Diagnostics and troubleshooting 88 user attendance error messages 88 user attendance error messages Error code Description Action 88.00 The black toner cartridge is Touch Continue to clear the nearly low. message. 88.01 The black toner cartridge is Touch Continue to clear the nearly low.
Page 222 Diagnostics and troubleshooting Continued from page 221 Error code Description Action 88.40K The black toner cartridge is See "Replacing the beyond end‑of‑life. toner cartridge" on page 518. 88.47K The black toner cartridge is See "Replacing the beyond end‑of‑life. toner cartridge" on page 518.
Page 223: Maintenance Kit Service Check
Diagnostics and troubleshooting Maintenance kit service check WARNING—POTENTIAL DAMAGE Do not perform these steps if the printer is on. Replace the required maintenance kit. Reset the maintenance counter. See the “Resetting counters” section.
Page 224: Printer Hardware Errors
Diagnostics and troubleshooting Printer hardware errors 111 errors 111 error messages 1yy error messages Error code Description Action 111.20 Printhead error (mirror See "Printhead error motor lock) was detected service check" on page before the motor was turned 226. 111.21 No printhead power (+5 V) See "Printhead error when the laser servo...
Page 225 Diagnostics and troubleshooting Continued from page 224 Error code Description Action 111.30H The printhead failed during See "Printhead error power‑on tests—Diode B service check" on page failure. 226. 111.30L The printhead failed during See "Printhead error power‑on tests—Lpow service check" on page failure. 226.
Page 226 Diagnostics and troubleshooting Printhead error service check Solves printhead‑related hardware error codes and paper jam error codes. Perform a POR. Make sure that the connections between the controller board and the printhead are properly connected. Check the printhead for damage, contamination, and improper installation. For more information, see .See "Printhead removal" on page 494...
Page 227 Diagnostics and troubleshooting 121 errors 121 error messages 121 error messages Error code Description Action 121.00 Fuser did not reach the See "Fuser required temperature. temperature error service check" on page 229. 121.01 During an attempt to heat See "Fuser up, the fuser was not temperature error service detected.
Page 228 Diagnostics and troubleshooting Continued from page 227 Error code Description Action 121.22 Open fuser relay was See "Fuser detected. temperature error service check" on page 229. 121.23 Fuser relay was turned off See "Fuser but the feed back to the temperature error service engine code indicated that it check"...
Page 229 Diagnostics and troubleshooting Fuser temperature error service check Make sure that the printer is placed in a location with the following temperature and humidity: ◦ 60°F to 90°F temperature range ◦ 8% to 80% relative humidity If the printer must be placed in a below freezing environment, then do the following: Remove the fuser, and then allow it to slowly warm above freezing temperature.
Page 230 Diagnostics and troubleshooting 126 errors 126 error messages 126 error messages Error code Description Action 126.01 Line frequency has gone See "LVPS error outside the operating range. service check" on page 231. 126.05 The LVPS power dropped See "LVPS error but the printer was not in service check"...
Page 231 Diagnostics and troubleshooting LVPS error service check Make sure that the printer is plugged into a into an appropriate rate and properly grounded electrical out let or supported Inline Surge Protector. Perform a POR. Make sure that the connections between the controller board and the LVPS are properly connected.
Page 232 Diagnostics and troubleshooting 128 errors 128 error messages 128 error messages Error code Description Action 128.01 TDS baseline is too low. See "Sensor (toner density) error service check" on page 233. 128.02 TDS baseline is too high. See "Sensor (toner density) error service check"...
Page 233 Diagnostics and troubleshooting Sensor (toner density) error service check Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the user to their supplier. Check the imagine unit and toner cartridge for damage and leakage. Make sure that the imaging unit and the toner cartridge are free of toner buildup. using an approved toner vacuum cleaner, completely clean the supplies.
Page 234 Diagnostics and troubleshooting 133 errors 133 error messages 133 error messages Error code Description Action 133.04 CTLS timeout was detected See "Imaging unit at the imaging unit. CTLS error service check" on page 235 133.05 CTLS reading at the See "Imaging unit imaging unit is above the CTLS error service check"...
Page 235 Diagnostics and troubleshooting Imaging unit CTLS error service check Check the imaging unit for damage, contamination, and improper installation. Check the imaging unit contacts for contamination. Perform a POR. Make sure that the connections between the controller board and the imaging unit are properly connected.
Page 236 Diagnostics and troubleshooting 140 errors 140 error messages 140 error messages Error code Description Action 140.80 Motor (main) does not turn See "Motor (main) error service check" on page 237. 140.81 Motor (main) does not turn See "Motor (main) off. error service check"...
Page 237 Diagnostics and troubleshooting Motor (main) error service check Check if the error occurs only after printing. If yes, then check the imaging unit for damage, contamination, and improper installation. Perform a POR. Make sure that the motor (main) is functional. Do the following: Enter the Diagnostics menu, and then touch Printer diagnostics &...
Page 238 Diagnostics and troubleshooting 155 errors 155 error messages 155 error messages Error code Description Action 155.80 Motor (cartridge) does not See "Cartridge drive turn on. error service check " on page 239. 155.81 Motor (cartridge) does not See "Cartridge drive turn off.
Page 239 Diagnostics and troubleshooting Cartridge drive error service check Check if the printer is using a genuine and supported Lexmark toner cartridge. NOTES If the printer is using a third‑party toner cartridge, then refer the user to their supplier. Check the toner cartridge for damage and improper installation. Manually turn the cartridge gear, and then make sure it is not stuck.
Page 240 Diagnostics and troubleshooting 16y errors 161 error messages 161 error messages Error code Description Action 161.80 The motor (tray 1 pick/lift) See "Motor (tray 1 pick/ does not turn on. lift) error service check" on page 245. 161.81 The motor (tray 1 pick/lift) See "Motor (tray 1 pick/ does not turn off.
Page 241 Diagnostics and troubleshooting 162‑164 error messages 162‑164 error messages Error code Description Action 162.80 The motor (tray 2 pick) does See "Optional tray pick not turn on. drive error service check" on page 247. 162.81 The motor (tray 2 pick) does See "Optional tray pick not turn off.
Page 242 Diagnostics and troubleshooting Continued from page 241 Error code Description Action 163.85 The motor (tray 3 pick) ran See "Optional tray too fast. motor error service check" on page 246. 163.86 The motor (tray 3 pick) ran See "Optional tray too long.
Page 243 Diagnostics and troubleshooting 166‑168 error messages 166‑168 error messages Error code Description Action 166.80 The motor (tray 2 transport) See "Optional tray does not turn on. motor error service check" on page 246. 166.81 The motor (tray 2 transport) See "Optional tray does not turn off. motor error service check"...
Page 244 Diagnostics and troubleshooting Continued from page 243 Error code Description Action 167.85 The motor (tray 3 transport) See "Optional tray ran too fast. motor error service check" on page 246. 167.86 The motor (tray 3 transport) See "Optional tray ran too long. motor error service check"...
Page 245 Diagnostics and troubleshooting Motor (tray 1 pick/lift) error service check Check the tray insert for damage and improper installation. Check the tray guides for damage and improper operation. Check the lift plate for damage and improper operation. Perform a POR. The following instruction applies to only the MS63x, MX53x, and MX63x printer models.
Page 246 Diagnostics and troubleshooting Optional tray motor error service check Make sure that the printer is placed in a location with the recommend airflow, ventilation, and clearance around the printer. For more information, see See "Selecting a location for the printer" on page 627.
Page 247 Diagnostics and troubleshooting Optional tray pick drive error service check Resolve an optional tray pick drive error by making sure the connections between the motors and the controller board are properly connected. Turn off the printer. Check the optional tray for improper installation. Remove the optional tray, and then check the connectors on the printer and optional tray for damage and improper connection.
Page 248 Diagnostics and troubleshooting 171 errors 171 error messages 171 error messages Error code Description Action 171.82 The main fan speed did not ramp up to the required level. 171.83 The main fan stalled. 171.84 The main fan ran too slow. 171.85 The main fan ran too fast.
Page 249 Diagnostics and troubleshooting 6yy errors 600‑680 error messages 600‑680 error messages Error code Description Action 600.01 Toner tally from the RIP was See "Printhead error not received. service check" on page 226. 600.02 Video did not start. See "Printhead error service check" on page 226.
Page 250 Diagnostics and troubleshooting Continued from page 249 Error code Description Action 600.10 EP late run‑in error was See "Printhead error detected. service check" on page 226. 600.95 RIP intentionally declared a See "Printhead error jam error, usually to prevent service check" on page a kiosk user from printing 226.
Page 251 Diagnostics and troubleshooting Continued from page 250 Error code Description Action 621.01 Fuser heater was too cold See "Fuser when paper entered the temperature error service fuser nip. check" on page 229. 655.80 Motor (cartridge) does not See "Cartridge drive turn on.
Page 252 Diagnostics and troubleshooting Continued from page 251 Error code Description Action 661.84 Motor (tray 1 pick/lift) ran See "Motor (tray 1 pick/ too slow. lift) error service check" on page 245. 661.85 Motor (tray 1 pick/lift) ran See "Motor (tray 1 pick/ too fast.
Page 253 Diagnostics and troubleshooting Continued from page 252 Error code Description Action 663.81 Motor (tray 3 pick) does not See "Optional tray turn off. motor error service check" on page 246. 663.82 Motor (tray 3 pick) speed See "Optional tray did not ramp up to the motor error service check"...
Page 254 Diagnostics and troubleshooting Continued from page 253 Error code Description Action 664.86 Motor (tray 4 pick) ran too See "Optional tray long. motor error service check" on page 246. 666.80 The motor (tray 2 See "Optional tray pass‑through) did not turn motor error service check" on page 246.
Page 255 Diagnostics and troubleshooting Continued from page 254 Error code Description Action 667.85 The motor (tray 3 See "Optional tray pass‑through) ran too fast. motor error service check" on page 246. 667.86 The motor (tray 3 See "Optional tray pass‑through) ran too long. motor error service check" on page 246.
Page 256: Procedure Before Starting The 9Yy Service Checks
Diagnostics and troubleshooting Procedure before starting the 9yy service checks Retrieve certain information that helps your next level of support in diagnosing the problem before replacing the controller board. WARNING—POTENTIAL DAMAGE Do not replace the controller board unless instructed by your next level of support. Collect the history information and firmware logs (Fwdebug and logs.tar.gz) from the SE menu.
Page 257: Collecting The Settings From The Menu Settings Page
Diagnostics and troubleshooting • Some printers are designed to restart automatically after a 9yy error. On these printers, you can retrieve the secondary crash code information using the SE menu. Open a web browser, type http://printer_IP_address/se, and then press Enter. Click Logs Gzip Compressed.
Page 258: Collecting Information From The User
Diagnostics and troubleshooting Print the Menu Settings Page, and then email a scanned copy of the page to your next level of support. D. Collecting information from the user Ask the user for information about the following: • Print job being run •...
Page 259 Diagnostics and troubleshooting 900-901 errors 900‑901 error messages 900 error messages Error code Description Action 900.00 Unrecoverable RIP software See "900 error service error/illegal trap. check" on page 260. 900.70 901.01 A RIP firmware error has See "900 error service occurred. check" on page 260.
Page 260: Error Service Check
Diagnostics and troubleshooting 900 error service check Clear all jobs in the printer and computer print queue. Perform a POR. Turn off the printer. Disconnect the USB cable, fax line, and network cable from the printer. Turn on the printer. If the error does not occur, then install each cable one at a time and perform a POR after each cable installation.
Page 261 Diagnostics and troubleshooting 912 errors 912 error messages 912 error messages Error code Description Action 912.00 An engine software error See "900 error service has occurred. check" on page 260. 912.01 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support.
Page 262 Diagnostics and troubleshooting Continued from page 261 Error code Description Action contact the next level of support. 912.14 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support. 912.15 An engine error occurred. Resend the print job.
Page 263 Diagnostics and troubleshooting Continued from page 262 Error code Description Action 912.31 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support. 912.32 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support.
Page 264 Diagnostics and troubleshooting Continued from page 263 Error code Description Action 912.45 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support. 912.46 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support.
Page 265 Diagnostics and troubleshooting Continued from page 264 Error code Description Action 912.58 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support. 912.60 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support.
Page 266 Diagnostics and troubleshooting Continued from page 265 Error code Description Action contact the next level of support. 912.75 An engine error occurred. Resend the print job. If the problem remains, then contact the next level of support. 912.77 An engine error occurred. Resend the print job.
Page 267 Diagnostics and troubleshooting 938-958 errors 938–958 error messages 938–958 error messages Error code Description Action 938.01 An unknown card type was See "900 error service detected by the thick engine check" on page 260. code. 938.04 The supplies security is Restart the printer. If the disabled.
Page 268 Diagnostics and troubleshooting 980-992 errors 980‑992 error messages 980‑992 error messages Error code Description Action 980.01 An option communication See "Dead optional error has occurred. tray service check" on page 274. 980.02 An option communication See "Dead optional error has occurred. tray service check" on page 274.
Page 269 Diagnostics and troubleshooting Continued from page 268 Error code Description Action 982.94 A paper port error occurred. See "Dead optional tray service check" on page 274. 982.95 A paper port error occurred. See "Dead optional tray service check" on page 274.
Page 270: Adf/Scanner Hardware Errors
Diagnostics and troubleshooting ADF/Scanner hardware errors 8yy errors 800‑845 error messages 840‑845 error messages Error code Description Action 800.00 A scanner communication See "Scanner error was detected—Motor communication error Card. service check" on page 272. 840.01 The scanner was manually See "Scanner disabled by the user. communication error service check"...
Page 271 Diagnostics and troubleshooting Continued from page 270 Error code Description Action 845.02 The scanner front side scan See "Scanner module was detected as communication error unplugged. service check" on page 272. 845.03 The scanner backside scan See "Scanner module was detected as communication error unplugged.
Page 272 Diagnostics and troubleshooting Scanner communication error service check Resolve a scanner communication error by making sure that the connections between the flatbed scanner and the controller board are properly connected. Enable the scanner via the control panel or EWS. From the home screen, touch Settings > Device > Maintenance > Configuration Menu >...
Page 273: Other Symptoms
Diagnostics and troubleshooting Other symptoms Base printer symptoms base printer symptoms table Symptom Action The optional tray is unresponsive. See "Dead optional tray service check" on page 274.
Page 274 Diagnostics and troubleshooting Dead optional tray service check Check if the optional tray is supported by the printer. Check the compatibility of the optional tray. Do the following: Make sure that the optional tray is supported by the printer model. For more information, see .
Page 275: Service Menus
Service menus Service menus Understanding the printer control panel Using the control panel Use the features of the control panel to navigate easily through the printer functions and settings. Parts of the control panel and their functions Control panel part Function Power button •...
Page 276 Service menus Continued from page 275 Control panel part Function • Wake the printer from Sleep or Hibernate mode. Display • View the printer messages and supply status. • Set up and operate the printer. Indicator light Check the status of the printer.
Page 277 Service menus Understanding the status of the indicator light The following information helps you learn about the status of your printer. Indicator light color and its corresponding printer status Indicator light Printer status The printer is off. Solid blue The printer is ready. Blinking blue The printer is printing or processing data.
Page 278: Entering The Diagnostics Menu
Service menus Diagnostics menu Entering the Diagnostics Menu The Diagnostics Menu contains tests that are used to help isolate printer issues. • To access the menu from POST, do the following: Unplug the power cord from the electrical outlet. Open tray 1. Connect the power cord to the electrical outlet.
Page 279 Service menus • To access the Diagnostics Menu from the home screen, do the following: From the home screen, touch Touch **36, and then touch the start button.
Page 280: Device Settings
Service menus Reports Device Settings This report lists all the current printer settings. Enter the Diagnostics menu, and then navigate to: Reports > Device > Device Settings...
Page 281: Installed Licenses
Service menus Installed Licenses This setting lists all the installed licenses and their feature data. Enter the Diagnostics menu, and then navigate to: Reports > Licenses > Installed Licenses...
Page 282: Advanced Print Quality Samples
Service menus Advanced Print Quality Samples This setting prints a list of the printer settings and sample pages to check print quality. Enter the Diagnostics menu, and then navigate to: Advanced Print Quality Samples...
Page 283: Format Fax Storage
Service menus Format Fax Storage This setting deletes stored fax jobs. Enter the Diagnostics menu, and then navigate to: Format Fax Storage > Start...
Page 284: Event Log
Service menus Event log Display Log This setting displays the message text that appears when a printer event occurs. Enter the Diagnostics menu, and then navigate to: Event Log > Display Log Select a log to print.
Page 285: Print Log
Service menus Print Log This setting lists an extended version of the various printer events. Enter the Diagnostics menu, and then navigate to: Event Log > Print Log Touch Start. NOTES The events that appear in the report vary depending on the operational history of the printer.
Page 286: Print Log Summary
Service menus Print Log Summary This setting lists a brief summary of the various printer events. Enter the Diagnostics menu, and then navigate to: Event Log > Print Log Summary Touch Start. NOTES The events that appear in the report vary depending on the operational history of the printer.
Page 287 Service menus Mark Log This setting allows you to create a service, maintenance, or custom log entry. Each log entry is added in the printer event log. Enter the Diagnostics menu, and then navigate to: Event Log > Mark Log Select a log that you want to create, and then touch Start.
Page 288: Input Tray Quick Print
Service menus Input tray quick print This setting lets you print a single or continuous Quick Test page in either duplex or simplex mode. Enter the Diagnostics menu, and then touch Input tray quick print. Select where you want to print the pages from. Select whether to print a single or continuous test page, and then touch Start.
Page 289: Output Bin Quick Feed
Service menus Output bin quick feed This setting lets you send a single or continuous test page to a bin. Enter the Diagnostics menu, and then touch Output bin quick feed. Select the bin to send the test page to. Select whether to send a single or continuous test page.
Page 290: Printer Setup
Service menus Printer Setup Printed page count (mono) This setting displays the amount of pages printed in mono. Enter the Diagnostics menu, and then touch Printer Setup. View the printed page count for mono.
Page 291: Permanent Page Count
Service menus Permanent page count This setting displays the total number of pages printed in mono and color. After all the print tests are completed, this value resets to zero. Enter the Diagnostics menu, and then touch Printer Setup. View the permanent page count.
Page 292 Service menus Enable edge-to-edge (printing) This setting shifts all four margins to the physical edges of the page. Enter the Diagnostics menu, and then navigate to: Printer Setup > Enable edge‑to‑edge (printing) Select a setting to adjust. NOTES This feature does not work in PPDS emulation.
Page 293: Enable Edge-To-Edge (Copy)
Service menus Enable edge-to-edge (copy) This setting determines whether the printer accepts the ADF or flatbed edge erase value when performing an ADF or flatbed copy. Enter the Diagnostics menu, and then navigate to: Printer Setup > Enable edge‑to‑edge (copy) Select a setting to adjust.
Page 294 Service menus Processor ID This setting indicates the ID of the processor on the controller board. Enter the Diagnostics menu, and then touch Printer Setup. View the processor ID.
Page 295 Service menus Serial number This setting displays a read-only value of the serial number. Enter the Diagnostics menu, and then touch Printer Setup. View the serial number.
Page 296 Service menus Model name This setting displays the model name of the printer. Enter the Diagnostics menu, and then touch Printer Setup. View the model name.
Page 297: Engine Setting [X]
Service menus Engine setting [x] WARNING—POTENTIAL DAMAGE Do not change this setting without specific instructions from the next level of support. This setting allows you to select a printer engine setting. Possible values are 0–255. 0 is the default. Enter the Diagnostics menu, and then navigate to: Printer Setup > Engine setting [x] Select a setting, enter a value, and then touch OK.
Page 298 Service menus EP setup WARNING—POTENTIAL DAMAGE Do not change this setting without specific instructions from the next level of support. This setting allows you to adjust the EP setup of the printer. Enter the Diagnostics menu, and then navigate to: Printer Setup > EP setup Select a setting.
Page 299: Printer Diagnostics And Adjustments
Service menus Printer diagnostics and adjustments Sensor tests Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Sensor test Select a sensor, and then touch Start. Find, and then manually toggle the sensor. ◦ The sensor status on the screen toggles between 1 and 0 when the sensor is properly working.
Page 300: Motor Tests
Service menus Motor tests Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Motor tests Select a motor. • If the motor is activated, then it is properly working. • Some motors require automatic deactivation to avoid secondary issues such as possible damage and contamination.
Page 301: Registration Adjust
Service menus Registration adjust This setting lets you adjust the skew and margins. You can also perform a Quick test after the adjustment. Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Registration adjust Select a setting.
Page 302 Service menus Margin Offset This setting lets you adjust the margin offset and to print or reset the default settings. Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Margin Offset Select a setting.
Page 303 Service menus Universal Override This setting allows the user to feed custom media sizes to a Custom Media Tray. Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Universal Override Select a setting to adjust.
Page 304: Scanner Diagnostics
Service menus Scanner diagnostics Motor tests Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Motor tests Select a motor. • If the motor is activated, then it is properly working. • Some motors require automatic deactivation to avoid secondary issues such as possible damage and contamination.
Page 305 Service menus Sensor tests Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Sensor test Select a sensor, and then touch Start. Find, and then manually toggle the sensor. ◦ The sensor status on the screen toggles between 1 and 0 when the sensor is properly working.
Page 306 Service menus Feed Test This test allows for a continuous feed from the ADF or flatbed. Enter the Diagnostics menu, and then navigate to: Scanner diagnostics > Feed Test Select a paper size. From the Feed Test section, touch Start.
Page 307: Scanner Calibration Reset
Service menus Scanner Calibration Reset Before starting the test, make sure that the scanner glass and backing material are clean. For more information, go to See "Cleaning the scanner" on page 571. Enter the Diagnostics menu, and then touch Scanner diagnostics. From the Sensor Calibration Test section, touch Start.
Page 308: Controller Calibration
Service menus Controller Calibration This test must be done when the scanner controller or flatbed scanner is changed. Enter the Diagnostics menu, and then navigate to: Scanner Diagnostics > Controller Calibration Touch Start.
Page 309: Additional Input Tray Diagnostics
Service menus Additional input tray diagnostics Sensor tests Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Sensor test Select a sensor, and then touch Start. Find, and then manually toggle the sensor. ◦ The sensor status on the screen toggles between 1 and 0 when the sensor is properly working.
Page 310 Service menus Motor tests Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Motor tests Select a motor. • If the motor is activated, then it is properly working. • Some motors require automatic deactivation to avoid secondary issues such as possible damage and contamination.
Page 311: Entering Configuration Menu
Service menus Entering Configuration Menu From the home screen, touch Settings > Device > Maintenance > Configuration Menu.
Page 312: Configuration Menu
Service menus Configuration Menu Configuration Menu items and their descriptions Menu item Description USB Configuration Change the USB driver mode of the printer to improve its compatibility with a personal USB PnP computer. USB Configuration Set whether the USB device driver enumerates as a USB Simple device (single USB Scan to Local interface) or as a USB Composite device...
Page 313 Service menus Continued from page 312 Menu item Description Manual Paper NOTES For Multipurpose Feeder to appear, in the Paper menu, set Configure MP to Cassette. Tray Configuration Set the paper source that the user fills when a prompt to load envelope appears. Envelope Prompts Auto* NOTES...
Page 314 Service menus Continued from page 313 Menu item Description Printer Emulations Set the printer to recognize and use the PS data stream. PS Emulation Printer Emulations Let the printer use the native or free fonts in the intelligent storage drive (ISD) for Use Native ISD Fonts printing.
Page 315 Service menus Continued from page 314 Menu item Description Printer Emulations Disable access to printer message during emulation. Emulator Security Disable Printer Message Access Fax Configuration Set fax to enter Sleep mode whenever the printer determines that it must. Fax Low Power Support Disable Sleep Permit Sleep Auto*...
Page 316 Device Operations Enable the printer to use the orientation setting under the Copy menu when sending Honor orientation on fast path copy quick copy jobs. Off* App Configuration Enable Lexmark Embedded Solutions (LES) applications. LES Applications Continued on page 317...
Page 317 Service menus Continued from page 316 Menu item Description Scanner Configuration Print a Quick Test target page. Scanner Manual Registration NOTES Print Quick Test Make sure that the margin spacing on the target page is uniform all the way around the target. If it is not, then the printer margins must be reset.
Page 318 Service menus NOTES An asterisk (*) next to a value indicates the factory default setting.
Page 319: Entering Invalid Engine Mode
Service menus Entering Invalid engine mode This mode allows the printer to load the correct firmware code. For more information, see See "Updating the printer firmware " on page 342. Unplug the power cord from the electrical outlet. Open tray 1. Connect the power cord to the electrical outlet.
Page 320: Entering Recovery Mode
Service menus Entering Recovery mode This mode allows the printer to boot from a secondary set of instructions and flash firmware code. Depending on your printer model, do any of the following: For LED display Turn off the printer. Open the front door. Press and hold the Stop button.
Page 321 Service menus For 2.8‑, 4.3‑, 7‑, and 10‑inch displays without number pads Turn off the printer. Open tray 1. NOTES Make sure that paper is loaded in the tray. Turn on the printer. When an ellipses appears on the upper‑left corner of the display, close tray 1. NOTES If tray 1 is not closed, then the printer boots normally.
Page 322: Service Engineer Menu
Service menus Service Engineer menu Entering the SE Menu Depending on your printer model, do any of the following: For touch‑screen display From the home screen, touch the on‑screen keypad. Touch **411. Touch the start icon or GO. For 2‑line display From the home screen, press the following buttons in this sequence: Back, Left arrow, Back, Left arrow.
Page 323 Service menus For 2‑line display with a menu button From the home screen, press the following buttons in this sequence: Right, Right, OK, Left. For 2.8‑, 4.3‑, 7‑, and 10‑inch displays From the home screen, press the following buttons in this sequence: Back, Back, Home, Home.
Page 324 Service menus General SE Menu • Capture Logs to USB Drive NOTES This setting allows you to save a log file to a USB drive. • Capture Logs to Internal Storage • Code Versions • Debug Level...
Page 325: Network Se Menu
Service menus Network SE Menu Enter the SE menu, and then select Network SE Menu. NOTES Use these settings as directed by the next level of support. Service engineer menu Top‑level menu Intermediate menu HISTORY • Print History • Mark History •...
Page 326 Service menus Continued from page 325 Top‑level menu Intermediate menu • IP6tables [Firewall Dump] • IPsec Dump Enable DHCPCD Debugging Enable wpa‑supplicant Debugging Enable Ethernet Gigabit Enable Dual-NIC Enable BLE Netconfig Debug Level IPP ICONS • Delete intermediate icons • Delete current icons...
Page 327 Service menus Fax SE Menu Use this menu to help resolve fax transmission and reception issues. Enter the SE menu, and then touch Fax SE Menu. NOTES Use these settings as directed by the next level of support. Service engineer menu Top‑level menu Intermediate menu Agency Test Menu...
Page 328 Service menus Continued from page 327 Top‑level menu Intermediate menu • High Ring Impedence • Impedance • Interdigit Delay • Negative Twt Ctl • Positive Twt Ctl • Progress Tresh • Pulse Break Time • Pulse Dial Type • Pulse Fall Time •...
Page 329 Service menus Scanner SE Menu Enter this setting to view the calibration data.
Page 330: Parts Removal
Parts removal Parts removal Important removal information Removal precautions CAUTION—SHOCK HAZARD The low-voltage power supply (LVPS) and the high-voltage power supply (HVPS) may have residual voltage present. To avoid the risk of electrical shock, do not touch their circuit components or the solder side of the board. Only handle them by their outer edges or metal housing.
Page 331 Parts removal Précautions de retrait CAUTION—SHOCK HAZARD Une tension résiduelle peut être présente dans le bloc d'alimentation basse tension (LVPS) et le bloc d'alimentation haute tension (HVPS). Pour éviter tout risque d'électrocution, ne touchez pas les composants du circuit ou le côté...
Page 332 Parts removal CAUTION—SHOCK HAZARD Este producto utiliza un interruptor de corriente electrónico. No desconecta físicamente la entrada de voltaje de CA. Para evitar el riesgo de descarga eléctrica, desenchufe siempre el cable de alimentación de la impresora cuando sea necesario retirar la entrada de voltaje de CA. CAUTION—SHOCK HAZARD Para evitar el riesgo de descargas eléctricas y daños en la impresora, retire el cable de alimentación de la toma eléctrica y desconecte todas las...
Page 333 Parts removal CAUTION—SHOCK HAZARD Um das Risiko eines elektrischen Schlags und Schäden am Drucker zu vermeiden, ziehen Sie das Netzkabel aus der Steckdose und trennen Sie alle Verbindungen zu jeglichen externen Geräten, bevor Sie Kabel, Elektronikplatinen oder Baugruppen einstecken oder abziehen. CAUTION—HOT SURFACE Das Innere des Druckers kann sehr heiß...
Page 334: Handling Esd-Sensitive Parts
Parts removal Handling ESD‑sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic discharge (ESD). To prevent damage to ESD-sensitive parts, do the following: • Turn off the printer before removing logic boards. • Keep the parts in their original packing material until you are ready to install them into the printer.
Page 335 Parts removal Critical information for controller board or engine board replacement CAUTION—POTENTIAL INJURY The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.
Page 336 Parts removal WARNING—POTENTIAL DAMAGE To avoid NVRAM mismatch issues, replace only one of the following components at a time: • Engine board • Controller board To replace a component and to test whether the problem is resolved: Replace the affected component. WARNING—POTENTIAL DAMAGE Do not perform a Power‑On Reset (POR) until the problem is resolved. If a POR is ...
Page 337 NOTES The software bundle contains the latest version of the firmware, applications, and software licenses from the Lexmark CFM and Package Builder. The printer firmware may be at a different level from what is used before replacement of the part.
Page 338 Parts removal Save the zip file. NOTES Make sure that the serial number in the zip file matches the serial number of the printer being restored. Extract the contents of the zip file, open the Readme file, and then follow the instructions in the file.
Page 339 Parts removal ◦ Perform the install instructions on the Readme file in the exact order shown. Restart the printer only if the file says so. ◦ For more information on how to flash the downloaded files, see See "Updating the printer firmware " on page 342.
Page 340: Restoring Solutions, Licenses, And Configuration Settings
Parts removal Restoring solutions, licenses, and configuration settings To load the zip files that are extracted from the Service Restore Tool, do the following: Open a web browser, and then type the printer IP address. Click Import Configuration, and then click Browse.
Page 341 Parts removal Navigate to the folder where the zip files are extracted from the Service Restore Tool. Select the file to import, and then click Import. Repeat step 2 through step 4 for the other files that are included in the extracted zip file.
Page 342: Updating The Printer Firmware
Parts removal Updating the printer firmware WARNING—POTENTIAL DAMAGE Before updating the printer firmware, ask the next level of support for the correct code. Using an incorrect code level may damage the printer. Using a flash drive NOTES The printer must be in ready state to update the firmware. This option is available only in printer models with front USB port.
Page 343: Using A Usb Cable Connection
Make sure that the cable is connected to the rear USB port. Using USB Flash Utility Go to support.lexmark.com, and then download USB Flash Utility. Extract, and then run the utility. Click Browse Files, and then browse to the firmware file directory.
Page 344: Backing Up Esf Applications And Settings
Parts removal Backing up eSF applications and settings NOTES Export the eSF applications and settings from the printer before replacing the controller board. Exporting eSF applications and settings file Reset the printer into Invalid engine mode. See See "Entering Invalid engine mode" on page 319.
Page 345 Parts removal 5. Click Import.
Page 346: Disconnecting Ribbon Cables
Parts removal Disconnecting ribbon cables WARNING—POTENTIAL DAMAGE The ribbon cable and its socket may get damaged if it is not properly disconnected. When disconnecting the cable, hold its connector and press its tab before unplugging it.
Page 347: Ribbon Cable Connectors
Parts removal Ribbon cable connectors Zero Insertion Force (ZIF) connectors Zero Insertion Force (ZIF) connectors are used on the boards and cards used in this printer. Before inserting or removing a cable from these connectors, read this entire section. Great care must be taken to avoid damaging the connector or cable when inserting or removing the cable.
Page 348: Horizontal Top Contact Connector
Parts removal Horizontal top contact connector This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding. The horizontal top contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Page 349 Parts removal When installing the cable, check the locking actuator to ensure it is in the unlocked position. The tabs on the ends of the actuator are vertical when the actuator is unlocked. Insert the cable with the contacts on the cable facing up. Insert the cable on top of the actuator.
Page 350 Parts removal 3. Rotate the locking actuator to the locked position. The cable should not move while this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position.
Page 351 Parts removal...
Page 352: Horizontal Bottom Contact Connector
Parts removal Horizontal bottom contact connector This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding. The horizontal bottom contact connector uses a flip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Page 353 Parts removal Inserting a cable into the horizontal bottom contact connector Check the actuator to verify it is in the open position. Insert the cable into the ZIF connector with the contacts facing downward and away from the locking actuator. The cable needs to be inserted below the actuator. NOTES Verify that the cable is installed squarely into the connector.
Page 354 Parts removal 3. Place your finger in the middle of the actuator, and then rotate the locking actuator to the locked position.
Page 355 Parts removal...
Page 356: Vertical Mount Contact Connector
Parts removal Vertical mount contact connector This FRU contains a vertical mount contact connector. Read the instructions before proceeding. The vertical mount contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted vertically into the connector.
Page 357 Parts removal When installing the cable, check the locking actuator to verify it is in the open position. Insert the cable with the contacts on the cable away from the locking actuator. Insert the cable on top of the actuator. NOTES Verify that the cable is installed squarely into the connector.
Page 358 Parts removal 3. Rotate the locking actuator to the locked position by pressing down on both ends of the actuator. The cable should not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position.
Page 359 Parts removal...
Page 360: Horizontal Sliding Contact Connector
Parts removal Horizontal sliding contact connector This FRU contains a horizontal sliding contact connector. Read the instructions before proceeding. The horizontal sliding contact connector uses a slide locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Page 361 Parts removal Inserting a cable into the horizontal sliding contact connector When installing the cable, check the locking actuator to verify it is in the open position. If you are opening the connector, pull back on both end tabs using equal force to avoid breaking the connector.
Page 362 Parts removal 3. Slide the locking actuator towards the connector, locking the cable into place. The cable should not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position.
Page 363 Parts removal...
Page 364: Low Insertion Force (Lif) Connector
Parts removal Low Insertion Force (LIF) connector This FRU contains a Low Insertion Force (LIF) connector. Read the instructions before proceeding. WARNING—POTENTIAL DAMAGE When installing a cable into an LIF connector, care must be taken to avoid bending the edges of the cables and damaging the contacts on the cables. Inserting a cable into the LIF connector Looking at the connector, take note on which side the contacts are located.
Page 365 Parts removal Verify that the cable is installed straight into the connector. If the cable is not installed properly, then intermittent failures could occur.
Page 366: Printhead Adjustment
Parts removal Printhead adjustment A printhead must be correctly positioned after it has been removed. Use a sharp pencil or a small, flat-blade screwdriver to mark the location of the old printhead on the printer frame. Align the new printhead relative to the location of the old printhead. NOTES Skew is caused by a sheet being fed through the printer while misaligned.
Page 367 Parts removal If the grid lines of the right flap align below the corresponding lines on the left side, then adjust the printhead clockwise relative to the printer, and recheck. If the grid lines of the left flap align below the corresponding lines of the right side, then adjust the printhead counterclockwise.
Page 368 Parts removal NOTES If necessary, print a Quick test page again and perform the Registration adjust procedure to correct the skew and misalignments. See See "Registration adjust" on page 301.
Page 369: Removal Procedures
Parts removal Removal procedures Keep the following tips in mind as you replace parts: • Some removal procedures require removing cable ties. You must replace cable ties during reassembly to avoid pinching wires, obstructing the paper path, or restricting mechanical movement.
Page 370: Left Side Removals
Parts removal Left side removals Left cover removal Remove the screw (A). Open the front door. Release the two latches (B), and then disengage the middle front part (C) of the cover from the front door. WARNING—POTENTIAL DAMAGE The ADF might swing open while you position the printer on its side.
Page 371 Parts removal 4. Remove the cover.
Page 372: Main Drive Gearbox Removal
Parts removal Main drive gearbox removal Remove the left cover. See .See "Left cover removal" on page 370 Release the latch (A), and then detach the link. Remove the four screws (B).
Page 373 Parts removal Disconnect the cable from the main drive gearbox. Remove the gearbox. WARNING—POTENTIAL DAMAGE Do not lose the fuser gear (C) and spring (D).
Page 374 Parts removal...
Page 375: Mpf Gearbox Removal
Parts removal MPF gearbox removal Remove the front door. See See "MPF with front access cover removal" on page 422. Remove the left cover. See See "Left cover removal" on page 370. Remove the main drive gearbox. See See "Main drive gearbox removal" on page 372.
Page 376 Parts removal 7. Remove the E-clip (D), and then remove the gear. NOTES The solenoid may hinder removing the gear.
Page 377 Parts removal 8. Release the two latches (E), and then remove the gears (F).
Page 378 Parts removal...
Page 379: Fuser Actuator Removal
Parts removal Fuser actuator removal Remove the left cover. See .See "Left cover removal" on page 370 Release the latch (A), and then detach the link. Remove the four screws (B).
Page 380 Parts removal 4. Remove the screw (C).
Page 381 Parts removal 5. Remove the fuser actuator. INSTALLATION NOTE To test if the actuator is properly installed, push, and then release the actuator (A). The actuator should bounce back.
Page 382 Parts removal...
Page 383: Reverse Solenoid Removal
Parts removal Reverse solenoid removal Remove the left cover. See See "Left cover removal" on page 370. Remove the right cover. See See "Right cover removal" on page 394. Remove the scanner access covers. See See "Scanner access covers removal" on page 514.
Page 384 Parts removal INSTALLATION NOTE Screw in place the replacement solenoid. Route the solenoid cable to the hole (A) exiting the rear side of the printer. NOTES Fully stretch the cable, but do it carefully to avoid cuts as it rubs into the edges of the hole.
Page 385 Parts removal...
Page 386: Mpf Solenoid Removal
Parts removal MPF solenoid removal Remove the left cover. See .See "Left cover removal" on page 370 Remove the screw (A). Cut the cable, and then remove the solenoid. Remove the rear cover. See .See "Rear door and cover removal" on page 485 Remove the power supply.
Page 387: Cartridge Gearbox Removal
Parts removal Cartridge gearbox removal Remove the left cover. See .See "Left cover removal" on page 370 Remove the four screws (A). Remove the screw (B).
Page 388 Parts removal Lift the top cover enough to remove the cartridge gearbox. While lifting the cover, disconnect the cable from the gearbox, and then remove the gearbox.
Page 389: Pick Roller Clutch Removal
Parts removal Pick roller clutch removal NOTES The following procedure applies only to MS531 printer model. Remove the left cover. See .See "Left cover removal" on page 370 Remove the main drive gearbox. See See "Main drive gearbox removal" on page 372.
Page 390 Parts removal 8. Pull out the pick roller clutch, and then cut the cable to remove it.
Page 391 Parts removal INSTALLATION NOTE Route the cables as shown.
Page 392 Parts removal Duplex gear kit removal Remove the left cover. See See "Left cover removal" on page 370. Remove the main drive gearbox. See . Remove the duplex. See See "Duplex removal" on page 453. Remove the five screws (A). Pull the left frame to release it from the main frame.
Page 393 Parts removal...
Page 394: Right Side Removals
Parts removal Right side removals Right cover removal NOTES For a video demonstration, see Right cover removal. Remove the screw (A). Open the controller board cover, and then remove the screw (B).
Page 395 Parts removal 3. Remove the screw (C).
Page 396 Parts removal Place the printer on its left side, and then open the front door. Lift the right cover, and then remove it.
Page 397: Interconnect Cable Removal
Parts removal Interconnect cable removal Remove the right cover. See .See "Right cover removal" on page 394 Position the printer on its rear side. Disconnect the cable JOPT1 from the controller board. Remove the two screws (A). Detach the right foot (B). Release the two latches (C).
Page 398 Parts removal 7. Remove the cable.
Page 399: Fan Removal
Parts removal Fan removal NOTES For a video demonstration, see removal. Remove the right cover. See See "Right cover removal" on page 394 Remove the tray insert. Disconnect the connectors (A). Remove the screws (B). Unroute the cables (C).
Page 400 Parts removal 6. Remove the screws (D).
Page 401 Parts removal Remove the screws (E). Remove the fan from its housing.
Page 402: Controller Board Removal
Parts removal Controller board removal NOTES For a video demonstration, see Controller board removal. Remove the right cover. See See "Right cover removal" on page 394. Remove the fax card. See See "Fax card removal" on page 406. Remove the wireless module. See See "Wireless module removal"...
Page 403 Parts removal 8. Remove the controller board. INSTALLATION NOTE Reinstall the electronic attachments to the new controller board.
Page 404: Engine Board Removal
Parts removal Engine board removal NOTES For a video demonstration, see Engine board removal. Remove the right cover. See See "Right cover removal" on page 394. Remove the screws (A). Disconnect all the connectors on the board. Remove the screws (B).
Page 405 Parts removal 5. Remove the engine board.
Page 406: Fax Card Removal
Parts removal Fax card removal Remove the right cover. See See "Right cover removal" on page 394. Disconnect the fax card cable from the controller board, and then remove the two screws (A). Remove the fax card. INSTALLATION NOTE To select the correct part for your printer, see the following: Part Applicable models Fax card (41X1374)
Page 407 Parts removal Continued from page 406 Part Applicable models Fax card kit (41X2936) • MX622, MB2650, XM3250(8th digit of printer serial number is greater than or equal to 4) ◦ The printer already has an adapter installed. ◦ Do not cover up the telecom label. •...
Page 408 Parts removal Printer models Part Part number Graphic MB2650, MX622, Fax card 37X6145 XM3250 Adapter plate 36S6355 Plate affixed with 88B1020 one screw Insert the new fax card with the adapter plate into the fax card slot. Connect the cable to the fax connector (JFAX2) on the controller board. Attach the screw(s) to secure the fax card in the fax card slot.
Page 409 Parts removal Wireless module removal Remove the right cover. See See "Right cover removal" on page 394. Remove the fax card. See See "Fax card removal" on page 406. Remove the screw (A). Remove the cover (B). Release the latch (C), and then remove the wireless module.
Page 410 Parts removal...
Page 411: Toner Cartridge Smart Chip Contact Removal
Parts removal Toner cartridge smart chip contact removal Remove the right cover. See See "Right cover removal" on page 394. Remove the engine board. See See "Engine board removal" on page 404. Remove the screw (A). Remove the two screws (B), and then lower the right cartridge guide. Slightly pull the right cartridge guide to detach it.
Page 412 Parts removal 6. Release the four latches (C).
Page 413 Parts removal 7. Remove the toner cartridge smart chip contact. NOTES Note the original position of the spring (D), actuator (E), and lock (F).
Page 414 Parts removal INSTALLATION NOTE To test if the spring and actuator are properly installed, press the actuator (A). The lock (B) should move up.
Page 415 Parts removal...
Page 416: Cartridge Barrel Shutter Sensor Kit Removal
Parts removal Cartridge barrel shutter sensor kit removal Remove the top cover. See .See "Top cover removal" on page 491 Remove the right cover. See .See "Right cover removal" on page 394 Disconnect the cable JCVR1 from the controller board. Remove the screw (A), and then remove the bracket, actuator, spring, and sensor.
Page 417 Parts removal 2. Install the bracket (D) to the sensor (E) as shown.
Page 418 Parts removal 3. Install the sensor and bracket as shown. NOTES Make sure that sensor is aligned with the actuator.
Page 419 Parts removal...
Page 420: Front Removals
Parts removal Front removals Nameplate removal Open the front door. Push the latch to the left, and then remove the screw (A). Remove the four screws (B). Remove the nameplate. NOTES The MPF hinders the removal. WARNING—POTENTIAL DAMAGE Avoid damaging the cable (C) when removing the nameplate.
Page 421 Parts removal...
Page 422: Mpf With Front Access Cover Removal
Parts removal MPF with front access cover removal Remove the nameplate. See See "Nameplate removal" on page 420. Remove the right cover. See See "Right cover removal" on page 394. Remove the screw (A). Release the latch (B), and then detach the link.
Page 423 Parts removal Disconnect JFUSB1 cable on the controller board. Push the MPF with front access cover to the right, and then remove it.
Page 424 Parts removal...
Page 425: Top Access Cover Removal
Parts removal Top access cover removal Remove the nameplate. See See "Nameplate removal" on page 420. Remove the three screws (A), and then remove the cover (B).
Page 426: Control Panel Removal
Parts removal Control panel removal NOTES For a video demonstration, see Control panel removal. Release the hinge (A). Remove the three screws (B).
Page 427 Parts removal 3. Disconnect the connector and ground cable (C).
Page 428 Parts removal 4. Remove the control panel.
Page 429 Parts removal Control panel hinge removal Remove the right cover. See See "Right cover removal" on page 394. Remove the ADF. See See "ADF removal" on page 503. Remove the control panel. See See "Control panel removal" on page 426. Remove the cover (A).
Page 430 Parts removal 6. Remove the screws (C).
Page 431 Parts removal 7. Remove the top front cover (D).
Page 432 Parts removal 8. Remove the screws (E).
Page 433 Parts removal Remove the screws (F). Disconnect the connector (G), and then unroute the cable.
Page 434 Parts removal 11. Remove the control panel hinge.
Page 435: Transfer Roller Removal
Transfer roller removal For a video demonstration, see Transfer roller removal. Open the front door. Release the two latches (A) on each end of the transfer roller. Remove the roller. NOTES For a video demonstration, see Transfer roller removal infoserve.lexmark.com/ ids/sma.
Page 436: Jam Access Cover Removal
Parts removal Jam access cover removal Open the front door. Remove the screw (A), and then release the cable from the jam access cover. Push down, and then pull the two ends (B) of the springs to remove them. Repeat step 3 for the other side. Release the two latches (C).
Page 437 Parts removal 7. Remove the cover.
Page 438: Sensor (Front Door) Removal
Parts removal Sensor (front door) removal Remove the nameplate. See See "Nameplate removal" on page 420. Remove the right cover. See .See "Right cover removal" on page 394 Disconnect the JCVR1 and control panel cables from the controller board. Remove the four screws (A).
Page 439 Parts removal Using a #1 Phillips screwdriver, remove the screw (B). Remove the sensor.
Page 440: Mpf Pick Roller And Separator Pad Removal
Parts removal MPF pick roller and separator pad removal For a video demonstration, see MPF pick roller and separator pad removal. Open the front door. Press the latches (A), and then open the cover. WARNING—POTENTIAL DAMAGE Avoid damaging the MPF sensor flag (B) when removing the cover. Using a #1 Phillips screwdriver, remove the two screws (C).
Page 441 Parts removal 5. Remove the two E‑clips (A).
Page 442 Parts removal Move the roller (B) to the left, and then remove the pin (C). Move the hub (D) and roller (E) to the right.
Page 443 Parts removal 8. Push the separator pad (F) to the right.
Page 444 Parts removal 9. Push down the pad to remove it. WARNING—POTENTIAL DAMAGE Do not lose the spring (G).
Page 445 Parts removal INSTALLATION NOTE Insert the spring (A) as shown. Insert the right arm (B), and then the other arm from under the left finger (C) to avoid damaging the pad and fingers.
Page 446 Parts removal NOTES For a video demonstration, see MPF pick roller and separator pad removal infoserve.lexmark.com/ids/sma.
Page 447: Sensor (Mpf Paper Present) Removal
Parts removal Sensor (MPF paper present) removal Open the front door. Remove the screw (A). Open the controller board access cover, disconnect the cable JMPFPP1, and then release the cable. Remove the sensor. INSTALLATION NOTE Pay attention to the position of the MPF sensor flag when installing the sensor.
Page 448: Front Input Guide Removal
Parts removal Front input guide removal Remove the MPF with front access cover. See .See "MPF with front access cover removal" on page 422 Remove the MPF pick roller and separator pad. See See "MPF pick roller and separator pad removal"...
Page 449: Sensor (Tray Present) Removal
Parts removal Sensor (tray present) removal Remove the nameplate. See See "Nameplate removal" on page 420. Remove the MPF with front access cover. See .See "MPF with front access cover removal" on page 422 Release the two latches (A), and then pry to remove the sensor. Unroute and disconnect the cables.
Page 450: Bottom Removals
Parts removal Bottom removals Power supply removal Remove the rear cover. See See "Rear door and cover removal" on page 485. Disconnect the cable (A), and then remove the screws (B). Position the printer on its right side. WARNING—POTENTIAL DAMAGE The ADF might swing open while you position the printer on its side. Disconnect the cable (C), and then remove the two screws (D).
Page 451 Parts removal 5. Disconnect the three cables (E).
Page 452 Parts removal 6. Remove the power supply.
Page 453: Duplex Removal
Parts removal Duplex removal Remove the rear cover. See See "Rear door and cover removal" on page 485. Remove the power supply. See See "Power supply removal" on page 450. Position the printer on its side. WARNING—POTENTIAL DAMAGE The ADF might swing open while you position the printer on its side. WARNING—POTENTIAL DAMAGE To avoid damaging the paper stop, close it after positioning the printer.
Page 454 Parts removal Remove the power supply shield. Remove the four screws (B).
Page 455 Parts removal 7. Remove the duplex. NOTES Make sure that the duplex link (C) stays attached.
Page 456 Parts removal...
Page 457: Sensors (Duplex And Input) Removal
Parts removal Sensors (duplex and input) removal Remove the rear cover. See .See "Rear door and cover removal" on page 485 Remove the power supply. See .See "Power supply removal" on page 450 Remove the duplex. See .See "Duplex removal" on page 453 Remove the two screws (A) Disconnect the connector (B).
Page 458 Parts removal...
Page 459 Parts removal Sensor (index) removal Remove the rear cover. See See "Rear door and cover removal" on page 485. Remove the power supply. See See "Power supply removal" on page 450. Remove the duplex. See See "Duplex removal" on page 453.
Page 460: Pick Roller Removal
Parts removal Pick roller removal Remove the left cover. See See "Left cover removal" on page 370. Remove the right cover. See See "Right cover removal" on page 394. Remove the scanner access covers. See See "Scanner access covers removal" on page 514.
Page 461 Parts removal 9. Remove the pick roller. INSTALLATION NOTE Pay attention to the correct position of the arm (A) when installing the pick roller.
Page 462 Parts removal...
Page 463: Pick Tire Removal
Parts removal Pick tire removal Remove the tray insert. Remove the pick tires.
Page 464 Parts removal...
Page 465 Parts removal Motor (pick) removal Remove the left cover. See See "Left cover removal" on page 370. Remove the right cover. See See "Right cover removal" on page 394. Remove the scanner access covers. See See "Scanner access covers removal" on page 514.
Page 466 Parts removal 12. Remove the motor.
Page 467 Parts removal Sensor (paper present) removal Remove the rear cover. See See "Rear door and cover removal" on page 485. Remove the power supply. See See "Power supply removal" on page 450. Remove the duplex. See See "Duplex removal" on page 453.
Page 468 Parts removal...
Page 469: Sensor (Trailing Edge) Removal
Parts removal Sensor (trailing edge) removal Remove the rear cover. See .See "Rear door and cover removal" on page 485 Remove the power supply. See .See "Power supply removal" on page 450 Remove the duplex. See .See "Duplex removal" on page 453 Open the controller board access cover, and then disconnect the cable JACM1.
Page 470 Parts removal...
Page 471: Pick/Lift Motor Gearbox Removal
Parts removal Pick/lift motor gearbox removal Remove the rear cover. See See "Rear door and cover removal" on page 485. Remove the power supply. See See "Power supply removal" on page 450. Remove the duplex. See See "Duplex removal" on page 453.
Page 472 Parts removal...
Page 473 Parts removal Lift the pick roller. Disconnect the cable from the gearbox. Remove the gearbox.
Page 474 Parts removal Lift cam removal Remove the left cover. See See "Left cover removal" on page 370. Remove the main drive gearbox. See See "Main drive gearbox removal" on page 372. Remove the rear cover. See See "Rear door and cover removal" on page 485.
Page 475 Parts removal 8. Remove the cam.
Page 476 Parts removal Sensor (toner density) and media present sensor flag removal NOTES For a video demonstration, see Sensor (toner density) and media present sensor flag removal. Remove the toner cartridge, and then remove the imaging unit. Remove the tray insert. Remove the rear door and cover.
Page 477 Parts removal 9. Remove the screw (E).
Page 478 Parts removal Lift the pick roller and then remove the sensor flag and bracket (F). INSTALLATION NOTE Refer to the following procedures when installing the toner density sensor and media present sensor flag: Pull down the actuator, and then place the wiper (G) in position.
Page 479 Parts removal Attach the sensor bracket (H) and the spring (I). Connect the connector (J) to the sensor, and then route the cable on the harness (K).
Page 480 Parts removal NOTES Before securing the sensor bracket using screws, do the following: Lift the actuator. If the wiper goes along with the actuator, then the sensor bracket is properly engaged with the wiper. Secure the sensor bracket using screws (L). NOTES After securing the sensor bracket using screws, do the following: Apply RheoGel 793 to the top and bottom of the shutter blade extension.
Page 481 Parts removal Apply RheoGel 793 to the point of contact between the bracket (A) and cam. Apply RheoGel 793 to the point of contact to the lower edge (B) where the wiper bracket glides.
Page 482 Parts removal 5. Lift the pick roller, and then place the bracket (M) in position.
Page 483 Parts removal 6. Secure the bracket in place using screws (N).
Page 484 Parts removal Install the sensor flag (O) into the bracket. NOTES To check if the sensor flag is properly installed, do the following: Lift the pick roller. If the sensor flag goes along with the pick roller when lifted, then the sensor flag is properly installed.
Page 485: Rear Side Removals
Parts removal Rear side removals Rear door and cover removal Remove the scanner access covers. See See "Scanner access covers removal" on page 514. Remove the two screws (A), and then remove the door and cover.
Page 486 Parts removal Redrive removal Remove the right cover. See See "Right cover removal" on page 394. Remove the left cover. See See "Left cover removal" on page 370. Remove the rear cover. See See "Rear door and cover removal" on page 485.
Page 487: Fuser Removal
Disconnect the two cables (A), and then remove the two screws (B). Remove the right cover. See See "Right cover removal" on page 394. Disconnect the fuser cable from the controller board. Remove the fuser. NOTES For a video demonstration, see Fuser removal at infoserve.lexmark.com/ids/sma.
Page 488 Parts removal Redrive gear removal Remove the top cover. See See "Top cover removal" on page 491. Remove the left cover. See See "Left cover removal" on page 370. Remove the redrive. See See "Redrive removal" on page 486. Remove the two screws (A), and then detach the reverse solenoid. NOTES Do not disconnect the reverse solenoid cable from the controller board.
Page 489 Parts removal 7. Remove the redrive gear.
Page 490: Sensor (Bin Full) Removal
Parts removal Sensor (bin full) removal Remove the right cover. See .See "Right cover removal" on page 394 Remove the left cover. See .See "Left cover removal" on page 370 Remove the rear cover. See .See "Rear door and cover removal" on page 485 Remove the top cover.
Page 491: Top Cover Removal
Parts removal Top removals Top cover removal Remove the right cover. See See "Right cover removal" on page 394. Remove the control panel. See See "Control panel removal" on page 426. Remove the control panel hinge. See See "Control panel hinge removal" on page 429.
Page 492 Parts removal Release the latch (C). Release the latch that is located underneath the cover (D).
Page 493 Parts removal 10. Remove the top cover.
Page 494: Printhead Removal
Parts removal Printhead removal Remove the right cover. See See "Right cover removal" on page 394. Remove the ADF. See See "ADF removal" on page 503. Remove the control panel. See See "Control panel removal" on page 426. Remove the control panel hinge. See See "Control panel hinge removal"...
Page 495: Adf Input Tray Removal
Parts removal ADF and flatbed scanner removals ADF input tray removal Release the two latches (A). Remove the tray.
Page 496 Parts removal Scanner glass pad removal Open the scanner cover. Slowly remove the scanner glass pad. NOTES Make sure to avoid tearing the adhesive from the foam pad, or tear the foam itself.
Page 497 Parts removal INSTALLATION NOTE Place the white area of the new scanner glass pad facedown on the scanner glass, and then remove the backing on the tape.
Page 498 Parts removal NOTES...
Page 499 Parts removal Make sure that the scanner glass pad is aligned correctly on the edges of the scanner glass. Close the scanner cover to stick the new scanner glass pad to the cover. Open the scanner cover to check if the new scanner glass pad is properly attached to the cover.
Page 500 Parts removal ADF rollers removal Open door C. WARNING—POTENTIAL DAMAGE To prevent damage from electrostatic discharge, touch any exposed metal frame of the printer before accessing or touching interior areas of the printer. Remove the ADF pick roller.
Page 501 Parts removal 3. Remove the ADF separator roller.
Page 502 Parts removal INSTALLATION WARNING To avoid damage and poor printer performance, make sure that your hands are clean when handling the parts.
Page 503: Adf Removal
Parts removal ADF removal NOTES For a video demonstration, see removal. Release the latches, and then remove the cover. Disconnect the FFC (A).
Page 504 Parts removal 3. Slightly lift the ADF, and then disconnect the cables (B).
Page 505 Parts removal NOTE Depending on the printer model, the cables may vary. Remove the ADF.
Page 506: Flatbed Scanner Removal
Parts removal Flatbed scanner removal NOTES For a video demonstration, see Flatbed scanner removal. Remove the right cover. See See "Right cover removal" on page 394. Remove the ADF. See See "ADF removal" on page 503. Remove the control panel hinge. See See "Control panel hinge removal"...
Page 507 Parts removal Remove the screws (C). Unroute the cables (D).
Page 508 Parts removal Remove the screw (E). Remove the flatbed scanner.
Page 509: Adf Top Cover Removal
Parts removal ADF top cover removal Open door C. WARNING—POTENTIAL DAMAGE To prevent damage from electrostatic discharge, touch any exposed metal frame of the printer before accessing or touching interior areas of the printer. Disconnect the cable (A).
Page 510 Parts removal 3. Using a flat-blade screwdriver, release the hinges (B).
Page 511 Parts removal 4. Remove the cover.
Page 512: Adf Right Hinge Removal
Parts removal ADF right hinge removal Remove the ADF. See See "ADF removal" on page 503. Remove the four screws (A), and then remove the hinge.
Page 513: Adf Left Hinge Removal
Parts removal ADF left hinge removal Remove the ADF. See See "ADF removal" on page 503. Remove the four screws (A), and then remove the hinge.
Page 514 Parts removal Scanner access covers removal Remove the cover (A). Remove the cover (B).
Page 515 Parts removal...
Page 516 Parts removal Optional 550-sheet tray removals Separator roller removal Remove the tray insert. Under the tray, remove the screw (A). Remove the screw (B) on the left side. Do the same for the screw (C) on the opposite side.
Page 517 Parts removal 4. Remove the roller.
Page 518: Replacing Parts And Supplies
Parts removal Replacing parts and supplies Replacing the toner cartridge Install a new toner cartridge when you continue to see faded prints. Open door A. Remove the used toner cartridge.
Page 519 Parts removal Unpack the new toner cartridge. Shake the toner cartridge to redistribute the toner. Insert the new toner cartridge.
Page 520 Parts removal 6. Close door A.
Page 521: Replacing The Imaging Unit
Parts removal Replacing the imaging unit Avoid printing delays. Install a new imaging unit when the printer prompts you to replace it. Open door A. Remove the toner cartridge.
Page 522 Parts removal Remove the used imaging unit. Unpack the new imaging unit. Shake the imaging unit to redistribute the toner.
Page 523 Parts removal WARNING—POTENTIAL DAMAGE Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems. WARNING—POTENTIAL DAMAGE Do not touch the photoconductor drum. Doing so may affect the quality of future print jobs.
Page 524 Parts removal Insert the toner cartridge. Close door A.
Page 525 Parts removal Replacing the staple refill Learn how to replace the staple refill of the convenience stapler. Open the convenience stapler access door. Remove the staple cartridge. Remove the empty staple refill.
Page 526 Parts removal Insert the new staple refill until it clicks into place. Insert the staple cartridge, and then close the convenience stapler access door.
Page 527 Parts removal NOTES Check the LED indicator status. The convenience stapler is ready to use when the blue light comes on.
Page 528 Parts removal Replacing the convenience stapler power supply Learn how to change the power supply of the convenience stapler. Turn off the printer. Unplug the power cord from the electrical outlet, and then from the printer. Unplug the power supply from the electrical outlet. Remove the column cover and power supply cable.
Page 529 Parts removal Remove the convenience stapler. Remove the used power supply.
Page 530 Parts removal Unpack the new power supply. Insert the new power supply through the printer, and then connect it to the convenience stapler. Install the convenience stapler.
Page 531 Parts removal 10. Position the power supply properly.
Page 532 Parts removal...
Page 533 Parts removal 11. Attach the column cover. NOTES Secure the power supply properly.
Page 534 Parts removal Connect one end of the stapler power cord to the power supply, and then the other end to the electrical outlet. Connect one end of the printer power cord to the printer, and then the other end to the electrical outlet.
Page 535 Parts removal Replacing MarkNet™ N8450 Wireless Print Server Learn how to replace the MarkNet N8450 Wireless Print Server on your printer. CAUTION—SHOCK HAZARD To avoid the risk of electrical shock, if you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing.
Page 536 Parts removal 4. Remove the wireless print server cover.
Page 537 Parts removal 5. Remove the fax card.
Page 538 Parts removal 6. Remove the used wireless print server.
Page 539 Parts removal Unpack the new wireless print server. Insert the new wireless print server until it clicks into place.
Page 540 Parts removal 9. Insert the fax card, and then install the screws.
Page 541 Parts removal 10. Attach the wireless print server cover, and then install the screw.
Page 542 Parts removal 11. Close the controller board access cover, and then install the screw.
Page 543 Parts removal 12. Connect the power cord to the printer, and then to the electrical outlet. CAUTION—POTENTIAL INJURY To avoid the risk of fire or electrical shock, connect the power cord to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.
Page 544 Parts removal 13. Turn on the printer.
Page 545: Replacing The Pick Tires
Parts removal Replacing the pick tires Changing the pick tires can prevent paper feed problems from happening again. Turn off the printer. Unplug the power cord from the electrical outlet, and then from the printer. Remove the tray. Remove the used pick tires.
Page 546 Parts removal 5. Unpack the new pick tires.
Page 547 Parts removal Insert the new pick tires. Insert the tray. Connect the power cord to the printer, and then to the electrical outlet. CAUTION—POTENTIAL INJURY To avoid the risk of fire or electrical shock, connect the power cord to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.
Page 548 Parts removal Replacing the scanner glass pad Install a new scanner glass pad when you continue to see faded scan jobs. Open the scanner cover. Remove the used scanner glass pad. Unpack the new scanner glass pad. Align the new scanner glass pad to the scanner glass.
Page 549 Parts removal 5. Close the scanner cover to attach the new scanner glass pad.
Page 550 Parts removal Open the scanner cover. Apply pressure to the scanner glass pad to secure it. Close the scanner cover.
Page 551 Parts removal Replacing the ADF rollers Prevent misfeeds and paper jams by checking the ADF rollers. Replace the rollers if they are damaged or when a maintenance warning appears. Open door C. Remove the used ADF pick roller.
Page 552 Parts removal 3. Remove the used ADF separator roller.
Page 553 Parts removal Unpack the new ADF pick roller and ADF separator roller. Insert the new ADF separator roller until it clicks into place.
Page 554 Parts removal...
Page 555 Parts removal 6. Insert the new ADF pick roller until it clicks into place.
Page 556 Parts removal...
Page 557 Parts removal 7. Close door C.
Page 558: Resetting The Supply Usage Counters
Parts removal Resetting the supply usage counters After replacing supplies, reset the maintenance page counter to resume printing. From the home screen, touch Settings > Device > Maintenance > Configuration Menu > Supply Usage And Counters. Select the counter that you want to reset. WARNING—POTENTIAL DAMAGE Supplies and parts without Return Program agreement terms may be reset and remanufactured. However, the manufacturer’s warranty does not cover any ...
Page 559: Component Locations
Component locations Component locations Printer configurations Learn about the parts of the printer. You can configure your printer by adding up to three optional 250‑ or 550‑sheet trays. For more information, see See "Installing optional trays" on page 634. Parts of the printer Automatic document feeder (ADF) ADF tray ADF bin Control panel Standard bin Multipurpose feeder Continued on page 560...
Page 560 Component locations Continued from page 559 Standard 550‑sheet tray Optional 250‑ or 550‑sheet tray...
Page 561: Printer Roller Locations
Component locations Printer roller locations One‑sided print job Photoconductor drum Developer roller First input roller MPF pick roller Second input roller Pick roller Separator roller Transfer roller Fuser roller Fuser exit roller Continued on page 562...
Page 562 Component locations Continued from page 561 Paper exit roller Two‑sided print job Paper exit roller Duplex rear roller Duplex front roller Second input roller...
Page 563: Printer Sensor Locations
Component locations Printer sensor locations Paper path sensors Sensor Parts removal Sensor (input) See "Sensors (duplex and input) removal" on page 457 Sensor (MPF paper See "Sensor (MPF present) paper present) removal" on page 447 Sensor (duplex) See "Sensors (duplex and input) removal"...
Page 564: Maintenance
Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover • Possible safety exposure from any non-Lexmark attachments Use the following table to determine when specified parts should be inspected: Inspection guide table...
Page 565: Scheduled Maintenance
Maintenance Scheduled maintenance Maintenance kits Maintenance kits Part number and kit Contents Maintenance interval 41X1227—Maintenance Kit 200K • 41X1180—Fuser (100 (100 V) • 41X1197—MPF pick roller and separator • 41X1198—Pick tires • 41X1212—Separator roller • 40X8393—Transfer roller 41X1225—Maintenance Kit 200K • 41X1178—Fuser (110 (110 V) • 41X1197—MPF pick ...
Page 566 Maintenance When performing the 200K scheduled maintenance procedure, the following areas should be cleaned of media dust and toner contamination: • Media trays • Imaging unit area • Transfer roller area • Duplex area • Standard bin...
Page 567: Resetting The Maintenance Counter
Maintenance Resetting the maintenance counter Always reset the maintenance counter after installing the maintenance kit. To reset the maintenance counter: POR into the Configuration menu, and navigate to Reset Maintenance Counter. Depending on the printer model, press OK or touch to reset the counter, or press X to exit without resetting the counter.
Page 568: Cleaning Printer Parts
Maintenance Cleaning printer parts Cleaning the printer Regular printer maintenance extends the life of the printer and ensures quality prints. The process is simple and only takes a few minutes. CAUTION—SHOCK HAZARD To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.
Page 569 Maintenance ◦ Do not use household cleaners or detergents, as they may damage the finish of the printer. ◦ Make sure that all areas of the printer are dry after cleaning. Connect the power cord to the electrical outlet, and then turn on the printer.
Page 570: Cleaning The Touch Screen
Maintenance Cleaning the touch screen CAUTION—SHOCK HAZARD To avoid the risk of electric shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding. CAUTION—SHOCK HAZARD Para evitar el riesgo de descarga eléctrica al limpiar el exterior de la impresora, desconecte el cable de alimentación de la toma eléctrica y desconecte todos los cables de la impresora antes de realizar la operación.
Page 571: Cleaning The Scanner
Maintenance Cleaning the scanner Clean your scanner periodically to avoid getting blurry and faded scanned images or text. Open the scanner cover. Using a damp, soft, lint-free cloth, wipe the following areas: ◦ ADF glass pad ◦ Scanner glass pad...
Page 572 Maintenance ◦ ADF glass ◦ Scanner glass...
Page 573 Maintenance Close the scanner cover. Open door C. Using a damp, soft, lint-free cloth, wipe the following areas: ◦ ADF glass pad in door C ◦ ADF glass in door C...
Page 574 Maintenance 6. Close door C.
Page 575: Cleaning The Adf Rollers
Maintenance Cleaning the ADF rollers You can prevent misfeeds and paper jams when you clean the ADF rollers. Open door C. Remove the ADF pick roller.
Page 576 Maintenance 3. Remove the ADF separator roller.
Page 577 Maintenance Apply isopropyl alcohol to a soft, lint-free cloth, and then wipe the ADF pick roller and ADF separator roller. Insert the ADF separator roller until it clicks into place.
Page 578 Maintenance...
Page 579 Maintenance 6. Insert the ADF pick roller until it clicks into place.
Page 580 Maintenance...
Page 581 Maintenance 7. Close door C.
Page 582 Maintenance Cleaning the printhead mirror Open the front door. Remove the toner cartridge and imaging unit. From the printhead access opening (A) in the top of the frame at the front of the printer, find the printhead mirror. Insert a soft, lint‑free cloth in the opening, and gently move the cloth back and forth along the surface of the mirror to clean it. Repeat step 4.
Page 583: Loading Trays
Maintenance Loading trays For reliable printing results, use these instructions to load paper properly. Remove the tray. NOTES To avoid paper jams, do not remove the tray while the printer is busy. Adjust the guides to match the size of the paper that you are loading. Flex, fan, and align the paper edges before loading.
Page 584 Maintenance Load the paper stack with the printable side facedown, and then make sure that the guides fit snugly against the paper. ◦ Load letterhead facedown with the header toward the front of the tray for one‑sided printing. ◦ Load letterhead faceup with the header toward the back of the tray for two‑sided printing.
Page 585 Maintenance 5. Insert the tray. If necessary, set the paper size and paper type from the control panel to match the paper loaded.
Page 586: Loading The Multipurpose Feeder
Maintenance Loading the multipurpose feeder Adjusting the guides when loading paper and specialty media on the multipurpose feeder can result in trouble‑free printing. Open the multipurpose feeder. Flex, fan, and align the paper edges before loading.
Page 587 Maintenance Load paper with the printable side faceup. ◦ Load letterhead faceup with the header toward the rear of the printer for one‑sided printing. ◦ Load letterhead facedown with the header toward the front of the printer for two‑sided printing. ◦ Load envelopes with the flap facedown on the left side. WARNING—POTENTIAL DAMAGE Do not use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives.
Page 588: Parts Catalog
Parts catalog Parts catalog Legend The following column headings are used in the parts catalog: • Asm‑index—Identifies the item in the illustration. • Part number—Identifies the unique number that correlates with the part. • Units/mach—Refers to the number of units actually used in the base machine or product. • Units/FRU—Refers to the number of units in a particular FRU. • Description—A brief description of the part. The following abbreviations are used in the parts catalog: • NS (not shown) in the Asm‑index column indicates that the part is procurable but is not pictured in the illustration. •...
Page 589 Parts catalog Covers...
Page 590 See "Right cover removal" on page 394 41X1164 Front cover See "Nameplate removal" on page 420 41X4538 Top front cover ‑‑ 41X4533 Bezel for MX532 ‑‑ 41X4534 Bezel for MX632 ‑‑ 41X4535 Bezel (blank) ‑‑ 41X4536 Bezel for XM3350 ‑‑...
Page 591: Control Panel
Parts catalog Control panel...
Page 592 41X3707 Control panel hinge for See "Control panel hinge MX532 removal" on page 429 41X4351 Control panel for MX532 See "Control panel removal" on page 426 41X3708 Control panel hinge for See "Control panel hinge MX632 and XM3350 removal" on page 429...
Page 593 Parts catalog Electronics...
Page 594 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X1185 Printhead See "Printhead removal" on page 494 41X1178 Fuser, 110 V See "Fuser removal" on page 41X1179 Fuser, 220 V See "Fuser removal" on page 41X1180 Fuser, 100 V See "Fuser removal"...
Page 595 Parts catalog Motors...
Page 596 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X2259 Cooling fan See "Fan removal" on page 41X1989 Pick/lift motor gearbox See "Pick/lift motor gearbox removal" on page 471 41X1213 MPF solenoid See "MPF solenoid removal" on page 386 41X1224 Main drive gearbox See "Main drive gearbox...
Page 597 Parts catalog Sensors 1...
Page 598 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X1988 Sensor (cartridge barrel) See "Cartridge barrel shutter sensor kit removal" on page 41X1162 Toner cartridge smart chip See "Toner cartridge smart contact chip contact removal" on page 41X1209 Sensor (front door) See "Sensor (front door) removal"...
Page 599 Parts catalog Sensors 2...
Page 600 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X1208 Sensor (trailing edge) See "Sensor (trailing edge) removal" on page 469 41X4548 Sensor (duplex and input) See "Sensors (duplex and input) removal" on page 457 41X1238 Sensor (paper present) See "Sensor (paper present) removal"...
Page 601: Paper Feed
Parts catalog Paper feed...
Page 602 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X2256 Redrive gear plate See "Redrive gear removal" on page 488 41X1183 Jam access cover See "Jam access cover removal" on page 436 41X1184 Front input guide See "Front input guide removal"...
Page 603 Parts catalog Rollers...
Page 604 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X4409 Redrive See "Redrive removal" on page 486 40X8393 Transfer roller See "Transfer roller removal" on page 435 41X1197 MPF pick roller and separator See "MPF pick roller and separator pad removal" on page 440 41X1196 Pick roller...
Page 605: Mpf And Standard Tray
Parts catalog MPF and standard tray...
Page 606 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X4144 MPF with front cover See "MPF with front access cover removal" on page 422 41X1987 Standard 550-sheet tray insert 41X1212 Separator roller...
Page 607: Optional Trays
Parts catalog Optional trays...
Page 608 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X4149 Optional 550-sheet tray 41X4148 Optional 250-sheet tray 41X1239 Pick roller 41X1222 550-sheet tray insert (optional tray) 41X1221 250-sheet tray insert (optional tray) 41X1212 Separator roller and bracket See "Separator roller removal"...
Page 609 Parts catalog Imaging...
Page 610 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X4369 See "ADF removal" on page 41X4429 ADF access door See "ADF top cover removal" on page 509 41X2847 ADF tray See "ADF input tray removal" on page 495 41X2848 ADF roller See "ADF rollers removal"...
Page 611 Parts catalog Electronic attachments...
Page 612 See "Wireless module N8450) removal" on page 409 41X2936 Fax card See "Fax card removal" on page 406 41X2854 Intelligent Storage Device ‑‑ (ISD), 128GB 41X2873 Trusted platform module ‑‑ 40X9934 Printer hard disk (SATA) for ‑‑ MX532, MX632, XM3350, 500GB...
Page 613: Convenience Stapler
Parts catalog Convenience stapler...
Page 614 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X4236 Convenience stapler ‑‑ 40X8149 Staple cartridge holder ‑‑ 41X4237 Universal AC power adapter ‑‑...
Page 615: Printer Stand
Parts catalog Printer stand...
Page 616 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 41X0764 Printer stand 41X0775 Nonlocking caster 41X0774 Locking caster...
Page 617: Maintenance Kits
Parts catalog Maintenance kits Maintenance kits Part number and kit Contents Maintenance interval 41X1227—Maintenance Kit 200K • 41X1180—Fuser (100 (100 V) • 41X1197—MPF pick roller and separator • 41X1198—Pick tires • 41X1212—Separator roller • 40X8393—Transfer roller 41X1225—Maintenance Kit 200K • 41X1178—Fuser (110 (110 V) • 41X1197—MPF pick roller and separator •...
Page 618 Parts catalog • Transfer roller area • Duplex area • Standard bin...
Page 619: Power Cords
Parts catalog Power cords...
Page 620 Parts catalog Asm- Units/ Units/ Description Removal procedure index mach 40X0269 Power cord, 2.5 m (straight)— USA, Canada 40X3141 Power cord, 2.5 m (straight)— Europe and others 40X0288 Power cord, 2.5 m (straight)— Argentina 40X0271 Power cord, 2.5 m (straight)— United Kingdom 40X0275 Power cord, 2.5 m (straight)— Israel 40X1772 Power cord, 2.5 m (straight)— Switzerland 40X1773 Power cord, 2.5 m (straight)— South Africa 40X0273 Power cord, 2.5 m (straight)— Traditional Italy 40X1774 Power cord, 2.5 m (straight)—...
Page 621: Printer Specifications
The power consumption levels listed in the previous table represent time-averaged measurements. Instantaneous power draws may be substantially higher than the average. Values are subject to change. See www.lexmark.com for current values.
Page 622: Sleep Mode
Printer specifications Sleep Mode This product is designed with an energy-saving mode called Sleep Mode. The Sleep Mode saves energy by lowering power consumption during extended periods of inactivity. The Sleep Mode is automatically engaged after this product is not used for a specified period of time, called the Sleep Mode Timeout.
Page 623: Hibernate Mode
Printer specifications Hibernate Mode This product is designed with an ultra‑low power operating mode called Hibernate mode. When operating in Hibernate Mode, all other systems and devices are powered down safely. The Hibernate mode can be entered in any of the following methods: • Using the Hibernate Timeout • Using the Schedule Power modes Default Hibernate timeout Factory default Hibernate Timeout for this 3 days...
Page 624: Off Mode
Printer specifications Off mode If this product has an off mode which still consumes a small amount of power, then to completely stop product power consumption, disconnect the power supply cord from the electrical outlet.
Page 625: Total Energy Usage
Printer specifications Total energy usage It is sometimes helpful to calculate the total product energy usage. Since power consumption claims are provided in power units of Watts, the power consumption should be multiplied by the time the product spends in each mode in order to calculate energy usage.
Page 626 Printer specifications Applicability of Regulation (EU) 2019/2015 and (EU) 2019/2020 Per Commission Regulation (EU) 2019/2015 and (EU) 2019/2020, the light source contained within this product or its component is intended to be used for Image Capture or Image Projection only, and is not intended for use in other applications.
Page 627: Selecting A Location For The Printer
Printer specifications Selecting a location for the printer Choose the right location for your printer to keep it safe and well‑ventilated. • Leave enough room to open trays, covers, and doors and to install hardware options. • Set up the printer near an electrical outlet. • Make sure that airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee 156 standard. •...
Page 628 Printer specifications Recommended spaces around the printer 305 mm (12 in.) Rear 100 mm (3.94 in.) Right side 76.2 mm (3 in.) Front 305 mm (12 in.) NOTES The minimum space needed in front of the printer is 76 mm (3 in.). Left side 110 mm (4.33 in.)
Page 629: Noise Emission Levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296. NOTES Some modes may not apply to your product. 1-meter average sound pressure, dBA Printing One-sided: 55Two-sided: 55 (MX532adwe); 54 (MX632adwe, XM3350) Scanning Copying Ready Values are subject to change. See www.lexmark.com for current values.
Page 630: Temperature Information
Printer specifications Temperature information Ambient operating temperature 10 to 32.2°C (50 to 90°F) Shipping temperature -40 to 40°C (-40 to 104°F) Storage temperature and relative humidity -40 to 40°C (-40 to 104°F) 8 to 80% RH...
Page 631: Options And Features Available Internal Options
Options and features Options and features Available internal options • Intelligent storage drive (ISD) ◦ Fonts ▪ Simplified Chinese ▪ Traditional Chinese ▪ Japanese ▪ Korean ▪ Arabic ◦ Mass storage • Hard disk • Licensed features ◦ IPDS ◦...
Page 632: Contacting Your Dealer
Options and features Contacting your dealer Before contacting your dealer, make sure to have the following information: • Printer problem • Error message • Printer model type and serial number...
Page 633: Contacting Customer Support
Error message • Printer model type and serial number Go to http://support.lexmark.com to receive e‑mail or chat support, or browse through the library of manuals, support documentation, drivers, and other downloads. Technical support via telephone is also available. In the U.S. or Canada, call 1-800-539-6275. For other countries or regions, go to the international support contact directory.
Page 634: Installing Optional Trays
Para obtener más información sobre las configuraciones compatibles, visite www.lexmark.com/multifunctionprinters. CAUTION—TIPPING HAZARD pour installer une ou plusieurs options sur votre imprimante ou votre MFP, vous aurez peut-être besoin d'un support à...
Page 635 Options and features Si el peso de la impresora es superior a 20 kg (44 lb), pueden ser necesarias dos o más personas para levantarla de forma segura. CAUTION—POTENTIAL INJURY Si votre imprimante pèse plus de 20 kg (44 lb), l'intervention d'au moins deux personnes est nécessaire pour la soulever sans risque. CAUTION—POTENTIAL INJURY Wenn der Drucker mehr als 20 kg wiegt, sind zum sicheren Anheben unter ...
Page 636 Options and features Add the tray in the print driver to make it available for print jobs. For more information, see See "Adding available options in the print driver" on page 637.
Page 637: Adding Available Options In The Print Driver
Options and features Adding available options in the print driver The following instructions will guide you on how to add the options that you installed on your printer. For Windows users Open the printers folder. Select the printer you want to update, and then do either of the following: ◦...
Page 638: Theory Of Operation Por Sequence
Theory of operation Theory of operation POR sequence As the printer is turned on, the engine code goes through a series of tests to verify hardware integrity. If a hardware failure is detected, then it is reported to the printer. If the POR sequence cannot be completed successfully, then the printer may post an error message.
Page 639: Printer Control
Theory of operation Printer control The printer uses a single processor for both RIP and engine functions. The raster image processor (RIP) code performs system responsibilities such as PC connection, LAN, ISP attachments, and bitmap generation. The engine code performs tasks related to the operation of the electrical and mechanical device systems such as motors, lasers, power supplies, and fusers.
Page 640: Print Cycle Operation
Theory of operation Print cycle operation Print engine layout Print engine layout Printhead Toner cartridge Imaging unit Transfer roller Fuser...
Page 641: Flowchart
Theory of operation Flowchart...
Page 642: Ep Process
Theory of operation EP process Charge Charge theory Charge roller Photoconductor drum The charge roller applies a uniform negative electrical charge to the surface of the photoconductor drum. The photoconductor drum, because of its photoconductive properties, holds the charge as long as it is not exposed to light. Service tips...
Page 643: Expose
Theory of operation • If the surface of the charge roller is damaged, such as having a nick or pit, then the charge on the photoconductor drum is uneven. A repeating mark may appear on the printed page. For more information, see See "Repeating defects "...
Page 644 Theory of operation The printhead laser emits the light that contacts the surface of the photoconductor drum. An invisible image, called digital latent image, is written as the light turns on or off. The light causes areas of the photoconductor drum surface to lose charge, resulting in a relative opposite polarity.
Page 645: Develop
Theory of operation Develop Develop theory Toner cartridge Developer roller Photoconductor drum The developer roller applies the toner from the toner cartridge to the photoconductor drum. The relative opposite polarity in charge causes the toner particles to attract to the photoconductor drum areas which were exposed to light.
Page 646: Service Tips
Theory of operation Service tips • Do not touch the surface of the developer roller with your bare hand. The oil from your skin may cause a charge disparity on the surface, and the toner may no longer stick properly. The result can be repeating blotches or voids on the printed page or patches of light print.
Page 647 Theory of operation Continued from page 646 Transfer roller Paper The transfer roller applies a positive charge to the paper, which is pressed between the transfer roller and the photoconductor drum. The charge on the paper received from the transfer roller is positive. The charge on the photoconductor drum received from the charge roller is negative.
Page 648: Clean
Theory of operation Clean Transfer belt clean Waste toner bottle Cleaning blade Photoconductor drum The cleaning blade removes the toner residue from the photoconductor drum. The cycle (charge, expose, develop, transfer, and clean) repeats until the whole image is transferred to the paper.
Page 649: Fuse
Theory of operation Fuse Fuse theory Fuser Paper Even if the toner image is already on the paper, the toner particles are not yet permanently bonded to the surface. Paper is transported from the transfer roller to the fuser where heat and pressure are applied to it.
Page 650 Theory of operation • Toner rubbing off a printed page indicates a malfunctioning fuser or an incorrect paper type setting. Always check the paper type setting before replacing the fuser. A common mistake is to print on heavier paper, such as card stock, with the paper type set to plain paper. •...
Page 651: Printer Operation
Theory of operation Printer operation Printer sections Printer sections Printhead Imaging unit Toner cartridge Standard tray Optional tray Fuser...
Page 652: Printer Paper Path
Theory of operation Printer paper path One‑sided print job One‑sided print job Photoconductor drum Developer roller First input roller MPF pick roller Second input roller Pick roller Separator roller Transfer roller Continued on page 653...
Page 653: Two-Sided Print Job
Theory of operation Continued from page 652 Fuser roller Fuser exit roller Paper exit roller The pick roller picks and feeds the paper to the separator roller. The separator roller feeds the paper to the second input roller, which feeds it to the first input roller. For MPF print jobs, the MPF pick roller picks and feeds the paper to the first input roller.
Page 654 Theory of operation Two‑sided print job Paper exit roller Duplex rear roller Duplex front roller Second input roller After the first side is printed, the paper reverses direction to get its opposite page printed. The paper travels along the duplex path until it reenters the second input roller. From there, the paper continues its path until the print job is done.
Page 655: Printer Paper Path Sensors
Theory of operation Printer paper path sensors Paper path sensors Sensor Function Sensor (input) Detects the paper traveling between the first input roller and the transfer roller Sensor (MPF paper Detects paper presence present) in the MPF tray Sensor (duplex) Detects the paper traveling along the duplex path...
Page 656 Theory of operation Continued from page 655 Sensor Function NOTES The sensor in the standard tray is supported only in some printer models. Sensor (trailing edge) Detects the trailing edge of the paper fed from the tray Sensor (pass-through) Detects paper that is fed from tray 2 Sensor (media present) Detects if paper is in...
Page 657: Adf And Scanner Operation
Theory of operation ADF and scanner operation Flatbed scanner drive Flatbed scanner drive Scanner glass area Motor (flatbed CIS scanner) Calibration reference strip ADF glass area Flatbed CIS scanner Sensor (flatbed CIS scanner) The flatbed scanner has a contact image sensor (CIS) scan module that illuminates the surface of the document.
Page 658 Theory of operation distance relative to the calibration reference strip. To maintain the correct shading levels if needed, the CIS scanner scans the white surface of the calibration reference strip. During ADF scan jobs, the CIS scanner stays at the ADF glass area to scan the front side of the document.
Page 659: Adf Paper Path Rollers
Theory of operation ADF paper path rollers ADF paper path ADF transport roller ADF CIS scanner ADF feed/exit roller ADF separator roller ADF feed roller ADF pick roller ADF tray ADF bin ADF scan roller Paper from the ADF tray enters the ADF through the pick roller, feed roller, and separator roller.
Page 660: Adf Paper Path Sensors
Theory of operation ADF paper path sensors ADF paper path sensors Sensor Function Sensor (ADF paper Detects paper presence present) in the ADF tray Sensor (ADF scan 2) Detects the paper that is about to be scanned at its back side Sensor (ADF scan 1) Detects the paper that is about to be scanned...
Page 661: Adf Pick And Feed Drive
Theory of operation ADF pick and feed drive ADF tray pick and feed drive Paper stop ADF pick roller ADF feed roller ADF separator roller Sensor (ADF paper present) Motor (ADF pick) The sensor (ADF paper present) detects if paper is loaded in the ADF tray. When the scan job command is signaled, the pick roller lowers to pick the paper from the ADF tray.
Page 662: Adf Transport And Scan Drive
Theory of operation ADF transport and scan drive ADF transport and scan drive Motor (ADF transport) Sensor (ADF calibration) ADF CIS scanner ADF feed/exit roller Sensor (ADF scan 1) ADF feed roller As paper enters the ADF, the ADF feed/exit roller receives it. The sensor (ADF scan 1) detects the paper to start the scan.
Page 663 Theory of operation ADF transport and scan drive Motor (ADF transport) ADF transport roller ADF scan roller Sensor (ADF scan 2) After the back side is scanned, the ADF transport roller transports paper to the ADF scan roller. The motor (ADF transport) drives the ADF transport and scan rollers.
Page 664: Adf Exit Drive
Theory of operation ADF exit drive ADF scan and exit drive ADF scan roller Sensor (ADF scan 2) ADF bin ADF glass ADF feed/exit roller Motor (ADF transport) Paper is fed to the ADF scan roller for front‑side scanning. At the ADF glass area, the flatbed scanner does the scan. The ADF feed/exit roller ejects the scanned document to the ADF bin.
Page 665: Acronyms
Acronyms Acronyms Acronyms Common acronyms ASIC Application-Specific Integrated Circuit BLDC Brushless DC Motor Black Only Retract Cyan Charge Coupled Device Carbonless Copy Paper Contact Image Sensors Cyclic Redundancy Check Customer Setup CTLS Capacitance Toner Level Sensing DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory Enhanced Data Out...
Page 666 Acronyms Continued from page 665 Liquid Crystal Display LDAP Lightweight Directory Access Protocol Light-Emitting Diode LVPS Low Voltage Power Supply Magenta Megabyte Multifunction Printer Multipurpose Feeder MROM Masked Read Only Memory Microswitch Non-volatile Memory NVRAM Non-volatile Random Access Memory Original Equipment Manufacturer Optical Sensor Photoconductor pel, pixel...
Page 667 Acronyms Continued from page 666 V ac Volts alternating current V dc Volts direct current Vacuum Transport Belt Yellow...
Page 668: Index
Index Index printer models clipped pages or images avoiding paper jams change history advanced print quality samples compressed images appear on prints ADF rollers configuration menu replacing accessing cleaning control panel ADF pick roller using replacing cleaning the printer cleaning cleaning ADF separator roller interior of the printer...
Page 669 Index data security notice diagnostics menu feed test controller calibration 111 error messages accessing 121 error messages scanner calibration reset 128 error messages develop 126 error messages 133 error messages error codes 140 error messages 202 paper jam messages 161 error messages 230 paper jam messages 155 error messages 232 paper jam messages...
Page 670 800 error messages firmware card 840 error messages fuse 842 error messages 843 error messages genuine Lexmark parts and supplies 845 error messages event log horizontal light bands print log horizontal top contact connector display log horizontal bottom contact connector...
Page 671 Index installing trays Non‑Lexmark supply notices 624, 625, 622, 621, 0, jams noise emission levels avoiding jam locations identifying power‑on reset sequence POR sequence print quality letterhead initial check selecting printer model locating paper jams configurations low insertion force (LIF) connector paper loading trays...
Page 672 Index vertical light bands printer diagnostics gray background on prints input tray quick print solid black pages output bin quick feed vertical dark bands printer setup compressed images appear on prints printed page count (mono) folded or wrinkled paper permanent page count paper curl enable edge‑to‑edge (printing) blank pages...
Page 673 Index cleaning ADF separator roller printer separator roller selecting a location for controller board minimum clearances engine board print engine layout wireless module printer sections control panel hinge print cycle lift cam print cycle redrive gear flowchart top cover paper path, standard printhead paper path, duplex flatbed scanner...
Page 674 Index top access cover replacing supplies toner cartridge smart chip contact toner cartridge front input guide imaging unit sensor (tray present) replacing staple refill duplex replacing parts sensor (front door) pick tires power supply scanner glass pad pick roller ADF rollers sensor (index) ADF pick roller motor (pick)
Page 675 Index vertical lines (process direction using the scanner ADF) cleaning dark image quality using the ADF or scanner selecting location spots using the flatbed scanner for the printer ADF skew scanner theory blank page copy flatbed paper damage using the ADF sensors, paper path solid black page copy serial number, printer...
Page 676 Index skewed print paper failed to clear the sensor (fuser exit) white streaks and voided areas paper from optional tray failed to clear the vertical dark streaks with print missing sensor (fuser exit) toner rubs off paper in a duplex job failed to arrive at the sensor (redrive) troubleshooting, paper jams paper in a duplex job failed to clear the sensor...
Page 677 (tray 1 pick/lift) error troubleshooting, other symptoms using genuine Lexmark parts and supplies dead optional tray user attendance messages troubleshooting, service checks 938 error messages 940 error messages 941 error messages...
Page 678 Index using a flash drive using a network computer using a USB cable connection 32 user attendance error messages 33 user attendance error messages vertical dark bands 31 user attendance error messages vertical dark streaks with print missing 43 user attendance error messages vertical mount contact connector 44 user attendance error messages white streaks and voided areas...
Page 679 Service Manual ...

This manual is also suitable for:

Mx632 Xm3350
