Overview
You can use the following memory modules in exacqVision A-Series and Q-Series servers:
•
The A-Series 2A and the Q-Series: SO-DIMM memory modules.
•
The A-Series FA and FAR: Standard DIMM memory modules.
To upgrade memory in the field, you can use the following configurations:
•
MEM-08G-1FU: For use to upgrade memory in a server from 8 GB to 16 GB.
•
MEM-08G-2FU: For use to upgrade memory in a server from 16 GB to 32 GB
Opening the A-Series chassis
Before you begin:
Shut down the system, then unplug the power cables from the power supply.
WARNING: You must unplug each of the two power cables connected to the A-Series FAR
before you open the case.
1.
Locate the two screws on each side of the rear top cover.
2.
Remove the screws.

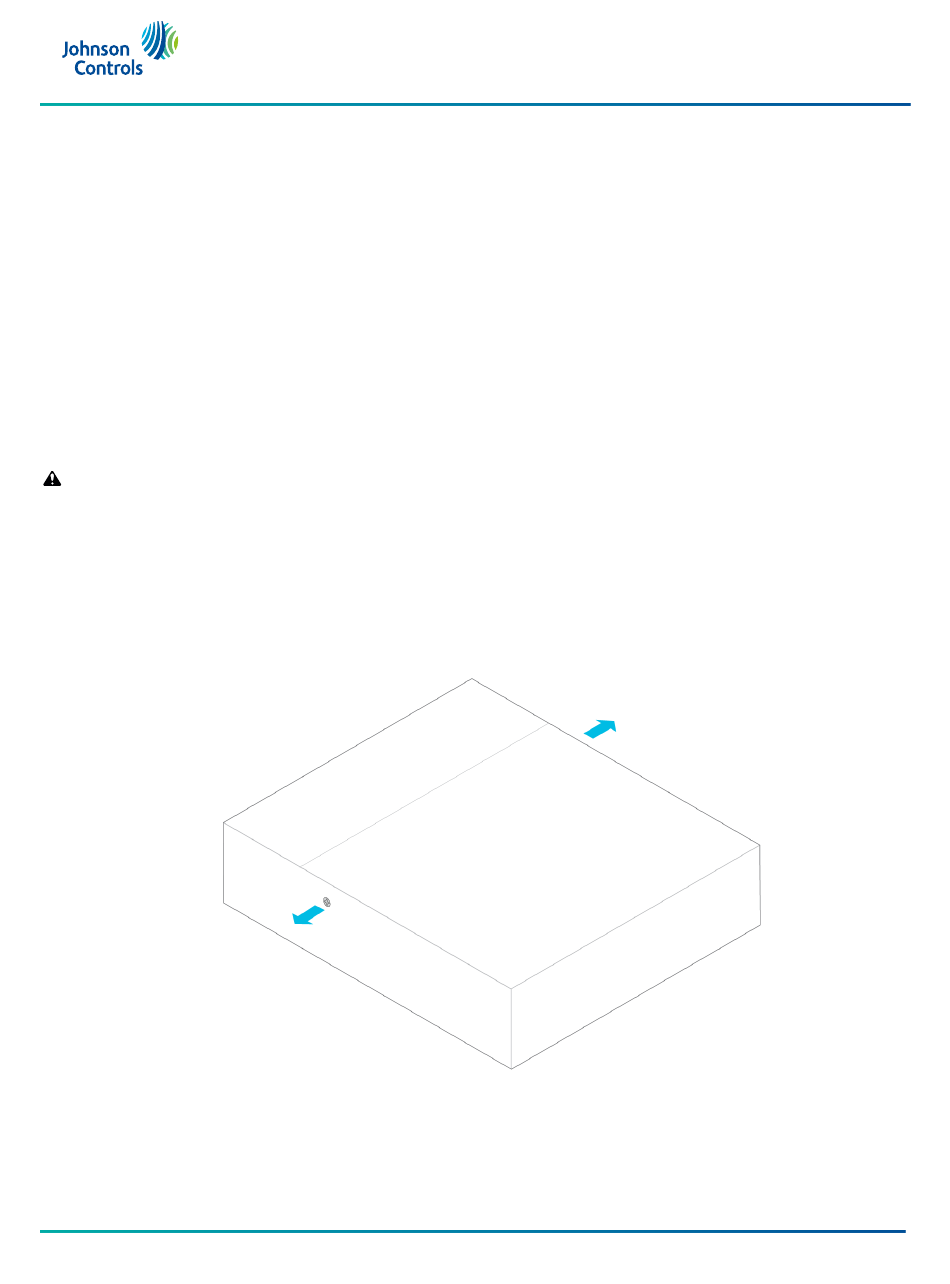

Figure 1: A-Series case
3.
Slide the case cover off.
2024-11-20
exacqVision A-Series and Q-Series Memory
Installation Guide
Advertisement
Related Manuals for Johnson Controls MEM-08G-1FU
Summary of Contents for Johnson Controls MEM-08G-1FU
- Page 1 To upgrade memory in the field, you can use the following configurations: • MEM-08G-1FU: For use to upgrade memory in a server from 8 GB to 16 GB. • MEM-08G-2FU: For use to upgrade memory in a server from 16 GB to 32 GB...
- Page 2 Opening the Q-Series chassis Before you begin: Shut down the system, then uplug the power cables from the power supply. WARNING: You must unplug the power cable before you open the Q-Series case. On the rear of the server, remove the three case screws. At the rear edge of the top of the server, remove the two case screws.
-
Page 3: Installing The Memory Module
A-Series 2A and Q-Series To upgrade the A-Series 2A and Q-Series servers, use a SO-DIMM memory module. The SO-DIMM memory module features a notch that corresponds to a raised crossbar in the memory slot on the motherboard. This ensures that you install the module in the correct orientation. Figure 3: SO-DIMM notch Installing the memory module To install the memory modules in an A-Series 2A or Q-Series server, complete the following steps. -
Page 4: Installing The Memory Modules
Position the memory module so that the notch aligns with the raised crossbar in the memory slot. Seat the memory module in the slot, then firmly press down until the retaining clips click into place. Replace the case cover and screws. Connect the power cable. - Page 5 Figure 6: A-Series FA and FAR Position the memory module so that the notch aligns with the raised crossbar in the memory slot. Seat the memory module in the slot, then firmly press down until the retaining clip clicks into place.
- Page 6 © 2024 Johnson Controls. All rights reserved. JOHNSON CONTROLS and Exacq are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited.
