HOMCOM 820-007 Assembly Instruction Manual page 5

NOTE: ensure that the bracket is level by using a Spirit level whilst marking out the hole
positions.
Drill holes with a No. six drill bit.
Fix the wall bracket using that the plug and screws provided.
Attach the lower fixing bracket the base of the fire using the two small black screws
supplied; ensure the bracket is fitted so that it is level with the back.
Carefully lift the heater up ensuring that the top rear ledge of heater engages with the
wall bracket (see Fig.2 in circle) and is sitting centrally. This process should be carried
out by two people to avoid injury or damage to property or the appliance.
Gently bring the heater down against the wall.

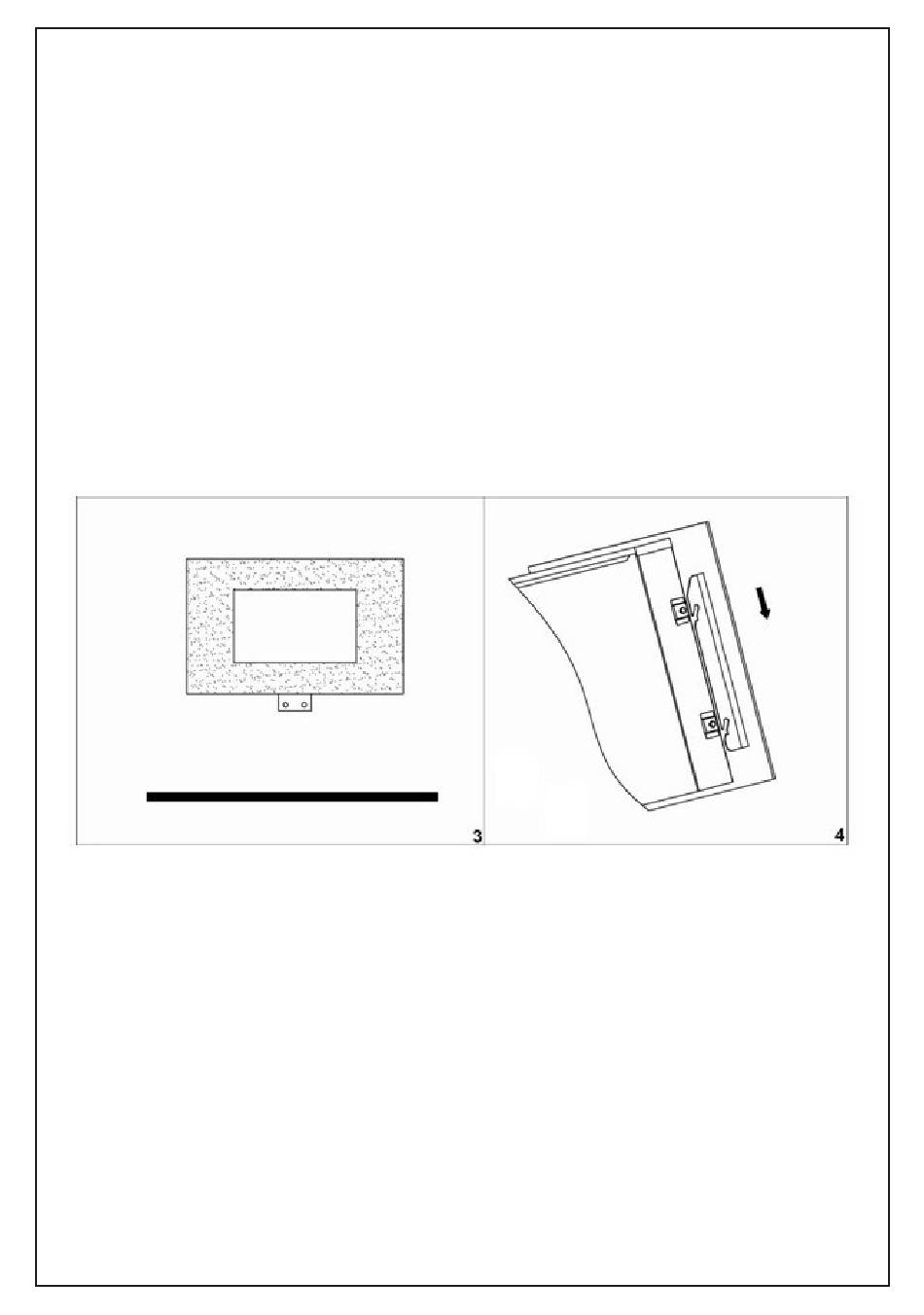

Mark the lower fixing bracket two fixing hole positions on the wall-see Fig.3, remove the
heater.
Drill the wall and insert the wall plugs.
Refit the heater to the wall and fasten the bottom fixing bracket to the wall using the
screws provided to permanently fix the heater in place.
Place the front surround over the front of the fire aligning the slots in the brackets at
each side of the front panel with the lugs on the sides of the fire-see Fig.4. Again two
people will be required for this operation.
5
