Installation
The fire must not be used until it is securely fastened to the wall.
Do not connect the appliance to the mains until properly fixed to the wall and the
instructions are read fully.
The minimum distances must be observed in the diagrams below.
For installation of the appliance, care must be taken not to damage concealed cables.
Please be careful whilst drilling holes.
This appliance is designed to be permanently fixed to a wall at a minimum height of
300mm.The wall bracket must be fitted horizontally and the cable routed to the bottom
right of the heater.

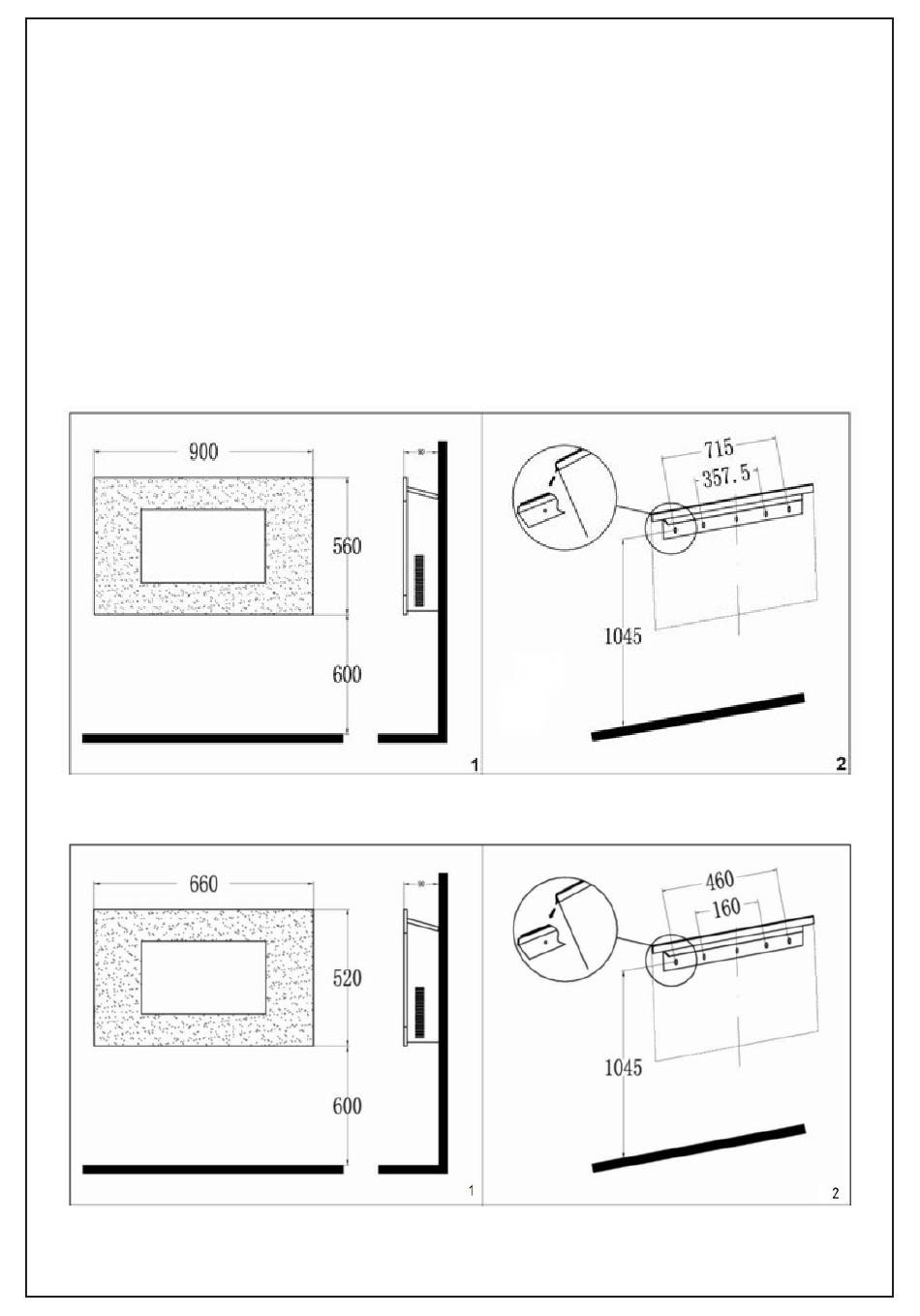

A distance of 600mm from bottom of heater to floor is recommended for optimum viewing
of fuel bed; see Fig.1 for recommend fixing dimensions.
For optimum viewing, mark the top screws fixing positions on wall in accordance with the
recommend fixing dimensions- see Fig.2.
( 820-007)
(820-054)
