No switches or jumper changes. All existing jumpers are configured for the 8001/8002
Processor Lab.
Jumpers
Two jumper selections may be made on the 6800 Emulator Processor. One selection will
control clock rate, the other will disable the on-board RAM. See Fig. 10-2 for jumper
rE
TATHATLATE
NS

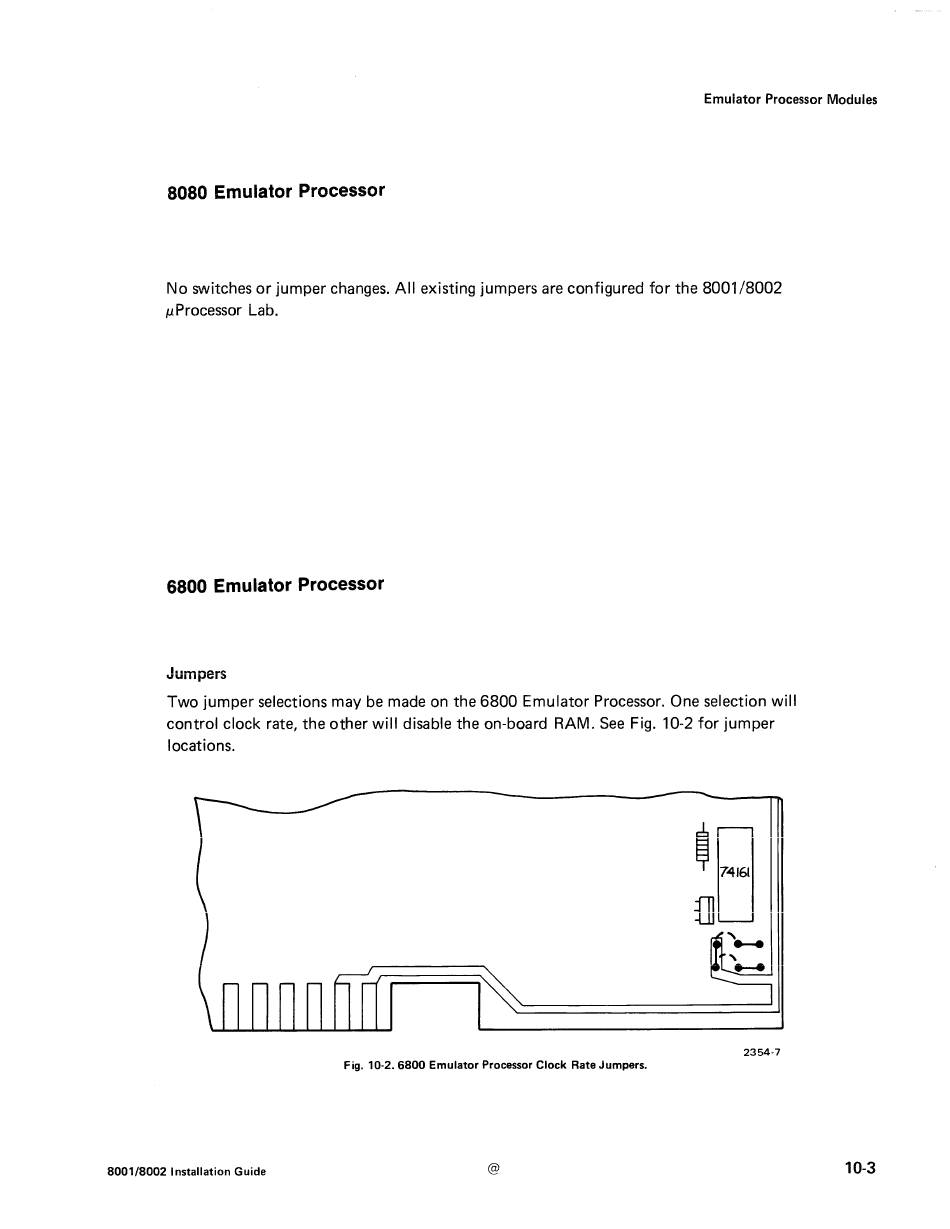

Fig. 10-2. 6800 Emulator Processor Clock Rate Jumpers.
8001/8002 Installation Guide
@
10-3
