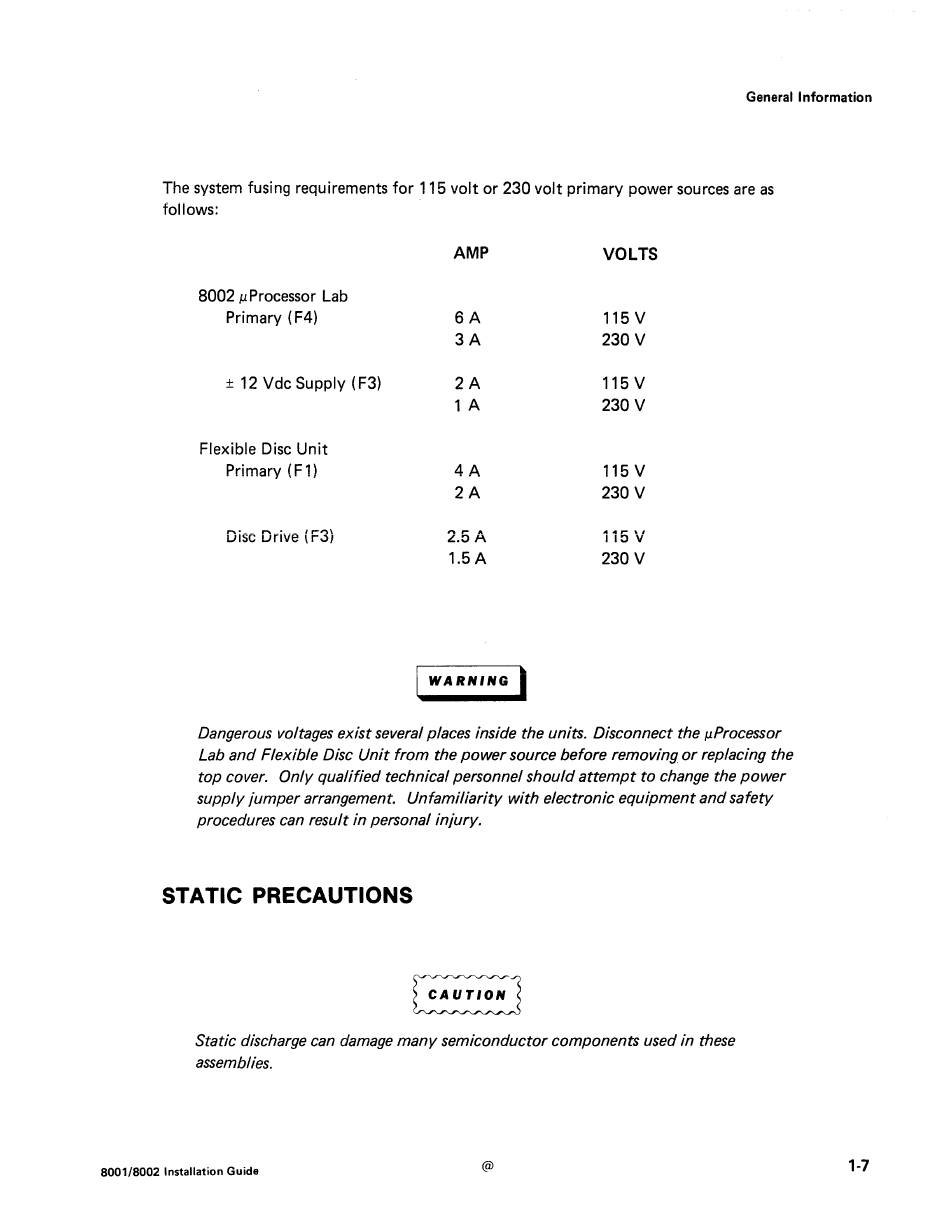

Tektronix 8001 Installation Manual page 16

General Information
The system fusing requirements for 115 volt or 230 volt primary power sources are as
follows:
8002 uProcessor Lab
Primary (F4) 6A 115 V
3A 230 V
+ 12 Vdc Supply (F3) 2A 115 V
1A 230 V
Flexible Disc Unit
Primary (F1) 4A 115 V
2A 230 V
Disc Drive (F3) Z.5A 115 V
115A 230 V
| WARNING }
Dangerous voltages exist several places inside the units. Disconnect the uProcessor
Lab and Flexible Disc Unit from the power source before removing or replacing the
top cover. Only qualified technical personnel should attempt to change the power
supply jumper arrangement. Unfamiliarity with electronic equipment and safety
procedures can result in personal injury.
STATIC PRECAUTIONS
Static discharge can damage many semiconductor components used in these
