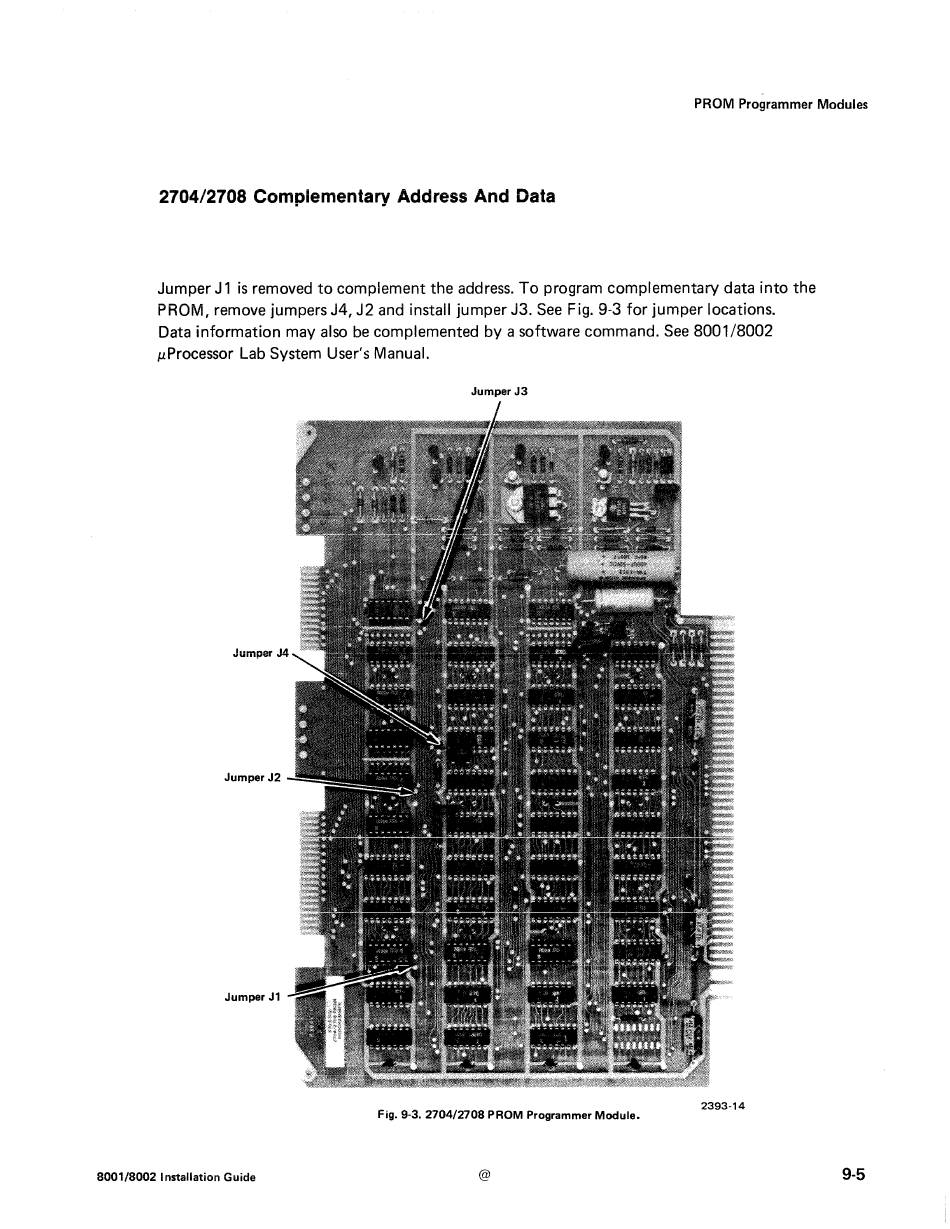

2704/2708 Compiementary Address And Data
Jumper J1 is removed to complement the address. To program complementary data into the
PROM, remove jumpers J4, J2 and install jumper J3. See Fig. 9-3 for jumper locations.
Data information may also be complemented by a software command. See 8001/8002
uProcessor Lab System User's Manual.
Jumper J3
Jumper J4
8001/8002 Installation Guide
