Summary of Contents for OMEGA AIR WOS Series

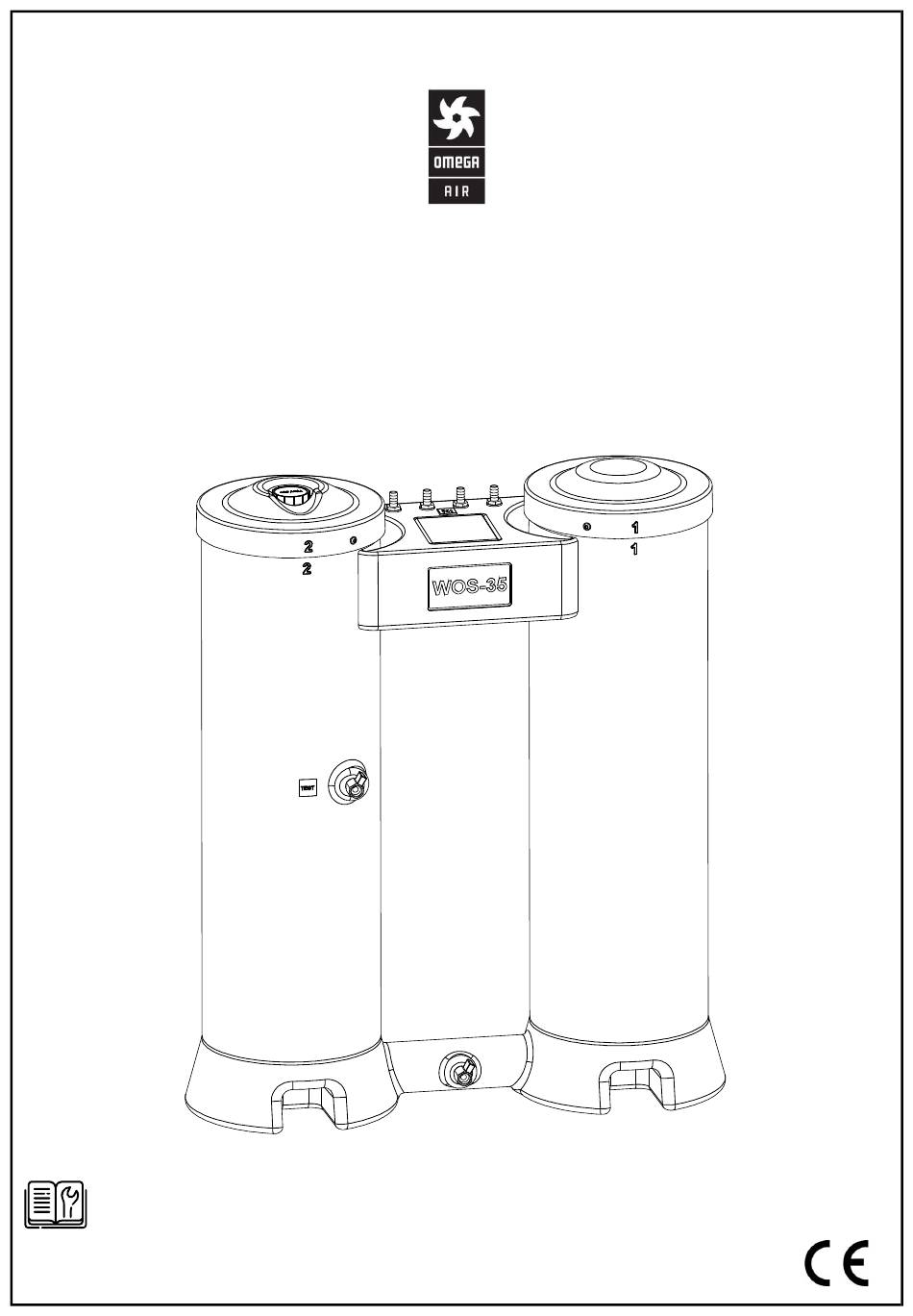

- Page 1 Installation and operating manual WOS water-oil separator Please read the following instructions carefully before installing separator unit into service. Trouble free and safe operating of the unit can only be guaranteed if recommendations and conditions stated in this manual are respected.
- Page 2 WOS - Installation and operating manual Components Component TEST kit Cover number 2 AC filter PP filter M5x20 BN 20165 screws WOS label TEST label Valve circuit. 1/2" ITL. external-internal Air filter Filter PPI 10 REC connector 1/2” external-fi9 IN label OUT label Cover number 1...
- Page 3 WOS - Installation and operating manual Demonstration of the device’s operation Water Part Inlet connection- condensate (water, oil) Depressurization chamber (with air filter) First stage chamber Condensate flow Oil filter cartridge Condensate flow (water, residual oil traces) Activated carbon filter cartridge (final oil elimination) Clean water outlet (residual oil content <10ppm...
-
Page 4: Dimensions (Mm)
WOS - Installation and operating manual TEHNICAL DATA Size COLD CLIMATE MILD CLIMATE HOT CLIMATE ZONE ZONE 15°C 60%RH ZONE 25°C 60%RH 40°C 100%RH 2,89 2,43 1,23 Max oil adsorption[kg] WOS-4 4,82/170,22 4,04/142,80 2,05/72,32 Max FAD [Nm /min]/[scfm] Max condensate flow [l/h] 6,01 5,04 2,55... -
Page 5: Safety Instructions
WOS - Installation and operating manual Advanced dimensioning For advanced dimensioning please use following equations m(Max oil adsorption) [ g ] ��(�������������� ℎ��������) [ ℎ ] = FAD ( compressor ) ∗ c(oil carryover) Oil carry over (c) can be determined by measuring oil volume at two sequential compressor services. -
Page 6: Intended Use
WOS - Installation and operating manual The medium used may not have any corrosive components that could attack the materials of the separator in a way that is not permitted. Do not use the separator in hazardous areas with potentially explosive atmospheres. ... -
Page 7: Installation
WOS - Installation and operating manual Installation Unpack the device. It is recommended to place the device near the wall. Test valve is located on front side of the device. Make sure that you have easy access to the front side of the device. ... - Page 8 WOS - Installation and operating manual...
-
Page 9: Maintenance
WOS - Installation and operating manual Maintenance RECOMMENDED to perform a weekly check to evaluate the saturation of the filter element. Use the provided test set to assess water quality, following the instructions included in the set. The filter element must be replaced as soon as any of the specified parameters are met: ... - Page 10 WOS - Installation and operating manual Test kit usage instructions COLOUR REACTION: The light blue paper turns dark blue on contact with hydrocarbons, particularly gasoline, heating oil, lubricating oil, etc. METHOD OF APPLICATION: a) Determination of oil in water: Apply a drop of the water to be tested to the test paper or move the paper back and forth a few times in the test solution.
- Page 11 WOS - Installation and operating manual Determination of oil in water: Determination of oil in soil: OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia Tel.: +386 (0)1 200 68 00 Fax.: +386 (0)1 200 68 50 E-mail: info@omega-air.si...
