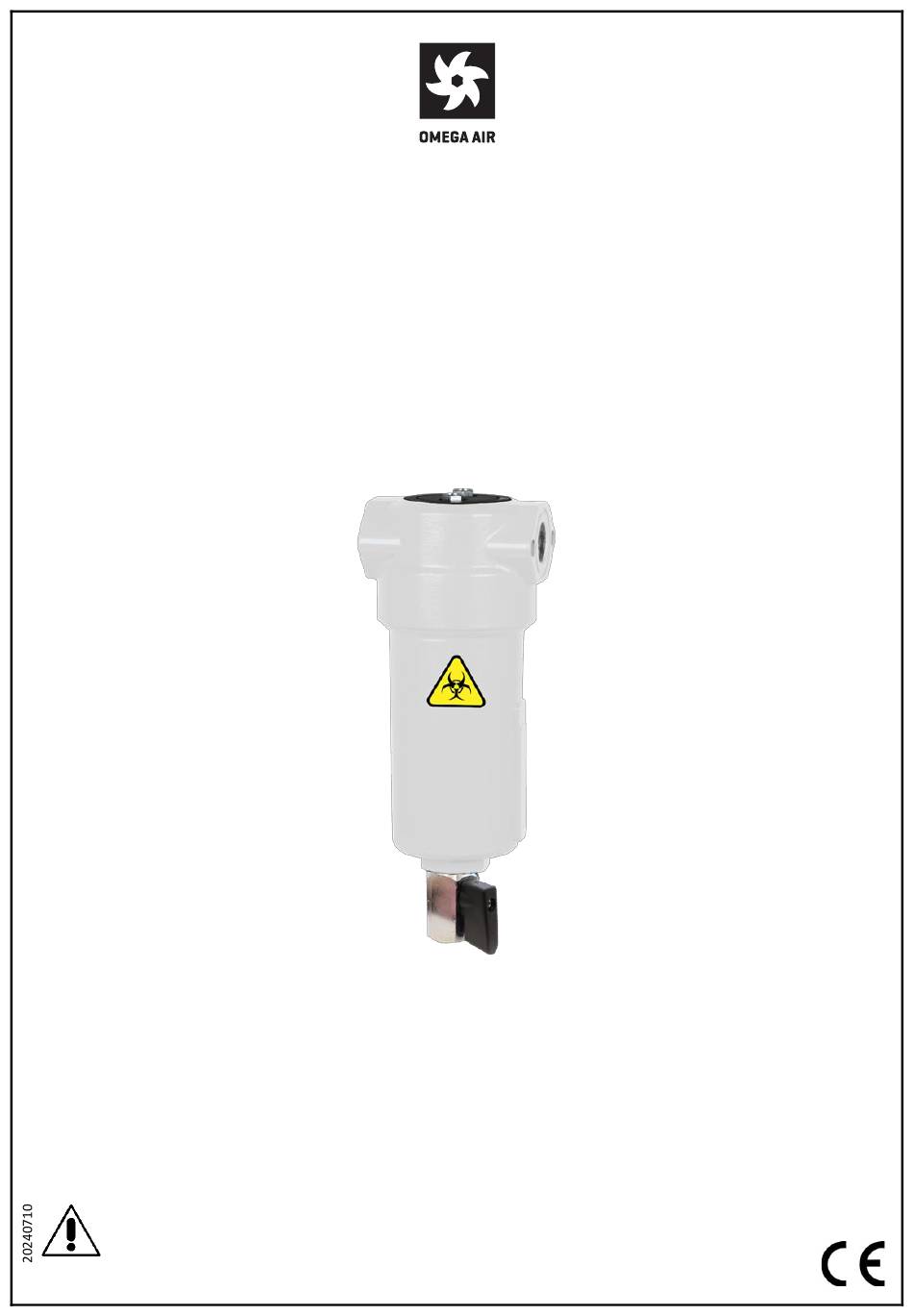

- Page 1 Installation and operating manual M-VAC – Medical vacuum filters Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated in this manual are respected.
- Page 3 Components Part 1 Vacuum drop indicator (optional) 2 Screw with seal 3 Head cover 4 Filter head 5 Housing sealing (o-ring) 6 Filter element 7 Filter body 8 Manual drain 9 Transparent flask (optional)
-
Page 4: Technical Data
Technical data FILTER PIPE SIZE FILTER FLOW CAPACITY DIMENSIONS [mm] VOLUME WEIGHT HOUSING [inch] ELEMENT [kg] [scfm] M-VAC 0006 03528 M-VAC 0,08 M-VAC 0016 05528 M-VAC 0,10 M-VAC 0026 03844 M-VAC 0,23 M-VAC 0036 03844 M-VAC 0,23 M-VAC 0046 06050 M-VAC... -
Page 5: Safety Instructions
Use original spare parts only. • Use filter for the appropriate purpose only. • Appropriate use M-VAC filters may only be used for their intended purpose. These filters are intended exclusively for the following purpose: Separation of bacterial and other contamination (solids and liquids) from operating •... - Page 6 Operating M-VAC filters have been developed explicitly for medical vacuum applications. • These filters are optimised for high-efficient removal of bacterial and other • contamination (solids and liquids) from the suction side of vacuum pumps, preventing damage to the pump and the potential biological infection of the surrounding environment.
-
Page 7: Installation
Installation The filter assembly and installation procedures are as follows: Depressurize the system before carrying out the installation work. • Connect the filter head to the compressed gas piping and check that the gas flow • corresponds to the direction of the arrow positioned on the filter head cap. Lubricate the O-ring and the sealing surfaces of the filter head and cartridge, use •... -
Page 8: Changing The Filter Element
Filters must always be installed in a vertical position with sufficient space around. The • minimum distance (D in the technical data table) has to be assured under the filter bowl, which is necessary for filter cartridge change. Stick the adhesive label showing the month and year for the next filtering element •... -
Page 9: Maintenance
Maintenance Filter elements are subject to wear. To maintain system efficiency, optimal performance, and best air quality, these rules of proper maintenance should be followed: If installed, regularly check pressure drop indicator to ensure filter element is not • saturated and pressure drop is within acceptable limits. If installed, ensure a trouble-free operation of the condensate drain. -
Page 10: Warranty Exclusion
The filter and filter elements did not be store indoors and in a dry place. • If operator damaged O-ring during replacement the filter elements and do not • replace it. OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10, 1000 Ljubljana, Slovenia T: +386 1 200 68 00 | info@omega-air.si | www.omega-air.si...
