Installation and operating
manual

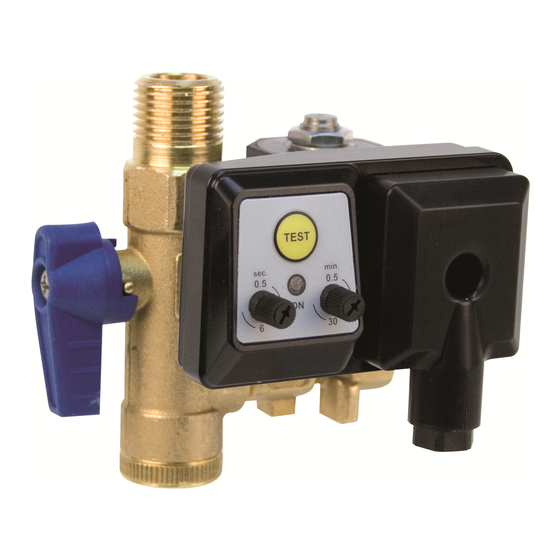

TDM16M / TD16Mcr / TD25M / TD50M / TD150M /TD400M
230V / 115V / 24Vdc
Please read the following instructions carefully before installing the product. Trouble free and
safe operating of the product can only be guaranteed if recommendations and conditions stated
in this manual are respected.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OMEGA AIR TDM16M
Summary of Contents for OMEGA AIR TDM16M

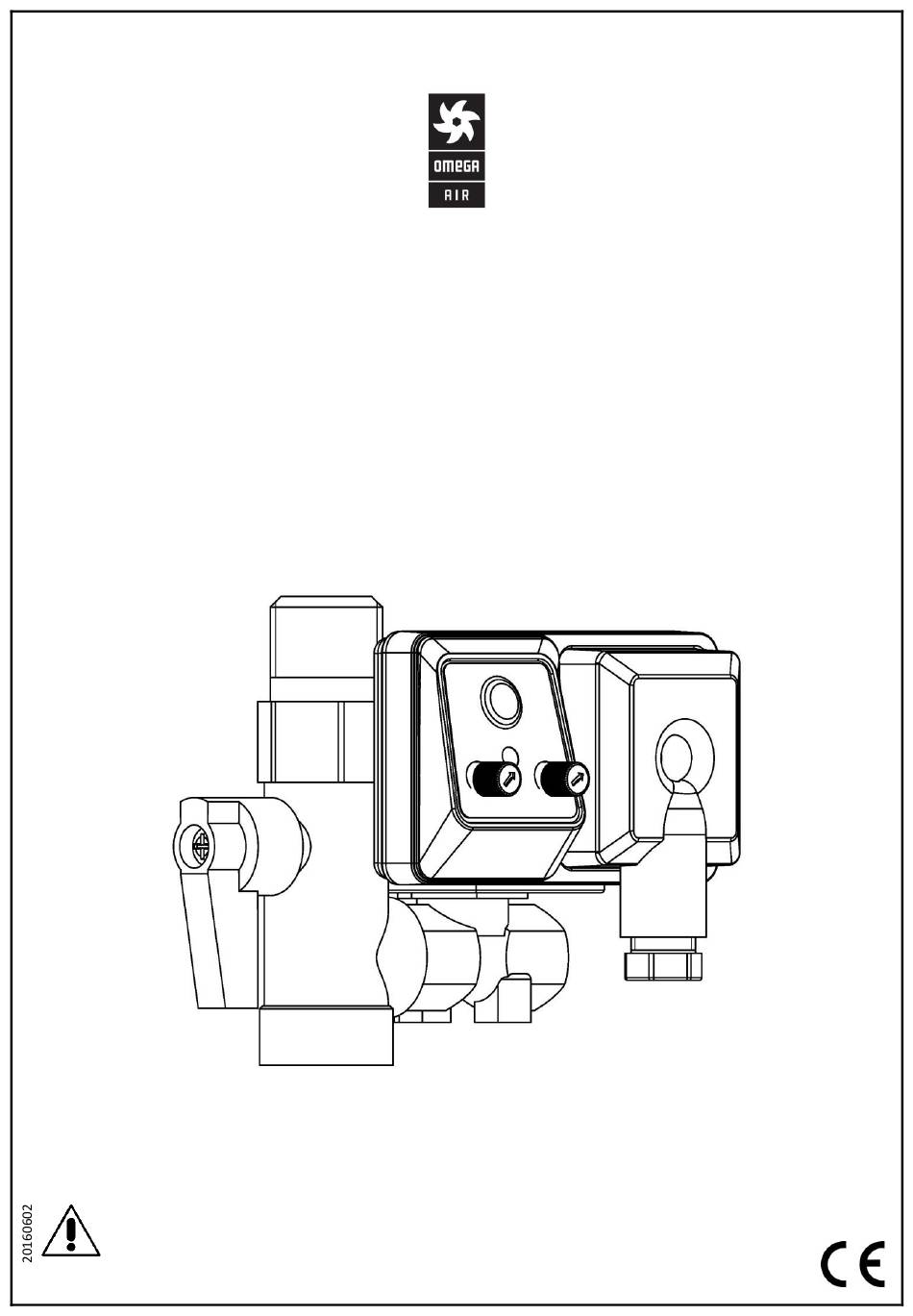

- Page 1 Installation and operating manual TDM16M / TD16Mcr / TD25M / TD50M / TD150M /TD400M 230V / 115V / 24Vdc Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated...
- Page 2 Components Strainer Electromagnetic valve Connector gasket Timer Screw M3 77mm Cover 47mm Gasket 39mm Cable gland Washer Type Max. Ordering code Spare part ordering code pressure Valve Strainer Timer TD 16M 24Vdc 16 bar 3402130 4700336 4700318 3402217 TD 25M 24Vdc 25 bar 3401533 4700337...
-
Page 3: Technical Data
Technical data Type TD 16M TD 25M TD 50M TD 150M TD 400M TD16Mcr Aggressive Operating medium Air, water, oil fluids 115 Vac 115 V ±10%, 50 – 60 Hz Voltage 230 Vac 230 V ±10%, 50 – 60 Hz 24 Vdc 24 Vdc Power interface... -
Page 4: Safety Instructions
Safety instructions Depressurize the system before carrying out any work on the piping. Installation and maintenance work may only be carried out when the device is not under pressure. Installation and maintenance work may only be carried out by trained and experienced staff. -
Page 5: Electrical Installation
Installation Connecting several condensate collecting points to one condensate drain device causes operating problems (1). Make sure that each condensate collecting point has its own condensate drain (2). After installation or maintenance, the test button should be pressed to empty condensate that has been collected while the ball valve has been closed. -
Page 6: Operation
Operation 1 – Inlet from compressed air system to condensate drain 2 – Outlet from condensate drain to condensate collecting pipeline Condensate drain consists of two timers, T and T . The T timer regulates the time duration of discharging. The T timer regulates period between two discharges. -
Page 7: Maintenance
Maintenance Service: It is recommended to clean/change the strainer every six months or more often, depending on application. Sealing elements are subject to wear, which depends on various operating parameters such as pressure, temperature, dirt content, etc. Attention Before beginning maintenance work follow these steps: 1. -
Page 8: Warranty Exclusion
The unit was not operated within the permissible technical parameters. Unauthorized constructional changes were made to the unit or if the unit has been opened/disassembled by an unauthorized person. OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia...
