Installation and operating
manual

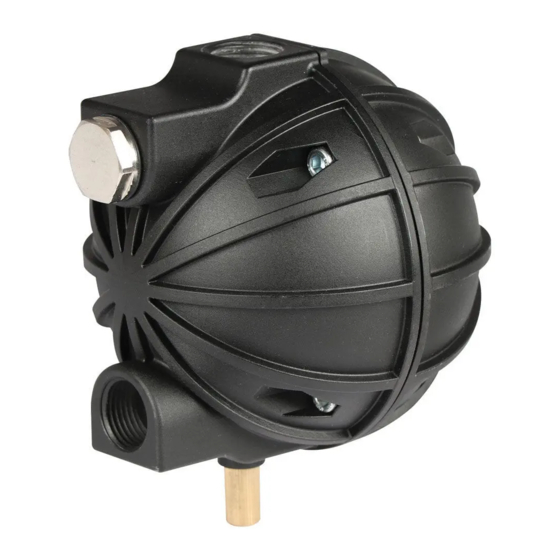

AOK 13PA
(Condensate drain)
Please read the following instructions carefully before installing the product.
Trouble free and safe operating of the product can only be guaranteed if
recommendations and conditions stated in this manual are respected.
3403196 – Omega_Air_User_Manual_Condensate_Drain_AOK_13PA_19122019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOK 13PA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OMEGA AIR AOK 13PA

Summary of Contents for OMEGA AIR AOK 13PA

  • Page 1 Installation and operating manual AOK 13PA (Condensate drain) Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated in this manual are respected.
  • Page 2 AOK 13PA - Installation and operating manual Components Parts M6 screws Drain housing Test lever Floater holder Sealing nipple Orifice sealing M6 Nuts Drain housing Floater Housing sealing Connector nipple (optional) ½” Plug with O-ring...

  • Page 3: Technical Data

    AOK 13PA - Installation and operating manual Technical data Operation pressure range 0 – 13 bar 0 – 188 psi Minimum recommended operating 1,5bar (g) 21,8 psi pressure Drain capacity (7 bar / 101 psi) 167 l/h 0,1 scfm Drain capacity (13 bar / 188 psi)

  • Page 4: Safety Instructions

    • Use the device for the appropriate purpose only. • AOK 13PA condensate drain is intended exclusively for use in draining condensate from compressed air system (air compressors, air receivers, air dryers and filters). Any others form of use or one going beyond this shall be considered as inappropriate.
  • Page 5 AOK 13PA - Installation and operating manual Operating TEST LEVER Drain can be installed bellow pressure vessel, filter element, dryer, cyclone separator or similar pressure equipment. Through G ½” connection on the top condensate accumulates in the drain reservoir. Increasing condensate level rises the floater. When the condensate level is high enough the floater unblocks the discharge orifice and the condensate is purged out through G ½”...

  • Page 6: Installation

    AOK 13PA - Installation and operating manual Installation AOK 13PA has two possible inlet connections (horizontal and vertical). Based on the amount of space under the pressure equipment choose one of the options to connect the drain. Vertical inlet connection...
  • Page 7 AOK 13PA - Installation and operating manual Connection from the side (horizontal inlet connection) Use vertical connection to mount venting line back to pressure equipment (e.g. pressure vessel). Venting line prevents creation of air bubbles assuring constant flow of condensate to the drain.

  • Page 8: Maintenance

    AOK 13PA - Installation and operating manual Maintenance WEEKLY Turn the test knob clockwise (screw carefully) and let the condensate flow out until the compressed air will blow through for few seconds. If a significant amount of water (more than 0.5 litres) exits the valve then the drain must be thoroughly cleaned. When the test knob is turned all the way back (counter clockwise) the valve should close and there should be no more air leakage.

  • Page 9: Warranty Exclusion

    AOK 13PA - Installation and operating manual Warranty exclusion The guarantee shall be void if: The installation and operating manual was not followed with respect to installation, • initial commissioning and maintenance. The unit was not operated properly and appropriately.

  • Page 10: Declaration Of Conformity

    Declaration of Conformity Omega air d.o.o. Ljubljana Cesta Dolomitskega odreda 10 1000 Ljubljana Slovenia Declares that Product: AOK 13PA Description: Condensate drain Serial Number: (see name plate) Is in conformity with the following directives Pressure Equipment Directive (PED) 2014/68/EU (Fluid group 2)
  • Page 11 AOK 13PA - Installation and operating manual...
  • Page 12 AOK 13PA - Installation and operating manual OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia T: +386 (0)1 200 68 00 F: +386 (0)1 200 68 50 info@omega-air.si...
