Summary of Contents for OMEGA AIR TD 420M

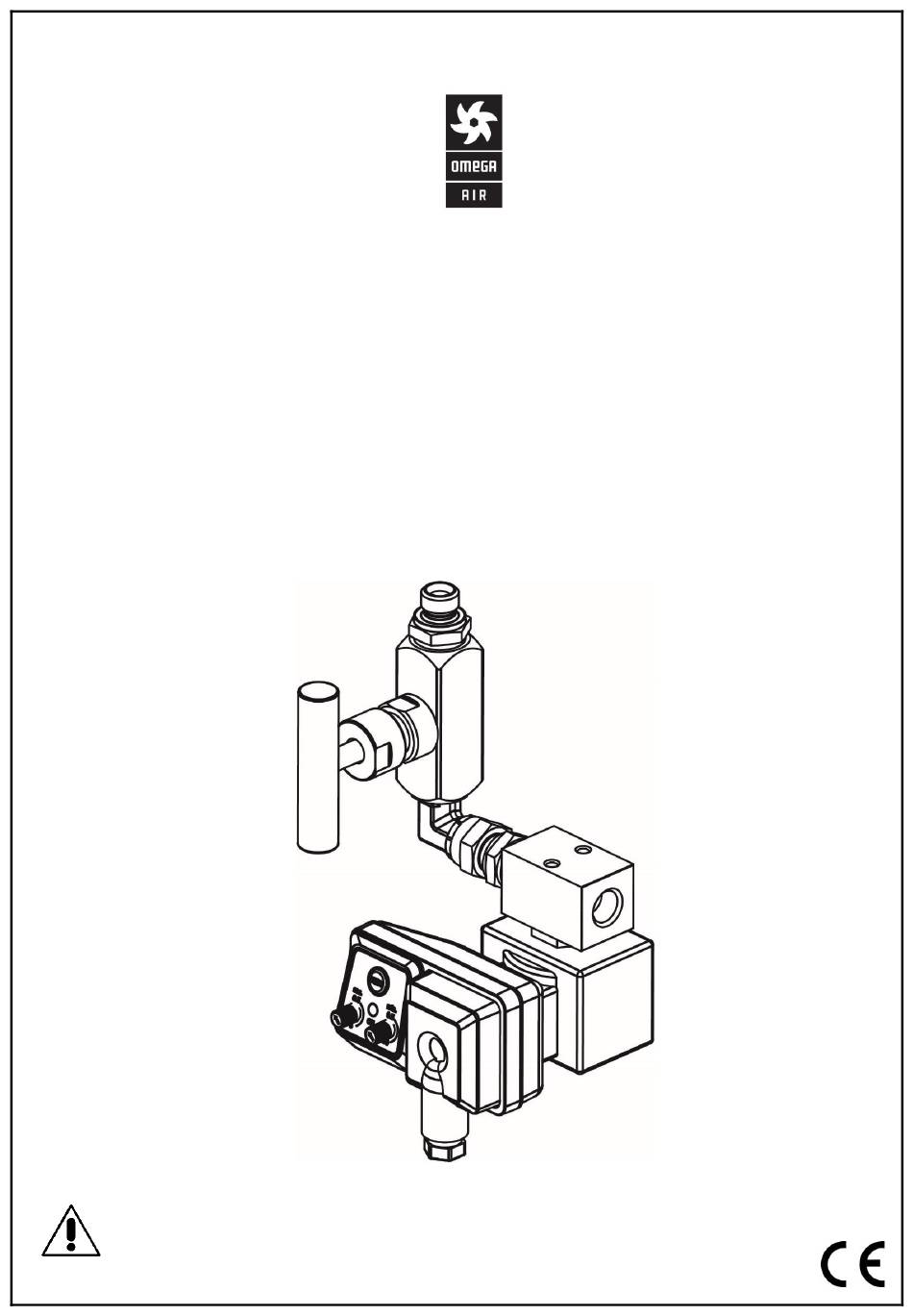

- Page 1 Installation and operating manual TD 420M 230V / 24Vdc Please read the following instructions carefully before installing the product. Trouble free and safe operating of the product can only be guaranteed if recommendations and conditions stated in this manual are respected.
-
Page 2: Table Of Contents
Table of content Components ............................ 3 Technical data..........................4 Technical specification ......................4 Parts list and dimensions ......................4 Materials ..........................4 Admissable fluids ........................5 Types............................5 Order number .......................... 5 Safety instructions ........................... 6 Hazardes classes ........................6 Structure of the warning ...................... -
Page 3: Components
1. Components Nipple High pressure needle valve Elbow Electromagnetic valve Connector gasket Timer... -
Page 4: Technical Data
2. Technical data 2.1 Technical specification Operating temperature 1,5 - 150 °C 35 - 302 °F Ambient temperature 1,5 - 65 °C 35 - 149 °F Operating pressure 0 - 420 bar(g) 0 – 6091 psi Protection class IP65 Supply voltage 230V (±10%), AC, 50/60Hz Coil power Cable dimensions... -
Page 5: Admissable Fluids
Version TD420M 115V AC have on housing of electromagnetic valve a NPT 1/4’’ female thread. 2.6 Order number TYPE ORDER NUMBER ORDER NUMBER OMEGA AIR BAUER TD 420M (230V) 3402211 N45147 TD 420M (115V) 3403494 N45148 TD 420M (24Vdc) 3402212 N44102 There is Technical datasheet available. -
Page 6: Safety Instructions
3. Safety instructions Depressurize the system before carrying out any work on the piping. Installation and maintenance work may only be carried out when the device is not under pressure. Installation and maintenance work may only be carried out by trained and experienced personnel. -
Page 7: Appropriate Use
4. Appropriate use TD420M series condensate drain is intended exclusively for the following purpose: Draining condensate from compressed air system (air compressors, air receivers/pressure vessels, air dryers and air filters). Any other form of use or one going beyond this shall be considered as inappropriate. We shall have no liability whatsoever for any damage incurred as a result. - Page 8 Connecting several condensate collecting points to one condensate drain device causes operating problems (1). Make sure that each condensate collecting point has its own condensate drain (2). After installation or maintenance, the test button should be pressed to empty condensate that has been collected while the ball valve has been closed.
-
Page 9: Storage Information
5.2 Electrical installation Recommended wire lengths (mm) 230V 24Vdc Neutral +24Vdc Line Protective Earth Danger due electrical voltage! Electric could be dangerous and hazardous to the operator. Be careful not to pinch wires by cover! Be careful to clamp all strains of wires into respective terminal blocks (use ferrules)! Electrical connection should be made as shown above. -
Page 10: Operation
7. Operation For operation with TD420m follow next steps. 1. Connect condensate drain device with the filter housing. You must follow the arrows on pressure valves and electromagnetic valves from inlet pointing to the outlet. 2. Connect outlet of the condensate drain to outflow. 3. -
Page 11: Inlet Valve
P Periods T and T are set by knobs on the condensate drain device. After some weeks of operation, when you check electromagnetic valve test, you can may adjust the periods, if notice that only air is discharged when the test button is pressed, then the T may be increased. -
Page 12: Troubleshooting
7.3 Troubleshooting If having a trouble with condensate drain device: 1. Test the device with pressing test button. Try several times. 2. If it not better and the device not draining water or air, disassemble and clean the valve and fittings. -
Page 13: Disposing
Disposing Environmental damage in case of faulty disposal! The device might be contaminated by the filtered substances. 1. Be mindful of the local regulations. 2. Heed the notes on hazardous substances for the filtered gas and appropriate disposal regulations when disposing. 3. - Page 14 OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia T: +386 (0)1 200 68 00 F: +386 (0)1 200 68 50 info@omega-air.si...
