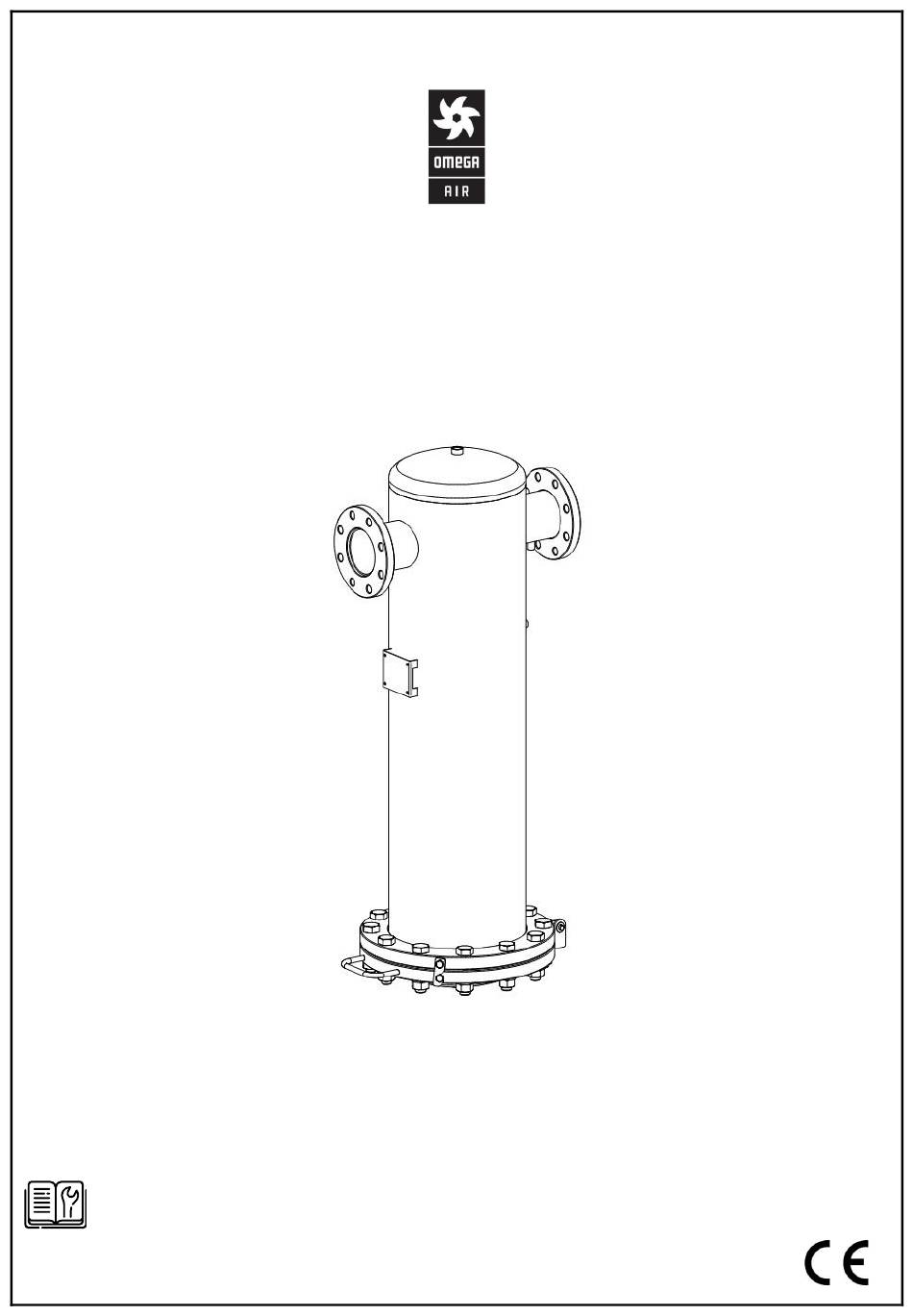

- Page 1 Installation and operating manual BF compressed air filter Please read the following instructions carefully before installing filter into service. Trouble-free and safe operating of the filter can only be guaranteed if recommendations and conditions stated in this manual are respected.
- Page 2 BF - Installation and operating manual Components Part 1 Filter bowl 2 Pressure drop indicator (optional) 3 Bolts 4 Washer 5 Filter element 6 Filter head 7 Nuts 8 Condensate drain (optional)
-
Page 3: Technical Data
SIZES CONN. FLOW CAPACITY DIMENSIONS [mm] VOLUME WEIGHT FILTER FILTER SIZE HOUSING ELEMENT [DN] [scfm] [kg] BF 0240 1 x 76090 1680 1145 1640 BF 0300 2 x 76090 3150 1853 1330 1780 BF 0450 3 x 76090 4700 2765... -
Page 4: Safety Instructions
BF - Installation and operating manual PRESSURE EQUIPMENT DIRECTIVE PED 2014/68/EU (Fluid group 2) BF 0240 Category 2, Module H BF 0300 - BF 0900 Category 3, Module H1 BF 1200 - BF 3000 Category 4, Module H1 PRESSURE EQUIPMENT DIRECTIVE PED 2014/68/EU (Fluid group 1) -
Page 5: Intended Use
BF - Installation and operating manual The operator/user of the unit should make himself familiar with the function, installation and start-up of the unit. All the safety information is always intended to ensure your personal safety. • Do not exceed max. operating pressure or operating temperature range (see data label). -
Page 6: Storage Information
BF - Installation and operating manual The information on the product label must be observed. Non-observance of the data given there is regarded as improper use. The manufacturer will under no circumstances be responsible for any damage resulting from improper, incorrect or unreasonable use. The pressure vessel has been designed for a primarily static pressure. - Page 7 BF - Installation and operating manual Eventual over-pressure and over-temperature could be dangerous and hazardous to the operator and the equipment. DANGER due to the release of a critical gas! The release of a critical (Fluid group 1) gas from the network can constitute a considerable risk for man and environment.
- Page 8 BF - Installation and operating manual Installation...
-
Page 9: Maintenance
BF - Installation and operating manual Operating • Be sure that the filter housing and drain are tightly closed. Open the valve on the inlet side of the strainer. Slowly open the valve on the outlet side of the filter. The filter is now in service. - Page 10 The filter element or catridge might be contaminated by the filtered substances. Heed the notes on hazardous substances for the filtered gas and appropriate disposal regulations when disposing. OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia Tel.: +386 (0)1 200 68 00 Fax.: +386 (0)1 200 68 50...
