Installation and operating manual
AK AAF
Please read the following instructions carefully before installing assembly kit into service. Trouble free
and safe operating of the assembly kit can only be guaranteed if recommendations and conditions
stated in this manual are respected.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AK AAF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for OMEGA AIR AK AAF Series

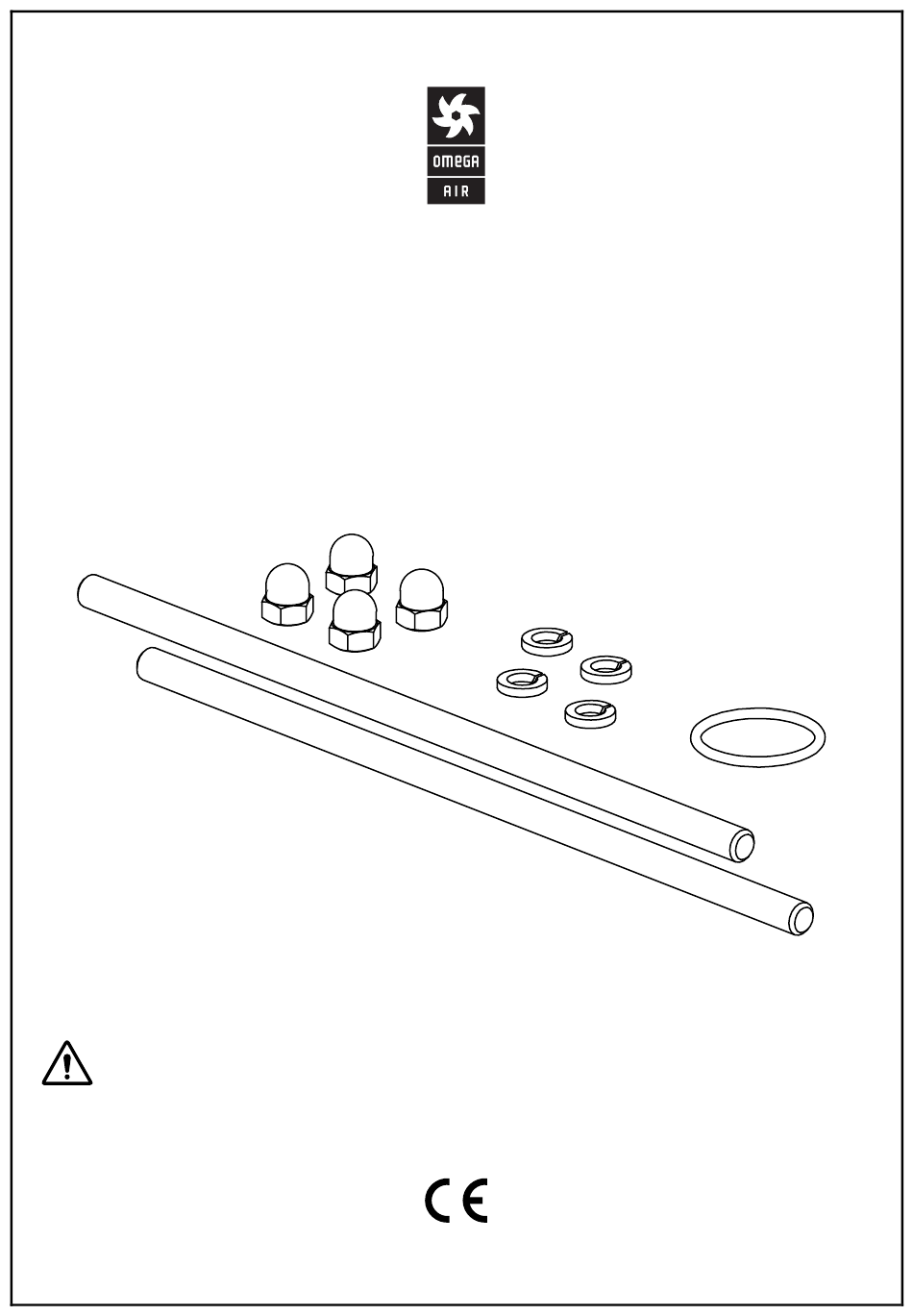

  • Page 1 Installation and operating manual AK AAF Please read the following instructions carefully before installing assembly kit into service. Trouble free and safe operating of the assembly kit can only be guaranteed if recommendations and conditions stated in this manual are respected.
  • Page 2 Description AK AAF kit has been designed for assembling 2 or up to 3 types of filter housing series AAF in a unit, without using interconnecting piping. When installing the filter housings are we often meet with the problem of lack of space. The product is intended for connecting filters together in groups. The product we use where its space is limited, and we want is a convenient and compact group.
  • Page 3 Components Assembly kit DUAL 1 2x Stud bolt 2 1x O-ring sealing 3 4x Cap nut 4 4x Spring washer Assembly kit TRIPLE 1 2x Stud bolt 2 2x O-ring sealing 3 4x Cap nut 4 4x Spring washer...
  • Page 4: Technical Data

    Technical data Operating temperature 1,5 - 65 °C 35 - 149 °F Operating pressure 0 - 16 bar(g) 0 – 232 psi MATERIALS Screws Stainless steel Sealing PRESSURE EQUIPMENT DIRECTIVE PED 2014/68/EU (Fluid group 2) Not required There is Technical datasheet available. For additional technical specification, contact manufacturer. Safety instructions The relevant safety at work and accident prevention regulations, plus operating instructions, shall apply for operating the assembly kit.
  • Page 5: Appropriate Use

    Assembly kit has been designed for a primarily static pressure. Rapid changes of pressure • are not allowed. The medium used may not have any corrosive components that could attack the • materials of the assembly kit in a way that is not permitted. Do not use the assembly kit in hazardous areas with potentially explosive atmospheres.
  • Page 6 Installation DUAL 1. At first, we must prepare studs to which we will later install the components on them. A stud bolt (1) is necessary to screw into the nut (3) so a deep as is the outer diameter of the thread. We need to prepare two pieces of studs.
  • Page 7 3. When we finish with the installation of the components, it is necessary to tighten the nuts with specified torque. The torque value is defined in the table beside the fig. It is very recommended that all nuts(3) are equally a deep screwed into studs(1). Type Torque 0006-0016...
  • Page 8 Installation TRIPLE 3. At first, we must prepare studs to which we will later install the components on them. A stud bolt (1) is necessary to screw into the nut (3) so a deep as is the outer diameter of the thread. We need to prepare two pieces of studs.
  • Page 9: Maintenance

    4. When we finish with the installation of the components, it is necessary to tighten the nuts with specified torque. The torque value is defined in the table beside the fig. It is very recommended that all nuts(3) are equally a deep screwed into studs(1). Type Torque 0006-0016...
  • Page 12 OMEGA AIR d.o.o. Ljubljana Cesta Dolomitskega odreda 10 SI-1000 Ljubljana, Slovenia Tel.: +386 (0)1 200 68 00 Fax.: +386 (0)1 200 68 50 E-mail: info@omega-air.si www.omega-air.si...
