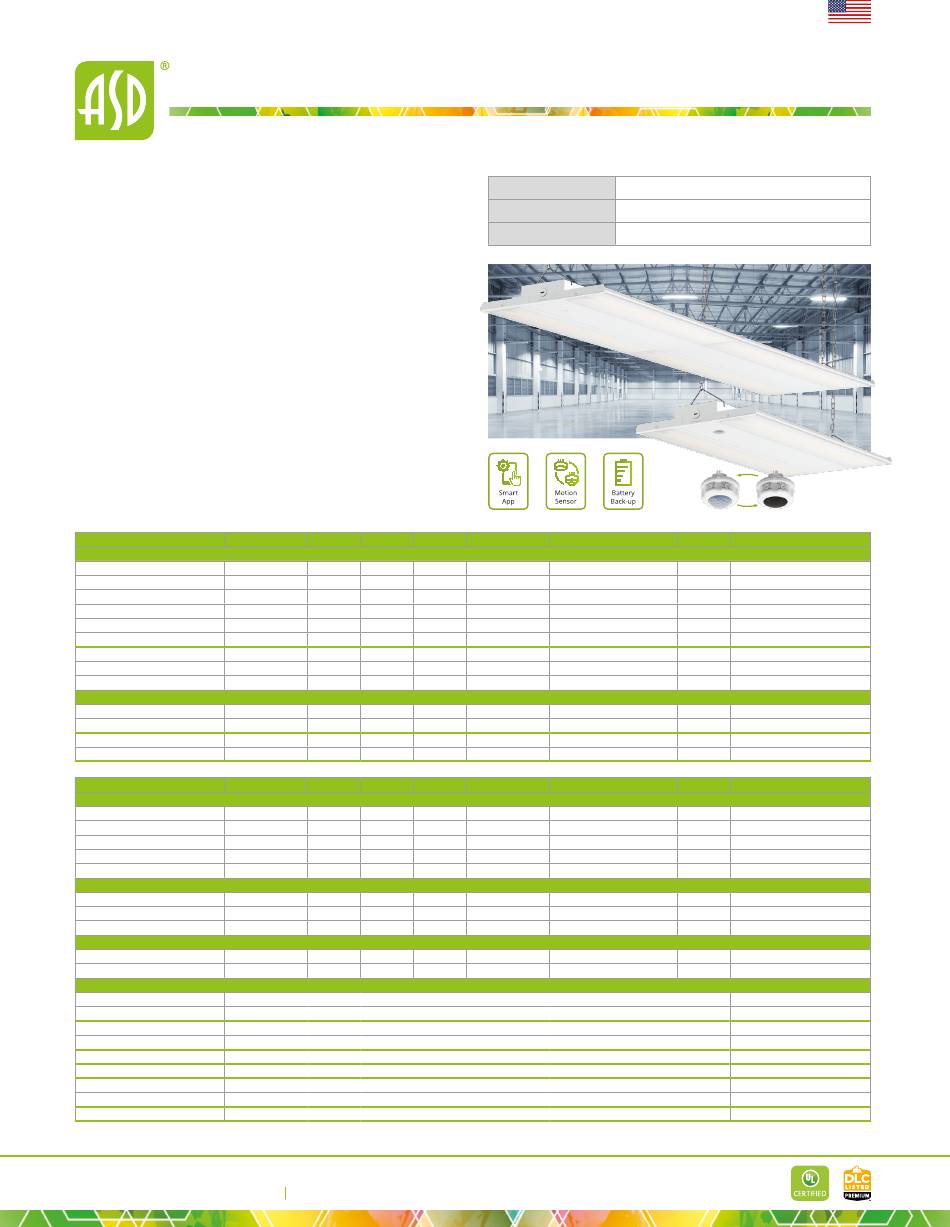

ASD -WHB5A-100D50 Manual

LED LINEAR HIGH BAY WITH Q-BASE
DESIGN - LED LINEAR HIGH BAY WITH Q-BASE has a built-in motion
▶
sensor base, allowing you to install microwave or PIR motion sensor. Die-cast
aluminum housing with excellent heat dissipation along with an anti-glare PC
lens provide many years of use. It is designed to operate on 120-277V circuits with
a 0-10V dimmable driver. WHB5A-PRO Series is also extremely efficient with a
170lm/W output.
BATTERY BACK-UP - The built-in battery back-up provides 90 minutes
▶
of power in case of emergency.
SURGE PROTECTION - 6kV protects the fixture from voltage spikes and
▶
current surges.
COLOR AND POWER SELECTABLE - You can choose either a 3,500K
▶
neutral white, 4,000K cool white or 5,000K daylight color temperature, and change
the power with a simple switch.
INSTALLATION - It has three different mounting options: suspended,
▶
surface, and pendant. Perfect commercial or industrial solution for warehouses,
supermarkets, retail stores, gyms, and many other applications. This fixture is
also Damp Locations rated.
ADVANTAGES - With calculated lifespan up to 187,000 hours, these
▶
fixtures are made to last decades under normal operation! ASD provides a 5-year
limited warranty along with UL and DLC Premium certifications to guarantee top
quality products and safety!
Model
ASD-WHB5A-100D50
ASD-WHB5A-160D50
ASD-WHB5A-220D50
ASD-WHB5A-320D50
ASD-WHB5A-400D50
ASD-WHB5A-500D50
ASD-WHB5A-A160DAC 100/130/160W
ASD-WHB5A-A320DAC 220/260/320W
ASD-WHB5A-A500DAC 320/400/500W
ASD-WHB5A-160D50-20EM
ASD-WHB5A-220D50-20EM
ASD-WHB5A-A160DAC-20EM 100/130/160W
ASD-WHB5A-A220DAC-20EM 130/160/220W
Model
ASD-WHB5A-PRO-100 60/80/100W
ASD-WHB5A-PRO-160 100/130/160W
ASD-WHB5A-PRO-220 130/160/220W
ASD-WHB5A-PRO-320 220/260/320W
ASD-WHB5A-PRO-500 320/400/500W
ASD-WHB5A-HV-PRO-220 130/160/220W
ASD-WHB5A-HV-PRO-320 220/260/320W
ASD-WHB5A-HV-PRO-500 320/400/500W
ASD-WHB5A-PRO-160-EM 100/130/160W
ASD-WHB5A-PRO-220-EM 130/160/220W
ASD-09MW-WH Microwave motion sensor 3pin white
ASD-09MW-BK Microwave motion sensor 3pin black
ASD-09IR-WH Infrared motion sensor 3pin white
ASD-09IR-BK Infrared motion sensor 3pin black
ASD-09IR50-WH Infrared motion sensor 3pin 50ft white
ASD-06RC Remote control for motion sensor
ASD-09MW-NLS-WH Microwave motion sensor smart 3pin white
ASD-09IR-NLS-WH Infrared motion sensor smart 3pin white
ASD-06RC-NLS Remote control for motion sensor smart
For detailed luminous flux information please refer to Annex 1, page 11.
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Watts Q-base Voltage Dimmable
100W 3-pin 120-277 V 0-10 V
160W 3-pin 120-277 V 0-10 V
220W 3-pin 120-277 V 0-10 V
320W 3-pin 120-277 V 0-10 V
400W 3-pin 120-277 V 0-10 V
500W 3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
WHB5A-EM WITH BATTERY BACK-UP 150lm/W
160W 3-pin 120-277 V 0-10 V
220W 3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
Watts Q-base Voltage Dimmable
WHB5A-PRO 170lm/W
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
WHB5A-HV-PRO HIGH VOLTAGE 170lm/W
3-pin 277-480 V 0-10 V
3-pin 277-480 V 0-10 V
3-pin 277-480 V 0-10 V
WHB5A-PRO-EM WITH BATTERY BACK-UP 170lm/W
3-pin 120-277 V 0-10 V
3-pin 120-277 V 0-10 V
SENSORS AND REMOTE
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Lumens CCT
WHB5A 150lm/W
15,230 lm 5,000 K
24,087 lm 5,000 K
29,434 lm 5,000 K
43,638 lm 5,000 K
53,082 lm 5,000 K
73,306 lm 5,000 K
up to 23,257 lm 3CCT (3,500/4,000/5,000 K)
up to 47,277 lm 3CCT (3,500/4,000/5,000 K)
up to 69,834 lm 3CCT (3,500/4,000/5,000 K)
21,657 lm 5,000 K
29,434 lm 5,000 K
up to 23,257 lm 3CCT (3,500/4,000/5,000 K)
up to 31,097 lm 3CCT (3,500/4,000/5,000 K)
Lumens CCT
up to 16,552 lm 3CCT (3,500/4,000/5,000 K)
up to 26,276 lm 3CCT (3,500/4,000/5,000 K)
up to 35,215 lm 3CCT (3,500/4,000/5,000 K)
up to 51,291 lm 3CCT (3,500/4,000/5,000 K)
up to 80,269 lm 3CCT (3,500/4,000/5,000 K)
up to 36,018 lm 3CCT (3,500/4,000/5,000 K)
up to 50,940 lm 3CCT (3,500/4,000/5,000 K)
up to 80,049 lm 3CCT (3,500/4,000/5,000 K)
up to 26,276 lm 3CCT (3,500/4,000/5,000 K)
up to 35,215 lm 3CCT (3,500/4,000/5,000 K)
For most up-to-date spec sheets please refer to asd-lighting.com
English
Finish Dimensions (LxWxH)
White 14-3/16" x 9-13/16" x 1-7/8"
White 14-3/16" x 9-13/16" x 1-7/8"
White 19-11/16" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 14-3/16" x 9-13/16" x 1-7/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 14-3/16" x 9-13/16" x 2-11/16"
White 19-11/16" x 11-13/16" x 2-1/8"
White 14-3/16" x 9-13/16" x 2-11/16"
White 19-11/16" x 11-13/16" x 2-1/8"
Finish Dimensions (LxWxH)
White 14-3/16" x 9-13/16" x 1-7/8"
White 19-11/16" x 11-13/16" x 2-1/8"
White 19-11/16" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 19-11/16" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 39-3/8" x 11-13/16" x 2-1/8"
White 19-11/16" x 11-13/16" x 2-1/8"
White 19-11/16" x 11-13/16" x 2-1/8"
2-1/8" x 2-1/8" x 1-5/16"
2-1/8" x 2-1/8" x 1-5/16"
2-1/8" x 2-1/8" x 1-11/16"
2-1/8" x 2-1/8" x 1-11/16"
2-1/8" x 2-1/8" x 1-11/16"
5-11/16" x 1-3/4" x 13/16"
2-1/8" x 2-1/8" x 1-3/8"
2-1/8" x 2-1/8" x 1-11/16"
5-11/16" x 1-3/4" x 13/16"
