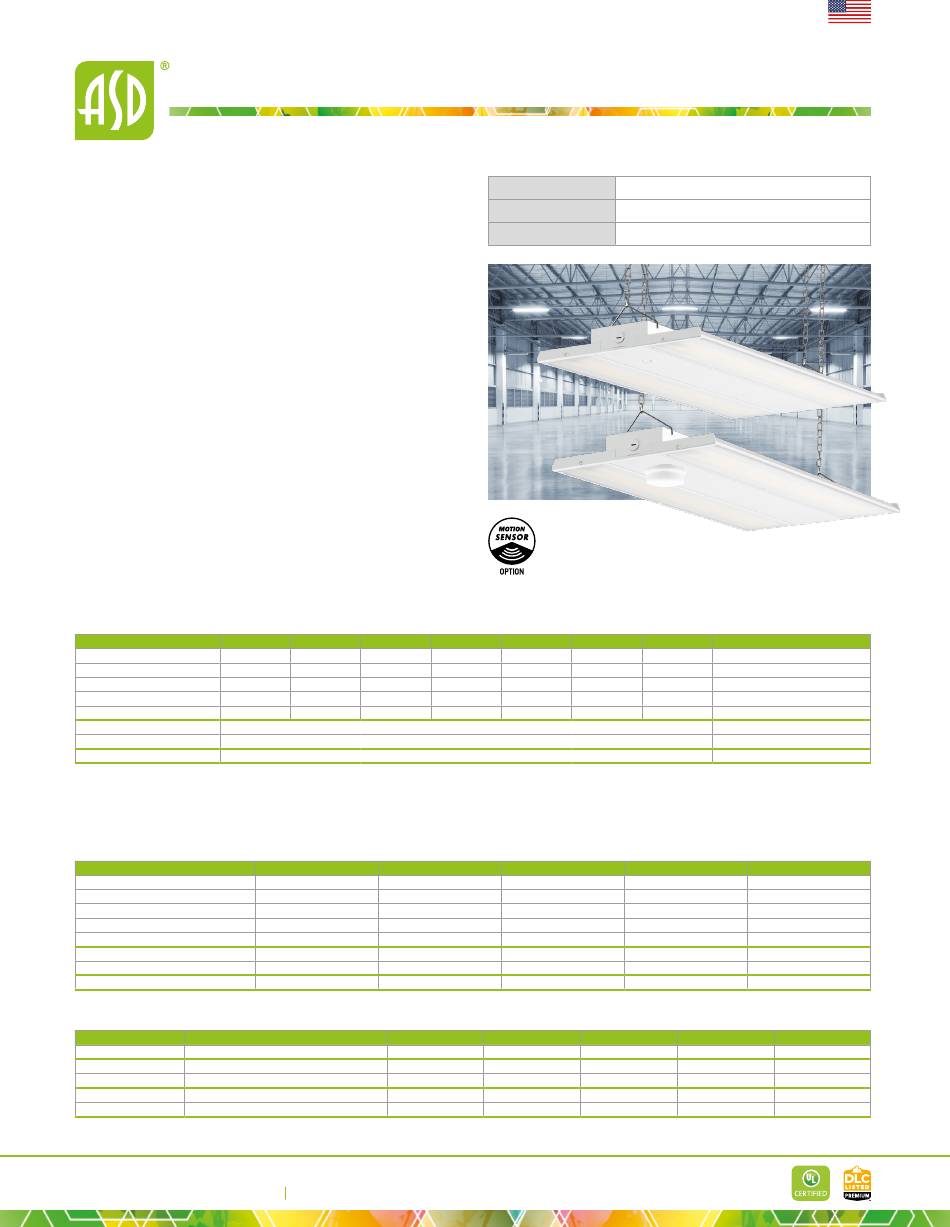

ASD -WHB5A-100D50 Quick Start Manual

Q-BASE LED LINEAR HIGH BAY
DESIGN & OPTIONS - Q-BASE LED LINEAR HIGH BAY with built-in
▶
motion sensor base is designed with die-cast aluminum housing to provide
excellent heat dissipation and an extended lifetime. The antiglare PC frosted lens
is impact-resistant and extremely tough. It comes with a 0-10V dimmable driver.
These fixtures run on 120-277V circuits, and come in a 5,000K color temperature
with a WHITE finish.
INSTALLATION - These fixtures have three different mounting options:
▶
suspended, surface, and pendant. They can easily be suspended using the included
chains and V-hook. Surface and pendant mount brackets are also available (sold
separately). Refer to install instructions for detailed steps.
APPLICATION - Q-BASE LED LINEAR HIGH BAY are the perfect
▶
commercial or industrial solution for warehouses, supermarkets, retail stores,
gyms, garages, general task areas, and many other applications. This fixture is
also Damp Location rated and can operate in temperatures ranging from -40 to
122°F (-40 to 50°C), allowing it to be utilized in a wide variety of applications and
climates.
ENERGY SAVINGS & EFFICIENCY - With a calculated lifespan up to
▶
187,000 hours, these fixtures are made to last decades under normal operation!
This fixture can cut your electric bill by up to 80% instantly and will save you a
significant amount of money in its lifetime.
CERTIFICATION & WARRANTY - Buy with confidence: ASD provides
▶
a 5-year limited warranty along with UL certification to guarantee top quality
products and safety!
DLC Premium classification allows participation in rebates; please check the
rebate programs available in your state.
Model Watts
ASD-WHB5A-100D50 100W
ASD-WHB5A-160D50 160W
ASD-WHB5A-220D50 220W
ASD-WHB5A-320D50 320W
ASD-WHB5A-400D50 400W
HD07VR-MH Microwave motion sensor
HD07VR-PH PIR motion sensor
HD05R Remote controller for motion sensor

ORDERING INFORMATION

Model
ASD-WHB5A-100D50
ASD-WHB5A-160D50
ASD-WHB5A-220D50
ASD-WHB5A-320D50
ASD-WHB5A-400D50
HD07VR-MH
HD07VR-PH
HD05R
ACCESSORIES:
Model Name
ASD-SMB1-WHB5 Surface mount bracket
ASD-PMB1-WHB5 Pendant mounting bracket for 100/160/220W
ASD-PMB2-WHB5 Pendant mounting bracket for 320/400W
ASD-WG14-WHB5 Wire guard 14"
ASD-WG20-WHB5 Wire guard 20"
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Sensor base Voltage Dimmable
yes 120-277 V 0-10 V
yes 120-277 V 0-10 V
yes 120-277 V 0-10 V
yes 120-277 V 0-10 V
yes 120-277 V 0-10 V
UPC Pcs. per carton
810050738705 1
810050738712 1
810050738729 1
810050738736 1
810050738743 1
810050738750 203
810050738965 120
810050738767 78
UPC
810050739764
810050739757
810050739771
810050739733
810050739740
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Lumens CCT Finish
14,048 lm 5,000 K White
22,269 lm 5,000 K White
30,735 lm 5,000 K White
44,149 lm 5,000 K White
54,067 lm 5,000 K White
Carton size Carton weight
14.8" x 10.6" x 2.4" 3.9 lb
14.8" x 10.6" x 2.4" 3.9 lb
20.3" x 12.6" x 3" 6.1 lb
40" x 12.6" x 3" 12.3 lb
40" x 12.6" x 3" 12.3 lb
15.8" x 11.8" x 9.3" 19.2 lb
15.8" x 11.8" x 9.3" 11.4 lb
15.8" x 11.8" x 9.3" 21.5 lb
Pcs. per carton Carton size
50 22.8" x 7.9" x 20.9"
50 22.8" x 7.9" x 20.9"
50 22.8" x 7.9" x 20.9"
50 15.8" x 14.6" x 14.6"
50 21.1" x 20.9" x 11.4"
For most up-to-date spec sheets please refer to asd-lighting.com
English
Dimensions (LxWxH)
14-3/16" x 9-7/8" x 1-7/8"
14-3/16" x 9-7/8" x 1-7/8"
19-11/16" x 11-13/16" x 2-2/16"
39-3/8" x 11-13/16" x 2-2/16"
39-3/8" x 11-13/16" x 2-2/16"
2-2/16" x 2-2/16" x 1-1/16"
2-2/16" x 2-2/16" x 1-1/2"
5-1/2" x 2-5/16" x 7/8"
GTIN 14
-
-
-
-
-
10810050738757
10810050738962
10810050738764
Carton weight GTIN 14
24.3 lb 20810050739768
34.2 lb 20810050739751
34.2 lb 20810050739775
27.6 lb 20810050739737
39.7 lb 20810050739744
