ASD Standard Series Manual

LED Security Wallpack

Standard Series

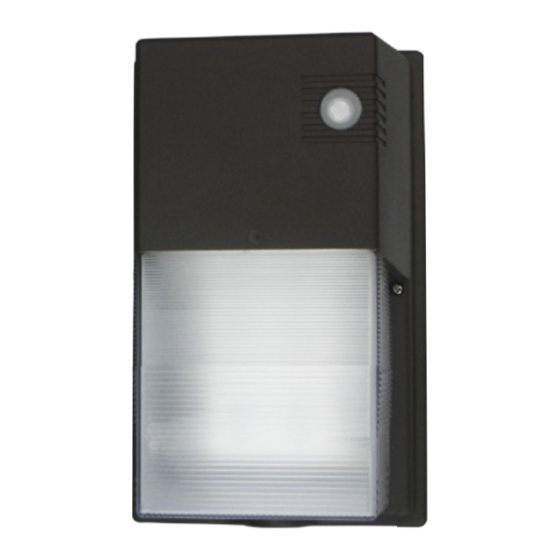

ASD Security Wallpack with dusk-to-dawn Photocell provides optimal illumination for outdoor commercial and industrial
environments. It is ideal for outdoor applications such as personnel doors, loading areas, driveways and parking areas. The
integrated LEDs mean that you never need to change a bulb.
Polycarbonate front cover material ensures
superior resistance to corrosion and
weathering.
With built in dusk-to-dawn photocell, the
security wall pack automatically turns the
light on at dusk and off at dawn automatically.
The back housing easily mounts to all
recessed junction boxes.

FEATURES AND BENEFITS:

▶ Full polycarbonate front provides vandal resistance
and efficient spread
▶ Build-in photo controller for dusk-to-dawn timing
▶ No maintenance
▶ Operating temperature of -40℉ to 104℉
▶ Wet location IP65
▶ L-70 Life > 75,000 hrs
▶ cULus certified
▶ DesignLights Consortium (DLC) listed
(Classification: Standard)
▶ 5 Year warranty

ORDERING MATRIX:

Family
ASD-WLP
LED Security Wallpack
LED SECURITY WALLPACK:
Model
ASD-WLP04-20N50-PC
E-mail: orders@asd-lighting.com
WebSite:
www.asd-lighting.com
110
HIGH LUMINOUS
Modification Watts
04 XX
20
= 20 W
Watts Dimming Compatible
20 No
Phone: 781-739-3977
Fax:
339-502-8970
lm
w
EFFICIENCY
IP65
rated
Dimming Compatible CCT
N 50
N
= Non-dimmable 5,000 K
CCT Lumens
5,000 K 2,160 lm
Photocell
PC
Dimensions (LxWxH)
11"x6 3/4"x5 1/8"
