ASD Standard Series Manual

LED WALLPACK with optic lens

Standard Series

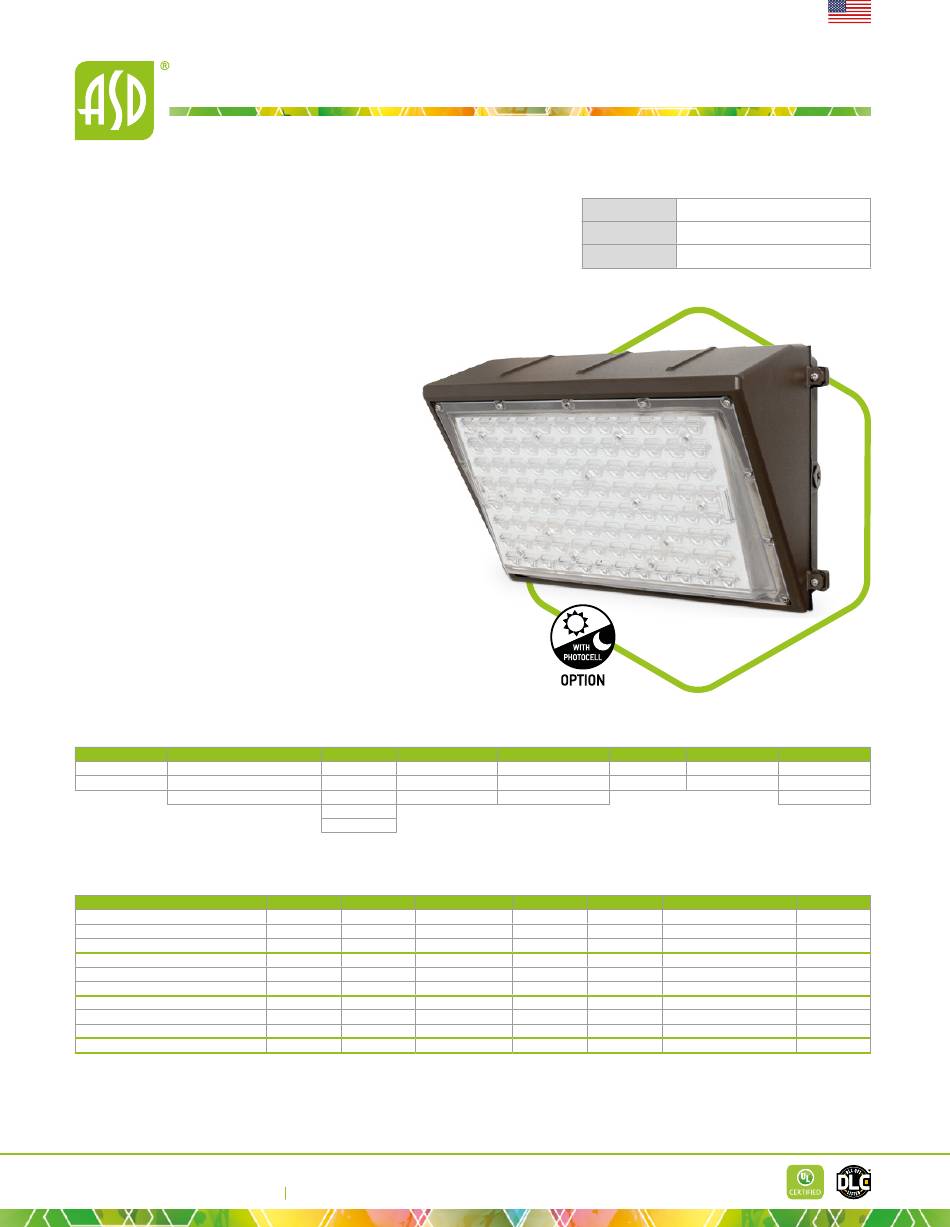

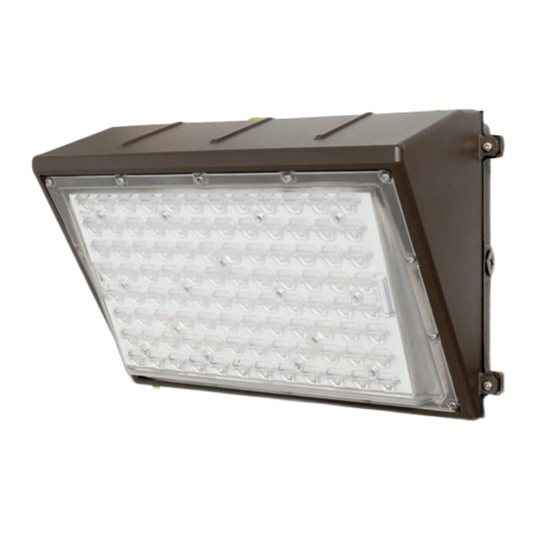

ASD new generation of traditional wallpack with optic lenses is the premier
choice for commercial and industrial lighting in a variety of settings, such as
entryways, parking lots, garages, warehouses, barns, sheds, public areas,
landscape and more.

FEATURES AND BENEFITS:

▶ Build-in dusk to down photocell sensor
▶ 400-Watt Metal Halide Replacement
▶ Easy to install, includes built in bubble level
▶ Dusk to down photocell available (optional)
▶ No maintenance
▶ Operating temperature of -4℉ to 104℉
▶ Wet location IP65 rated
▶ L-70 Life R > 36,000 hrs C > 180,000 hrs
▶ cULus certified
▶ DLC Standard
▶ 5 Year warranty

PRODUCT LEGEND:

Family Modification
ASD-WLP XXX
LED Wallpack 01L = optic lenses
01LS
= optic lenses 10" size
LED WALLPACK WITH OPTIC LENS:
Model
ASD-WLP01L-28N40B-PRM
ASD-WLP01L-28N50B-PRM
ASD-WLP01L-28N50B-PC-PRM
ASD-WLP01L-48N40B-PRM
ASD-WLP01L-48N40B-PC-PRM
ASD-WLP01L-48N50B-PC-PRM
ASD-WLP01LS-50N40B
ASD-WLP01LS-50N40B-PC
ASD-WLP01LS-50N50B-PC
ASD-WLP01L-75D40B-PRM
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Watts Dimmable
XX X
28 = 28 W N = Non-dimmable
48 D
= 48 W = Dimmable
50 = 50 W
75 = 75 W
Watts Dimmable CCT
28 - 4,000 K
28 - 5,000 K
28 - 5,000 K
48 - 4,000 K
48 - 4,000 K
48 - 5,000 K
50 - 4,000 K
50 - 4,000 K
50 - 5,000 K
75 0-10 V 4,000 K
Web site: www.asd-lighting.com
Catalog number
Notes
Type
CCT Finish
XX B
40 = 4,000 K Bronze PC
50
= 5,000 K
Lumens Option Dimensions (LxWxH)
3,429 lm - 10" x 5 7/8" x 5 1/2"
3,429 lm - 10" x 5 7/8" x 5 1/2"
3,460 lm Photocell 14 1/4" x 9 1/4" x 7 3/8"
6,478 lm - 14 3/8" x 9 1/4" x 7 3/8"
5,594 lm Photocell 14 1/4" x 9 1/4" x 7 3/8"
5,634 lm Photocell 14 1/4" x 9 1/4" x 7 3/8"
5,594 lm - 10" x 5 7/8" x 5 1/2"
5,594 lm Photocell 10" x 5 3/4" x 5 1/2"
5,634 lm Photocell 10" x 5 3/4" x 5 1/2"
9,889 lm - 14 3/8" x 9 1/4" x 7 3/8"
For most up-to-date spec sheets please refer to asd-lighting.com
