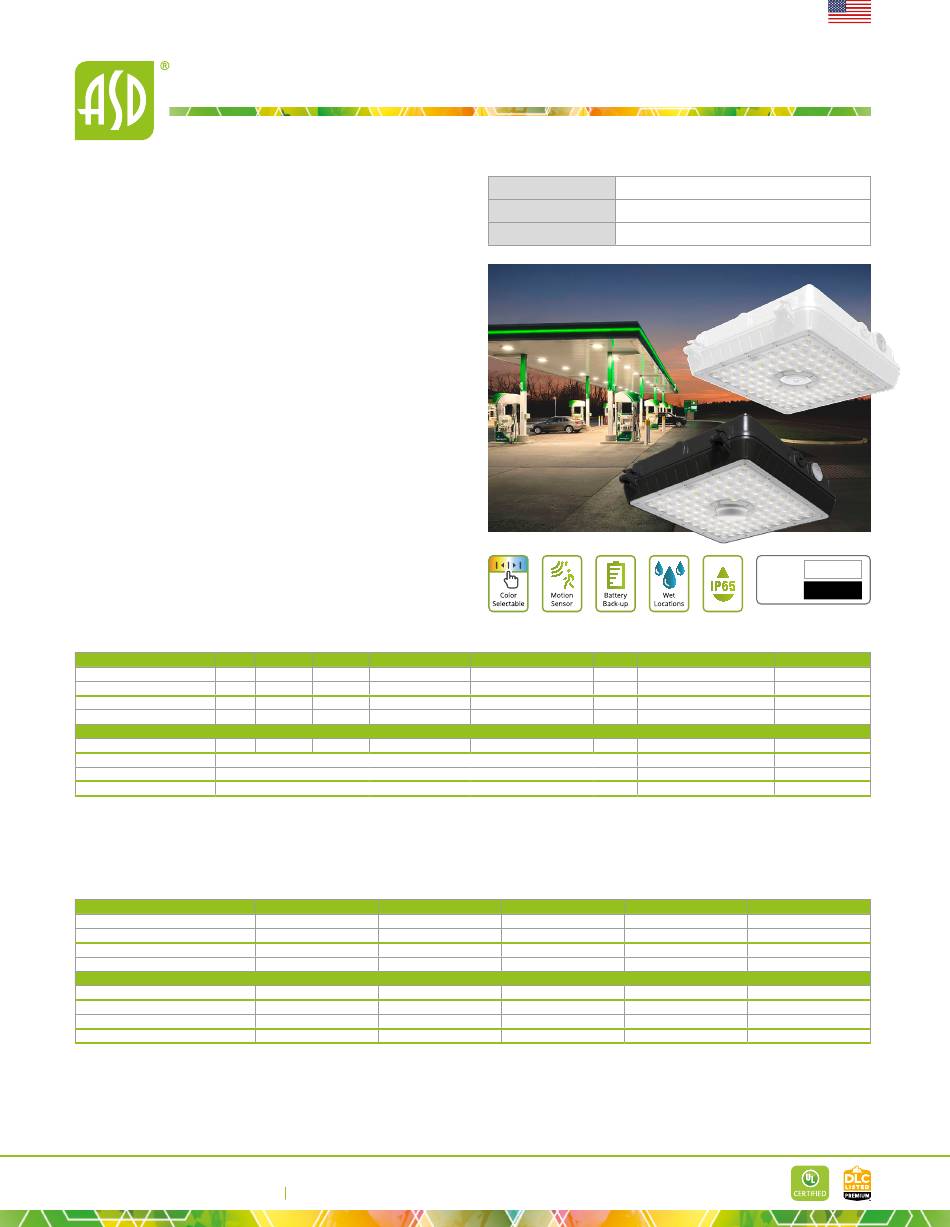

ASD -CAN07A-45DAC-WH Installation Manual

Q-BASE LED LOW-PROFILE CANOPY
DESIGN - Q-BASE LED LOW-PROFILE CANOPY has a built-in motion
▶
sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast
aluminum housing with excellent heat dissipation along with an anti-glare PC
lens provides many years of use. It is equipped with a removable hinge door for
quick and easy wiring. It is designed to operate on 120-277V circuits with a 1-10V
dimmable driver.
BATTERY BACK-UP - The built-in battery back-up provide 90 minutes of
▶
power in case of emergency.
COLOR SELECTABLE - You can choose either a 3,000K warm white,
▶
4,000K cool white or 5,000K daylight color temperature.
▶ Surge protection 6kV protects the fixture from voltage spikes and current
surges.
INSTALLATION - The fixture is Wet locations rated and can be either
▶
surface mounted or pole mounted. Perfect commercial or industrial solution for
parking garages, gas stations, stairwells, passageways, underpasses, and many
other applications.
ADVANTAGES - With calculated lifespan up to 150,000 hours, these
▶
fixtures are made to last decades under normal operation! ASD provides a 5-year
limited warranty along with UL and DLC Premium certifications to guarantee top
quality products and safety!
Model Watts
ASD-CAN07A-45DAC-WH 45W
ASD-CAN07A-45DAC-BK 45W
ASD-CAN07A-70DAC-WH 70W
ASD-CAN07A-70DAC-BK 70W
ASD-CAN07A-45DAC-8EM-BK 45W
HD09VR-MH Microwave motion sensor
HD09VR-PH PIR motion sensor
HD05R Remote control for motion sensor

ORDERING INFORMATION

Model
ASD-CAN07A-45DAC-WH
ASD-CAN07A-45DAC-BK
ASD-CAN07A-70DAC-WH
ASD-CAN07A-70DAC-BK
ASD-CAN07A-45DAC-8EM-BK
HD09VR-MH
HD09VR-PH
HD05R
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Voltage Dimmable Lumens
120-277 V 1-10 V 6,230/6,916/6,900 lm
120-277 V 1-10 V 6,230/6,916/6,900 lm
120-277 V 1-10 V 8,381/9,331/8,945 lm
120-277 V 1-10 V 8,381/9,331/8,945 lm
CAN07A-EM WITH BATTERY BACK-UP
120-277 V 1-10 V 6,230/6,916/6,900 lm
UPC Pcs. per carton
810128111157 6
810128111140 6
810128111171 6
810128111164 6
CAN07A-EM WITH BATTERY BACK-UP
810128111188 6
810128112284 120
810128112277 120
810050738767 78
Web site: www.asd-lighting.com
Catalog number
Notes
Type
CCT Finish
3CCT (3,000/4,000/5,000 K) White 10-9/16" x 9-13/16" x 2-15/16"
3CCT (3,000/4,000/5,000 K) Black 10-9/16" x 9-13/16" x 2-15/16"
3CCT (3,000/4,000/5,000 K) White 10-9/16" x 9-13/16" x 2-15/16"
3CCT (3,000/4,000/5,000 K) Black 10-9/16" x 9-13/16" x 2-15/16"
3CCT (3,000/4,000/5,000 K) Black 10-9/16" x 9-13/16" x 2-15/16"
2-1/8" x 2-1/8" x 1-5/16"
Carton size Carton weight
22.4" x 12.8" x 12.8"
22.4" x 12.8" x 12.8"
22.4" x 12.8" x 12.8"
22.4" x 12.8" x 12.8"
22.4" x 12.8" x 12.8"
15.8" x 11.8" x 9.3"
15.8" x 11.8" x 9.3"
15.8" x 11.8" x 9.3"
For most up-to-date spec sheets please refer to asd-lighting.com
English
White
Finish:
Black
Dimensions (LxWxH) Option
-
-
-
-
8W Battery back-up
-
2-1/8" x 2-1/8" x 1-5/8" -
5-1/2" x 2-5/16" x 7/8" -
GTIN 14
33.5 lbs 10810128111154
33.5 lbs 10810128111147
33.5 lbs 10810128111178
33.5 lbs 10810128111161
38.8 lbs 10810128111185
13.2 lbs 10810128112281
13.2 lbs 10810128112274
18.9 lbs 10810050738764
