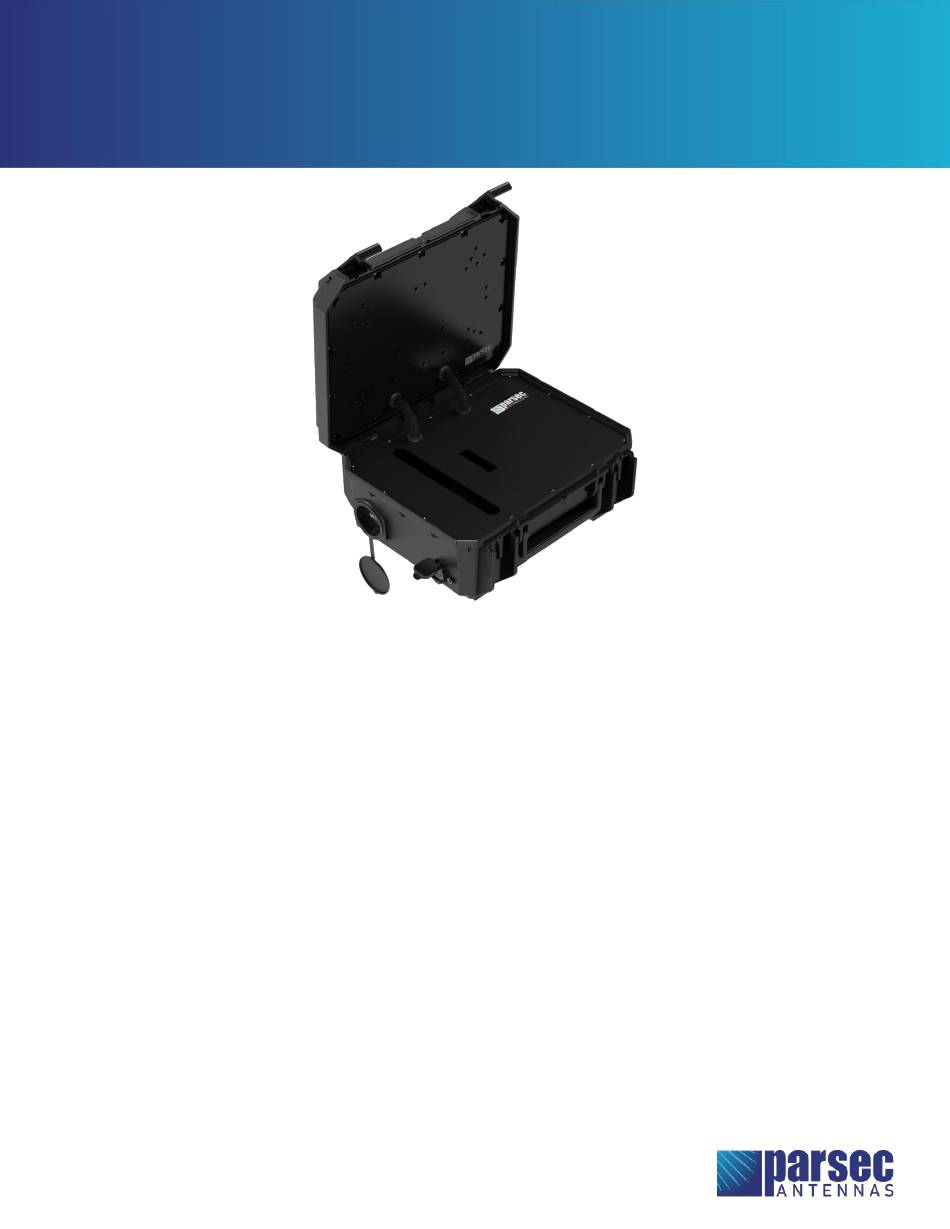

ST. BERNARD
Installation Instructions
Table of Contents
Antenna Versions......................................................................................................................................................................................... 2
Required Tools & Accessories ................................................................................................................................................................ 2
Battery and Router Installation .............................................................................................................................................................. 3
Connection ..................................................................................................................................................................................................... 6
Final Assembly ............................................................................................................................................................................................. 11
Antenna Setup ............................................................................................................................................................................................ 15
Battery Operation and Safety Guidelines ....................................................................................................................................... 18
* Conditions apply
Advertisement
Table of Contents
Related Manuals for Parsec Technologies ST. BERNARD PRO4SB
Summary of Contents for Parsec Technologies ST. BERNARD PRO4SB
-
Page 1: Table Of Contents
ST. BERNARD Installation Instructions Table of Contents Antenna Versions......................................2 Required Tools & Accessories ................................2 Battery and Router Installation ................................3 Connection ........................................6 Final Assembly ......................................11 Antenna Setup ......................................15 Battery Operation and Safety Guidelines ............................18 * Conditions apply... -
Page 2: Antenna Versions
Antenna Versions The St. Bernard case antenna comes in three versions – A, G, and L – with different features, listed below. St. Bernard A St. Bernard G St. Bernard L • AC Power Port • 4x RJ-45 Ports • AC Power Port •... -
Page 3: Battery And Router Installation
Battery and Router Installation Step 1: Mount the ChargeTech 54K battery pack to the cover plate (St. Bernard G only). A. This step only applies to the St. Bernard G. B. Remove the cover plate from the enclosure. C. Remove the pads from the side of the battery pack, shown in Figure 1. D. - Page 4 Figure 3: Fasten the battery tray with battery pack to the cover plate using PTA0368-B screws. (St. Bernard St. Bernard Installation Instructions Page 4 of 18...
- Page 5 Step 2: Mount the router to the cover plate. A. Align the router with the holes on the cover plate. Ensure the router orientation is correct. The router display should be on the left side. B. Mount the router using the four PTA0399-TL pan head screws provided in the kit, as shown in Figure C.
-
Page 6: Connection
Connection Figure 5: Connection Diagram for St. Bernard A & L St. Bernard Installation Instructions Page 6 of 18... - Page 7 Figure 6: Connection Diagram for St. Bernard G St. Bernard Installation Instructions Page 7 of 18...
- Page 8 Step 1: Connect the antenna cables to the router. A. Use canned air or isopropyl alcohol to clean all the connectors to ensure that there is no dust in the terminals. B. Connect the antenna cables to the designated terminals on the router, as shown in the tables and images below.
- Page 9 Step 2: Connect the power supply to the router. A. Connect the router power supply to the power supply port on the router, shown in Figure 7. B. For St. Bernard A & L, plug the router power supply into the AC power port on the case. C.
- Page 10 Step 5: Connect the USB-A port on the case to the battery pack (St. Bernard G only). A. This step only applies to the St. Bernard G. B. Plug the provided USB-A cord into the USB-A port on the case and the USB-A port on the battery pack, shown in Figure 9.
-
Page 11: Final Assembly
Final Assembly Step 1: Make sure all the cables and devices are properly connected. A. Inspect every cable connection and ensure that no connections are loose. B. Use cable ties or other wire management to neatly bundle the cables. Pack the cables neatly inside the bottom half of the case. - Page 12 Figure 11: Fully Connected 9in1 St. Bernard G with Cradlepoint IBR1700 Router...
- Page 13 Figure 12: Fully Connected 9in1 St. Bernard L with Cradlepoint IBR1700 Router...
- Page 14 Step 2: Fasten the cover plate to the case. A. Place the cover plate onto the bottom half of the case. Ensure that no cables are pinched between the cover plate and the case. B. Fasten the cover plate to the case using the fourteen PTA0071B black round head screws provided in the kit, as shown in Figure 13.
-
Page 15: Operational Setup
Operational Setup Step 1: Open the fan and vent caps (St. Bernard G & L only). A. This step only applies to the St. Bernard G and L. B. Before turning the antenna ON, always open the fan and vent caps. The type of cap may vary. Ensure that the antenna is away from any liquids when the caps are open. - Page 16 Step 3: Connect the antenna to a computer. A. Use an ethernet cable to connect a computer to one of the RJ-45 ports on the case that are connected to the LAN ports on the router. Step 4: Login to Cradlepoint NetCloud. A.
-
Page 17: Antenna Setup
Step 5: Select the antenna in the device list on Cradlepoint NetCloud. A. On the left side of the page, select STATUS. From the dropdown menu, select INTERNET and then CONNECTIONS. B. In the Device List table, select the option with a cellular SIM, as shown in Figure 17. Figure 17: Select the device with a cellular SIM in Cradlepoint NetCloud. -
Page 18: Battery Operation And Safety Guidelines
Battery Operation and Safety Guidelines A. To manually power ON/OFF, press and hold the power button (located on the top of the unit) for 3 seconds. All LED lights/display should turn ON/OFF. B. Holding the power button for longer than 3 seconds will cause the battery pack to enter programming mode. - Page 19 This document gives the detailed instructions to install an antenna to the best of our knowledge. This document is for general information only. It cannot be used as a warranty. Parsec Technologies Inc. will not accept any liability for any damage caused by an antenna due to unknown variables.
