ROTTWEILER
Installation Instructions

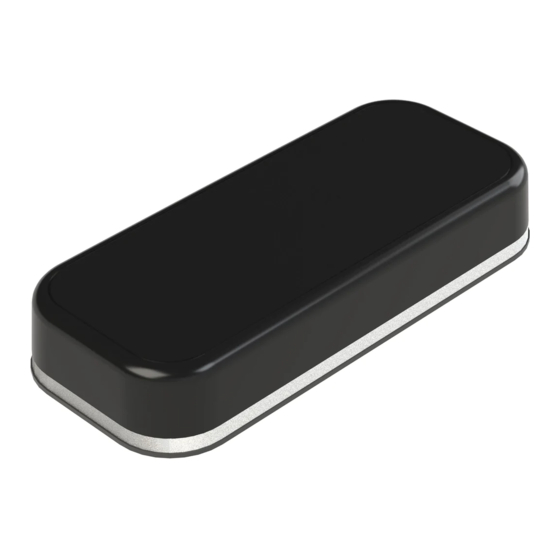

The Rottweiler antennas are high-performance, 5G,
CAT18 antennas, available with MIMO LTE, CBRS, Up to
3X WiFi, and GPS. The Doberman Series antennas are
perfect for mobile and fixed wireless applications.
OPTIONAL ACCESSORIES
PTA0251 - 1 inch Star Lock Washer
PTA0346 – Heavy Duty Hardware Kit ( Nut, Lock Washer and Flat Washer)
PTA0339 – Gasket Adapter for 2020 Charger (Roof Mounting)
PTA0340 – Gasket Adapter for 2020 Explorer (Roof Mounting)
REQUIRED TOOLS
Hammer / Rubber Mallet
Drill and 0.1in Drill Bit
Phillips Screwdriver
1 in Hole Saw
SMA Wrench
Mounting Options
Step 1.
Select a mounting location where there is no obstructions within a radius of
24in. and is easily accessible.
Step 2.
Select one of the mounting options below, depending on your use.
- Roof Mount
(Included)
Rottweiler antennas can be mounted on an automobile roof or any flat
surface using the hardware provided with it.
- Magnetic Mount
(Optional Part Number: PTA0330)
For temporary use. Doberman antennas can be mounted on any ferrous
metal surface using magnetic mount brackets.
- Pole Mount
(Optional Part Number: PTA0149)
Antennas can be mounted on a pole with an optional bracket. For more
information on mounting, view the pole mount instructions listed on our website.
Advertisement
Table of Contents
Related Manuals for Parsec Technologies ROTTWEILER
Summary of Contents for Parsec Technologies ROTTWEILER
- Page 1 Select one of the mounting options below, depending on your use. - Roof Mount (Included) Rottweiler antennas can be mounted on an automobile roof or any flat surface using the hardware provided with it. - Magnetic Mount (Optional Part Number: PTA0330) For temporary use.
- Page 2 Roof Mount Instructions Preparing the Hole Step 1. After selecting the location to mount the Antenna, mask the mounting location to avoid paint damage. Mark the hole center with ink or scribed cross hairs. Step 2. Use a center punch to make a dimple on the marked location to avoid drill bits from walking across the sheet metal. Use a Twist drill of diameter about 0.1”...
- Page 3 Step 3. Lift the antenna and remove the protective backing from the underside of the antenna and place the antenna back in the desired position. Apply downward pressure on the antenna to stick it to the panel. This step is optional if you plan on mounting the antenna magnetically.
- Page 4 Magnetic Mount Instructions (PTA0330) Step 1. Choose a mounting location. The magnetic mount can be mounted on ferromagnetic metals like iron, steel, nickel etc but not aluminum, copper etc. Step 2. Make sure all of the magnets stick firmly to the base. If the surface is a curve adjust the magnets heights using washer. Step 3.
- Page 5 Connect the GPS / GNNS cable to the GPS / GNNS receiver and check for satelite acquisition. Connect the Cellular / LTE & WLAN cables or stow unused pigtails. Parsec Technologies 972-804-4600 support@parsec-t.com Last Revised: 3.9.2021...
