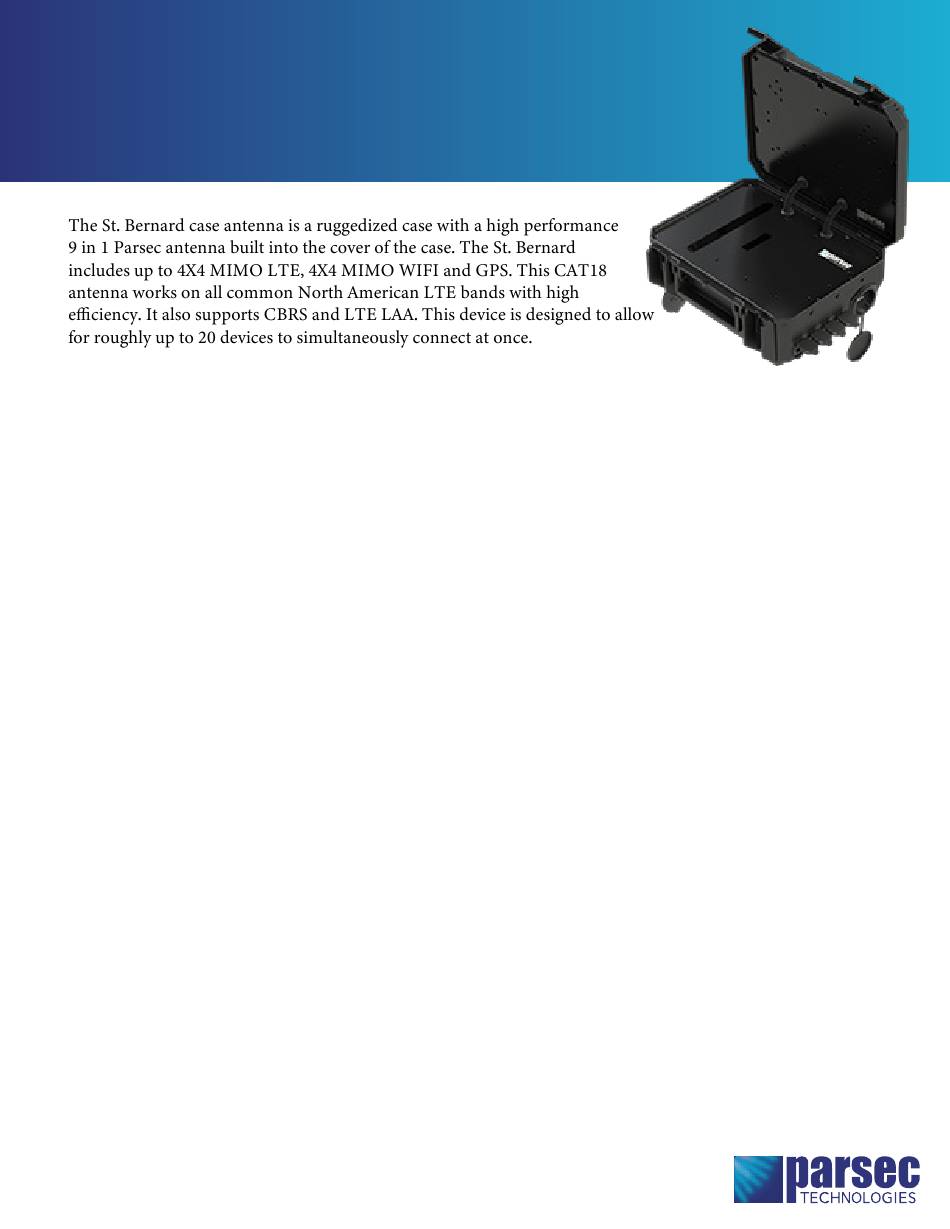

ST. BERNARD
Installation Instructions
REQUIRED TOOLS
Phillips Screwdriver
9" Zip Ties
Scissors
REQUIRED ACCESSORIES (PRO9SB4L4WG-L OR PRO9SB4L4WG-A)
Router: CRADLEPOINT IBR1700-1200M
Ethernet Cords: 4pc (Length as required by the customer)(Not required for A version)
Power Supply (required for router)
Extension Cord (NEMA 5-15 Plug to NEMA 5-15 Socket)
REQUIRED ACCESSORIES (PRO9SB4L4WG-G)
Router: CRADLEPOINT IBR1700-1200M
Battery: Chargetech 54k AC Battery Pack (OPTIONAL)
Ethernet Cords: 4pc (Length as required by the customer)
USB Cords - 1 pc (length as required by the customer)
Power Supply (required for router)
Extension Cord (NEMA 5-15 Plug to NEMA 5-15 Socket)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST. BERNARD and is the answer not in the manual?

Questions and answers

Summary of Contents for Parsec Technologies ST. BERNARD

  • Page 1 ST. BERNARD Installation Instructions REQUIRED TOOLS Phillips Screwdriver 9” Zip Ties Scissors REQUIRED ACCESSORIES (PRO9SB4L4WG-L OR PRO9SB4L4WG-A) Router: CRADLEPOINT IBR1700-1200M Ethernet Cords: 4pc (Length as required by the customer)(Not required for A version) Power Supply (required for router) Extension Cord (NEMA 5-15 Plug to NEMA 5-15 Socket)
  • Page 2: Router Installation

    Router Installation: Step 1. Check the power options available on the case. - For PRO9SB4L4WG-G: Install the battery on the top cover plate as directed in the “Router Power Options” step. - For PRO9SB4L4WG-L or PRO9SB4L4WG-A: No Battery Option. Step 2. Install an activated SIM into the Router.
  • Page 3 Step 4. Connect the Antenna cables to the router. Clean all connectors so there is no dust in the terminals. Follow the chart to connect the cables. (Figures 2-4) FIGURE 2 FIGURE 3 FIGURE 4...
  • Page 4 Step 5. Choose the right AC power supply unit for the router and connect it to the router. (Figure 5) FIGURE 5 Step 6. Match the mount holes on the router to the mounting holes on the router mount base plate. Fasten the router to the base using the four 1/4-20, 1/4 inch screws provided in the kit.
  • Page 5 Router and Case connection Instructions: Step 1. Choose four ethernet ports on the router that you are going to use the most. (LAN or WAN) Connect ethernet cords from the four you require and connect them to the ports on the case. (It is recommended to choose 1 WAN and 2 LAN) (Figure 7) FIGURE 7 Step 2.
  • Page 6 Router Power Options: PRO9SB4L4WG-G has the option of a battery. Parsec provides a battery tray for the Chargetech 54k Battery. To install the Chargetech 54k battery follow the instructions below. Step 1. Insert the battery in the battery tray. (Figure 9) Step 2.
  • Page 7 Step 4. Connect the DC adapter installed on the case to the DC charging port on the battery. To charge the battery, use the charger provided with the battery and connect the DC barrel plug on the charger to the case. (Figure 12 & 13) FIGURE 12 FIGURE 13 Step 5.
  • Page 8 Router Power Options (Continued): PRO9SB4L4WG-L and PRO9SB4L4WG-A comes with an AC adapter with 16-inch extension cord. Parsec provides an AC adapter mounted on the case for L and G versions. For powering the router with the AC adapter follow the instructions below. Step 1.
  • Page 9: Antenna Operation

    Antenna Operation: Step 1. Make sure all cables are properly connected. Check all of the connections and make sure there is no loose connections. Step 2. Before turning on the antenna, always snap the fan and vent caps open. (Figure 16) FIGURE 16 Step 3.
  • Page 10 Step 5. Connect a network cable between the ethernet ports on a computer and one of the ethernet ports on the antenna enclosure. Make sure you are connected to a LAN port and not a WAN port. Step 6. Bring up a web browser on the computer and type 192.168.0.1 into the address bar. You should see the Cradlepoint login. (Figure 18) Step 7.
  • Page 11 20 cm from all persons to only. It cannot be used as a warranty. Parsec Technologies, Inc. will - Install the mast close to power lines as it can cause serious injuries satisfy RF exposure compliance.
