BEAGLE
PRO5B2L2WG-G
Installation and Operation Manual

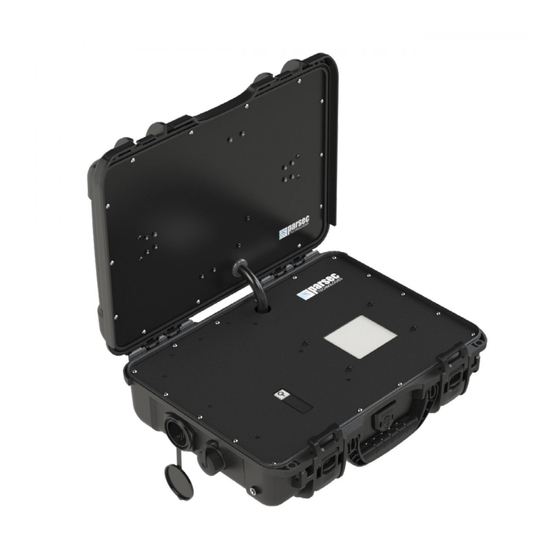

Parsec's Beagle is a low profile five-in-one MIMO LTE,
MIMO Wi-Fi, and GNSS external waterproof antenna.
This rugged low-profile omni-directional antenna
works on most of the common European LTE bands
with high efficiency. The Beagle is optimized for LTE
isolation.
REQUIRED TOOLS
Phillips Screwdriver
9" Zip Ties
Scissors
REQUIRED ACCESSORIES
Router (select one of the following routers.)
•
CRADLEPOINT IBR900
•
CRADLEPOINT IBR600
•
AIRLINK MP70
Ethernet Cords: 2pc (Length as required by the customer)(Not required for A version)
ChargeTech 27k Battery 3.0 version
Power Supply 12V Cradlepoint Part#: 170717-000
Advertisement
Table of Contents
Related Manuals for Parsec Technologies Beagle PRO5B2L2WG-G
Summary of Contents for Parsec Technologies Beagle PRO5B2L2WG-G
- Page 1 BEAGLE PRO5B2L2WG-G Installation and Operation Manual Parsec’s Beagle is a low profile five-in-one MIMO LTE, MIMO Wi-Fi, and GNSS external waterproof antenna. This rugged low-profile omni-directional antenna works on most of the common European LTE bands with high efficiency. The Beagle is optimized for LTE isolation.
- Page 2 Battery and Router Installation: Step 1. Insert the battery into the battery tray. (Figure 1) Step 2. Place the top cover plate on the battery tray and fasten the battery tray to the top cover plate using six 6-32 flat head screw provided in the kit.
- Page 3 Connection Instructions: Note: SMA connectors have a maximum torque of 3-5 inch lbs. Step 1. Thread the antenna cables through the cover plate. Connect the antenna cables to the router as shown in the table. (Figure 5) FIGURE 5 Step 2. Connect the USB connector of the fan to the USB port on the Router.
- Page 4 Step 5. Connect the 4 pin connector of the power supply to the router. FIGURE 6 (STEPS 6-9) Cables Correctly Installed Step 6. Place the top cover plate on the enclosure and fasten it to the enclosure using the 14 thread forming screws provided in the kit.
- Page 5 Antenna Operation: Step 1. Open the Beagle antenna enclosure and check the battery level on the LCD screen. Make sure the power switch is OFF. If the battery level is lower than 25% plug in the battery charger and charge the battery until it is at 100%. Turn OFF the AC switch when charging to switch OFF the router.
- Page 6 Step 4. Connect a network cable between the ethernet ports on a computer and one of the ethernet ports on the antenna enclosure. Make sure you are connected to a LAN port and not a WAN port. Step 5. Bring up a web browser on the computer and type 192.168.0.1 into the address bar. You should see the Cradlepoint login. (Figure 14 Step 6.
- Page 7 20 cm from all persons to only. It cannot be used as a warranty. Parsec Technologies, Inc. will - Install the mast close to power lines as it can cause serious injuries satisfy RF exposure compliance.
