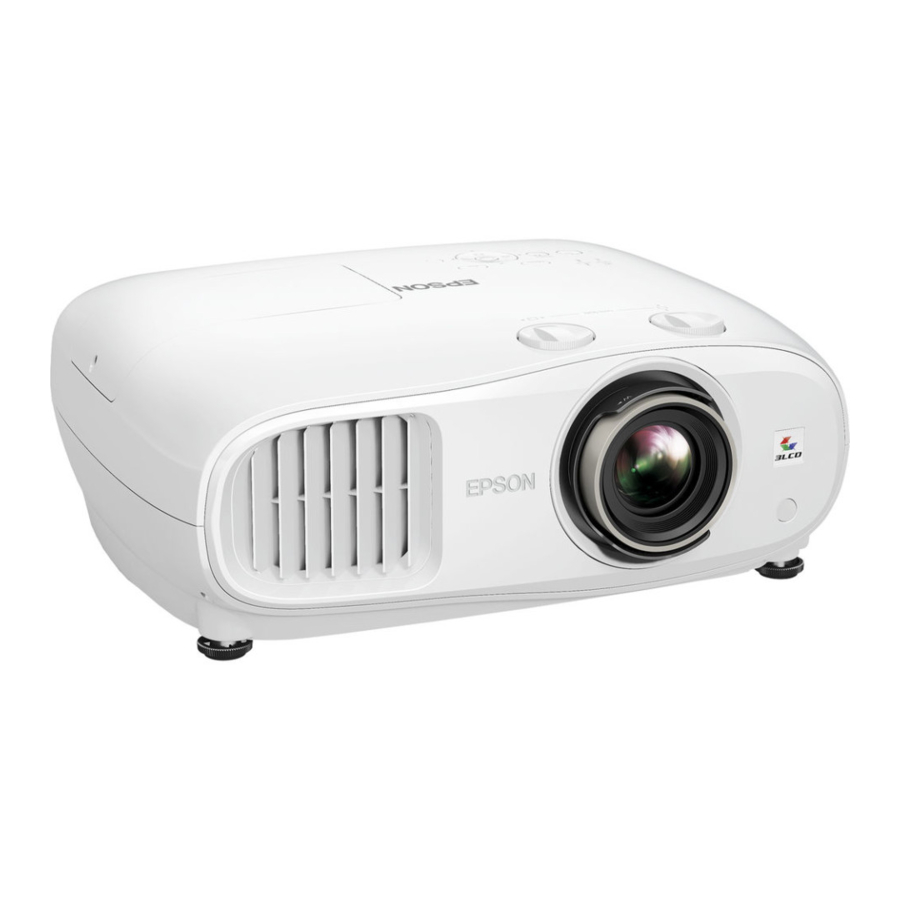

Epson Home Cinema 3200 / 3800 Series Manual

Connect the device

Connect two video devices or computers simultaneously with a commercially available HDMI cable. Use the Source buttons on the remote control or the Home and arrow buttons on the projector to switch between them.

Note: The DC Out (2.0A) port provides power to streaming media devices.

For more details and additional connection types, see the online User's Guide.

Connect audio

External speakers

You can connect the projector to external self-powered speakers through the Audio Out port.
Note: If you connect external speakers to the Home Cinema 3800, the projector's internal speakers are muted.

Bluetooth devices

You can pair a Bluetooth device to the projector to output audio from a device connected to one of the HDMI ports. See the online User's Guide for instructions.

Turn on your equipment

1. Turn on your video source or computer.
2. Plug in the projector.

3. Remove the lens cap.
4. Press the power button on the projector or the On button on the remote control. The power light flashes blue, then stays on.
   Note: To shut down the projector, press the power button on the projector or the Standby button on the remote control, then press the button again to confirm, if necessary. Wait for the projector to cool down before unplugging it.

5. Use the arrow buttons on the projector or remote control to highlight any of the options that appear on the Home screen, then press Enter to select it. You can switch between projection sources and quickly access various adjustment options from this screen.

6. The default language of the menu system is English. To select another language, press the Menu button on the projector or remote control. Select Extended and press Enter. Select Language and press Enter. Select your language and press Enter. Press the Menu button to exit the menu system.

Adjust the image

1. If you don't see an image, press one of the Source buttons on the remote control or the Home and arrow buttons on the projector to select the image source.
   Note: If you still see a blank screen or have other display problems, see the troubleshooting tips on the back of this sheet.
2. For the best image quality, place the projector directly in front of the center of the screen, facing the screen squarely. If this is not possible, turn the horizontal and vertical lens shift dials to adjust the image position and center it on the screen.

3. If the image is tilted, adjust the front feet as shown below.

4. Turn the zoom ring to reduce or enlarge the image.

5. Turn the focus ring to sharpen the image.

6. If your image is uneven on the sides, you can use the keystone correction feature to adjust the image. To use this feature, you must first set the lens to the center-top position using the lens shift dials.


Press the or button on the projector to display the keystone correction screen. Press the or button (Home Cinema 3200), or the or button (Home Cinema 3800) to correct for horizontal keystone distortion. Press the or button to correct for vertical keystone distortion.

Using the remote control

Make sure the batteries are installed as shown (two AA batteries).

For more information on using the remote control, see the online User's Guide.

Viewing 3D images

To view 3D content, you must first connect a 3D-compatible video device to one of the HDMI ports on your projector. You will also need a pair of Epson (part number V12H548006) or Epson-compatible RF 3D active shutter glasses

1. Turn on and begin playback on the 3D-compatible video device.
   Note: Make sure you set the video device to play content in 3D mode.
2. Press the 3D Format button on the remote control, if necessary.
3. Slide the power switch on your 3D glasses to the On position.


Note: If the glasses don't automatically display 3D content, you may need to pair them with the projector. Move the glasses within 10 feet (3 m) of the projector, then press and hold the Pairing button on the 3D glasses for at least 3 seconds. The status light on the glasses will alternately flash green and red, then remain green for 10 seconds if pairing is successful.

See the online User's Guide for more information on adjusting 3D images.

Troubleshooting

• If you see a No signal message after turning on the projector

Make sure your video device or computer is properly connected.

• If you see a blank screen

Check the following:

• Make sure the power light on the projector is blue and not flashing.
• Press the power button to wake the projector from standby or sleep mode, if necessary.
• Press one of the Source buttons on the remote control or the Home and arrow buttons on the projector to switch to the correct image source, if necessary.

• If you see a blank screen when a computer is connected
  Check the following:
  • On some Windows laptops, you may need to hold down the Fn key and press F7 or the function key that lets you display on an external monitor. It may be labeled CRT/LCD or have an icon such as .
    On Windows 7 or later, hold down the Windows key and press P at the same time, then click Duplicate.
  • If you're using a Mac laptop, open System Preferences and select Displays. Click the Arrangement tab and select the Mirror Displays checkbox.

• If the keystone correction feature doesn't correct the image

Make sure you first set the lens to the center-top position using the horizontal and vertical lens shift dials.

• If 3D images aren't displaying properly

Check the following:

• Press the Menu button on the projector or remote control, select the Signal menu, then 3D Setup, then select 3D Display. Make sure that the 3D option is selected. You may also need to set the Diagonal Screen Size setting in the Signal menu. See the online User's Guide for more information.
• Make sure to wear the 3D glasses within 32 feet (10 m) of the projector.
• Check that your 3D glasses have not entered standby mode. Slide the power switch on the 3D glasses into the Off position, then back to the On position.
• Check that your video device and media are both 3D-compatible. Refer to the documentation that came with your video device for more information.

• If the projector does not respond to remote control commands
  Make sure the batteries in the remote control are installed correctly. Replace the batteries, if necessary.

Where to get help

Internet support
Visit www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and search for your product to download software and utilities, view the manual, get FAQs and troubleshooting advice, or contact Epson.

Telephone support services
To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the duration of your warranty period. You may also speak with a support specialist by calling (562) 276-4394 (U.S.) or (905) 709-3839 (Canada).
Support hours are 6 am to 8 pm, Pacific Time, Monday through Friday, and 7 am to 4 pm, Pacific Time, Saturday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Registration
Register today to get product updates and exclusive offers. You can register online at www.epson.com/webreg.

Optional accessories

For a list of optional accessories, see the online User's Guide.
You can purchase RF 3D glasses (part number V12H548006) or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epsonstore.ca (Canadian sales).
