Epson PowerLite Pro Cinema LS9600e - 1080p Laser Home Theater Projector Quick Setup Guide Manual
Choose a location

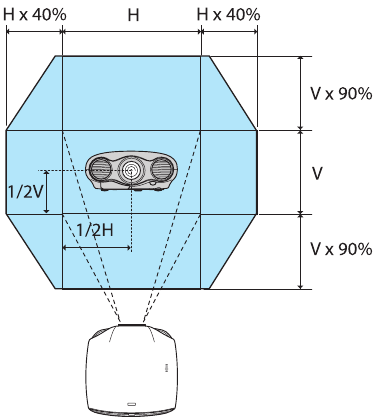

Keep the projector level and place it at a height so its lens is even with the top or bottom of the screen and is centered horizontally. If this isn't possible, use the lens shift feature or the keystone correction button on the projector to reposition the image (see "Adjust the image").

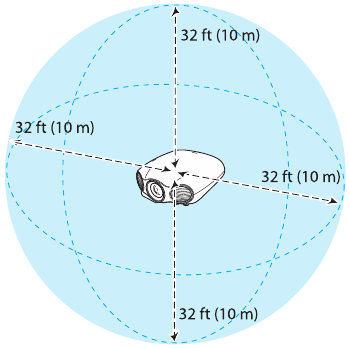

In order to view 3D images correctly, RF 3D glasses must be worn within 32 feet (10 m) of the projector. Use the image below to determine the viewing distance for 3D projection (the shading represents the 3D viewing area):
Connect the projector
Choose from the following connections.
Video device
- Loosen the two screws at the bottom of the cable cover, then pull the cover forward.
- Lift the cable cover out of the grooves at the top.

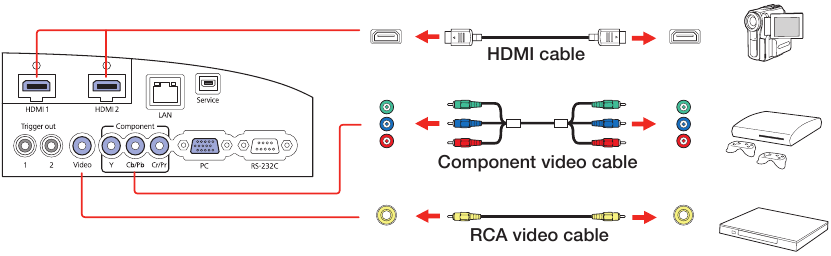

- Connect up to 4 video devices and use the Source buttons on the remote control or the button on the projector to switch between them.
WirelessHD Transmitter
Follow these steps to set up the included WirelessHD Transmitter.

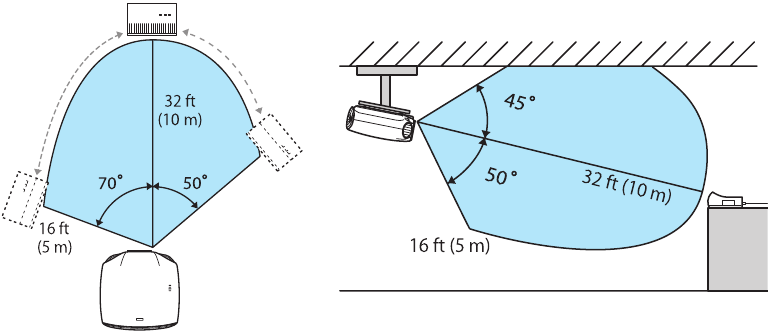

- Place the transmitter within 32 feet (10 m) of the projector. Make sure the front of the transmitter faces the front of the projector.

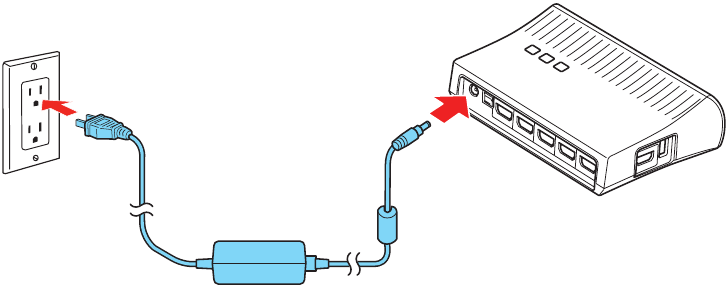

Note: Do not place the transmitter on a metal surface, as this may interfere with the signal. Make sure there are no obstructions between the transmitter and the projector. - Plug the AC adapter into the transmitter and a wall outlet.

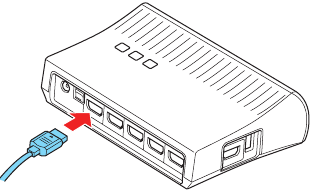

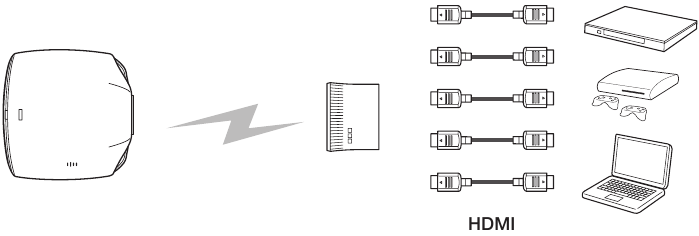

- Connect the HDMI cables to your video input devices and the HDMI ports on the side and back of the WirelessHD Transmitter. You can connect up to five input devices to the transmitter. See "Viewing WirelessHD content" for information on switching between input sources
Note: You can connect tablets, smartphones and other devices that support the MHL™ standard to the HDMI port on the side of the WirelessHD Transmitter. Devices that use an MHL connection include the Samsung™ Galaxy Note™ II and the Roku® Streaming Stick™. Some devices may require an adapter or may not require an MHL cable. Not all features or functions may be supported. Check your device's documentation for more information. - To use the transmitter as a pass-through device to a television or other display, connect an HDMI cable to the display device and the HDMI output port on the rear of the transmitter. See "Viewing WirelessHD content" for information on switching between wireless and wired display modes.
Turn on your equipment
- Turn on your video source.

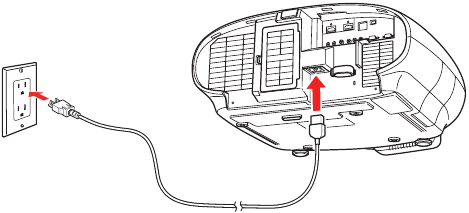

- Plug in the projector.

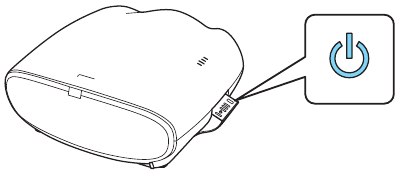

- Press the power button on the projector or the On button on the remote control. The shutter opens and the power light flashes blue, then stays on.
Note: To shut down the projector, press the power button on the projector or the Standby button on the remote control, then unplug it. You don't have to wait for the projector to cool down. - The default language of the menu system is English. To select another language, press the Menu button on the projector or remote control. Select Settings and press Enter. Select Language and press Enter. Select your language and press Enter. Press the Menu button to exit the menu system.
Using the remote control
Make sure the batteries are installed as shown (two AA batteries).
Adjust the image
- Press the Pattern button on the remote control to display a test pattern.

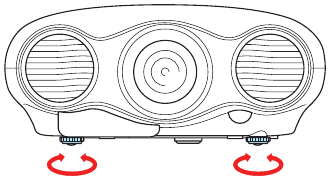

- To raise the image or correct a tilted image, adjust the front feet as shown below.

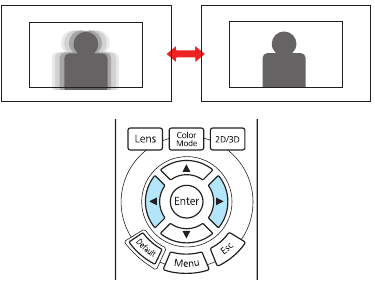

- Press the Lens button on the remote control and use the and buttons to focus the image.

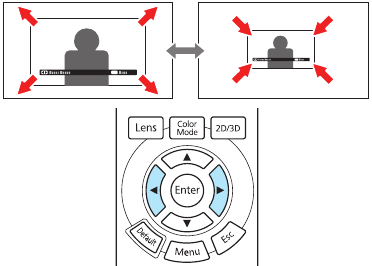

- Press the Lens button on the remote control again and use the and buttons to reduce or enlarge the image.
- Press the Lens button on the remote control again and use the , , and buttons to reposition the image.

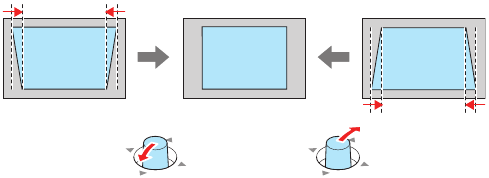

Note: Using the keystone adjustment can affect the size and effective resolution of your image. If possible, change the position of your projector to eliminate the keystone effect and use the lens shift option to position the image as necessary. - If your image looks like or , you can use the button to correct this.
Note: Using the keystone adjustment can affect the size and effective resolution of your image. If possible, change the position of your projector to eliminate the keystone effect and use the lens shift option to position the image as necessary.
Viewing 3D images
To view 3D content, you must first connect a 3D-compatible video device to one of the HDMI ports on your projector.
- Turn on and begin playback on the 3D-compatible video device.
Note: Make sure you set the video device to play content in 3D mode. - Press the 2D/3D button on the remote control, if necessary.

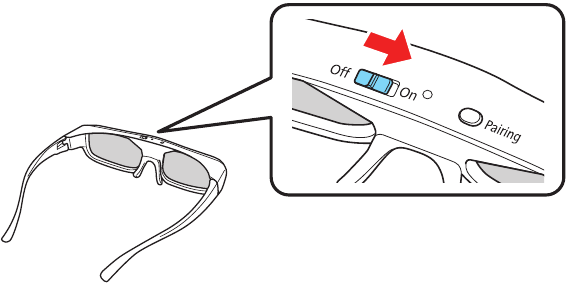

- Slide the power switch on your 3D glasses to the On position.

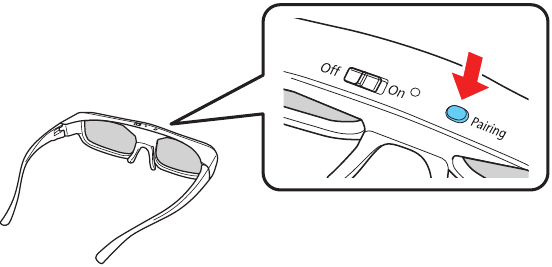

Note: If the glasses don't automatically display 3D content, you may need to pair them with the projector. Move the glasses within 10 feet (3 m) of the projector, then press and hold the Pairing button on the 3D glasses for at least 3 seconds. The status light on the glasses will alternately flash green and red, then remain green for 10 seconds if pairing is successful.
You can also automatically convert 2D HDMI content to 3D. To enable the 2D-to-3D Conversion option, press the Menu button on the projector or remote control. Select Signal and press Enter, then select 3D Setup and press Enter. Select 2D-to-3D Conversion and press Enter. Select the Weak, Medium, or Strong setting, then press Enter.
Viewing WirelessHD content
- Turn on your video device and begin playback.
- Turn on the power switch on the side of the WirelessHD Transmitter.
- Turn on the projector.

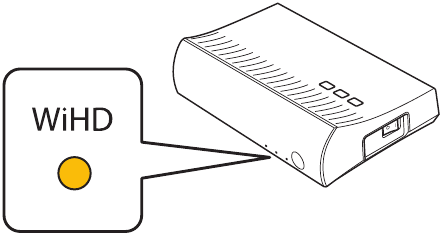

- If you have connected a television or other display to the output port on the transmitter and want to switch between wired and wireless display modes, press the Output button on the remote control or transmitter. The WiHD light on the transmitter lights up when the wireless display mode is active.
- Press the WirelessHD button on the projector remote control.
Note: If the WirelessHD connection fails, see the "Troubleshooting" section. - If you have connected multiple input devices to the transmitter, press the Input button on the remote control or transmitter once to display the sub-screen menu, then press the button again to switch between the input devices.
- To display two WirelessHD input devices simultaneously, press the P-in-P button on the bottom of the remote control to enable picture-in-picture mode. Press and hold the P-in-P button for three seconds to switch the main image and sub-screen, or press the P-in-P button again to disable picture-in-picture mode.
Troubleshooting
If you see a blank screen or the No signal message after turning on your video device or computer, check the following:
- Make sure the power light on the projector is blue and not flashing.
- Press the button on the projector or one of the Source buttons on the remote control to switch to the correct image source, if necessary.
- If you're using a Windows® laptop, press the function key on your keyboard that lets you display on an external monitor. It may be labeled CRT/LCD or have an icon such as . You may have to hold down the Fn key while pressing it (such as Fn + F7). Wait a moment for the display to appear.
- If you're using a Mac laptop, open System Preferences and select Displays. Select the VGA Display or Color LCD option if necessary, then click the Arrange or Arrangement tab, and select the Mirror Displays checkbox.
If 3D images aren't displaying properly, check the following:
- Press the 2D/3D button to switch to 3D viewing mode, if necessary.
- Make sure that you are within the 3D viewing range. For more information, see the section "Select a location".
- Check that your 3D glasses have not entered standby mode. Slide the power switch on the 3D glasses to the Off position, then back to the On position.
- Press the Menu button on your remote control, select the Signal menu, then 3D Setup, then select 3D Format. Make sure that the Auto option is selected.
- Check that your video device and media are both 3D-compatible. Refer to the documentation that came with your video device for more information.
If WirelessHD content isn't displaying properly, check the following:
- Check that the Link light on the transmitter is lit. If the light is flashing slowly, the transmitter could not connect with the projector and has entered standby mode. Verify that the projector is turned on and that all cables are properly connected as shown in the "WirelessHD Transmitter" section.
If the Link light continues to flash, press the Input button on the transmitter and wait 5-10 seconds for the Link light to stay lit. Repeat this procedure up to five times. If the transmitter still hasn't connected to the projector, press the Reset button on the bottom of the transmitter and try again. - Make sure the WirelessHD Transmitter is within 32 feet (10 m) of the projector, isn't obstructed by any large objects and is not placed on a metal surface.
- If you are viewing wireless content, make sure that the WiHD light on the transmitter is lit. If it isn't, press the Output button on the remote control or transmitter.
Where to get help
Telephone support services
To use the Epson® PrivateLine® Support service, call (800) 637-7661. This service is available for the duration of your warranty period. You may also speak with a support specialist by calling (562) 276-4394 (US) or (905) 709-3839 (Canada).
Support hours are 6 am to 8 pm, Pacific Time, Monday through Friday, and 7 to 4 pm, Pacific Time, Saturday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.
Internet support
Visit epson.com/support (U.S.) or epson.ca/support (Canada) for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson.
Registration
Register today to get product updates and exclusive offers. You can use the CD included with your projector or register online at epson.com/webreg.
Optional accessories
You can purchase RF 3D glasses (part number V12H548006) or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).
