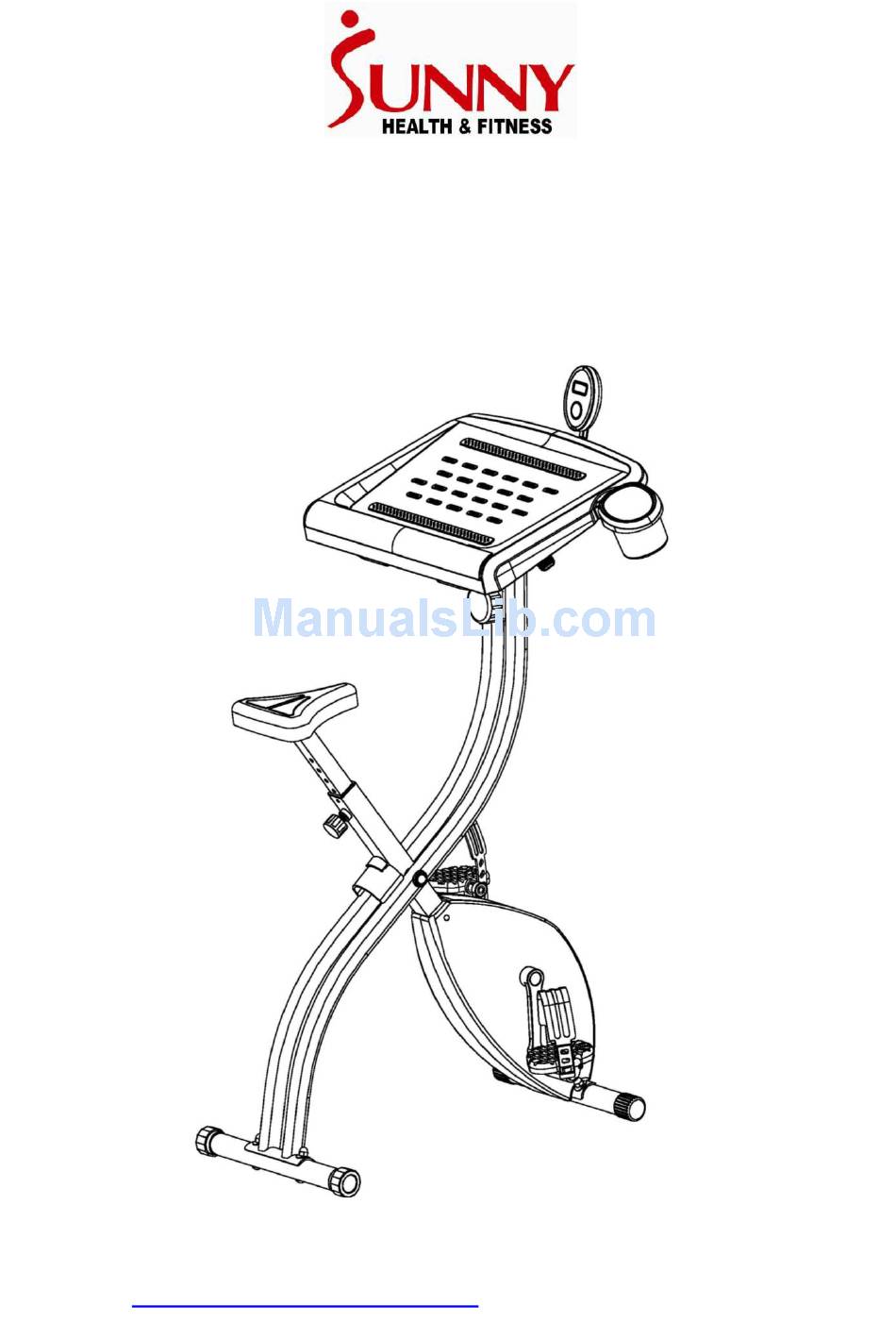

- Page 1 CONVERTIBLE WORKS FOLDING BIKE SF-BD2701 USER MANUAL IMPORTANT: Please read this manual carefully before using the product. Retain owner’s manual for future reference. For Customer Service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST ITEM NAME ITEM NAME Main frame Seat Front stabilizer Pop-pin knob Rear stabilizer Acorn nut Saddle post Arch washer Handlebar Carriage bolt 6L/R Crank 1 pair Rear end caps 7L/R Pedal 1 pair Desk Meter Fixing bracket Flat washer Clamping sheet Nylon nut Foam grip... -
Page 5: Hardware Package
HARDWARE PACKAGE... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Attach the Front Stabilizer (No. 2) and the Rear Stabilizer (No. 3) to the Main Frame (No. 1) using 4 Carriage Bolts (No. 20), 4 Arc Washers (No. 19) and 4 Acorn Nuts (No. 18). Tighten with Spanner tool. - Page 7 STEP 2: 1. Attach the Computer Bracket (No. 12) to the Main Frame (No. 1) with Cross Pan Head Screws (No. 13) tightly. 2. To install the Handlebar (No. 5), first remove Handlebar (No. 5) from the Desk (No. 22) by opening the clasps. Press the tab on Fixing Bracket (No. 24) to open the clasps, as shown in Figure A.
- Page 8 STEP 3: Insert the Computer (No. 8) onto the Computer bracket (No. 12) at the top of the Handlebar (No. 5). Connect the Sensor Wire (No. 14) to the Computer Wire (No. 8) together. STEP 4: Attach the Pedals (No. 7 L/R) to the corresponding Crank (No. 6 L/R) individually. The Pedals are marked L for Left and R for Right.
-
Page 9: Folding Instructions
STEP 5: Fix the Saddle (No. 16) to the Saddle Post (No. 4) with 3 Flat Washers (No. 9) and 3 Nylon Nuts (No. 10), which are preassembled on the equipment, then insert the Saddle Post (No. 4) into the Main Frame (No. 1). Adjust the Saddle (No. 16) to the desired height then secure it with Pop-pin Knob (No. - Page 10 EXERCISE MONITOR SPECIFICATIONS TIME--------------------------------------------------00:00-99:59 MIN:SEC SPEED-------------------------------------------------0.0-999.9 MPH DISTANCE----------------------------------------------0.00-99.99 MPH CALORIES----------------------------------------------0.0-999.9 KCAL KEY FUNCTIONS 1. MODE: Press this button to select the desired function. Hold the MODE button for 4 seconds to reset all values. FUNCTIONS 1. TIME (TMR): Counts the time elapsed from start to finish. 2.
