- Page 1 Gallagher SMB Kit Installation Note Gallagher SMB Kit: C500300 Edition 5.2 | December 2023...
-
Page 2: Kit Contents

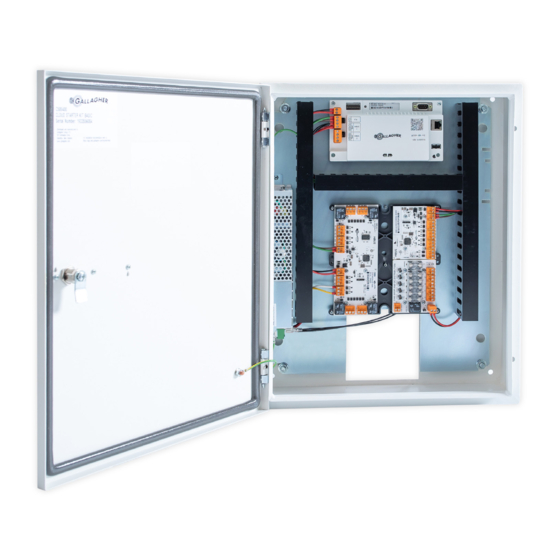

Introduction Thank you for choosing Gallagher. The Gallagher SMB security solution has been designed to meet the security needs for small to medium businesses. It is a fully integrated cloud-based security system the offers intruder alarm, access control, and user management all within one mobile app. - Page 3 What's connected? The hardware within the kit is pre-wired to support the site's default software configuration. Controller Reader Earth Permaconn PM54 Power In OUT 1 OUT 2 IN 8 IN 7 IN 1 HBUS IN 6 IN 2 8In Board IN 5 IN 3 IN 4...
-
Page 4: Installation
Installation The installation of this kit must be carried out by a Gallagher Install Partner. Complete the instructions in this document to install the kit. ATTENTION: This equipment contains components that can be damaged by electrostatic discharge. Ensure both you and the equipment are earthed before beginning any servicing. - Page 5 • Knockouts The knockouts in the side panels of the cabinet can be drilled out (or 'cut out'). Each knockout has a 'dimple' in the centre to aid alignment of a drill or other cutting tool. The knockouts are designed for use with a maximum conduit size of 25 mm (1") and for use with PVC conduit terminators and appropriate cable glands.
- Page 6 2. Install readers The default configuration provides allocation for one reader. It is recommended at least one reader be configured to a site. This allows a user to arm or disarm locally using their smartphone, in the event that the site losses internet connectivity. The smartphone uses Bluetooth to communicate with the reader.
- Page 7 No. 6 pan head screw Bezel Building cable No. 6 pan head screw Building cable Reader tail Facia Connection Fit screw to secure facia to bezel...
-
Page 8: Connect Inputs And Outputs
For tamper detection, the balanced inputs require resistors to be connected as close as possible to the device being monitored. When the monitored device incorporates a normally- closed tamper switch, it can be wired in series with resistor R1. Gallagher 8In 4Out Board Detection Device 5 Vdc... - Page 9 Normally Open (N/O) or Normally Closed (N/C) termination to operate the external device. Refer to the image below. 1 core cable Output 1 Gallagher 8In 4Out Board Gallagher Fuse Board...
- Page 10 4. Connect power to the controller The power supply comes pre-installed in the cabinet. It can power the electrical hardware and charge up to two 7 Ah 12 V batteries. It provides a battery charging current of 3.5 A. The power supply provides two alarm outputs for monitoring battery low voltage and mains failure alarms.
- Page 11 Mains Failure alarm The Mains Failure system alarm will be triggered when the mains voltage falls below approximately 90 V or when the mains voltage rises above approximately 250 V. This output is connected to Input 16 in the default configuration.
- Page 12 If you have no login details, please contact Gallagher Technical Support. Note: The SMB Configuration App is a web-based portal and does not require you to download an app from the iOS or Google Play Store.
- Page 13 The key account holder will be the first person from your customer’s site to download the Gallagher SMB App. The Key Account holder performs a similar role to a facility manager and is the person who will invite other users, to the site.
- Page 14 5. Enter cloud for the username, then GGLcloud for the password and press Enter. The Gallagher Cloud Controller Configuration web page displays. 6. Select the required link to configure the Controller as needed. 7. When finished, set DIP switch 1 to OFF.
- Page 15 8. Configure the site Configure the site using the SMB Configuration App. Configure Areas, Inputs, Outputs, Doors, then click PUBLISH to download the configuration changes to the controller. For configuration instructions, refer to the Help Centre for Installers. 9. Test the site Test Mode allows technicians to install, configure, and test an SMB site without alarming others by setting off sirens or other devices activated in response to an alarm.
- Page 16 Disclaimer: Please note that information contained in this document is intended for general information only. While every effort has been taken to ensure accuracy at the date of the document, there may be errors or inaccuracies and specific details may be subject to change without notice. Copyright © Gallagher Group Ltd.
-
Page 17: Technical Specifications
Technical specifications Power supply Value Input voltage 90 - 250 V AC Output voltage Primary 13.8 V Output current 3.5 A Power rating 51.38 W Battery low and mains failure outputs Normal state 2.5 V Alarm state 3 V Temperature range -10 °C to 50 °C (14 °F to 122 °F) Controller Value... - Page 18 Temperature range -35 °C to +70 °C Direct sunlight may increase the internal reader temperature above the ambient temperature level Humidity 0 - 95% non-condensing Environmental protection IP68 Impact rating IK07 Unit dimensions T11 Reader: Height 115 mm (4.5 inches) Width 70 mm (2.8 inches) Depth 12 mm (0.5 inches) T15 Reader:...
